A.Y. McDonald · Sewage Pump Package
DuraMAC Sewage Ejector Packages
Pre-assembled simplex packages with a 1/2 HP cast iron sewage pump, basin, lid, check valve and stub pipe, ready to set: 30 or 45 gallon basins, with or without a tank alarm.
25 ft Max Lift · 80 GPM Max
1/2 HP 120V 1Ph
30 or 45 Gallon Basin
2 in Solids
2 in Discharge
4 in Inlet
Alarm Options
Pre-Assembled
54-65 lb Weight
What Ships and What It Needs to Run
Included: the 5050CTSJ or 5050CVSJ 1/2 HP cast iron sewage pump with float switch; a structural foam basin with 4 in inlet hub; a gasketed structural foam lid with stainless steel fasteners; a 2 in full-flow check valve with rubber boots; and a 30 in, 2 in PVC stub pipe (18 x 30 in packages). Alarm models add the tank alarm. Contents by model are in the table below.
Sized at install: discharge and vent piping beyond the stub pipe, shutoff valve, electrical.
Overview
These pre-assembled simplex sewage packages are designed for any residential sewage application. With a 30 gallon basin (45 gallons on the 24 x 24 in package), 2 in solids handling and a 2 in discharge pipe connected to the pump, each package is ready to install.
-

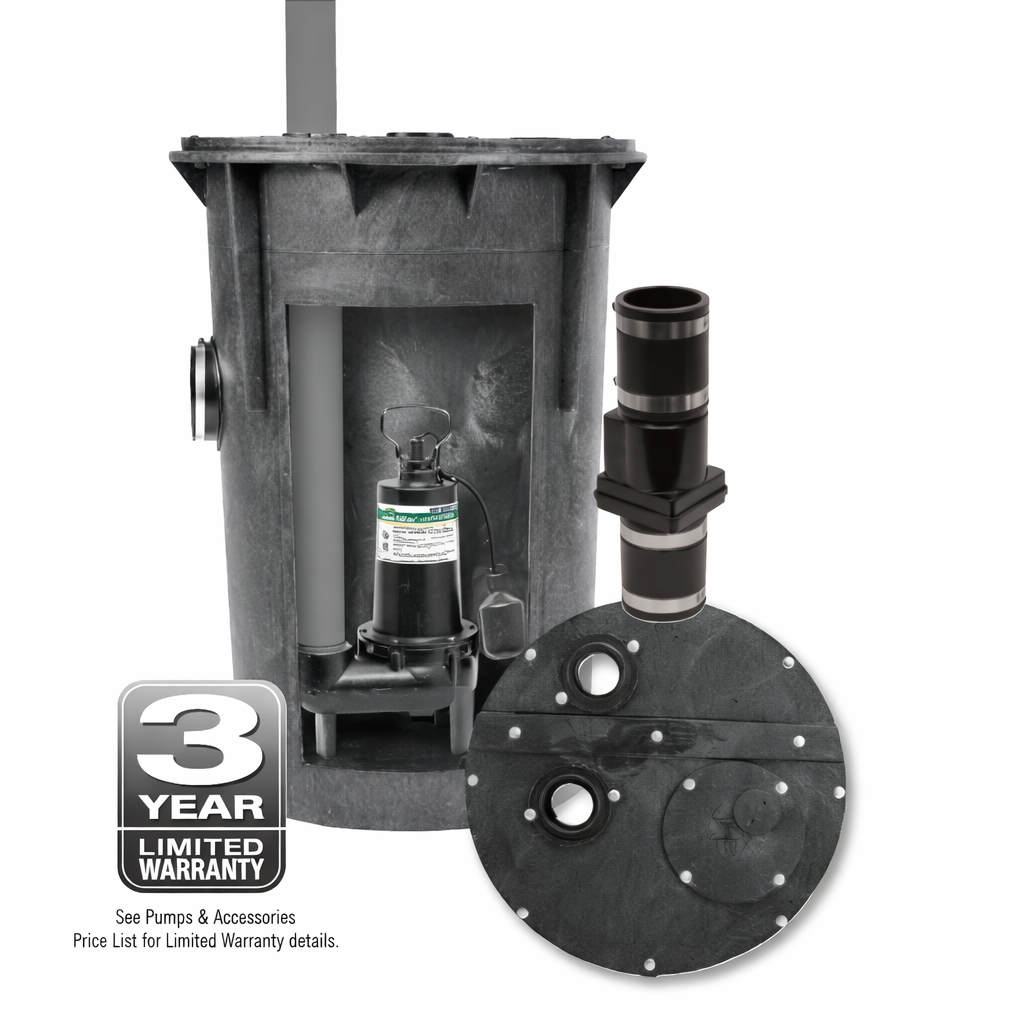

Split lid (PACSL) — reach the pump without disturbing the discharge pipe; inspection port included.
-
Alarm packages — automatic alarm reset, silence and test switches. The PACSDA has a side discharge and a NEMA 3R alarm; the DA1 models a top discharge and a NEMA 1 alarm.
- Non-clogging stainless steel vortex impeller.
Genuine A.Y. McDonald equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier. Watermain Supply is an Authorized Stocking A.Y. McDonald and Baker Water Systems Distributor.
A.Y. McDonald Warranty by Model
Under Baker Manufacturing’s published limited warranty (A.Y. McDonald Pumps & Accessories price list, effective 7/1/26): 3 years from the date of installation: 5050CTSJPAC, 5050CTSJPACSDA, 5050CTSJPACSL, 5050CTSJPAC24. 1 year from the date of installation, or 2 years from the date of manufacture, whichever comes first: 5050CTSJPACDA1, 5050CVSJPACCH, 5050CVSJPACDA1. Per Baker’s terms, the warranty does not cover failure caused by sand or abrasive materials in the water.
Outgrow It and You Don’t Replace It
Simplex package. For duplex stations, ask us.
Models & Ratings (60 Hz)
| Model |
Part No. |
Pump |
Basin |
Lid |
Alarm |
Cord |
Weight |

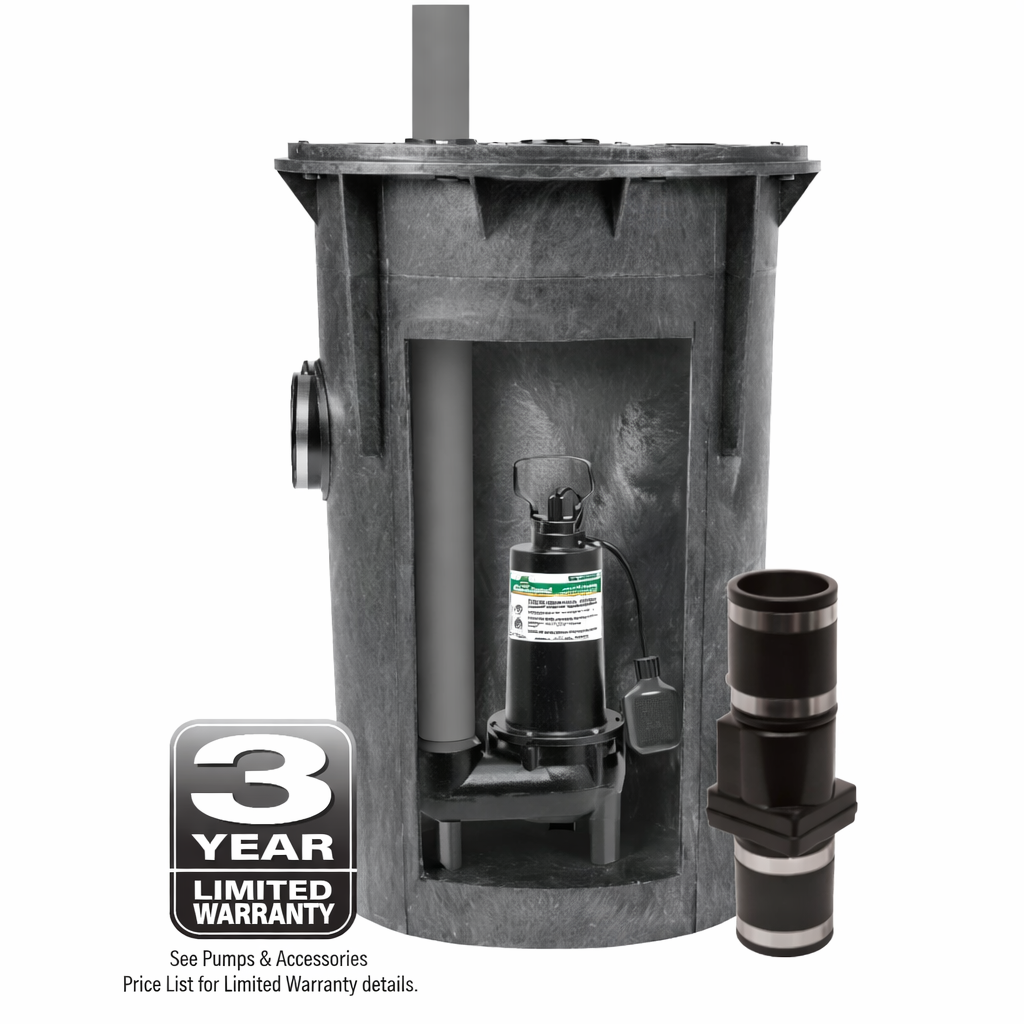

| 5050CTSJPAC |
6192-115 |
5050CTSJ, tethered |
18 x 30 in, 30 gal, Snap-In-Hub |
Solid |
None |
10 ft |
54 lb |

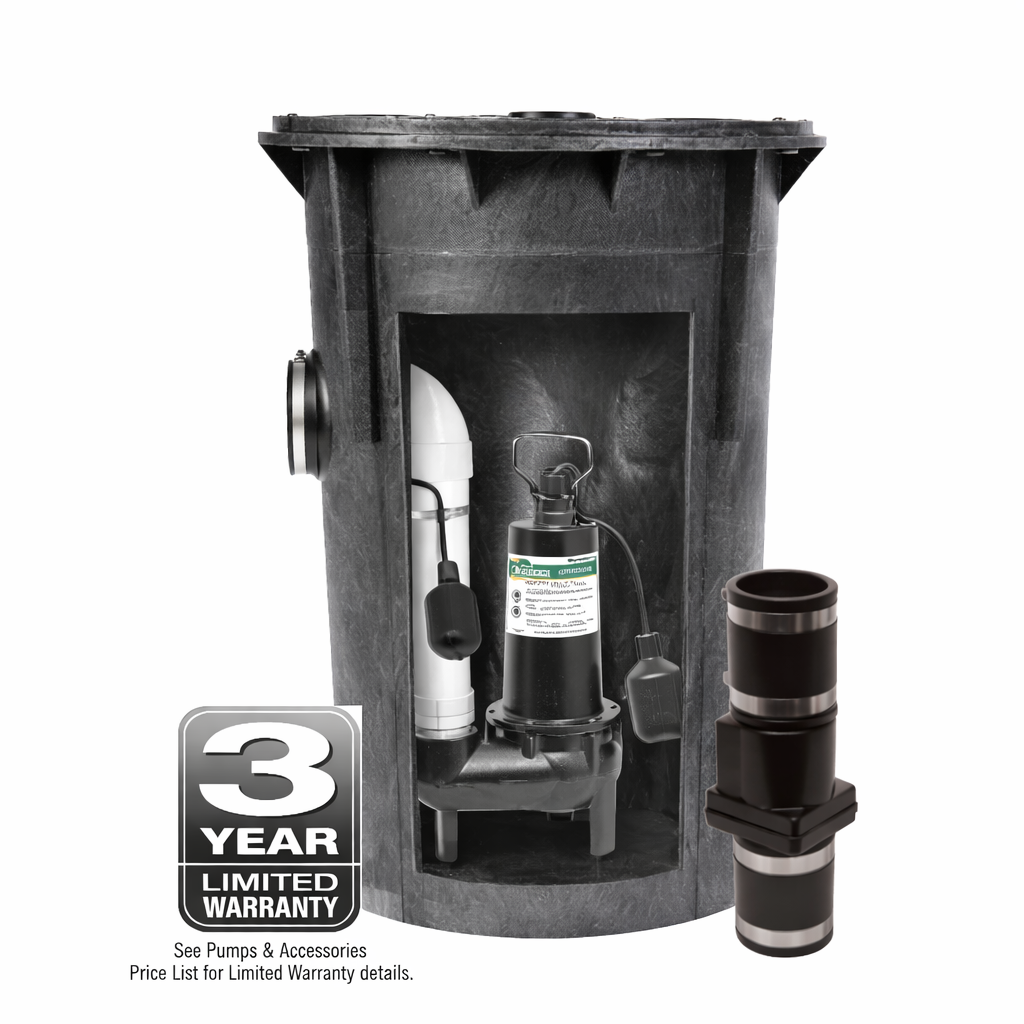

| 5050CTSJPACSDA |
6192-122 |
5050CTSJ25, tethered |
18 x 30 in, Snap-In-Hub, side discharge |
Solid |
NEMA 3R |
25 ft |
65 lb |

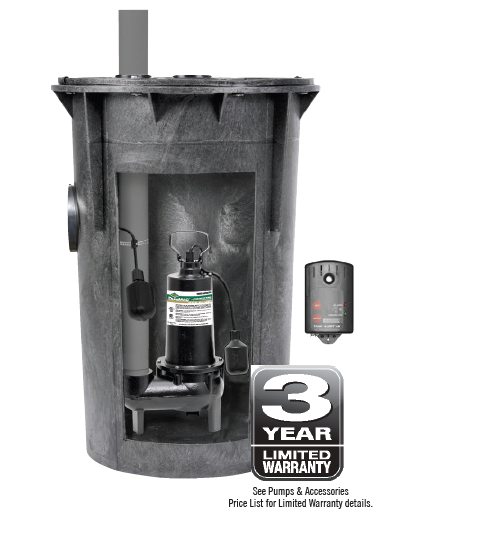

| 5050CTSJPACDA1 |
6192-130 |
5050CTSJ, tethered |
18 x 30 in, Combo Hub, top discharge |
Solid |
NEMA 1 |
10 ft |
62 lb |
| 5050CVSJPACCH |
6192-132 |
5050CVSJ, vertical |
18 x 30 in, Combo Hub (per model code) |
Solid |
None |
10 ft |
54 lb (est.) |
| 5050CVSJPACDA1 |
6192-134 |
5050CVSJ, vertical |
18 x 30 in, Combo Hub, top discharge |
Solid |
NEMA 1 |
10 ft |
62 lb (est.) |
| 5050CTSJPACSL |
6192-120 |
5050CTSJ, tethered |
18 x 30 in, Snap-In-Hub |
Split, with inspection port |
None |
10 ft |
58 lb |

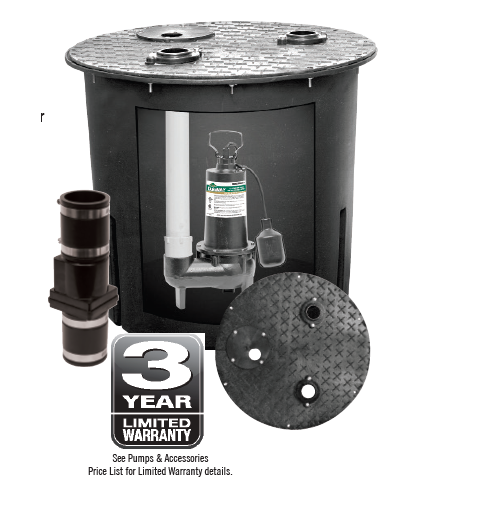

| 5050CTSJPAC24 |
6192-121 |
5050CTSJ, tethered |
24 x 24 in, 45 gal |
Solid |
None |
10 ft |
62 lb |
Source: A.Y. McDonald Pumps by Baker catalog, rev 3/26, and Pumps & Accessories price list, effective 7/1/26.
Shared Specifications
| Pump |
1/2 HP cast iron sewage, 120V 1 phase, 7.6 A |
| Solids |
2 in |
| Discharge |
2 in, full-flow check valve with rubber boots |
| Inlet |
4 in |

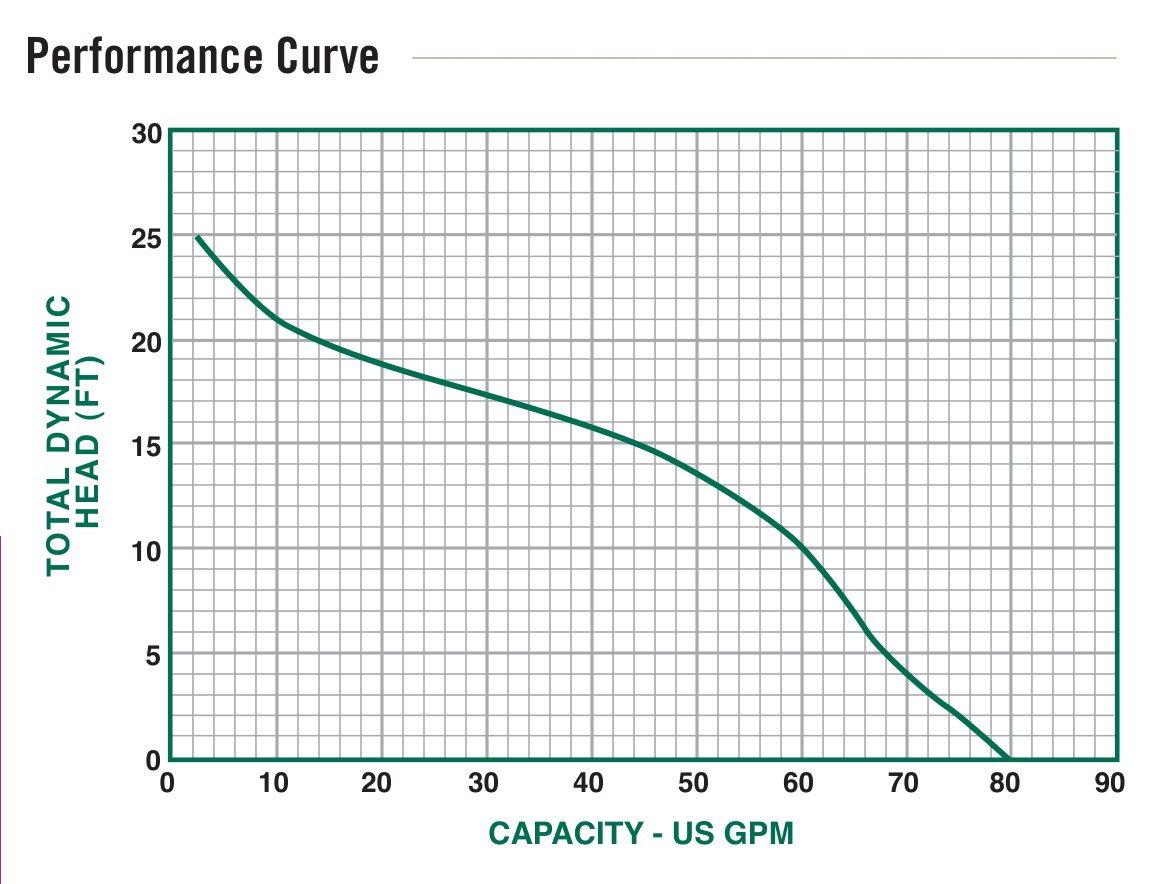

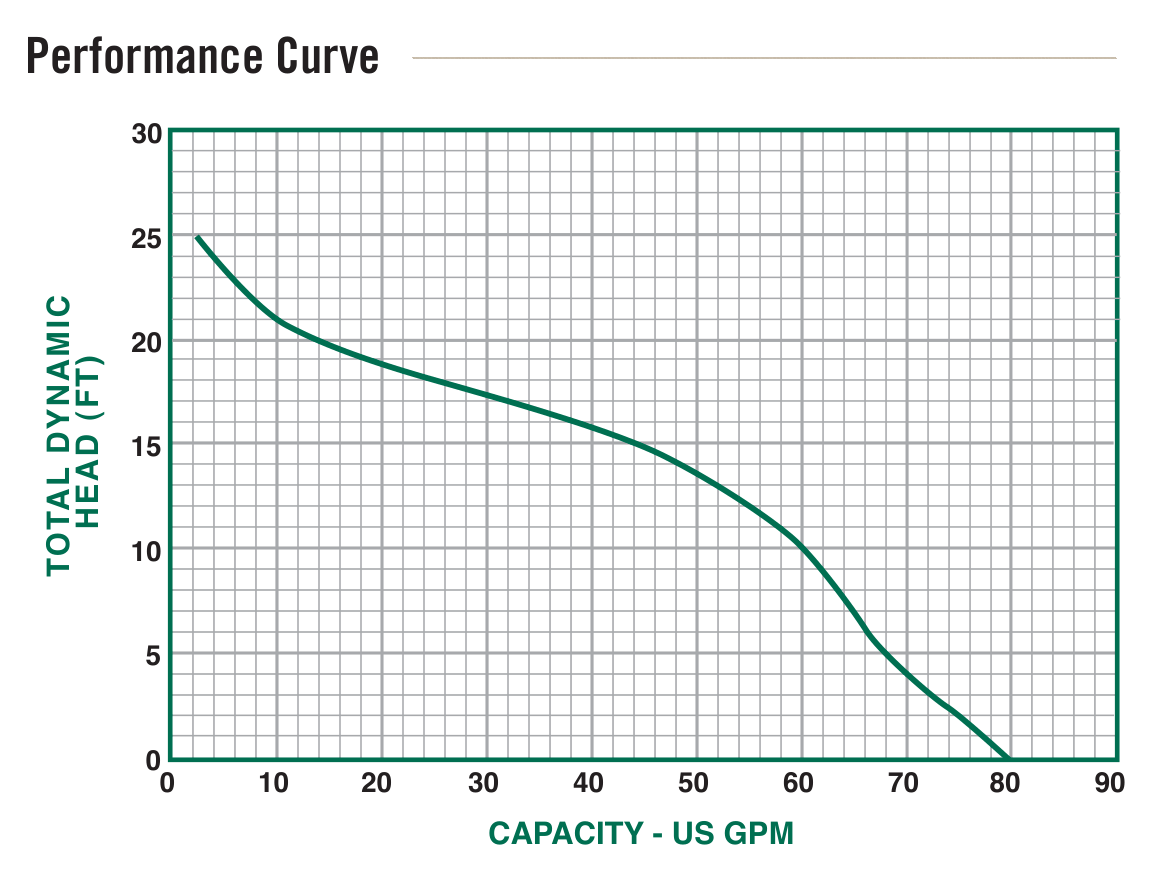

Performance — Will It Do What You Need?
| Total head → |
0 ft |
5 ft |
10 ft |
15 ft |
20 ft |
25 ft |
| Pump in every package (5050CTSJ / CVSJ) |
80 |
68 |
60 |
44 |
13 |
2 |
Gallons per minute at each total head, as printed by A.Y. McDonald. Total head is the vertical lift from the water level to the highest point of the discharge, plus pipe and fitting friction. A dash is a head the pump does not reach. Source: A.Y. McDonald Pumps by Baker catalog, rev 3/26, pp. 314 to 318. The 5050CVSJPACCH and 5050CVSJPACDA1 are vertical-switch packages from the 7/1/26 price list; contents shown are inferred from the model codes and the matching catalog packages.
Before You Buy — The Limits That Decide the Fit
| Discharge velocity |
Codes require at least 2 ft/s in the discharge pipe: about 21 GPM in 2 in pipe. Check the table at your total head. |
| Basin |
A sealed, vented sewage basin with a gasketed lid; check local code for vent size. |
| Alarm |
A high-water alarm is good practice and required by many codes. |
| Check valve and shutoff |
Fit a check valve and a full-port shutoff on the discharge. |
| Power |
120V single phase. |
Accessories
| Accessory |
Code |
Description |
| Lid gasket |
5000LDGKT |
Replacement lid gasket |
| Side discharge gasket |
5000SDGSKT |
4 in side discharge gasket |
