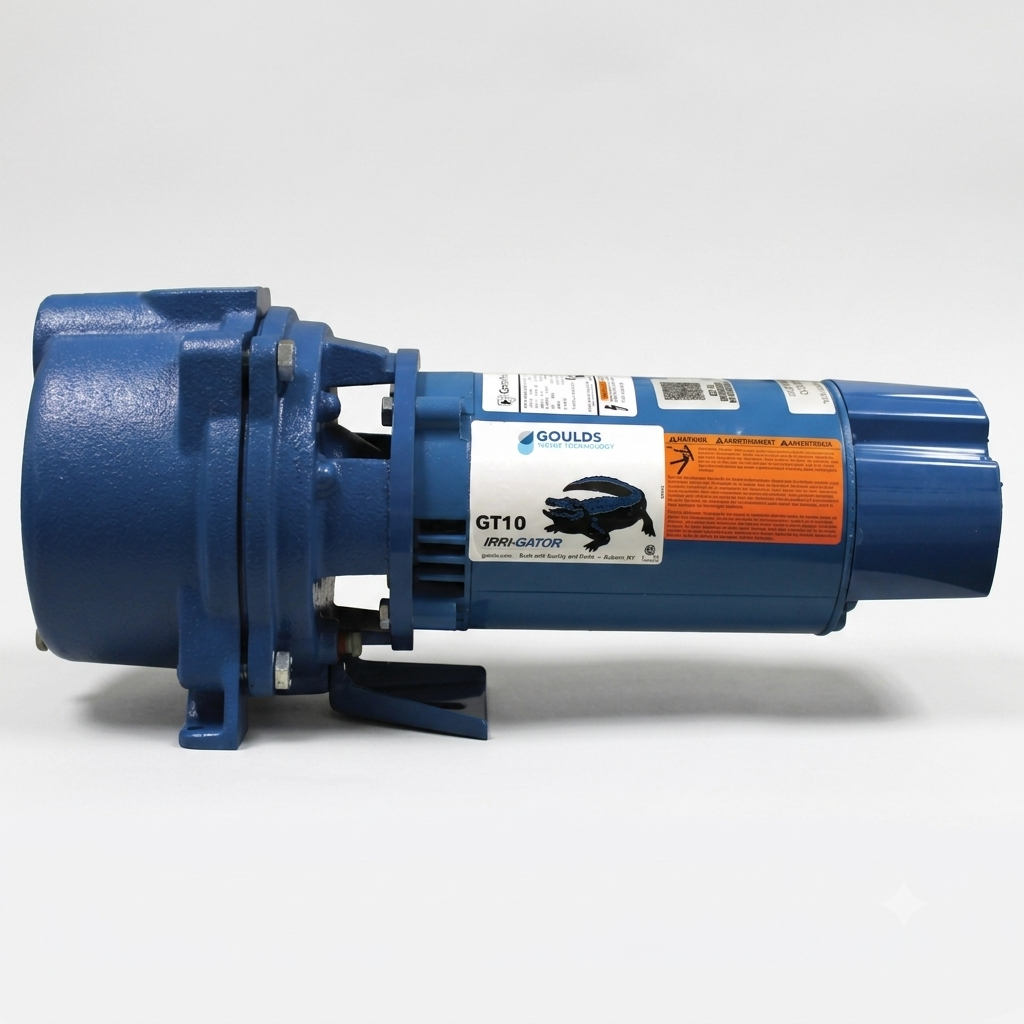

Goulds GT IRRI-GATOR Self-Priming Centrifugal Irrigation Pump
Goulds GT IRRI-GATOR Self-Priming Centrifugal Irrigation Pump

Goulds GT IRRI-GATOR Self-Priming Centrifugal Irrigation Pump

Horsepower: ¾ HP
Phase: Single-Phase
$600
SKU: GT07
Weight: 47.999 lb
Available For Order! Call Sales Counter for accurate lead-time!
Description
Goulds Water Technology

GT IRRI-GATOR

Self-priming, single-stage centrifugal pumps for lawn sprinkling, HVAC and general water transfer. Cast iron casing, Noryl® impeller, 1½″ NPT connections. Ten models from ¾ HP to 3 HP in single- and three-phase.

Self-Priming
Cast Iron Casing
¾–3 HP
1&3 Phase
1½″ NPT
ODP Motor
Overview

The Goulds GT IRRI-GATOR is a line of end-suction, single-stage, self-priming centrifugal pumps engineered for lawn & turf sprinkling, HVAC systems, and general water transfer. A rugged cast iron casing, corrosion-resistant electro-coat finish, and back pull-out design deliver dependable high-volume performance season after season.

Select your horsepower and phase from the options above. Models run from ¾ HP through 3 HP in single-phase (GT07–GT30) and three-phase (GT073–GT303), all with NEMA-standard 3500 RPM open drip-proof (ODP) motors and 1½″ NPT suction and discharge.

Key Features
Self-Priming
Once initially primed, the pump is capable of re-prime — ideal for above-water installations.
Field Serviceable
Back pull-out design allows servicing without disturbing the suction or discharge piping.
Cast Iron Casing
Strong, durable casing with tapped openings for vacuum gauge and casing drain.
Electro-Coat Finish
Electro-coat paint process for superior corrosion resistance.
Noryl® Impeller
Enclosed, glass-filled Noryl® impeller with Lexan® guidevane — corrosion and abrasion resistant.
Optional Silicon Brass
Optional Silicon Brass impeller available (add “B” suffix); interchangeable with Noryl®, same hydraulic performance.
Specifications
Pump Type End-suction, single-stage, self-priming centrifugal
Casing Cast iron, electro-coat finish
Impeller Noryl® 20% glass-filled (Silicon Brass optional)
Guidevane Lexan® 10% glass-filled
Motor NEMA standard, 3500 RPM, Open Drip-Proof (ODP)
Connections 1½″ NPT suction & discharge
Capacities To 110 GPM at 5 ft suction lift; heads to 128 ft
Max Working Pressure 125 psi
Model Reference
Model HP Phase Voltage Full Load Amps Approx. Wt.
GT07 ¾ Single (1/60) 115/230 13.8 / 6.9 48 lb
GT10 1 Single (1/60) 115/230 16 / 8 52 lb
GT15 1½ Single (1/60) 115/230 20 / 10 60 lb
GT20 2 Single (1/60) 230 13.9 65 lb
GT30 3 Single (1/60) 230 17 76 lb
GT073 ¾ Three (3/60) 208-230/460 3.1-2.8 / 1.4 49 lb
GT103 1 Three (3/60) 208-230/460 4-3.6 / 1.8 52 lb
GT153 1½ Three (3/60) 208-230/460 5.7-5.2 / 2.6 55 lb
GT203 2 Three (3/60) 208-230/460 7.5-6.8 / 3.4 69 lb
GT303 3 Three (3/60) 208-230/460 10.6-9.6 / 4.8 71 lb
Performance
Model (by HP) Peak Flow @ 20 PSI, 5 ft lift
GT07 / GT073 (¾ HP) up to 44 GPM
GT10 / GT103 (1 HP) up to 53 GPM
GT15 / GT153 (1½ HP) up to 63 GPM
GT20 / GT203 (2 HP) up to 86 GPM
GT30 / GT303 (3 HP) up to 105 GPM
⚠ Confirm Before Ordering
Verify horsepower, phase, and supply voltage against your service before ordering. Single-phase and three-phase units are not interchangeable. Install horizontally with discharge on top; never run the pump dry or against a closed discharge valve. Wire and ground per local and National Electrical Code requirements.
Ready to Order?
Confirm HP, phase, and voltage before placing your order.
Shop Watermainsupply.com

281.664.8000

sales@watermainsupply.com

© Watermain Supply — A division of E4 Industrial LLC
Data Sheet
Data Sheet
GT IRRI-GATOR Product Data SheetManufacturer brochure with features, materials, and full performance ratings (GPM by model across discharge pressure and suction lift).
Pump Data Sheet
Technical Details
Technical Details
GT IRRI-GATOR Technical BrochureComplete technical brochure — applications, full pump and motor specifications, dimensions, agency listings, and ordering options.
Pump Technical Details
Instruction Manual
Instruction Manual
Installation, Operation & Maintenance ManualOfficial Goulds Water Technology IOM manual (Doc. IM049R10) — safety, engineering data, piping, wiring & grounding, priming, and service procedures.
Pump Instruction Manual
