Dresser · Compression Fitting

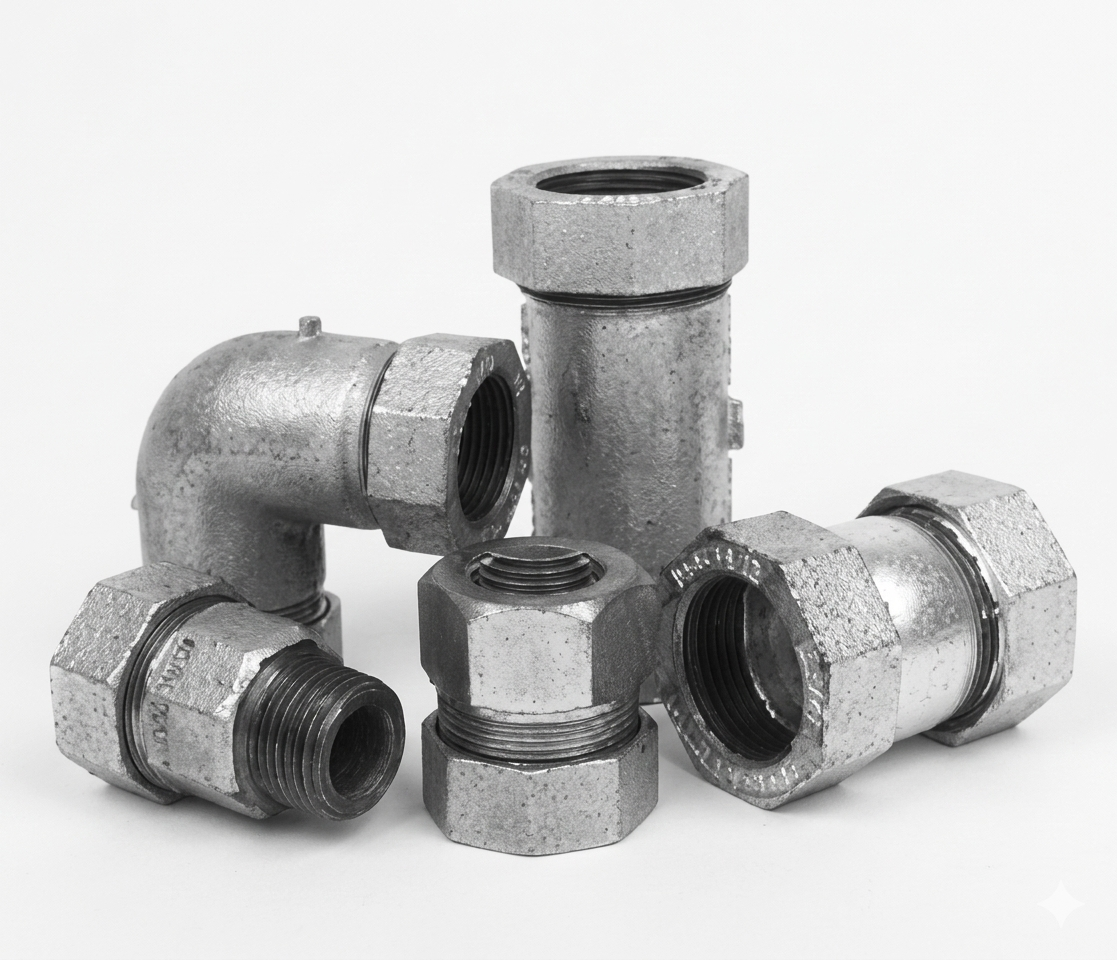

Style 65 Compression Couplings and Fittings
Boltless, factory-assembled couplings, long couplings, elbows and male adapters for plain-end steel pipe, 1/2 through 2 in.
Malleable Iron Bodies to ANSI 150 PSI Fittings
150°F Max Service
Armored Grade 27 Buna-S Gasket
Galvanized or E-Coat Finish
No Threading or Flaring
0.84-2.38 in Pipe OD
0.54-5.6 lb Weight
Overview

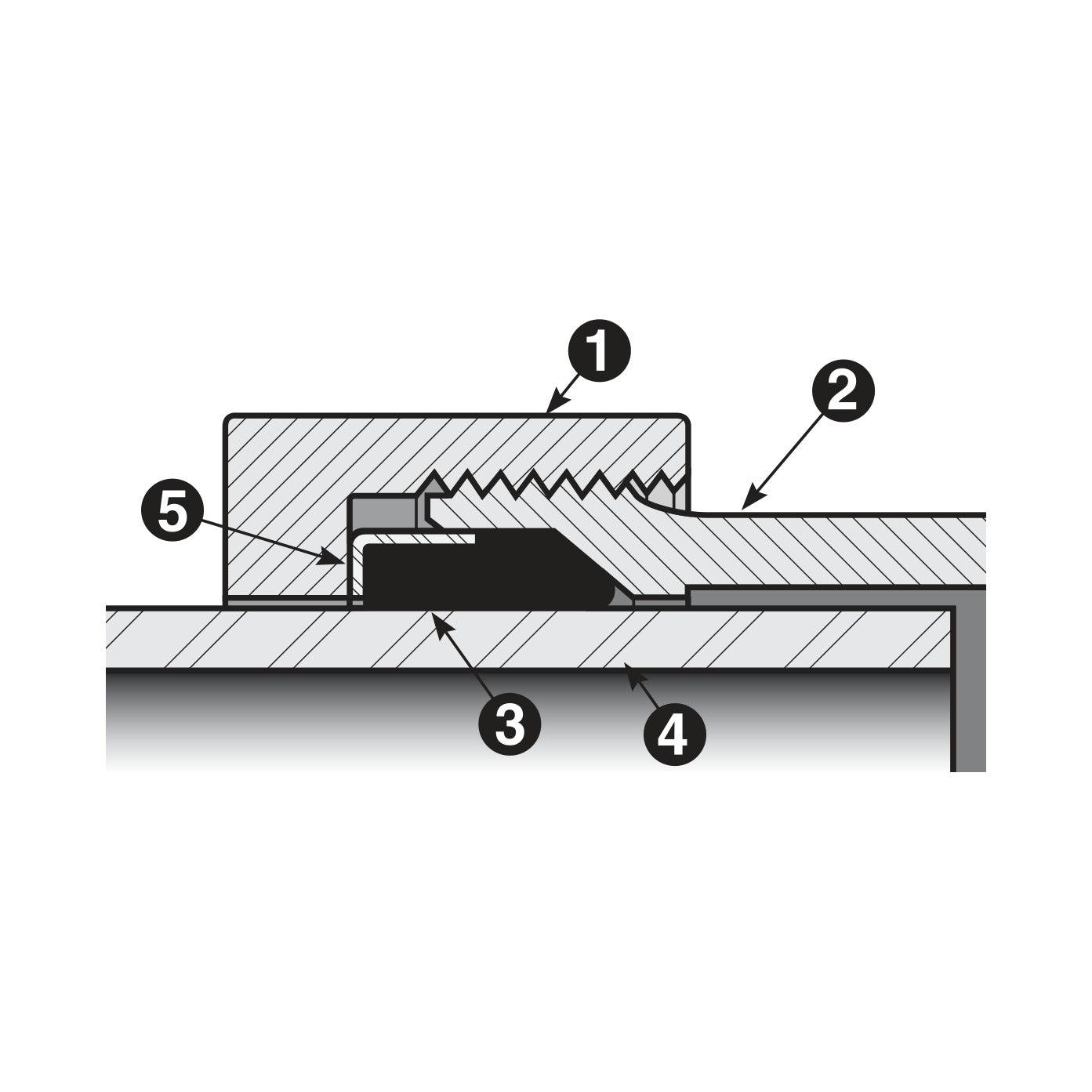

Dresser Style 65 compression fittings install on plain-end steel pipe without threading, flaring or exact fitting: loosen the end nuts, stab the pipe in and tighten the nuts. The resilient gasket keeps the joint flexible, absorbing expansion, contraction and vibration, and the pipe keeps its full wall thickness at every joint.
Application: Steel water and service lines, 1/2 through 2 in.
- Shipped assembled and ready to install

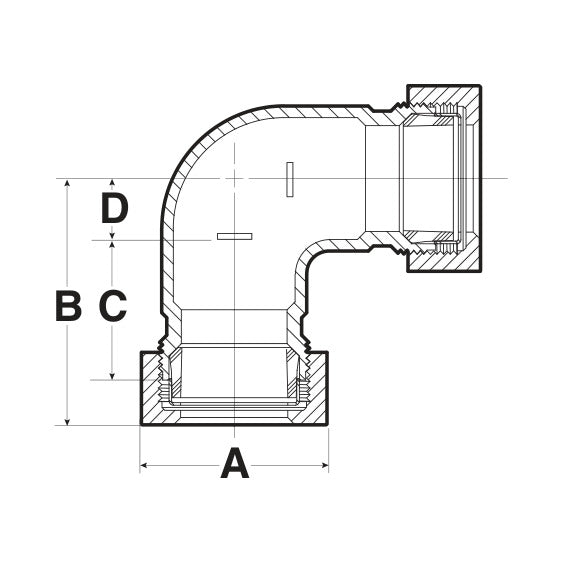

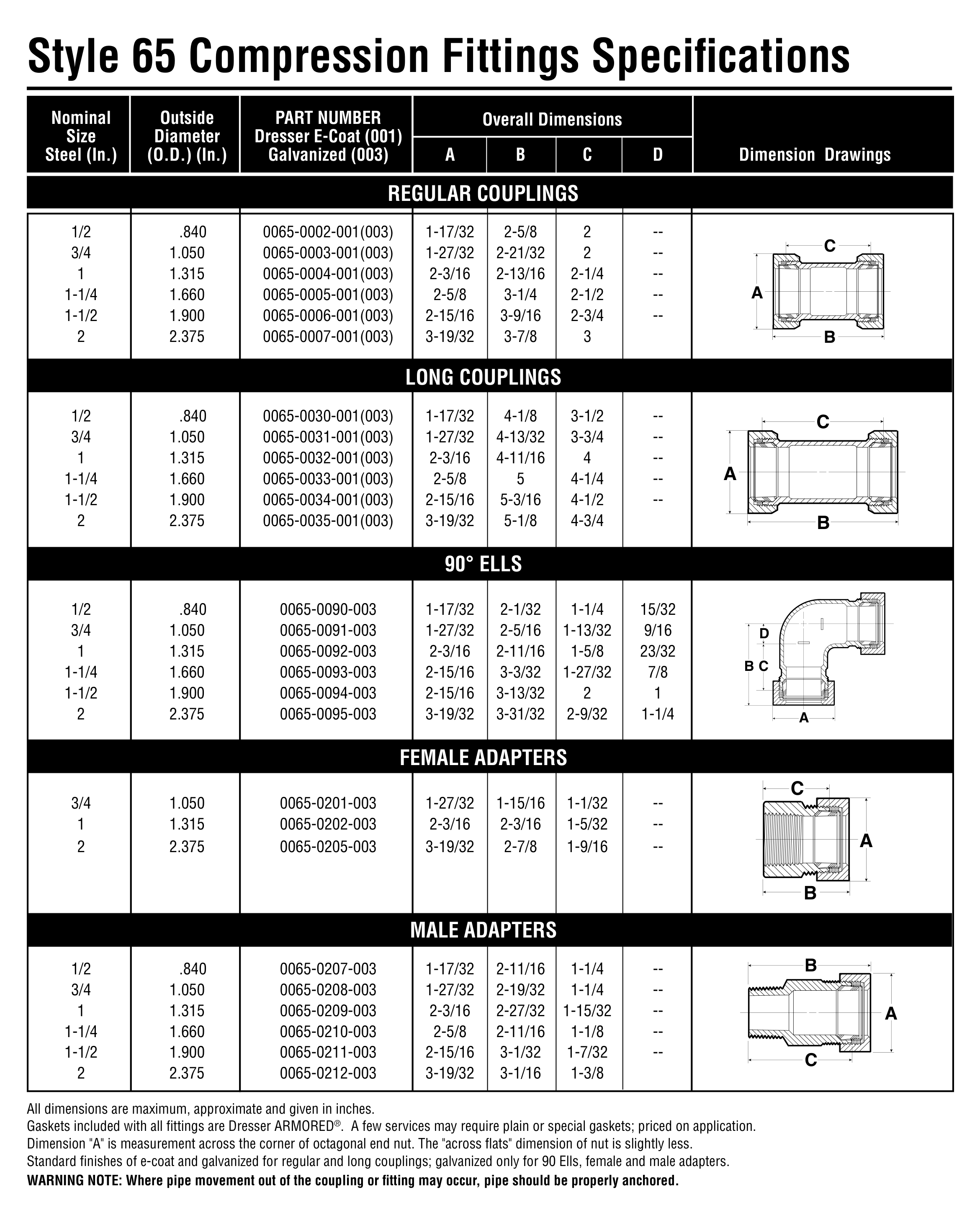

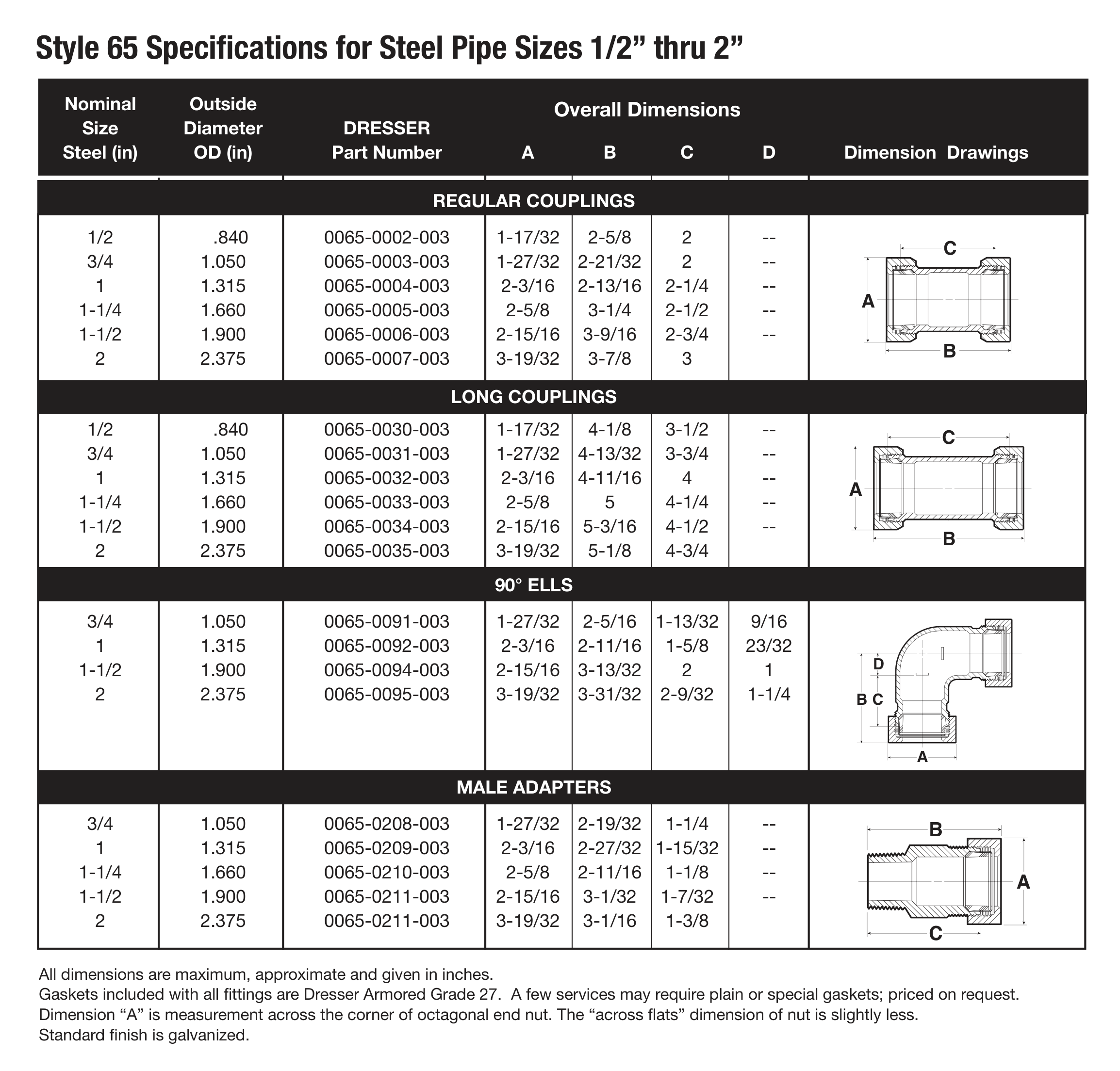

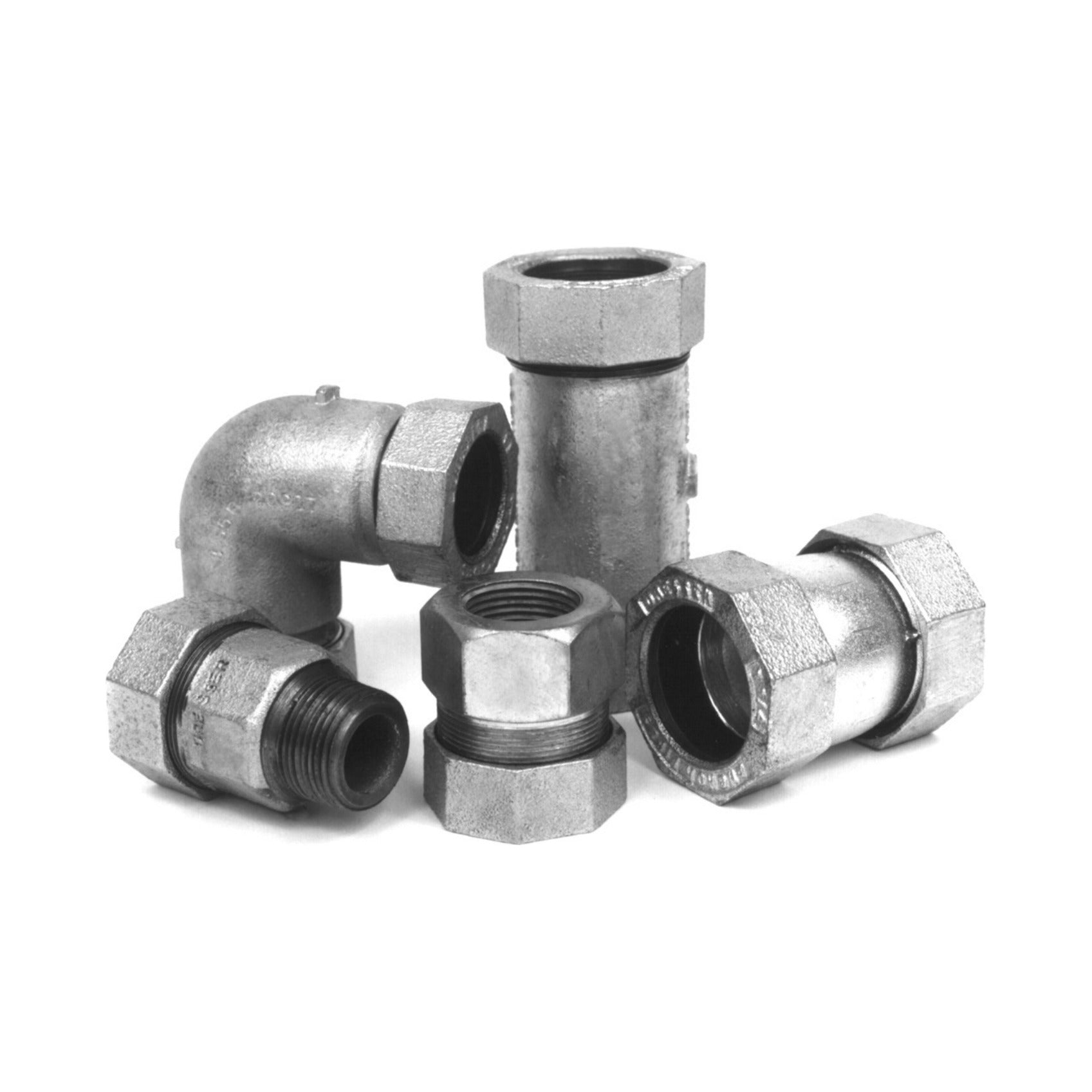

- Couplings, long couplings, 90 and 45 degree elbows, male adapters
- Armored Grade 27 gaskets standard; Grade 42 armored on request
- Insulating adapter gaskets join steel to copper of the same nominal size
What Ships and What It Needs to Run
Included: the fitting, assembled, with Armored Grade 27 gaskets, retainer rings and end nuts.
Pipe prepared before install: clean, round pipe where the gaskets seat, free of gouges and loose scale.
Anchoring, by others: the fitting seals but does not restrain the pipe.
Genuine Dresser equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier.
12-Month Dresser Warranty
Covered for 12 months from the date of purchase under Dresser’s published warranty terms.
Working Pressure
Malleable iron bodies conform to ANSI specifications for 150 PSI rated fittings. Maximum service temperature is 150°F; Dresser recommends the Style 165 above that. The allowable pressure on a job also depends on the pipe, its condition, the service and the workmanship.

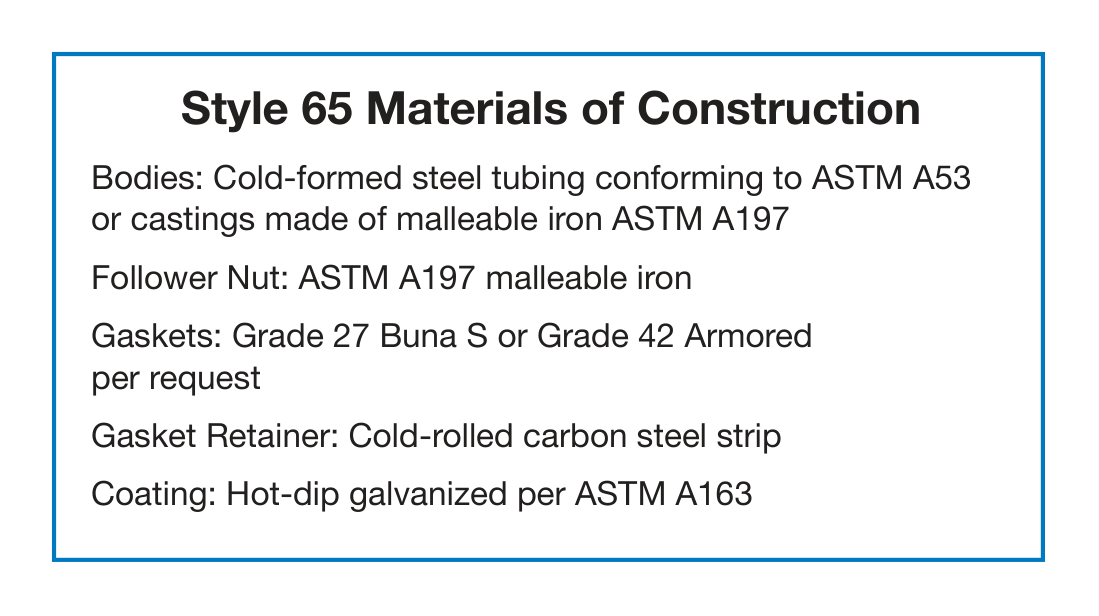

Materials Specifications
| Bodies |
Cold-formed steel tubing to ASTM A53, or malleable iron to ASTM A197 |
| End nuts |
Malleable iron to ASTM A197 |
| Gaskets |
Armored Grade 27 Buna-S; Grade 42 armored on request |
| Gasket retainer |
Cold-rolled carbon steel strip |
| Finish |
Galvanized to ASTM A153; couplings also in Dresser E-coat |
Source: Dresser Style 65 data sheet, 2021.
Installation Notes
- Mark the pipe and stab it into the fitting to the full stab depth.
- Read the Dresser installation instructions and warnings before installing.
Source: Dresser Gas Product Selection Guide (NGS-DPS-015), product warnings.
Before You Order. Ells and male adapters are galvanized; couplings come galvanized (-003) or E-coated (-001). Anchor the pipe: the fitting provides a pressure seal only, and Dresser requires the joint to be anchored wherever pipe pullout could occur. Non-stock Dresser parts are not returnable without Dresser’s authorization, and ship time is confirmed when you order. Custom builds (other sizes, widths, gaskets or materials) are available: email
sales@watermainsupply.com with the pipe OD, material and line content.
