Dresser Style 4 & 41 Gasket - Collar Leak Clamps

Nominal Size - OD: 3 in - 3.50 in OD
Clamp - Part No.: Style 4 - 3004-0007-001

Product variant with selected options does not exist!
$63.03
SKU: 3004-0007-001
Weight : 0.5 lb
Loading locations...
Free Shipping $499 or more
Skip the chatbot. Talk to an expert.
1-888.510.4036 · Same-day shipping available
Description
Dresser · Clamp Gasket

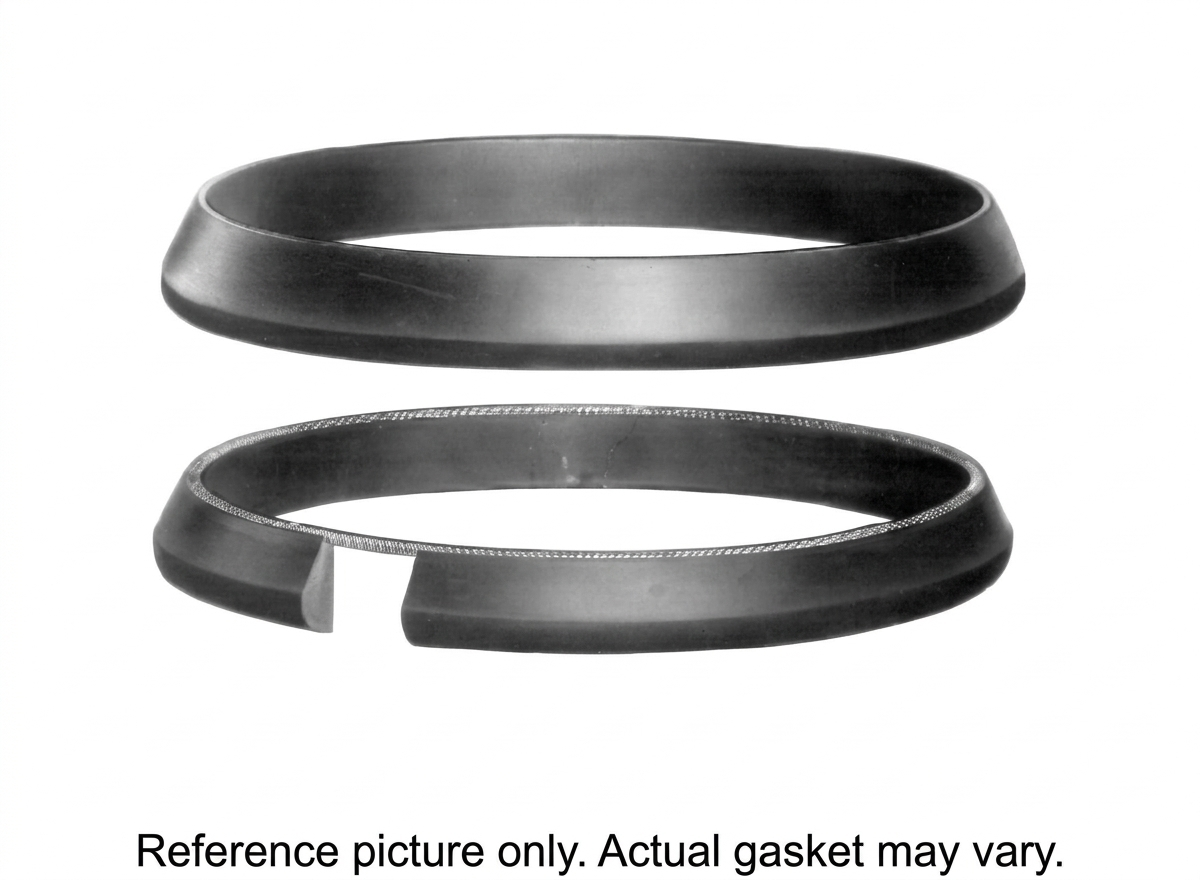

Style 4 and 41 Collar Clamp Gasket
Split rectangular gaskets for Style 4 (2 to 4 in) and Style 41 (6 to 12 in) collar leak clamps.
212°F Max
Grade 27 Buna-S

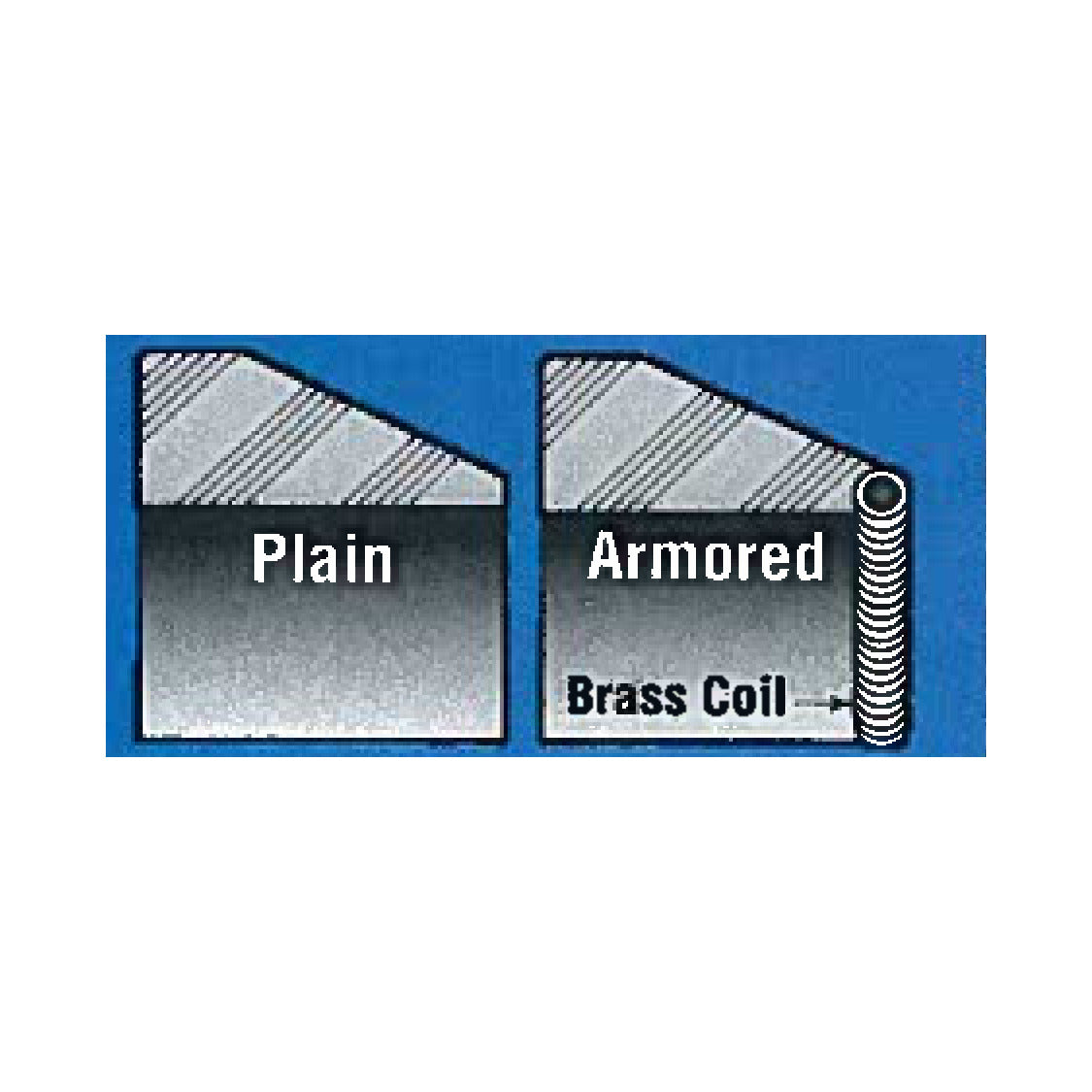

Split Rectangular Section
For Style 4 and 41 Clamps
3.50-10.75 in Pipe OD
0.5-2 lb Weight
Overview

Replacement split gaskets for Dresser Style 4 and 41 collar leak clamps, which stop leaks through the threads of screw collars. The split design goes on without disconnecting the line.

Application: Re-gasketing Style 4 and 41 collar clamps on steel lines.

  • Split rectangular section
  • Style 4 sizes 3 and 4 in; Style 41 sizes 6, 8 and 10 in
What Ships and What It Needs to Run

Included: one split gasket per part number.

Coupling or fitting parts, by others: followers, bolts and middle rings are not included unless named in the option.

Genuine Dresser equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier.
12-Month Dresser Warranty

Covered for 12 months from the date of purchase under Dresser’s published warranty terms.

Specifications
Material SBR Buna-S, Grade 27
Max temperature 212°F

Dresser gasket grade overview and Grade 27 submittal, 2021.

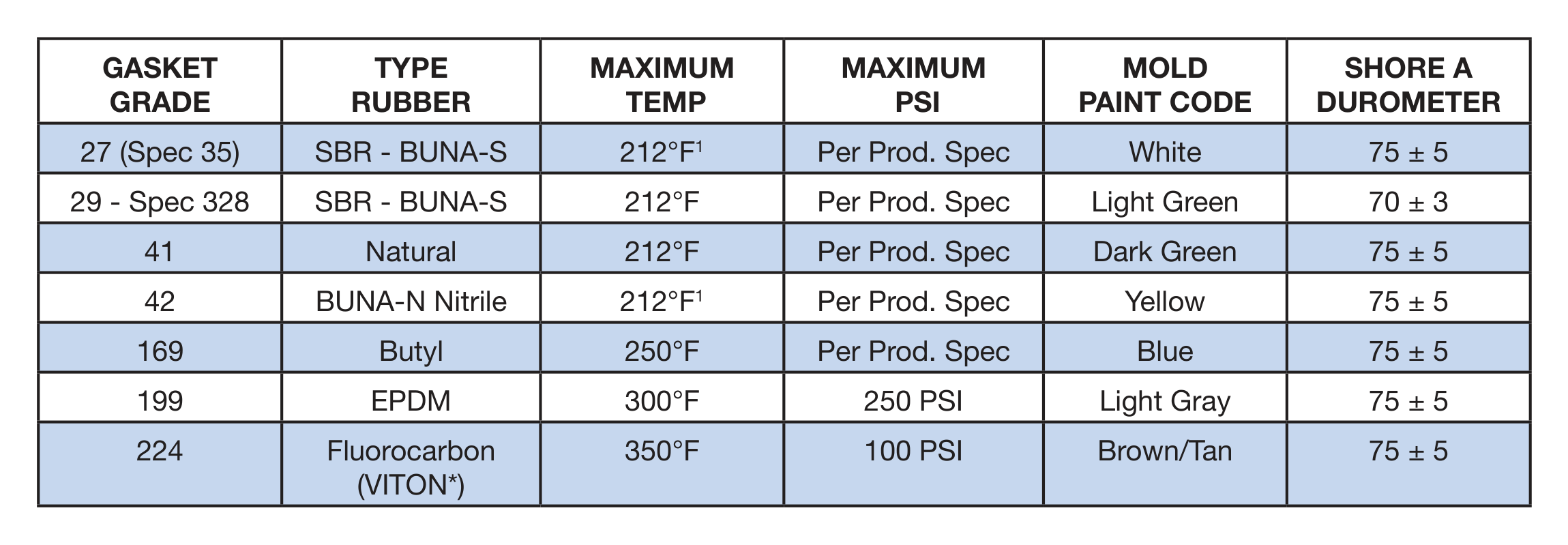

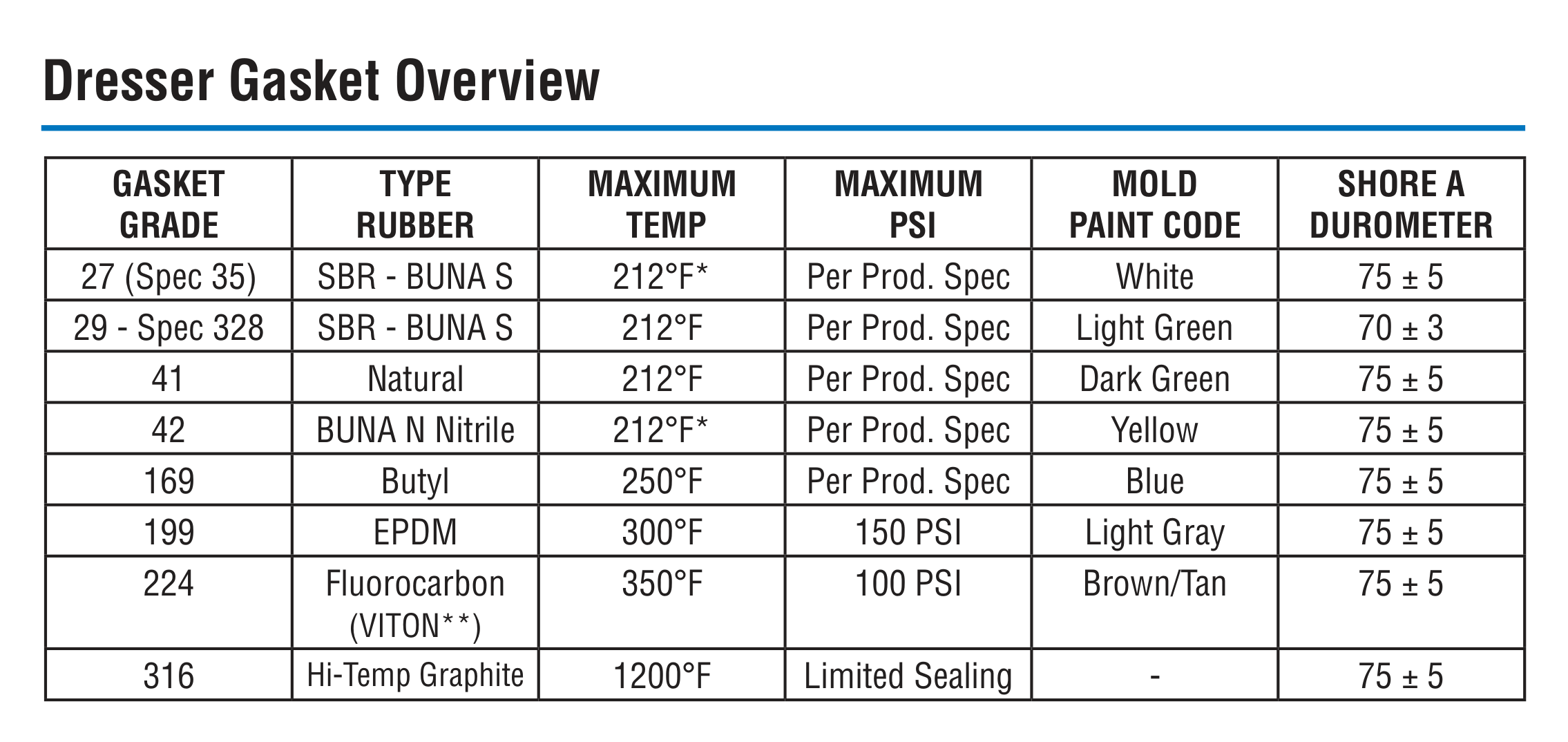

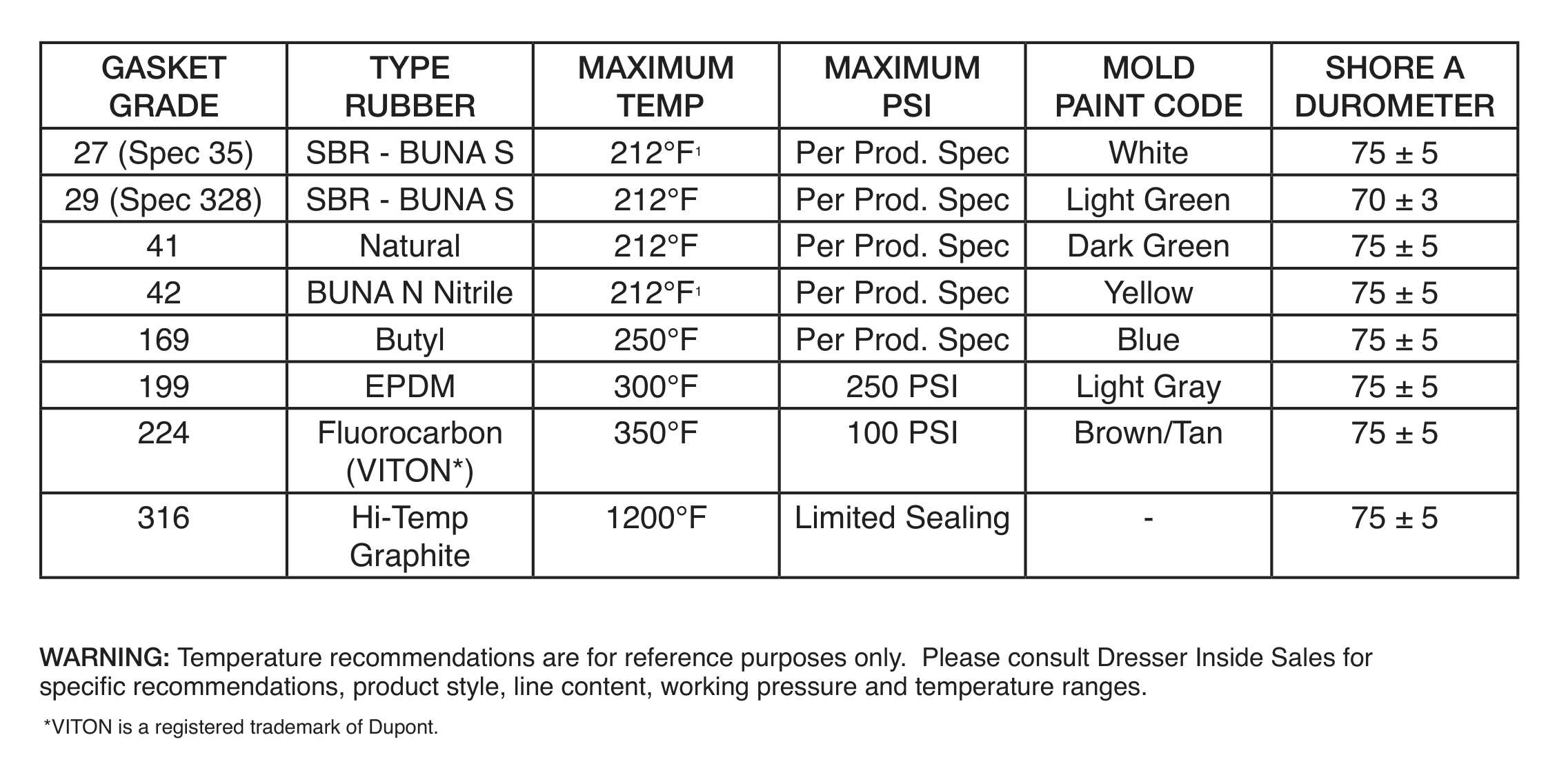

Gasket Grades
Grade Rubber Max temperature Max pressure Mold code
27 SBR Buna-S 212°F Per coupling rating White
41 Natural 212°F Per coupling rating Dark green
42 Buna-N nitrile 212°F Per coupling rating Yellow
224 Fluorocarbon (Viton) 350°F 100 PSI Brown/tan
365 Graphite fiber 1,200°F None (may not seal leak-tight) —

Dresser gasket grade overview, 2021. In Style 65, 88 and 90 compression fittings the maximum is 150°F.

Storage: Dresser rubber gaskets keep five years or more on the shelf stored cool (32 to 80°F), dark and away from ozone, sunlight and weather, lying in their normal ID-OD position with nothing stacked on them.

Sizes
Nominal Size - OD Clamp
3 in - 3.50 in OD Style 4
4 in - 4.50 in OD Style 4
10 in - 10.75 in OD Style 41
6 in - 6.63 in OD Style 41
8 in - 8.63 in OD Style 41

Sizes as listed in Dresser’s 2026 price lists; the picker shows the part number for each build.

Before You Order. Match the pipe OD and the gasket section to the coupling or fitting; the part number is on the old gasket and in the coupling submittal. Non-stock Dresser parts are not returnable without Dresser’s authorization, and ship time is confirmed when you order. Custom builds (other sizes, widths, gaskets or materials) are available: email sales@watermainsupply.com with the pipe OD, material and line content.
For engineering-led sizing and selection support or a factory submittal, email sales@watermainsupply.com or call 1-888.510.4036.
