Dresser Style 60 & 160 Gasket - Bell Joint Clamps

Nominal Size: 3 in
Section - Part No.: 1-1/8 x 1 in Wedge - 3060-0001-001

Product variant with selected options does not exist!
$459.64
SKU: 3060-0001-001
Weight : 0.5 lb
Loading locations...
Free Shipping $499 or more
Skip the chatbot. Talk to an expert.
1-888.510.4036 · Same-day shipping available
Description
Dresser · Clamp Gasket
Style 60 and 160 Bell Joint Clamp Gasket
Split wedge gaskets for Style 60 and 160 bell joint clamps on cast iron bell and spigot joints, 3 through 48 in.
212°F Max
Grade 27 Buna-S

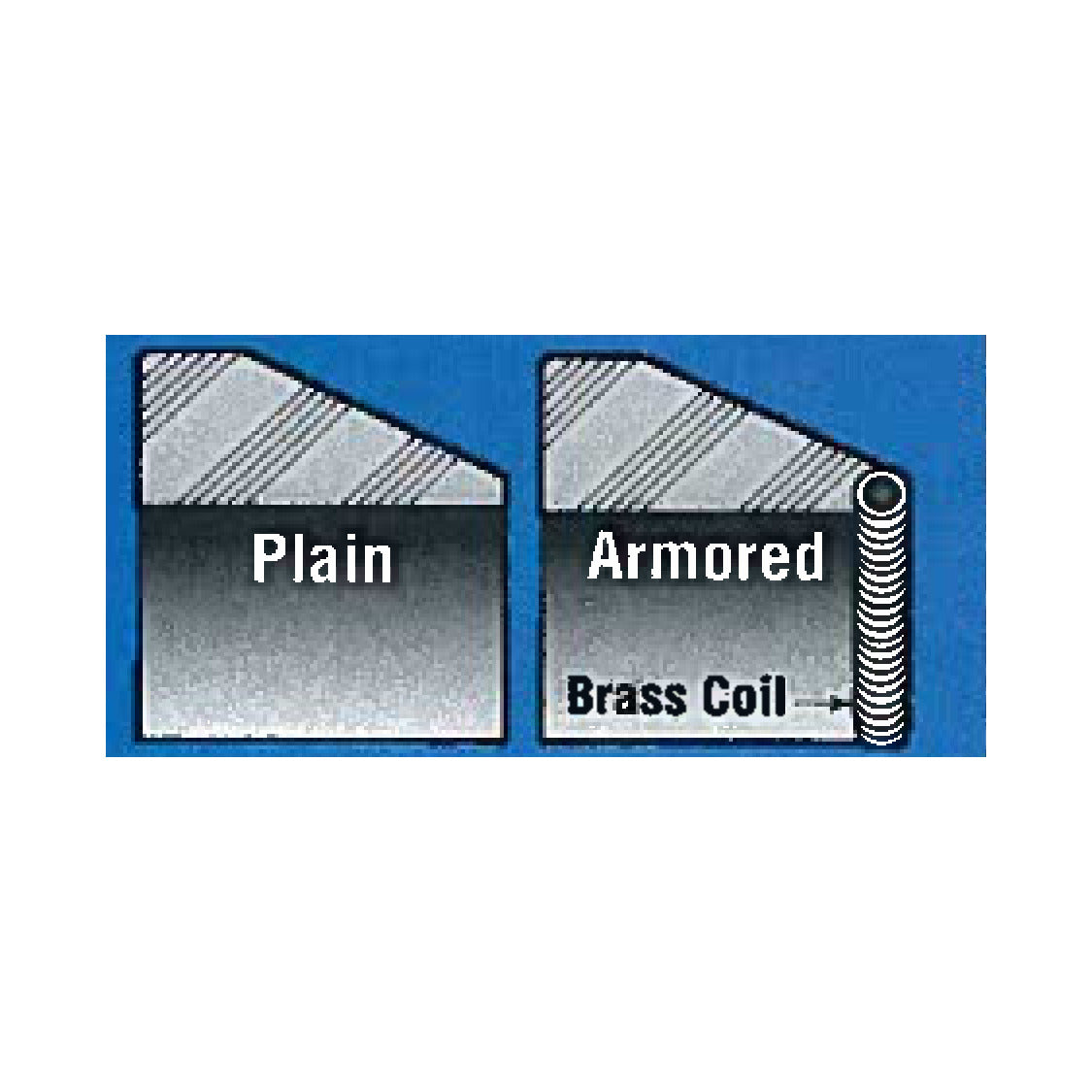

Split Wedge Section
For Style 60 and 160 Clamps
3-48 in Nominal
0.5-0.5 lb Weight
Overview

Replacement gaskets for Dresser Style 60 and 160 bell joint clamps. The large wedge gasket shuts off the leak at the bell when the spigot ring is drawn up against the bell ring.

Application: Re-gasketing bell joint clamps on cast iron water mains.

  • Split wedge: 1-1/8 x 1 in through 16 in, 1-1/4 x 1 in from 18 in
  • Grade 27 Buna-S standard
What Ships and What It Needs to Run

Included: one split gasket per part number.

Coupling or fitting parts, by others: followers, bolts and middle rings are not included unless named in the option.

Genuine Dresser equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier.
12-Month Dresser Warranty

Covered for 12 months from the date of purchase under Dresser’s published warranty terms.

Specifications
Material SBR Buna-S, Grade 27
Max temperature 212°F

Dresser gasket grade overview and Grade 27 submittal, 2021.

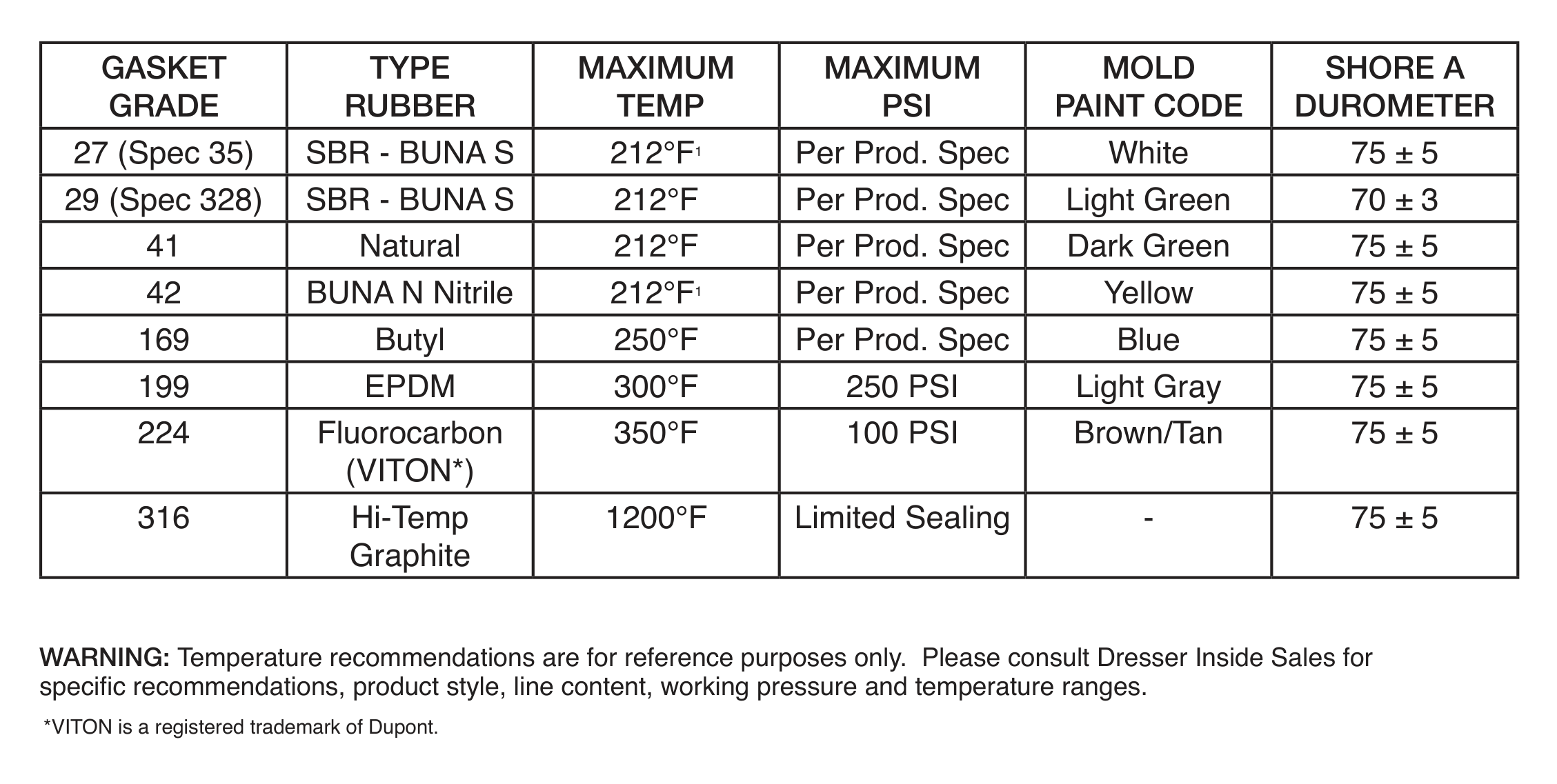

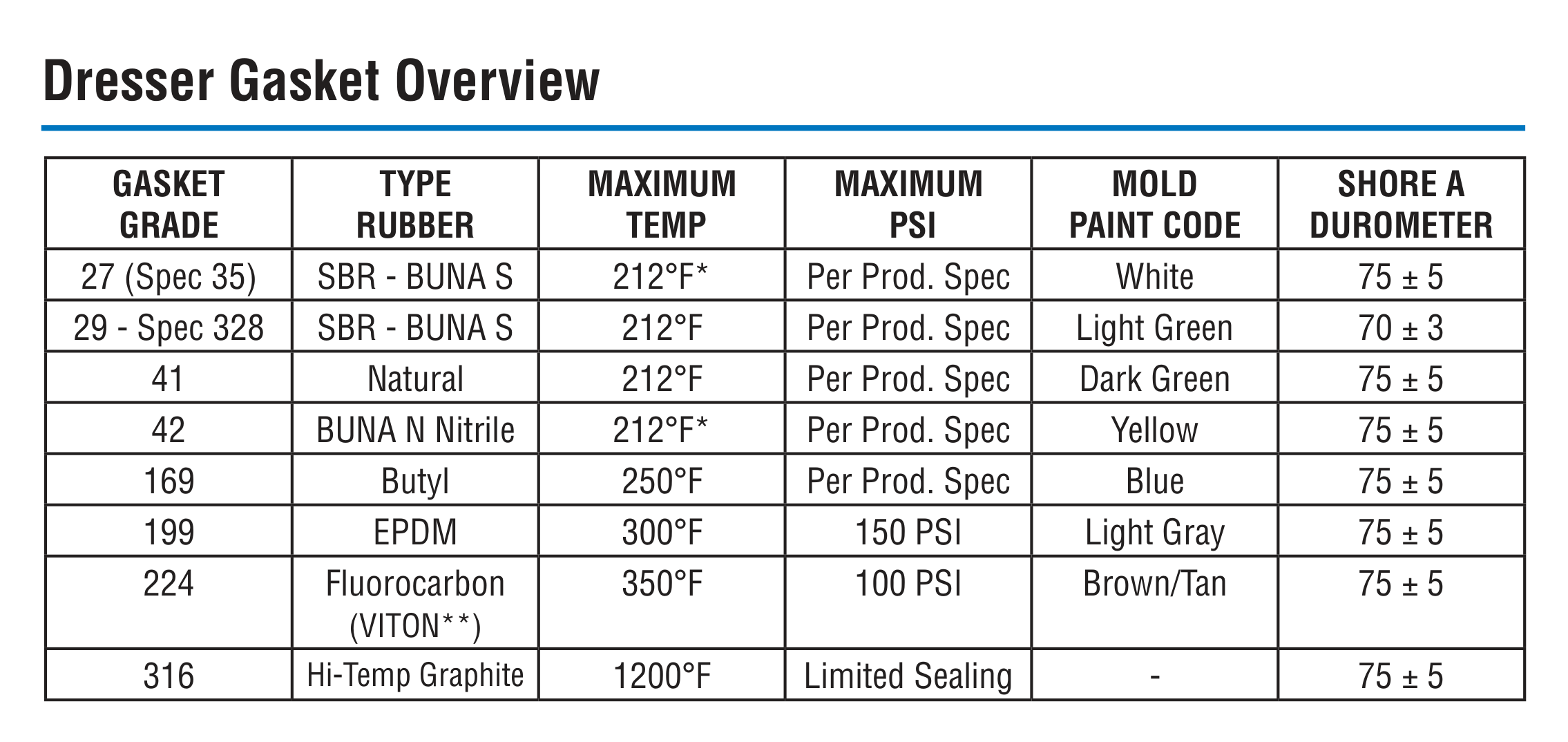

Gasket Grades
Grade Rubber Max temperature Max pressure Mold code
27 SBR Buna-S 212°F Per coupling rating White
41 Natural 212°F Per coupling rating Dark green
42 Buna-N nitrile 212°F Per coupling rating Yellow
224 Fluorocarbon (Viton) 350°F 100 PSI Brown/tan
365 Graphite fiber 1,200°F None (may not seal leak-tight) —

Dresser gasket grade overview, 2021. In Style 65, 88 and 90 compression fittings the maximum is 150°F.

Storage: Dresser rubber gaskets keep five years or more on the shelf stored cool (32 to 80°F), dark and away from ozone, sunlight and weather, lying in their normal ID-OD position with nothing stacked on them.

Sizes
All sizes (15 rows)
Nominal Size Section
3 in 1-1/8 x 1 in Wedge
4 in 1-1/8 x 1 in Wedge
6 in 1-1/8 x 1 in Wedge
8 in 1-1/8 x 1 in Wedge
10 in 1-1/8 x 1 in Wedge
12 in 1-1/8 x 1 in Wedge
14 in 1-1/8 x 1 in Wedge
16 in 1-1/8 x 1 in Wedge
18 in 1-1/4 x 1 in Wedge
20 in 1-1/4 x 1396 in Wedge
24 in 1-1/4 x 1397 in Wedge
30 in 1-1/4 x 1398 in Wedge
36 in Wedge
42 in Wedge
48 in Wedge

Sizes as listed in Dresser’s 2026 price lists; the picker shows the part number for each build.

Before You Order. Match the pipe OD and the gasket section to the coupling or fitting; the part number is on the old gasket and in the coupling submittal. Non-stock Dresser parts are not returnable without Dresser’s authorization, and ship time is confirmed when you order. Custom builds (other sizes, widths, gaskets or materials) are available: email sales@watermainsupply.com with the pipe OD, material and line content.
For engineering-led sizing and selection support or a factory submittal, email sales@watermainsupply.com or call 1-888.510.4036.
© Watermain Supply — A division of E4 Industrial LLC
Data Sheet
Gasket Grade Overview (2021) Style 60, 160 and 60-S Bell Joint Clamp Data Sheet Gasket Shelf Life and Storage Bulletin
