Not all boosting applications require complicated boosting systems. The DuraMAC™ Boosting system is simple, versatile, sophisticated, and reliable. With an easy setup installation and a versatile control with three modes of operation, this pump is flexible enough to meet your commercial or irrigation needs.

The 304 stainless steel version of the DuraMAC™ Booster pump will meet the needs of boosting water pressure from Reverse Osmosis (RO) systems, low PH and other agressive water applications which would be corrosive to no-lead brass and metal pipes.

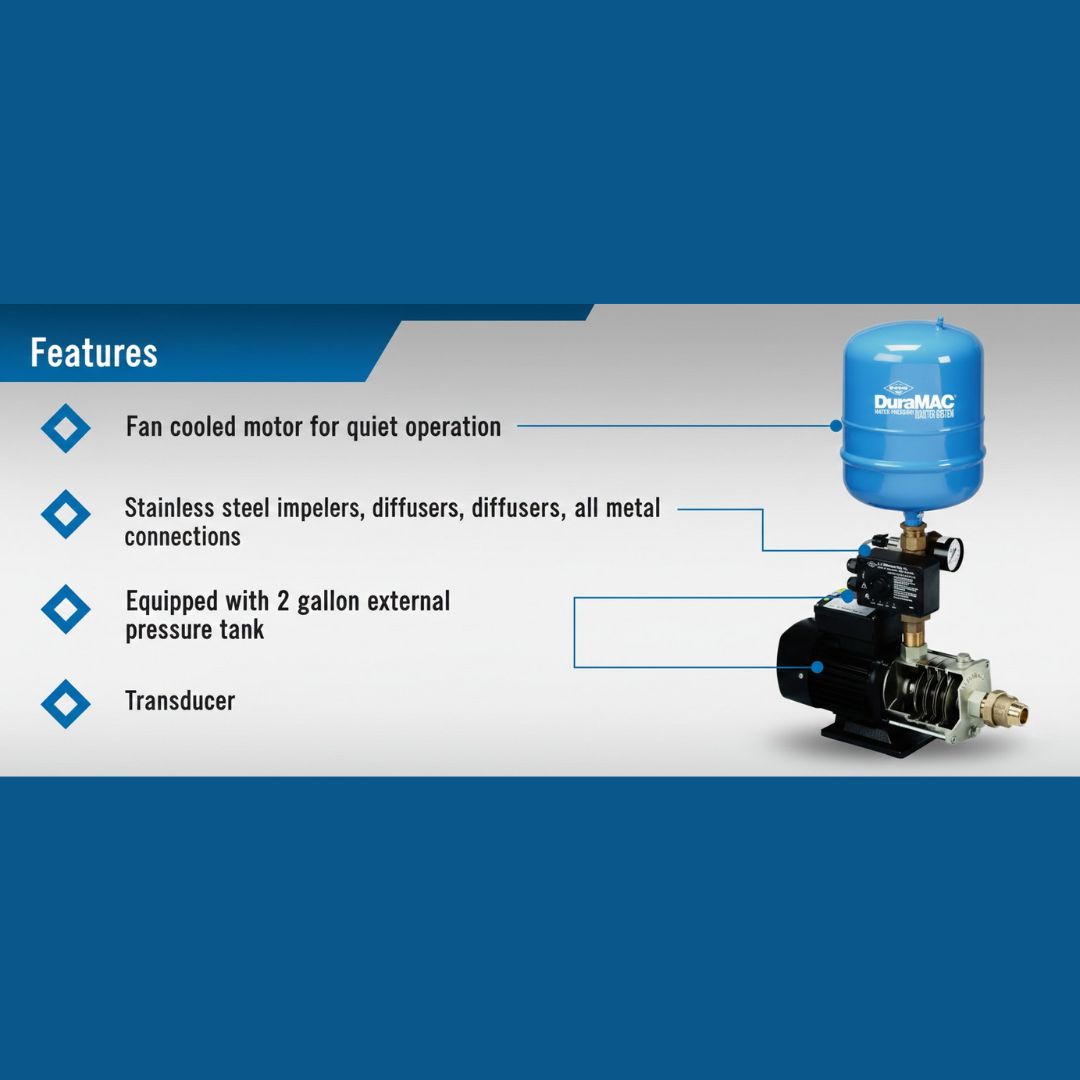

• Water pressure boosting system for residential irrigation or light commercial use

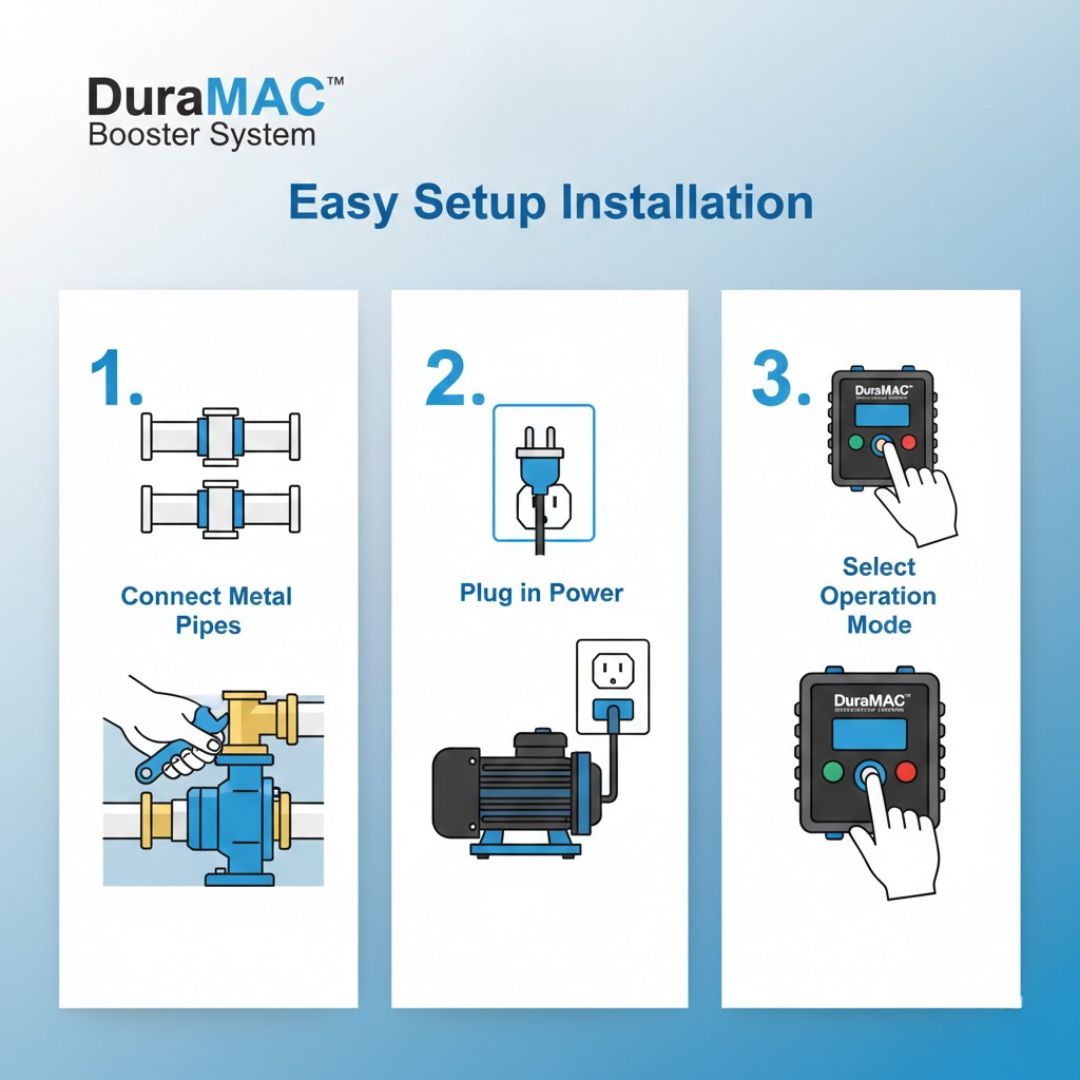

• Easy set-up installation
• Digital control for three modes of operation

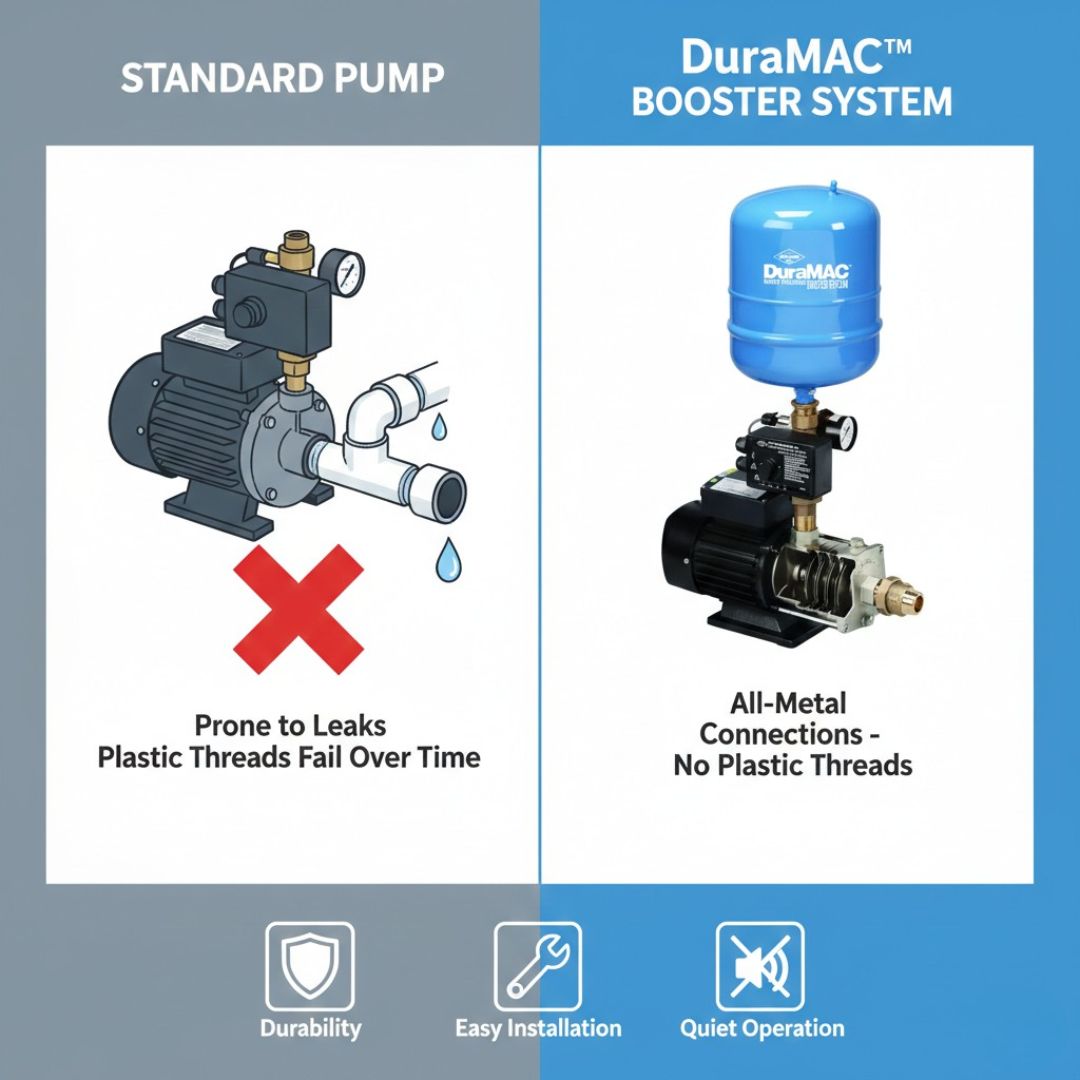

• Durable stainless steel and no-lead brass connections
• Two gallon pressure tank included
• TEFC single phase motor for quiet operation
• Electronics separated and sealed from waterway
• Pressure gauge included
• No-Lead brass check valve included
• Dry-Run protection


• Impellers: 304 Stainless Steel
• Pump Casing Inlet: 301 Stainless Steel
• Pump Casing Outlet: 301 Stainless Steel
• Pump Seal (stationary): Silicon Carbide
• Pump Seal: (rotating) Carbon / NBR
• Diffuser: 304 Stainless Steel
• Check Valve: No-Lead Brass
• Pump Controller Cross: No-Lead Brass

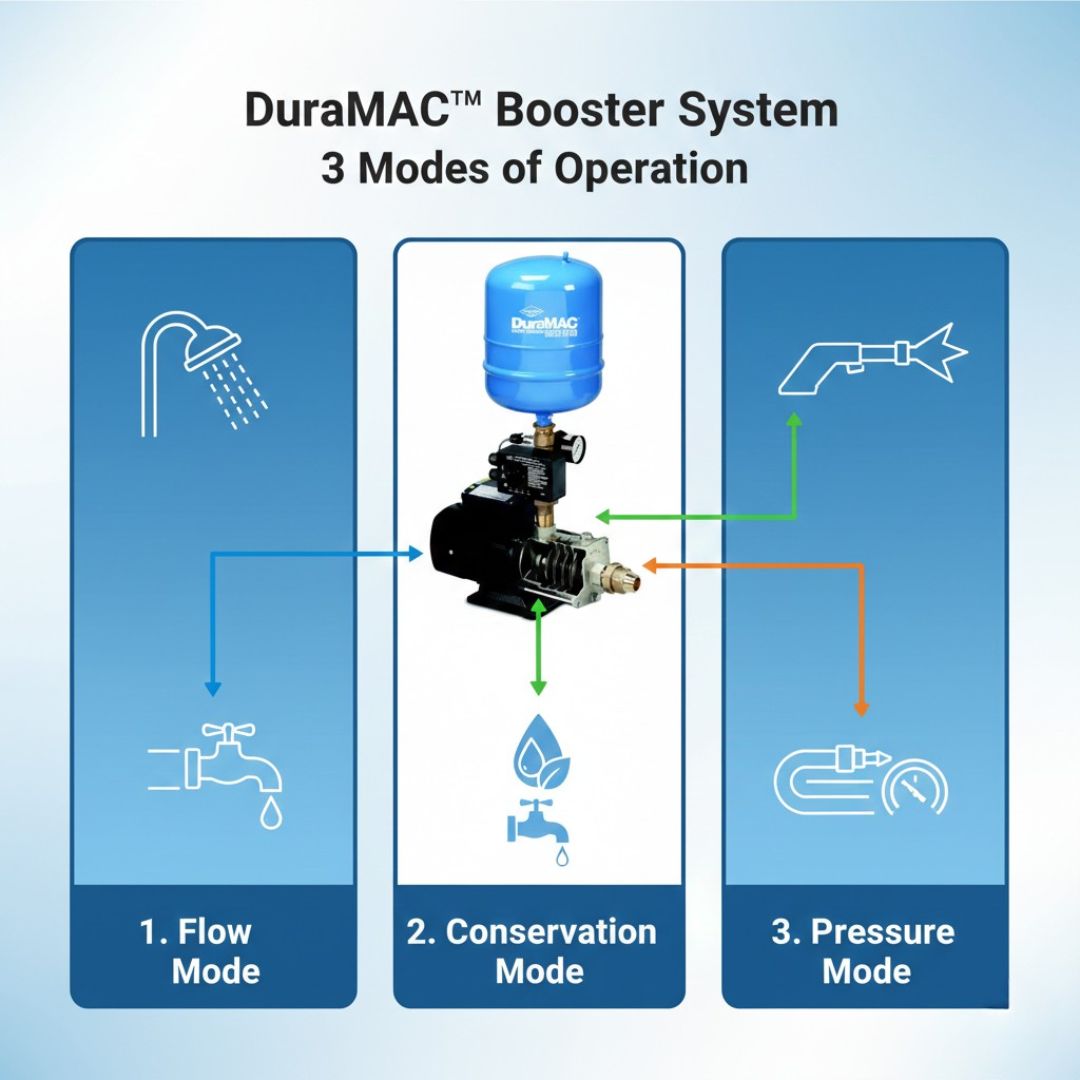

The DuraMAC™ Water Pressure Boosting System can be set to three separate modes, which can accommodate virtually any application.

Pressure Mode

Start Method: Pressure drop
Stop Method: Low flow

Typical Installation:
Appropriate for the majority of light commercial or residential applications.

Result:
Pump operates continuously while there is a need for water.

Flow Mode

Start Method: Water flow
Stop Method: Low flow

Typical Installation:
Application where pressure fluctuates, or occasional system leaks are present.

Result:
Pump operates when usage of water exceeds approximately one gallon per minute.

Conservation Mode

Start Method: Pressure drop
Stop Method: Low flow

Typical Installation:
Application where pressure is adequate for most uses, and boosting is only necessary for high demand.

Result:
Pump will operate only when system pressure is below city supplied pressure and operate continuously while there is demand for water.

Booster Pump Guide

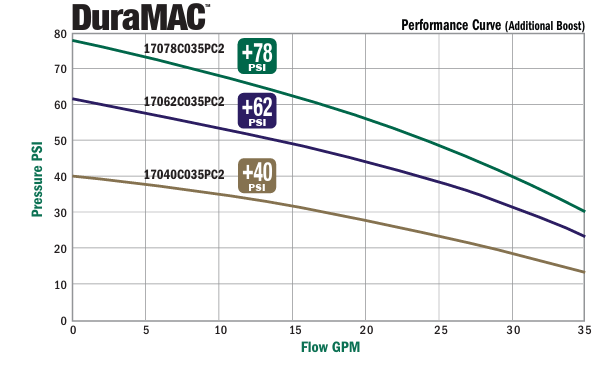

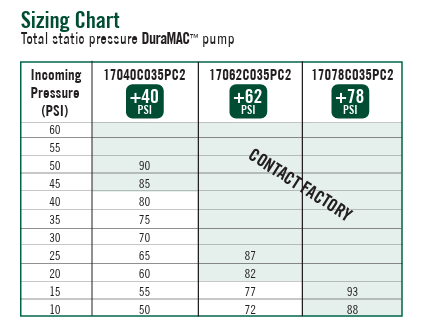

Light Commercial Water Pressure System Spec Sheet

Versatile

It is the first booster pump of its kind to be designed for virtually all boosting applications. In Pressure Mode, the pump starts with pressure drop and stops on low flow. In Flow Mode, the pump starts and stops by sensing flow. In Conservation Mode, the pump only operates during a peak demand, such as when multiple showers, bathtubs, or irrigation systems are running.

Simple

A single-speed, totally enclosed fan-cooled motor drives the DuraMAC™ booster pump with single phase power. It is controlled with one dial and tells you it is working properly by illuminating a single status light. The settings and readouts are simple and straight forward.

Sophisticated

A pressure transducer constantly monitors system pressure and alerts the pump control to start the pump as water in the system is used. The pump then stays on, boosting the system pressure until the need for water is no longer present, indicated by low flow.

Reliable

Electronic components are completely separated from piping and water ways for added safety and ease of field repair. The DuraMAC™ is built from scratch with one purpose in mind – boosting water pressure. Each component of the system is specifically designed to work together, as one harmonious unit.
