Style 60 Bell Joint Clamp
Adjustable clamp that permanently stops leaks at cast iron bell and spigot joints, 20 through 48 in.
100 PSI Max Working Pressure
Grade 27 Buna-S Gasket
Ductile Iron Rings
Dresserloy Bolts and Nuts
Fusion-Bonded Epoxy
Installs Without Shutdown
20-48 in Nominal
74-227 lb Weight
Overview

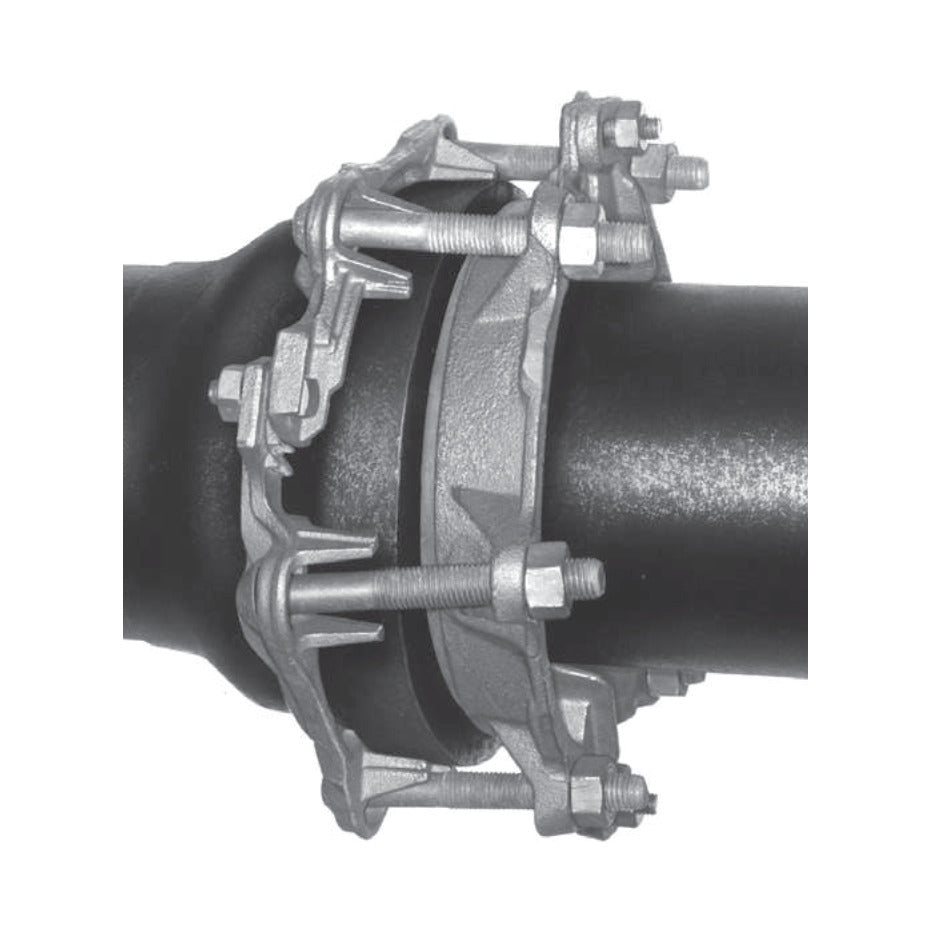

Dresser Style 60 bell joint clamps permanently stop or prevent leaks through the joint material of cast iron bell and spigot joints. Clips and fillers adjust the spigot ring, and serrated bell ring sections fit varying bell diameters, so one standard clamp fits virtually every make of pipe in a nominal size.
Application: Leaking bell and spigot joints on large cast iron water mains.
- Fully adjustable spigot and bell rings
- Large wedge gasket seals as the spigot ring is drawn up
- Installs with the line in service
What Ships and What It Needs to Run
Included: bell ring sections, spigot ring with clips and fillers, gasket, bolts and nuts.

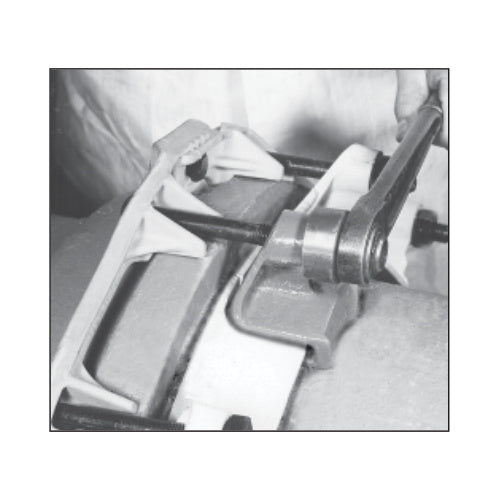

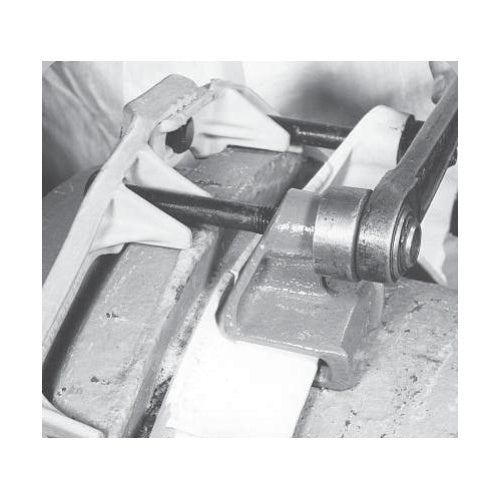

Gasket tongs, optional: Dresser tongs hold the gasket in place while the clamp is bolted up.
Genuine Dresser equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier.
12-Month Dresser Warranty
Covered for 12 months from the date of purchase under Dresser’s published warranty terms.
Working Pressure
Dresser rates Style 60 and 160 bell joint clamps to 100 PSI.
Source: Dresser Gas Product Selection Guide (NGS-DPS-015). The rating on the product label is the actual rating of each part.

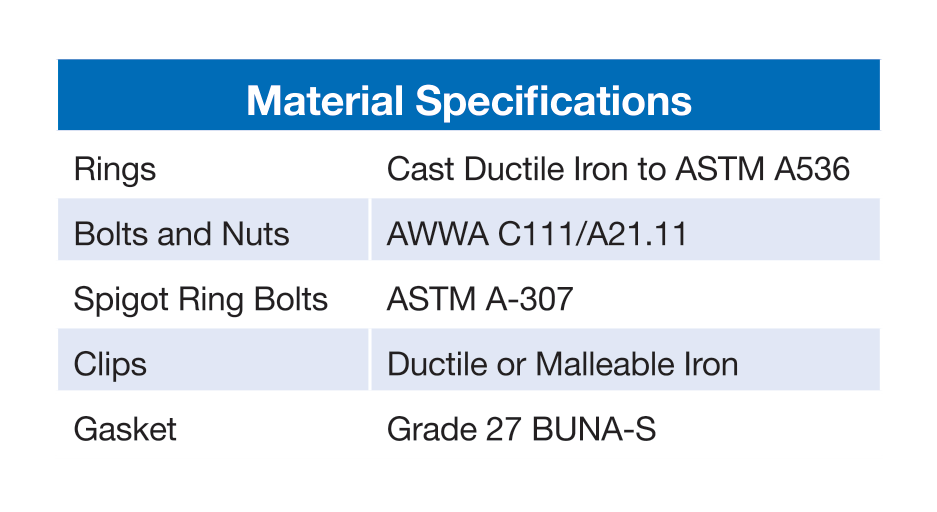

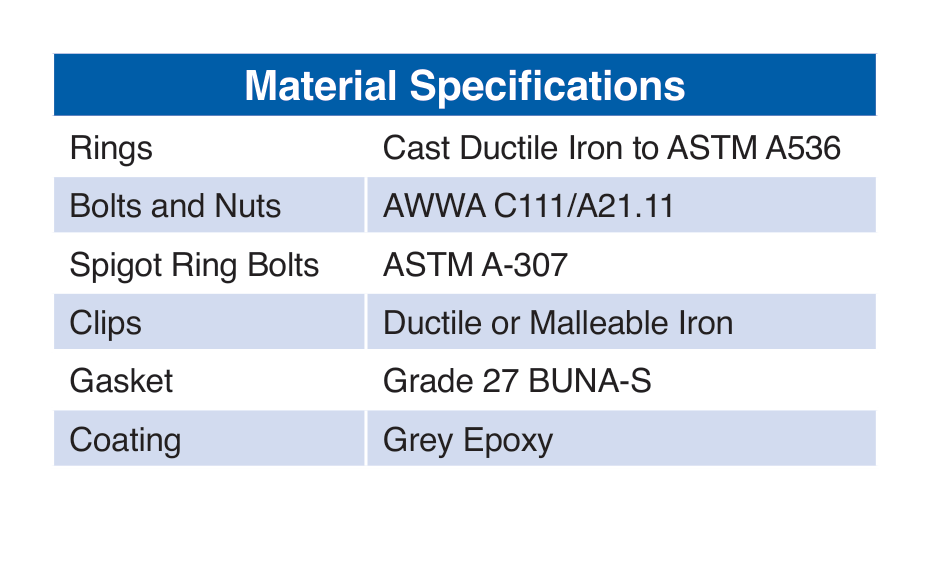

Materials Specifications
| Rings |
Cast ductile iron to ASTM A536 |
| Bolts and nuts |
Dresserloy carbon steel |
| Clips |
Ductile or malleable iron |
| Gasket |
Grade 27 Buna-S |
| Coating |
Fusion-bonded epoxy |
Source: Dresser Style 60/160 data sheet.

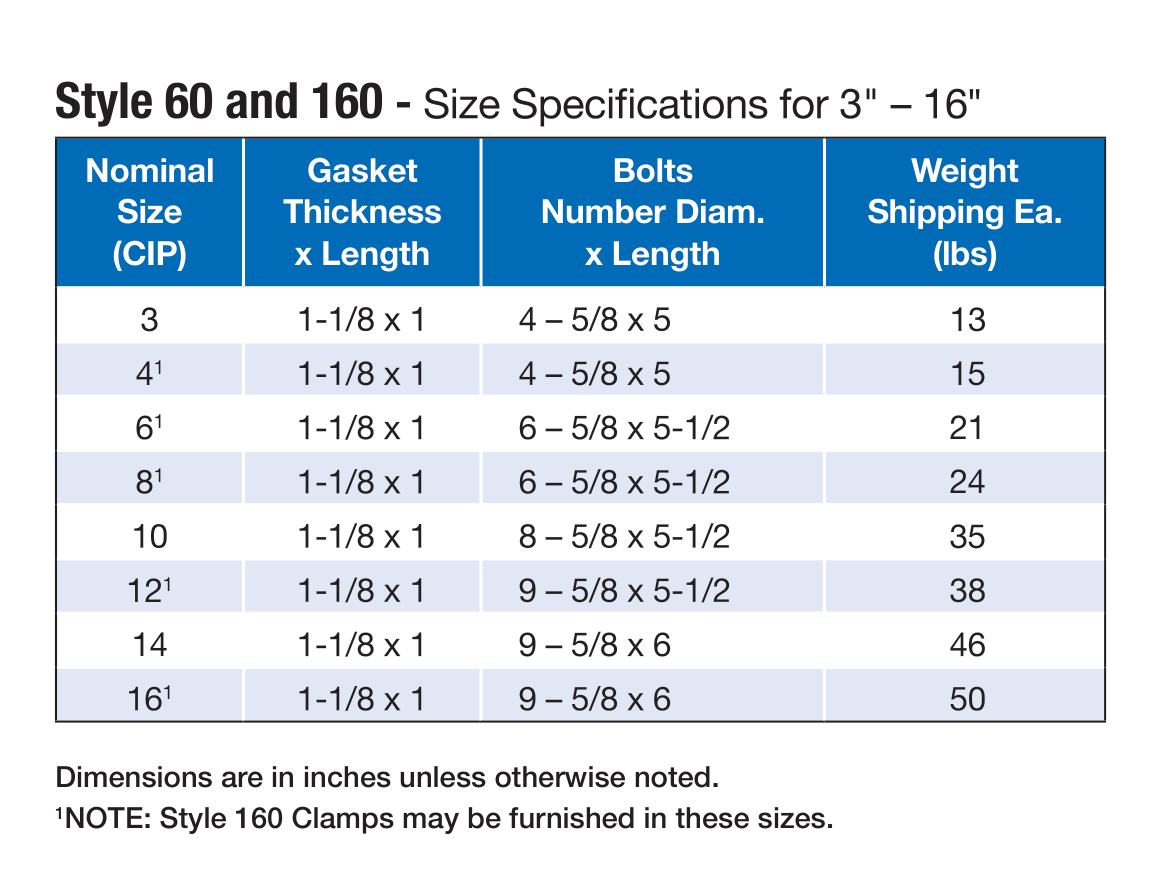

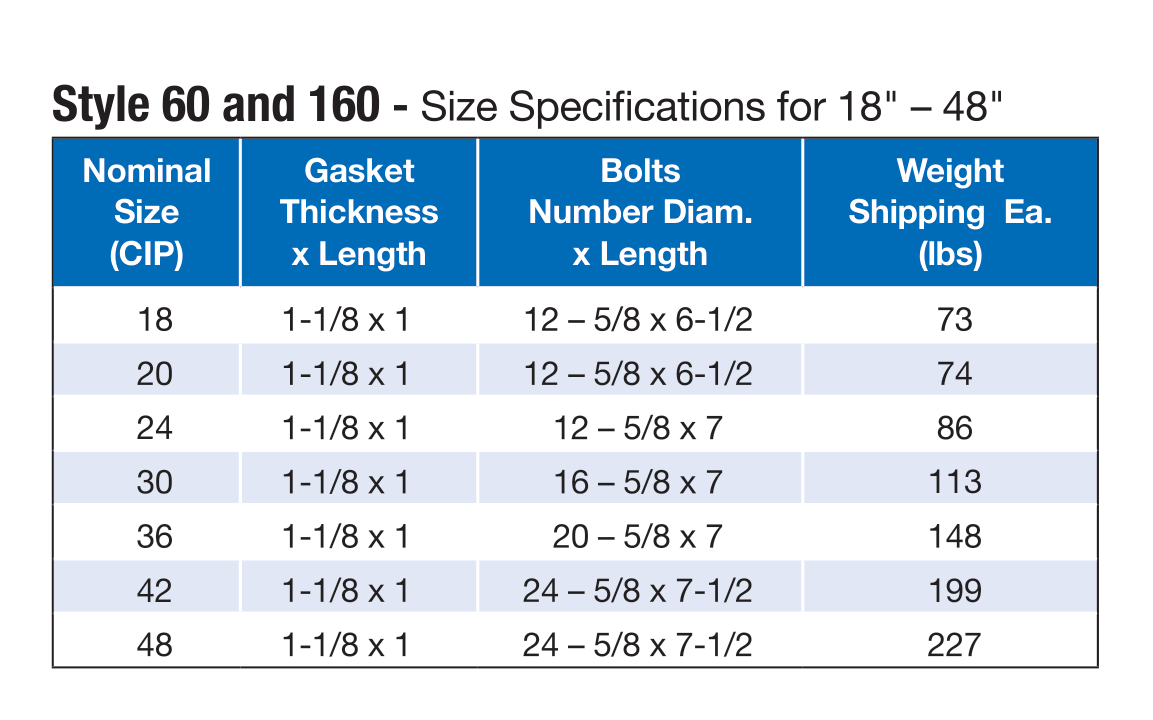

Sizes
| Nominal (CIP) |
Gasket section |
Bolts |
| 20 in |
1-1/8 x 1 in |
12 - 5/8 x 6-1/2 in |
| 24 in |
1-1/8 x 1 in |
12 - 5/8 x 7 in |
| 30 in |
1-1/8 x 1 in |
16 - 5/8 x 7 in |
| 36 in |
1-1/8 x 1 in |
20 - 5/8 x 7 in |
| 48 in |
1-1/8 x 1 in |
24 - 5/8 x 7-1/2 in |
Dresser Style 60/160 data sheet.
Before You Order. Non-stock Dresser parts are not returnable without Dresser’s authorization, and ship time is confirmed when you order. Custom builds (other sizes, widths, gaskets or materials) are available: email
sales@watermainsupply.com with the pipe OD, material and line content.
