Smith-Blair ยท Redi-Clamp
Style 245 Redi-Clamp
Single Bolt
150 PSI Max Working Pressure
Nitrile (Buna-N) Gasket
304 Stainless Band
Epoxy-Coated Ductile Iron Lugs
Electro-Galvanized Steel Bolts
NSF/ANSI 61 and 372
0.84-12.75 in Pipe OD
0.6-12 lb Weight
Description

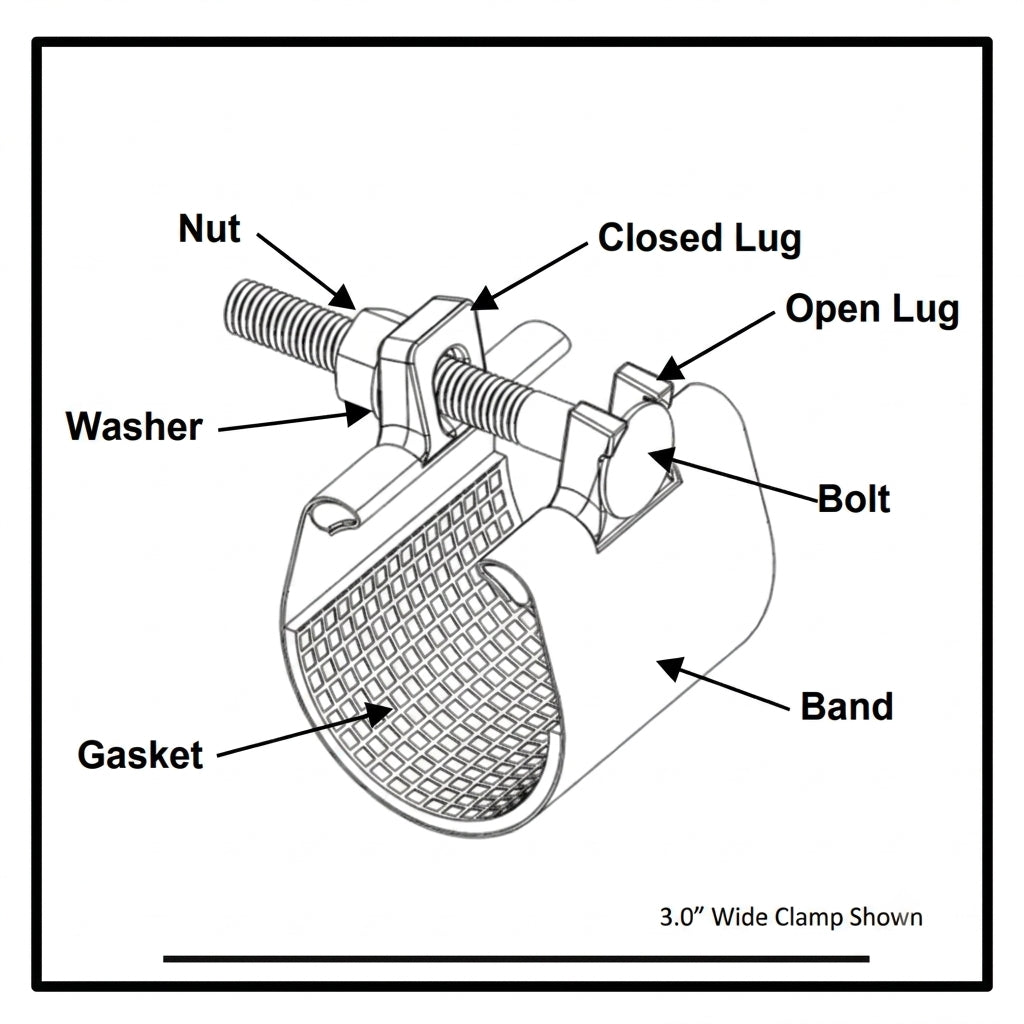

The Smith-Blair Style 245 Redi-Clamp is an economical repair for pin holes, punctures and splits. Each clamp is built to a specific pipe OD โ IPS, copper tube, ductile iron and other sizes โ with an 18-8 Type 304 stainless band, a Nitrile gasket and epoxy-coated lugs.
Application: steel, PVC, HDPE and copper tube.
Key Features
- Working pressure up to 150 PSI
- Built to a specific pipe OD: IPS, copper tube, ductile iron and other sizes
- Widths 3, 6, 9 and 12 in
- Drop-in bolts and 360ยฐ coverage of the pipe surface
- Certified to NSF/ANSI 61 and NSF/ANSI 372
What Ships and What It Needs to Run
Included: the clamp with its Nitrile gasket, lugs, bolts and nuts, ready to install.
Genuine Smith-Blair equipment, factory-new in original packaging โ sold and supported by Watermain Supply, an independent industrial supplier.
12-Month Smith-Blair Warranty
Smith-Blair warrants its products to be free of defects in materials and workmanship for one year from the date of shipment by Smith-Blair. Dated proof of purchase, such as a bill of sale, is required to establish eligibility. Smith-Blair will repair or, at its option, replace a defective product; the product is returned to the factory or warehouse Smith-Blair designates.
Working Pressure
Up to 150 PSI. Smith-Blair rates the allowable working pressure of a repair clamp to fall as pipe diameter rises; for a particular installation it is set by pipe size and type, the type and extent of the damage, service conditions and installation workmanship.
Materials Specifications
| Band |
18-8 Type 304 stainless steel |
| Lugs |
Ductile iron (ASTM A536) with Flexi-Coat epoxy finish |
| Gasket |
Nitrile (Buna-N), compounded to resist oil, natural gas, acids, alkalies, most (aliphatic) hydrocarbons, water and many chemicals |
| Bolts |
Carbon steel (SAE J429), electro-galvanized with dichromate seal |
Materials subject to change by the manufacturer.
Pipe Applications
Steel, PVC, HDPE and copper tube.
Sizes
24 pipe sizes from 0.84 to 12.75 in OD โ open for the full list
| Pipe size and OD |
Widths |
| 1/2 in - 0.84 in |
3, 6 in |
| 3/4 in - 1.05 in |
3, 6 in |
| 1 in - 1.32 in |
3, 6 in |
| 1-1/4 in - 1.66 in |
3, 6 in |
| 1-1/2 in - 1.90 in |
3, 6 in |
| 2 in - 2.00 in |
3, 6 in |
| 2 in - 2.38 in |
3, 6, 9, 12 in |
| 2-1/2 in - 2.88 in |
3, 6, 9, 12 in |
| 3 in - 3.00 in |
3, 6, 9, 12 in |
| 3 in - 3.50 in |
3, 6, 9, 12 in |
| 3-1/2 to 4 in - 4.00 in |
3, 6, 9, 12 in |
| 4 in - 4.25 in |
3, 6 in |
| 4 in - 4.50 in |
3, 6, 9, 12 in |
| 5 in - 5.00 in |
3, 6, 9, 12 in |
| 5 in - 5.56 in |
3, 6, 9, 12 in |
| 6 in - 6.00 in |
3, 6, 9, 12 in |
| 6 in - 6.25 in |
3 in |
| 6 in - 6.63 in |
3, 6, 9, 12 in |
| 8 in - 8.00 in |
3, 6, 9, 12 in |
| 8 in - 8.63 in |
3, 6, 9, 12 in |
| 10 in - 10.00 in |
3, 6, 9, 12 in |
| 10 in - 10.75 in |
3, 6, 9, 12 in |
| 12 in - 12.00 in |
3, 6, 9, 12 in |
| 12 in - 12.75 in |
3, 6, 9, 12 in |
Choose the pipe OD in the first row above; the part number shows in the second row.
Installation Notes
- Clean the pipe where the clamp will sit, removing scale, dirt and debris that could spoil the gasket seal.
- Mark the pipe both ways from the center of the damage, and lubricate pipe and gasket with a soap-and-water solution.
- Install with the leak centered under the gasket, using the reference marks to align the clamp axially, and engage the bolt head in the open lug.
- Tighten the nut to stop the leak, using a calibrated torque wrench and the torque in the instructions.
- Anchor the pipe: the clamp seals around it, and Smith-Blair requires proper anchoring to restrain pipe movement and prevent pull-out.
From Smith-Blair Installation Instructions TI-011 (Rev 08/26/21), in the Data Sheet tab.
Before You OrderAll Smith-Blair products are Made to Order and Non-Returnable.
Items typically shipped in 5 - 10 business days.
Odd pipe ODs, other widths and other materials are built to order โ email sales@watermainsupply.com with the pipe OD and material.
