Smith-Blair Style 462 Quantum Coupling - 4 in to 12 in

Nominal Size - OD: 4 in - 4.46-5.60 in OD
Bolts: Alloy Bolts, Epoxy Coated
Part No.: 462-04460560-000

Product variant with selected options does not exist!

Price
$428.06
Coupon 5% off applied automatically in your cart. No code needed.
SKU: 462-04460560-000
Weight : 31.4 lb
Loading locations...
Free Shipping $499 or more
Skip the chatbot. Talk to an expert.
1-888.510.4036 · Same-day shipping available
Description
Smith-Blair · Wide-Range Cast Coupling
Style 462 Quantum Long-Sleeve Coupling
Cast Ductile Iron, 12 in Sleeve, Alloy or 304 Stainless Bolts
250 PSI Max Working Pressure
-20°F to +180°F Temperature
Nitrile (Buna-N) Gasket
Epoxy-Coated Ductile Iron Sleeve and Followers
Alloy or 304 Stainless Bolts
NSF/ANSI 61 and 372
AWWA C219
4.46-14.40 in Pipe OD
31-87 lb Weight
Description

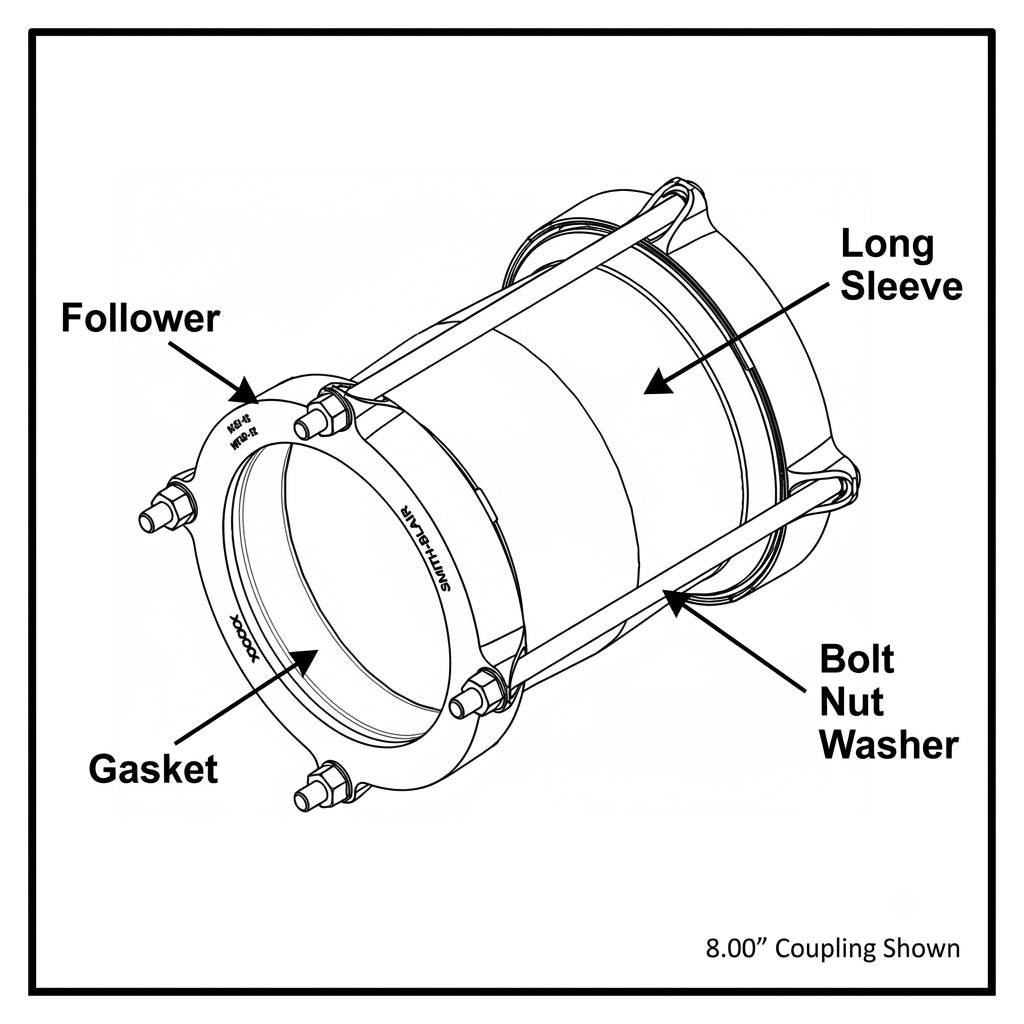

The Smith-Blair Style 462 Quantum is the 12 in long-sleeve version of the 461 wide-range cast coupling. It joins plain-end pipe of any outside diameter within its range — up to 1.65 in of OD range on a single gasket and follower — and the longer body spans wider pipe gaps and gives more flexibility when repairing pipe. It stab-fits with no disassembly, with heavy cast ductile iron parts in a Flexi-Coat fusion-bonded epoxy finish.

One listing carries both hardware builds: choose epoxy-coated high-strength low-alloy steel bolts (-000) or Type 304 stainless bolts (-031) in Option 2.

Application: joining plain-end pipe of different outside diameters within the same nominal size, and replacing split or excessively damaged pipe.

Key Features

  • Working pressure up to 250 PSI
  • 12 in sleeve spans pipe gaps up to 6 in
  • One coupling per nominal size: up to 1.65 in of OD range with a single gasket and follower
  • Stab fit — installs with no disassembly
  • Certified to NSF/ANSI 61 and NSF/ANSI 372
What Ships and What It Needs to Run

Included: the coupling with its 12 in sleeve, two followers, Nitrile gaskets, bolts and nuts in the hardware chosen, ready for stab fit.

Pipe stiffeners on HDPE, ordered separately. Smith-Blair requires pipe stiffeners when the 462 is used on HDPE pipe; ask us to include them.

Genuine Smith-Blair equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier.
12-Month Smith-Blair Warranty

Smith-Blair warrants its products to be free of defects in materials and workmanship for one year from the date of shipment by Smith-Blair. Dated proof of purchase, such as a bill of sale, is required to establish eligibility. Smith-Blair will repair or, at its option, replace a defective product; the product is returned to the factory or warehouse Smith-Blair designates.

Working Pressure

Up to 250 PSI across every size, 4 through 12 in, per the Smith-Blair datasheet and spec. The coupling seals but does not restrain, so the line must be anchored to hold that pressure.

Materials Specifications
Sleeve Cast ductile iron, ASTM A536 Gr 65-45-12 or 80-55-06, 12 in long
Followers (flanges) Cast ductile iron, ASTM A536 Gr 65-45-12, marked with part number and pipe range
Gasket Nitrile (Buna-N) per ASTM D2000, NSF/ANSI 61-G approved; resists water, oil, natural gas, acids, alkalies and most (aliphatic) hydrocarbons
Finish Flexi-Coat fusion-bonded epoxy per AWWA C213
Bolts, alloy build (-000) High-strength low-alloy steel per AWWA C111/A21.11, 5/8 x 17 in oval-neck track head, epoxy-coated to prevent galling
Nuts, alloy build (-000) Heavy hex HSLA steel per AWWA C111/A21.11, fluoropolymer-coated to prevent galling
Washers, alloy build (-000) Carbon steel per ASTM F844, Fe/Zn coated
Bolts and nuts, stainless build (-031) Type 304 stainless steel, coated to prevent galling

Materials subject to change by the manufacturer.

Pipe Applications

Ductile iron, cast iron, carbon steel, stainless steel, asbestos cement and PVC. On HDPE, Smith-Blair requires pipe stiffeners.

Sizes
Pipe size and OD Bolts
4 in - 4.46-5.60 in OD Alloy Bolts, Epoxy Coated; 304 SS Bolts, Epoxy Coated
6 in - 6.54-7.65 in OD Alloy Bolts, Epoxy Coated; 304 SS Bolts, Epoxy Coated
8 in - 8.54-9.85 in OD Alloy Bolts, Epoxy Coated; 304 SS Bolts, Epoxy Coated
10 in - 10.65-12.20 in OD Alloy Bolts, Epoxy Coated; 304 SS Bolts, Epoxy Coated
12 in - 12.75-14.40 in OD Alloy Bolts, Epoxy Coated; 304 SS Bolts, Epoxy Coated

Choose the size in the first option; the part number shows in the last option.

Bolt Numbers
Nominal size 5/8 in bolts
4, 6 and 8 in 4
10 and 12 in 8

Bolts 5/8 x 17 in; laying length 17 in on every size.

Installation Notes
  • Stab fit: the 462 goes on without disassembly.
  • Clean the pipe ends where the gaskets will seat.
  • Lubricate the pipe and gaskets with a soap-and-water solution (anti-freeze may be required) that meets the water and pipe supplier's requirements; the beveled gasket edge faces the pipe end.
  • Center the sleeve over the pipe gap: 1 in is optimum on a straight run and 2-3/4 in on a deflected joint, 6 in maximum. Max deflection 3° pipe to pipe, 1-1/2° pipe to sleeve.
  • Tighten the nuts gradually, alternating between opposite sides so the followers stay parallel, to the torque in the instructions; recheck the torque after the line is pressurized.
  • Anchor the pipe: the coupling seals around it, and Smith-Blair requires proper anchoring to restrain pipe movement and prevent pull-out.

From Smith-Blair Installation Instructions TI-017 (Rev 08/26/21), in the Data Sheet tab.

Before You OrderAll Smith-Blair products are Made to Order and Non-Returnable.
Items typically shipped in 5 - 10 business days.
316 stainless hardware, other gaskets (Viton, EPDM), protected gaskets, anode connectors and insulating boots are built to order — email sales@watermainsupply.com with the pipe OD and material.
For engineering-led sizing and selection support or a factory submittal, email sales@watermainsupply.com or call 1-888.510.4036.
