Franklin Electric jet pumps for well, cistern and spring water supply. The shallow-well SWJ Cyclone, VersaJet and VersaJet Pro lift from up to 25 ft, in non-corrosive thermoplastic or cast iron, and the VersaJet's Quick-Change nozzle retunes flow and pressure. The Convertible Pro RM2 and C Series convert to deep well with a matched injector and reach water up to 100 and 120 ft down, with stainless impellers and a 150 psi rating on the RM2. Every model ships with a 30/50 psi pressure switch installed. Deep well injectors, repair kits and motors are available. Send us your depth to water, flow and pressure and we will match the pump. Call 1-888.510.4036.
Shallow well and convertible jet pumps for homes, cabins, farms and cisterns: the thermoplastic SWJ Cyclone, the cast iron VersaJet and VersaJet Pro with the Quick-Change nozzle, and the Convertible Pro RM2 and C Series that reach water 100 to 120 ft down with a matched deep well injector. Compared honestly with Grundfos, DAB, Goulds and A.Y. McDonald.
5 LinesShallow and convertible
1/2–1-1/2 HPListed motor range
25 ftShallow well lift
120 ftDeep well, C Series
30/50 psiSwitch factory set
A jet pump is a surface-mounted pump that draws fresh water up from a shallow well, a deep well or a cistern and delivers steady household pressure through a pressure switch and tank. Franklin Electric builds five jet pump lines. Shallow well pumps — the SWJ Cyclone, VersaJet and VersaJet Pro — keep the jet inside the pump and lift from water up to 25 ft below it. Convertible pumps — the Convertible Pro RM2 and the C Series — run shallow out of the box and convert to deep well with a bypass plug and an injector down the casing. They are built for homeowners, well drillers, plumbers, farms and ranches, and cabin and rural property owners.
We supply the U.S. 60 Hz range with the factory 30/50 psi switch, plus the deep well injectors, repair kits and motors that keep them running. Our engineering-led selection matches the pump — and for a convertible, the injector — to your depth to water, flow, pressure and water chemistry. Call 1-888.510.4036 or email sales@watermainsupply.com. Genuine Franklin Electric equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier.
Will It Work for Me?
Four checks that settle most jet pump orders.
Warranty
Franklin covers its convertible jet pumps with a limited warranty of 1 year from the date of original purchase, per the owner’s manual. SWJ Cyclone and VersaJet terms are in their manuals, and we confirm them with your quote.
Reliability
Stainless impellers on the RM2 and C Series; a stainless-insert impeller and floating stainless eye seal on the VersaJet; non-corrosive thermoplastic on the Cyclone. Every model ships with the 30/50 psi switch installed. All five are NSF/ANSI/CAN 372 certified for lead content.
Fit
Measure the depth to water, not the well depth. Water within 25 ft of the pump: shallow well pump. Deeper: a convertible plus an injector matched to the pump model and depth, in a well 4 in or larger. Clean water to 120 °F (shallow) or 140 °F (convertible). 75 psi max working pressure, 150 psi on the RM2.
Size It Now
Send the depth to water, the flow you need and the pressure band. We return the pump and injector, checked against the Franklin data.
A nozzle and venturi — the jet — sends part of the pump’s output back through a narrow opening. The fast stream creates a vacuum that pulls more water up the suction pipe, so a pump at the surface can lift water it is not sitting in.
Shallow well: jet inside the pump
One suction pipe runs from the water to the pump, with a foot valve or check valve at the bottom. The jet sits in the pump case. Works when the water level stays within 25 ft of the pump, including drawdown.
Deep well: jet down the casing
The internal injector is swapped for a bypass plug, and a matched injector goes down the well on two pipes — a drive pipe down, a suction pipe up. The C Series reaches 120 ft and the RM2 100 ft with the right injector.
Depth to water, not well depth. A 200 ft well with water standing 18 ft down is a shallow well job. The same well drawn down to 60 ft is a convertible plus deep well injector job. Measure the pumping water level, the level while the pump runs, not just the resting level.
The Franklin Electric Jet Pump Line
Three groups: a non-corrosive shallow well pump, the cast iron shallow well pumps with the Quick-Change nozzle, and the convertibles that go deep.
SWJ Cyclone
Thermoplastic shallow well · 1/2–1 HP
25 ftSuction lift
75 psiMax working
120 °FMax water
1-1/4 × 1 inInlet × outlet
Non-corrosive thermoplastic construction with a self-cleaning, anti-clogging injector screen and a replaceable in-line nozzle and venturi. Thermoplastic impeller and diffuser with a floating stainless eye seal, on a square-flange motor that comes off without disturbing the plumbing.
Key specs
FSWJ05P, FSWJ07P, FSWJ1P; 115/230V dual voltage
Built-in drain plug for winterizing
30/50 psi switch installed; order the gauge separately
Best forBudget shallow wells, cisterns and springs, and water that corrodes cast iron.
Heavy cast iron case with pressure and drain ports. The Quick-Change nozzle retunes the pump from high pressure to high flow without removing the plumbing or opening the case. Impeller with stainless insert, Modified PPO diffuser, nozzle and venturi, phenolic/ceramic seal, UL778 indoor/outdoor square-flange motor.
Key specs
VersaJet: FVJ05CI to FVJ15CI, 1/2–1-1/2 HP
VersaJet Pro: FVJ05CI-P to FVJ1CI-P, three nozzles in the box
UL / CSA listed; 75 psi, 120 °F
Best forShallow wells where the flow and pressure needs may change, and homes that want cast iron durability.

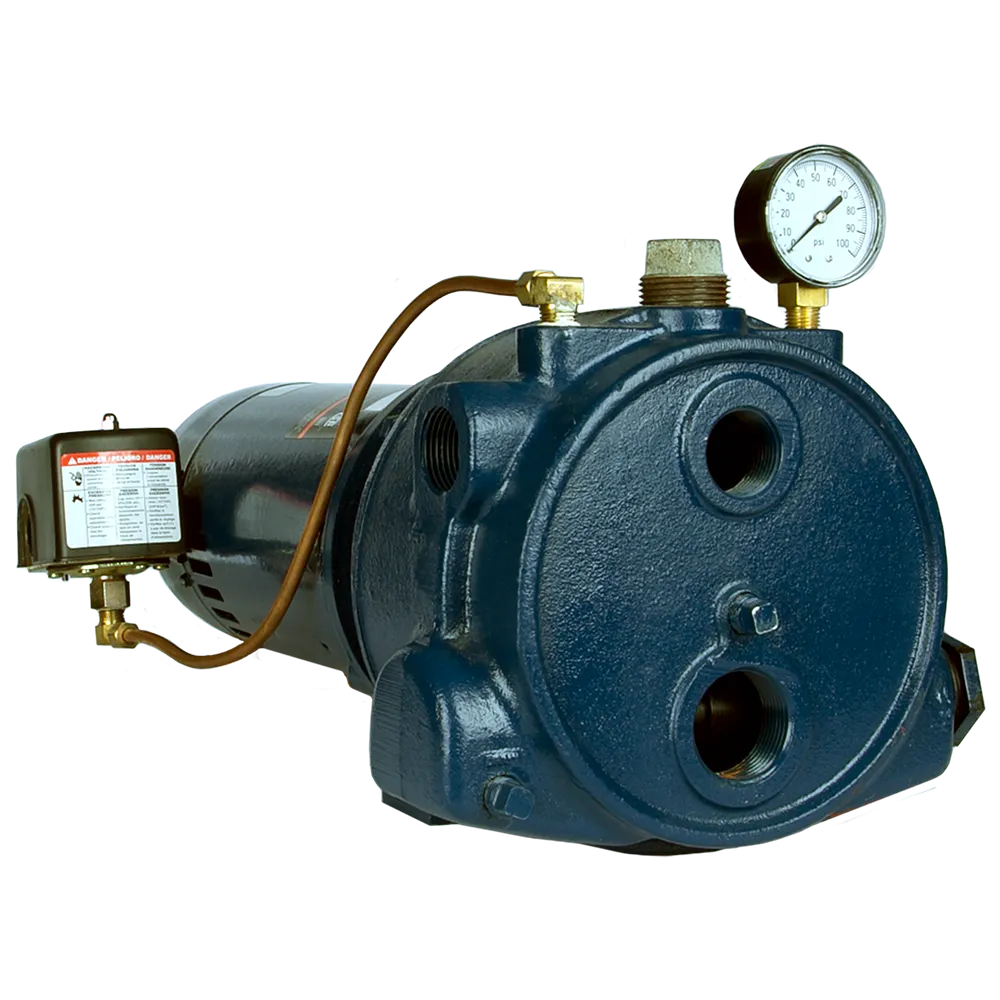

Cast iron convertibles with stainless impellers. The RM2 has a 1-1/4 in inlet, three 1 in outlets and a high-service-factor 56C keyed-shaft motor, with a 1 HP three-phase model. The C Series has a screw-in injector and bypass plug and a 56J threaded-shaft motor, delivering up to 16 GPM.
Key specs
RM2: FP05CI-C, FP07CI-C, FP01CI-C; 1RM2-T 230/460V three phase
C Series: JC05CI-C, JC07CI-C; 1-1/2 in inlet
Deep well injectors ordered separately, by model and depth
Best forWells where the water sits below 25 ft, and shallow wells that may draw down later.
SWJ Cyclone vs VersaJet vs VersaJet Pro vs RM2 vs C Series
From Franklin Electric published data and our listings.
Feature
SWJ Cyclone
VersaJet / Pro
Convertible Pro RM2
C Series
Type
Shallow well
Shallow well
Convertible
Convertible
Motor HP
1/2–1
1/2–1-1/2 (Pro 1/2–1)
1/2–1
1/2–3/4
Reach
25 ft
25 ft
100 ft with injector
120 ft with injector
Published flow
Per spec sheet M5408
Set by nozzle: high pressure or high flow
Up to 23 GPM
Up to 16 GPM
Body
Thermoplastic
Cast iron
Cast iron
Cast iron
Impeller
Thermoplastic
Modified PPO, stainless insert
Stainless
Stainless
Max working pressure
75 psi
75 psi
150 psi
75 psi
Max water temp
120 °F
120 °F
140 °F
140 °F
Motor
Square flange
UL778 square flange
56C keyed, high service factor
56J threaded shaft
Supply
115/230V 1Ph
115/230V 1Ph
115/230V 1Ph; 230/460V 3Ph (1 HP)
115/230V 1Ph
Quick rule. Water within 25 ft and corrosive or a tight budget: SWJ Cyclone. Water within 25 ft and you want cast iron or the option to retune flow and pressure later: VersaJet, or the VersaJet Pro with three nozzles in the box. Water below 25 ft, or a shallow well likely to draw down: C Series to 120 ft, or the Convertible Pro RM2 for 150 psi, a keyed 56C motor or three-phase power.
Franklin vs Grundfos, DAB, Goulds and A.Y. McDonald
We supply all five brands, so here is where each one wins. Other-brand figures are from our own product pages for those lines; price positions are from our current prices.
Shallow well jet pumps
Feature
Franklin SWJ Cyclone and VersaJet
Grundfos JP PS
DAB JET 150-PS / 200-PS
Goulds JS+ and JRS
Motor range
1/2–1-1/2 HP
1/3–1 HP
1-1/2 and 2 HP
1/2–1-1/2 HP (JRS 1/2–1)
Suction lift
25 ft
26 ft
29 ft
25 ft
Housing
Thermoplastic (Cyclone) or cast iron (VersaJet)
AISI 304 stainless
Cast iron
Cast iron, electrocoated inside and out
Published flow and head
VersaJet nozzle sets high pressure or high flow
Up to 21 GPM; 137–187 ft max head
Shut-off 215–218 ft; curves to 23.8 and 34.3 GPM
See product page
Flow tuning
Quick-Change nozzle; three nozzles with the Pro
Fixed
Fixed
Nozzle clean-out plug
Pressure switch
30/50 psi, installed
30–50 psi, installed
Fitted
See product page
Drinking water
NSF/ANSI/CAN 372
NSF 61 and 372
See product page
NSF/ANSI 61 and 372
Supply
115/230V dual voltage
115/230V dual voltage
230V only
115/230V
Repair parts on our site
VersaJet and Cyclone repair kits
—
—
—
Price position on our site
SWJ Cyclone is the lowest-priced 1 HP shallow well pump; VersaJet mid-range
Honest verdict. For a small cabin or cistern job, the Grundfos JP PS is the only one with a 1/3 HP model, and its stainless housing will not rust. The DAB JET lifts the deepest (29 ft), builds over 215 ft of shut-off head and costs the least per horsepower at 1-1/2 HP, but it is 230V only. Goulds JS+ is the premium, built-in-USA choice with NSF 61 as well as 372. Franklin wins on value and flexibility: the SWJ Cyclone is the lowest-priced 1 HP shallow well pump on our site and will not corrode, the VersaJet’s Quick-Change nozzle lets you retune flow and pressure without replumbing, and Franklin repair kits are on our shelf for both.
Convertible and deep well jet pumps
Feature
Franklin RM2 and C Series
Goulds J+, JRD, HSJ and SJ
A.Y. McDonald 8000, 8200, 8600 and 1500
Motor range
1/2–1 HP
J+ 1/2–1-1/2; JRD 1/2–1; HSJ and SJ to 2 HP
8200 and 8600 1/2–1 HP; 8000 to 1-1/2 HP; 1500 multi-stage 3/4–1-1/2 HP
Deep well reach
RM2 to 100 ft; C Series to 120 ft, injectors listed by depth band
Twin-pipe or packer jet assembly for wells over 25 ft
2 in single-pipe and 4 in two-pipe ejector packages
Impeller
Stainless on both
Glass-filled composite; HSJ adds stainless shaft, wear rings and coverplates
High-efficiency impellers and diffusers
Pressure
150 psi max working (RM2); 75 psi (C Series)
SJ has a built-in AV21 pressure control valve
Pressures to 80 psi (8200)
Motor
56C keyed (RM2); 56J threaded (C Series)
Two-compartment motor, back pull-out
NEMA J (8200), square flange (8600), NEMA C (1500)
Three-phase option
1 HP RM2, 230/460V, listed
—
460V 1500 by factory order
Drinking water
NSF/ANSI/CAN 372
NSF/ANSI 61 and 372
NSF/ANSI 61 and 372
Deep well hardware on our site
12 Franklin injectors matched to model and depth
Uses Goulds jet fittings; ask us
Ejector packages, packer foot valve, pressure control valve, casing adapters
Honest verdict. A.Y. McDonald is the budget and flexibility pick: the lowest-priced convertibles on our site, three motor styles to match what you are replacing, and the full kit of ejector packages, packer systems and casing adapters. Goulds covers the most horsepower (HSJ and SJ to 2 HP) and the SJ builds in its pressure control valve, at the highest price. Franklin wins on build and reach: stainless impellers on both convertibles, a published 120 ft reach on the C Series, 150 psi on the RM2, the only three-phase jet pump listed in this group, and injectors listed by pump model and depth band so the deep well conversion is right the first time.
Past a jet pump’s reach. Beyond about 120 ft of lift, or for more than about 25 GPM from a deep well, a 4 in submersible pump is the better tool. We size those too.
Which Jet Pump Do You Need?
Starting points by job. We confirm the final pump and injector against the published data before you order.
Injector for the model and depth band; 4 in well minimum
Water 60–120 ft down
C Series (to 120 ft) or RM2 (to 100 ft)
Flow falls with depth; compare a submersible
Higher system pressure or three-phase power
Convertible Pro RM2
150 psi rating; 1RM2-T at 230/460V
Replacing an A.Y. McDonald or Goulds jet pump
Same brand and motor style
Match the piping and ejector already in the well
How to Size a Jet Pump
Four numbers pick the pump. Send them and we return the pump, the injector for a deep well, and the tank setup.
1. Depth to water. From the pump inlet down to the pumping water level. Under 25 ft: shallow well pump. Deeper: a convertible and an injector matched to the depth band.
2. Flow. How many fixtures or sprinkler heads run at once. A typical home needs about 8 to 12 GPM; add irrigation demand if the same pump waters the lawn.
3. Pressure band. Most homes run 30/50 or 40/60 psi. The cut-out pressure at the tank plus the lift is what the pump has to deliver; at 60 psi that is 60 × 2.31 = 138.6 ft of head before the lift is counted.
4. Water chemistry. Corrosive, sandy or high-mineral water steers toward the thermoplastic Cyclone, a stainless impeller, or a stainless-housing pump.
Worked example. A house needs 8 GPM at a 40/60 psi switch setting. The water sits 45 ft below the pump in a 4 in well. That is past the 25 ft shallow well limit, so it is a convertible job. A 3/4 HP Convertible Pro RM2 (FP07CI-C) with Franklin injector 147E1023, listed for the FP07CI-C at 30–60 ft, is the starting point; we confirm the flow at 60 psi against the Franklin curve before quoting, and step to the 1 HP if it falls short. Run your own numbers in our well pump sizing calculator and size the tank with the pressure tank calculator.
Features That Matter on the Install
Quick-Change Nozzle
On the VersaJet and VersaJet Pro, swap the jet nozzle to move from a high-pressure to a high-flow setup without removing the plumbing or opening the case.
Switch Installed at 30/50
Every Franklin jet pump here ships with the pressure switch installed and set at 30/50 psi, adjustable on site.
Screw-In Injector
The C Series converts from shallow to deep well with a screw-in injector and bypass plug; the RM2 swaps its internal injector for a bypass plug.
Anti-Clog Cyclone Screen
The SWJ Cyclone’s self-cleaning injector screen and replaceable in-line nozzle and venturi keep a thermoplastic pump running on imperfect water.
Square-Flange Service
Cyclone and VersaJet square-flange motors come off without disturbing the plumbing; the RM2 shaft coupling lets the keyed motor come out easily.
Winterizing Made Simple
Built-in drain plugs on the Cyclone and drain ports on the VersaJet let you empty the case before a freeze at a cabin or seasonal home.
Spec Sheets & Manuals
Franklin Electric’s own literature for these pumps, including performance curves. Each opens as a PDF.
More in repair parts and accessories. Genuine Franklin Electric parts keep the pump to its published performance.
Why Buy Jet Pumps from Watermain Supply
Engineering-Led Sizing
We size from your depth to water, flow, pressure band and water chemistry, and match the injector for a deep well, before you order.
Five Brands, One Answer
We supply Franklin Electric, Grundfos, DAB, Goulds and A.Y. McDonald jet pumps. If a Franklin pump is not the right fit, we will say so and quote the one that is.
Account Terms Available
Net-30 for qualified contractor, property-management and municipal accounts.
Parts & Aftermarket
Injectors, overhaul kits, seals, motors, pitless units and well seals, matched by model for the pump you already run.
Whole Well System
Pump, injector, tank, switch, pitless unit and well seal on one order, sized to work together.
Houston & Gulf Coast
Based in Houston and serving homeowners, drillers and plumbers across the Gulf Coast and beyond.
Jet Pump FAQ
Straight answers to the questions we get most.
What is a jet pump and how does it work?
A jet pump is a surface-mounted centrifugal pump with a nozzle and venturi, called the jet. Part of the pump’s output is sent back through the jet, which creates a vacuum that pulls water up the suction pipe. Shallow well pumps keep the jet inside the pump; convertible pumps move it down the well for deeper water.
Shallow well or deep well: which jet pump do I need?
It depends on the depth to water, not the well depth. If the water level stays within 25 ft of the pump, a shallow well pump such as the SWJ Cyclone or VersaJet works. Deeper than that, you need a convertible — the C Series or Convertible Pro RM2 — with a deep well injector matched to the pump model and depth.
How deep can a Franklin jet pump pull water?
Shallow well models lift from up to 25 ft. With a matched deep well injector, the Convertible Pro RM2 lifts from up to 100 ft and the C Series up to 120 ft. Flow falls as depth increases, and deep well installs need a well of 4 in or larger.
Which is better: Franklin, Grundfos, DAB, Goulds or A.Y. McDonald?
It depends on the job. The SWJ Cyclone is the lowest-priced 1 HP shallow well pump we sell; the Grundfos JP PS offers a 1/3 HP stainless model; the DAB JET lifts deepest at 29 ft; Goulds covers up to 2 HP with NSF 61; A.Y. McDonald has the lowest-priced convertibles. For deep wells, Franklin offers stainless impellers, 120 ft reach and a three-phase option. We supply all five.
What is the Quick-Change nozzle on the VersaJet?
The VersaJet and VersaJet Pro let you swap the jet nozzle to retune the pump between a high-pressure and a high-flow setup without removing the plumbing or opening the case. The VersaJet Pro ships with three nozzles in the box.
Do I need a pressure tank with a jet pump?
Yes, in a standard system. The pump runs on its 30/50 psi switch and a bladder pressure tank stores water between cycles so the pump does not short-cycle. Size the tank so the pump runs at least a minute per cycle; our pressure tank calculator does the math.
Thermoplastic or cast iron: which is better?
The thermoplastic SWJ Cyclone will not rust and resists clogging, which suits corrosive water and tighter budgets. Cast iron VersaJet and convertible pumps are heavier and more durable, and the convertibles carry stainless impellers.
When should I use a submersible instead of a jet pump?
When the water is deeper than about 120 ft, when you need more than about 25 GPM from a deep well, or when you want a quiet system with nothing above ground but the controls. A 4 in submersible handles those jobs better, and we size those too.
What warranty comes with a Franklin jet pump?
Franklin covers its convertible jet pumps with a limited warranty of 1 year from the date of original purchase, per the owner’s manual. SWJ Cyclone and VersaJet terms are in their own manuals, and we confirm them with your quote.
What should I send for a quote?
The depth to water and well diameter, the flow you need, the pressure band, your voltage, and a photo of the pump you are replacing if there is one. For a deep well, tell us if the well already has a one-pipe or two-pipe setup.
Sizing a Jet Pump? Let’s Spec It.
Send the depth to water, flow and pressure. We return the matched Franklin pump and injector — or tell you if a Grundfos, DAB, Goulds or A.Y. McDonald pump fits the job better.
