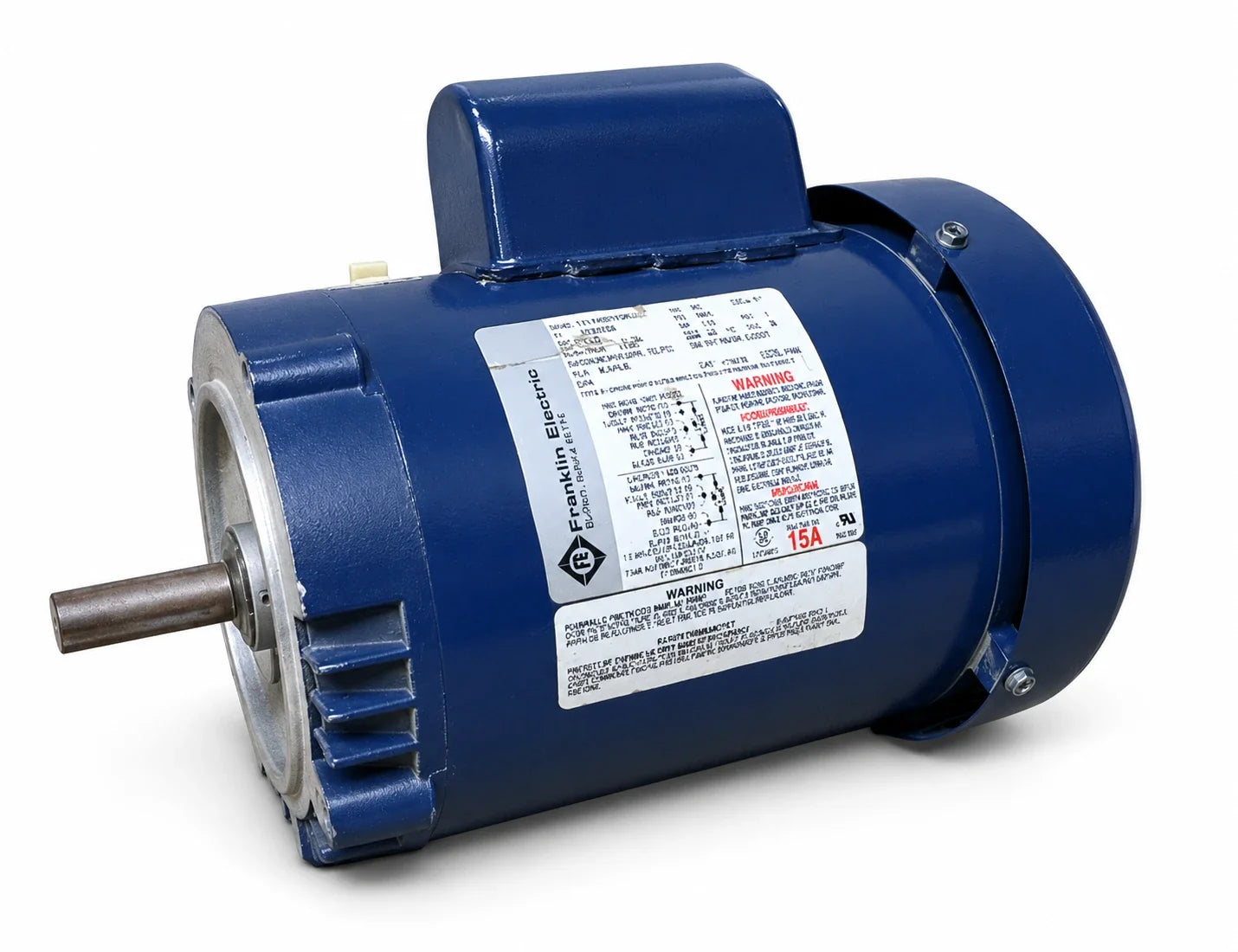

Franklin Electric 56C keyed shaft replacement motor
Franklin Electric 56C keyed shaft replacement motor

Franklin Electric 56C Replacement Motors

HP - Voltage - Part No.: 1/2 HP - 115/230V 1Ph - 106026007

Product variant with selected options does not exist!
$530.02
Coupon 5% off applied automatically in your cart. No code needed.
SKU: 106026007
Weight : 30.0 lb
Loading locations...
Free Shipping $499 or more
Skip the chatbot. Talk to an expert.
1-888.510.4036 · Same-day shipping available
Description
Franklin Electric · Replacement Motor
56C Keyed Shaft Replacement Motors
Franklin Electric 56C keyed shaft replacement motors for RM2 Pro jet pumps and D Series centrifugal pumps, 1/2 to 3 HP, single and three phase.
12 Motors
1/2 to 3 HP
56C Keyed Shaft
1Ph and 3Ph
Overview

Franklin Electric lists these as jet and centrifugal pump replacement motors for the RM2 / PRO and D Series: NEMA 56C frame, keyed shaft.

Single-phase motors are 115/230V; three-phase motors are 208-230/460V. They are also the motor for a DR Series or BT4 56C pump end kit where the pump rating matches. The owner’s manual on the Data Sheet tab shows the exploded view and where each part sits.

What Ships and What It Needs to Run

Included: the motor selected above, identified by its Franklin part number in the last option.

Pump end, wiring and motor protection: your existing pump end mounts to the motor; supply wiring and the starter or overload protection are sized at install.

Genuine Franklin Electric equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier.
Motors
Order No. Horsepower Phase Voltage Frame Weight
106026007 1/2 HP 1 115/230V 56C keyed shaft 30 lb
106026008 3/4 HP 1 115/230V 56C keyed shaft 30 lb
106026009 1 HP 1 115/230V 56C keyed shaft 30 lb
106026010 1-1/2 HP 1 115/230V 56C keyed shaft 30 lb
106026011 2 HP 1 115/230V 56C keyed shaft 33 lb
106026012 3 HP 1 115/230V 56C keyed shaft 33 lb
106023018 1/2 HP 3 208-230/460V 56C keyed shaft 19 lb
106023019 3/4 HP 3 208-230/460V 56C keyed shaft 27 lb
106023020 1 HP 3 208-230/460V 56C keyed shaft 29 lb
106023021 1-1/2 HP 3 208-230/460V 56C keyed shaft 30 lb
106023022 2 HP 3 208-230/460V 56C keyed shaft 33 lb
106023023 3 HP 3 208-230/460V 56C keyed shaft 68 lb
Confirm Before OrderingMatch horsepower, phase, voltage and the 56C keyed shaft to the motor you are replacing. Send us the old motor nameplate and we will confirm it.
Before You OrderMatch the frame, horsepower, voltage and phase on the old motor nameplate, and check the shaft (keyed or threaded) against your pump end. Send us the nameplate photo or the pump model and we will confirm the part number.
For engineering-led sizing and selection support or a factory submittal, email sales@watermainsupply.com or call 1-888.510.4036.
© Watermain Supply — A division of E4 Industrial LLC
Data Sheet
Convertible Jet Manual DR Series Manual End Suction Centrifugal Manual (106107101)
Videos

No manufacturer video is currently published for this item. Call 1-888.510.4036 and we will walk you through it.
