Franklin Electric VersaJet Cast Iron Shallow Well Jet Pump - NSF 372, Quick-Change Nozzle, 1/2-1.5 HP
Franklin Electric VersaJet Cast Iron Shallow Well Jet Pump - NSF 372, Quick-Change Nozzle, 1/2-1.5 HP

Franklin Electric VersaJet Cast Iron Shallow Well Jet Pump - NSF 372, Quick-Change Nozzle, 1/2-1.5 HP

Horse Power: 1/2 HP
Phase: Single-Phase
Voltage: 115/230 VAC

Product variant with selected options does not exist!
$888.34
SKU: FVJ05CI
Weight : 31.0 lb
Need it fast? Call for same-day shipping options: 281.664.8000
Description
Franklin Electric Jet Pump

VersaJet Jet Pump
Cast Iron Shallow Well

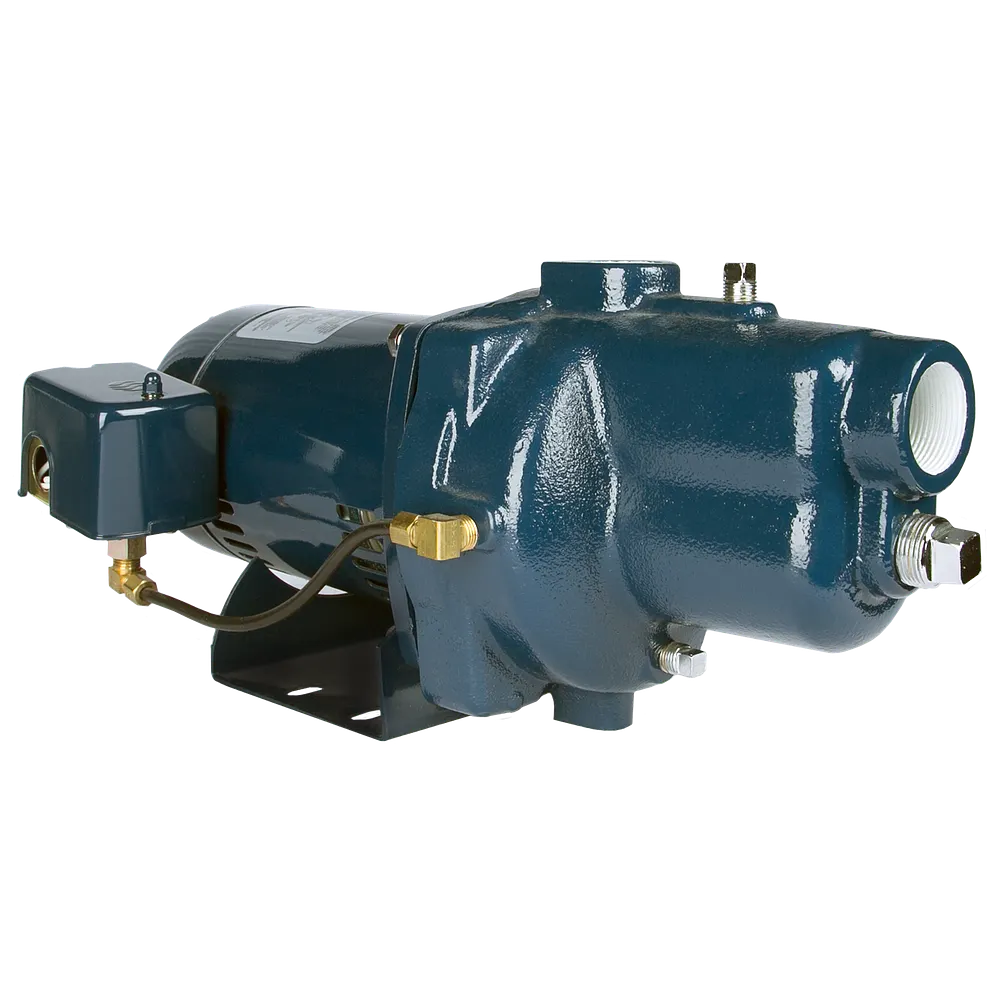

Cast iron shallow well jet pump with the Quick-Change jet nozzle system — switch between high pressure and high flow without opening the case.

1/2 – 1.5 HP
Single-Phase
NSF 372 Certified
UL / CSA Listed
120 °F Max Fluid Temp
Dual Voltage 115/230 V
Overview

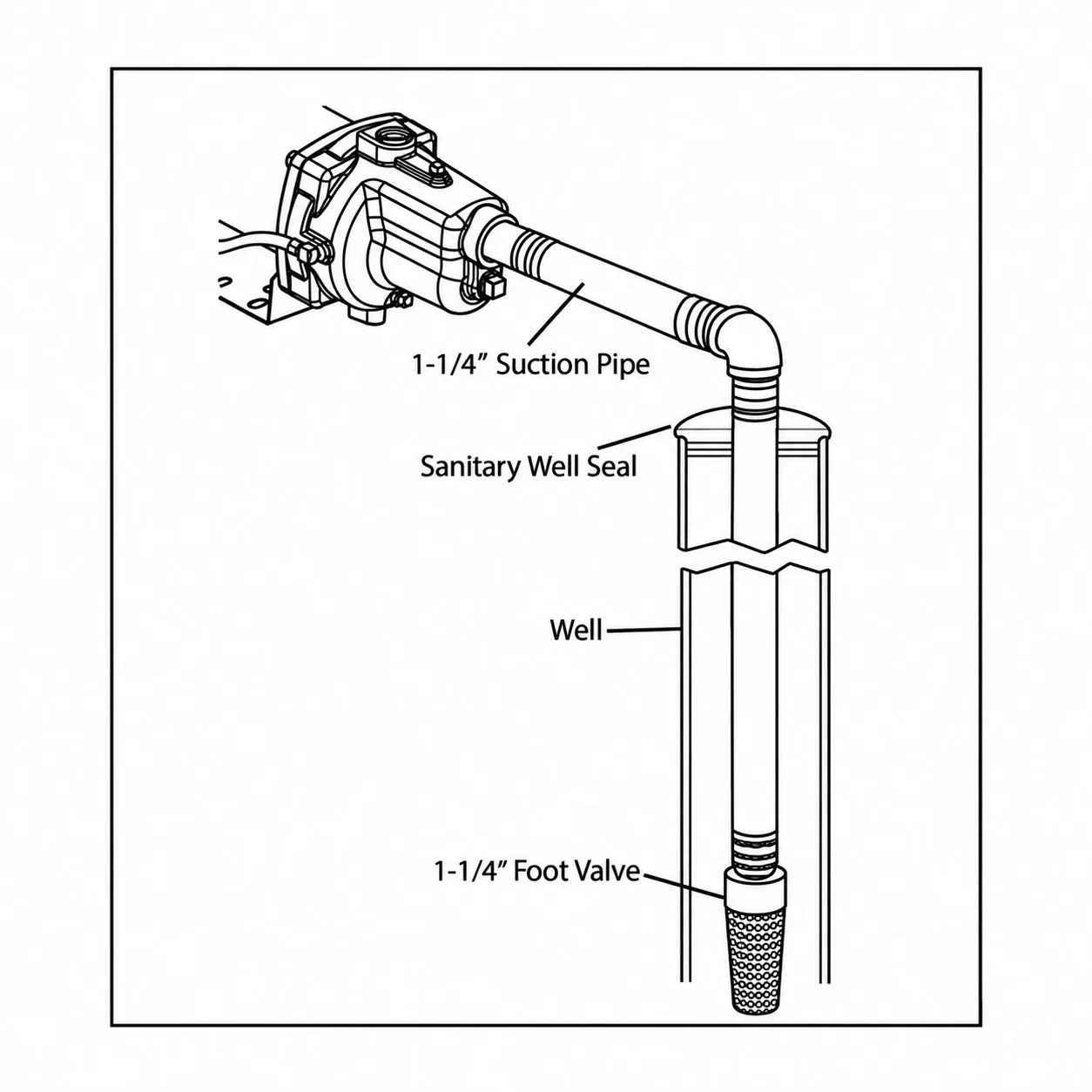

Designed for shallow well applications, capable of raising water from a depth of 25 feet. The revolutionary "Quick-Change" jet nozzle replacement system allows performance to be quickly changed from high pressure to high flow.

Heavy-duty cast iron case with a floating stainless steel eye seal for maximum performance and efficiency.

Key Advantages
Revolutionary "Quick-Change" jet nozzle replacement system
Revolutionary "Quick-Change" jet nozzle replacement system allows for easy customization of the pump; performance can be quickly changed from a high pressure to high flow set-up without removing the plumbing or opening the case
Impeller (with stainless steel insert)
Impeller (with stainless steel insert), diffuser, jet nozzle, and venturi all molded with Modified PPO, a material that increases efficiency and hydraulic performance
Phenolic/Ceramic mechanical shaft seal
Phenolic/Ceramic mechanical shaft seal with nitrile elastomers and 18-8SS hardware ensures positive sealing and longevity
Heavy-duty cast iron case includes both pressure
Heavy-duty cast iron case includes both pressure and drain ports
Floating stainless steel eye seal
Floating stainless steel eye seal provides maximum performance and efficiency
Powered by high quality
Powered by high quality, industry proven, UL778 approved, indoor/outdoor square-flange single phase motors
Pressure switch installed and set at 30/50
Pressure switch installed and set at 30/50 psi
Water temperatures up to 120 °F/49 °C;
Water temperatures up to 120 °F/49 °C; 75 psi maximum working pressure
1-1/4" inlet and 1" outlet
1-1/4" inlet and 1" outlet - all models
NSF/ANSI/CAN 372 Certified
NSF/ANSI/CAN 372 Certified
Order Information
Item Model Horse Power Phase Voltage
91180005 FVJ05CI 1/2 HP Single-Phase 115/230 VAC
91180007 FVJ07CI 3/4 HP Single-Phase 115/230 VAC
91180010 FVJ1CI 1 HP Single-Phase 115/230 VAC
91180015 FVJ15CI 1.5 HP Single-Phase 115/230 VAC
Documentation & Spec Sheets
VersaJet Series Spec Sheet
Spec Sheet — Franklin Electric published document (PDF).
Download PDF
VersaJet Series Manual
Owner’s Manual — Franklin Electric published document (PDF).
Download PDF
Specification Source

Specifications, model numbers and Franklin item numbers on this page are taken from Franklin Electric published product data. Engineering-led pump sizing available — call 281.664.8000 or email sales@watermainsupply.com.

Ready to Order?
Confirm horsepower, phase, voltage and flow requirements before placing your order. Engineering-led pump sizing available.
