Goulds Water Technology
Shallow Well Jet Pumps
NSF-certified shallow well jet pumps for wells to 25 ft — JS+ and JRS series. Cast iron, integral jet, 0.5–1.5 HP, 115/230V single phase.
NSF/ANSI 61 & 372
Shallow Well
JS+ & JRS
0.5–1.5 HP
Integral Jet
Built in USA
Genuine Goulds Water Technology equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial distributor.
Overview

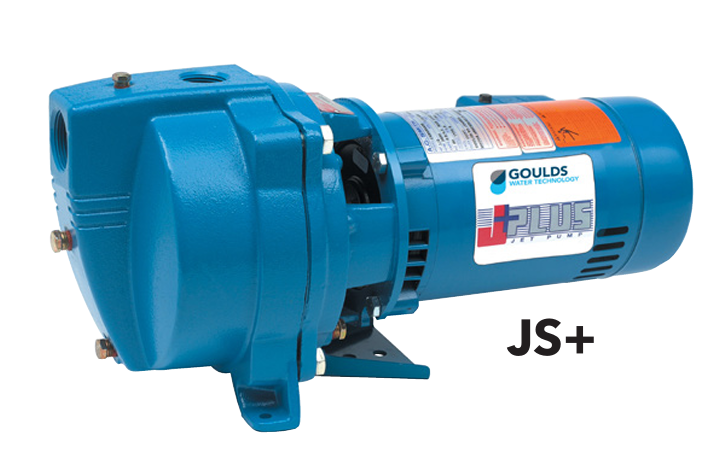

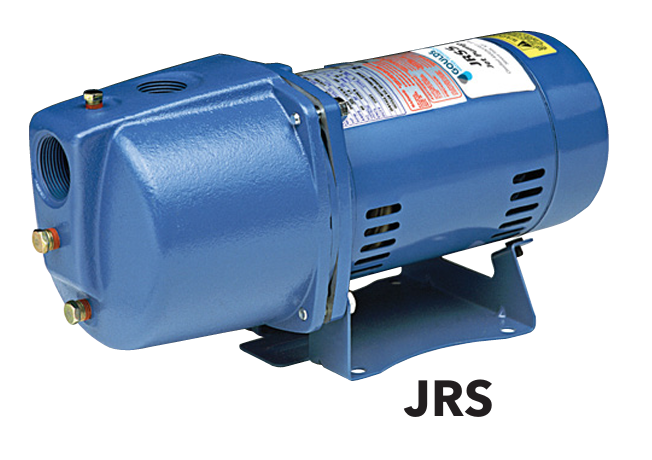

Goulds shallow well jet pumps draw water from wells with a maximum suction lift of 25 ft. This listing covers two series: the JS+ (0.5–1.5 HP), built in the USA with an integral shallow-well jet and a stainless diffuser wear ring; and the value JRS (0.5–1 HP), with an O-ring casing seal and a drain plug for easy winterizing. Both are NSF/ANSI 61 & 372 certified for drinking water.
Select your series and horsepower from the options above.
Key Features
-
Compact / Integral Jet — Shallow-well jet built into the casing — no separate adapter required (JS+).
-
Serviceable — Back pull-out design, two-compartment motor, and nozzle clean-out plug.
-
FDA-Compliant Impeller — Glass-filled engineered composite — corrosion and abrasion resistant.
-
Corrosion Resistant — Electrocoat paint process applied inside and out, then baked on.
-
Protected Mechanical Seal — Diaphragm design keeps water in the casing so the seal never runs dry.
-
Drain Plug (JRS) — Accessible drain plug for easy winterizing and maintenance.
-
Excellent Air Handling — Re-primes itself once water rises above the foot valve.
-
NSF Listed — Certified to NSF/ANSI 61 & 372 for drinking water systems.
Specifications
| Pump Type |
Shallow well jet (centrifugal with jet) |
| Suction Connection |
1-1/4 in NPT |
| Discharge Connection |
1 in NPT |
| Pressure Switch |
AS4, preset 30–50 PSI |
| Motor |
NEMA standard, 60 Hz, 3500 RPM, single phase, capacitor start |
| Voltage |
115/230 V; built-in overload with automatic reset |
| Shaft / Rotation |
Stainless steel; clockwise viewed from motor end |
| Maximum Suction Lift |
25 ft |
| Maximum Temperature |
140°F (60°C) |
| Casing |
Cast iron, electrocoat finish |
| Agency Listings |
NSF/ANSI 61 & 372, CSA, UL listed |
Models in This Listing
| Series |
Model |
HP |
Stages |
Weight |
Notes |
| JS+ |
J5S |
0.5 |
1 |
43 lb |
Integral jet, built in USA |
| JS+ |
J5SH |
0.5 |
1 |
43 lb |
High pressure |
| JS+ |
J7S |
0.75 |
1 |
47 lb |
Integral jet |
| JS+ |
J10S |
1 |
1 |
50 lb |
Integral jet |
| JS+ |
J15S |
1.5 |
1 |
60 lb |
Integral jet |
| JRS |
JRS5 |
0.5 |
1 |
37 lb |
Value line, drain plug |
| JRS |
JRS5H |
0.5 |
1 |
37 lb |
High pressure |
| JRS |
JRS7 |
0.75 |
1 |
42 lb |
Value line |
| JRS |
JRS10 |
1 |
1 |
47 lb |
Value line |
Performance
| JS+ Peak Capacity |
Up to 26 GPM |
| JRS Peak Capacity |
Up to 27 GPM |
| Maximum Suction Lift |
25 ft (vertical lift + friction loss) |
| Detailed Ratings |
See the Data Sheet & Technical Brochure for GPM by model, discharge pressure and suction lift. |
Confirm Before OrderingShallow well pumps are for a maximum suction lift of 25 ft (vertical lift plus friction loss). Verify series, horsepower and supply voltage before ordering. A pressure tank is required on all systems. Never run the pump dry. Wire and ground per local and National Electrical Code requirements.
