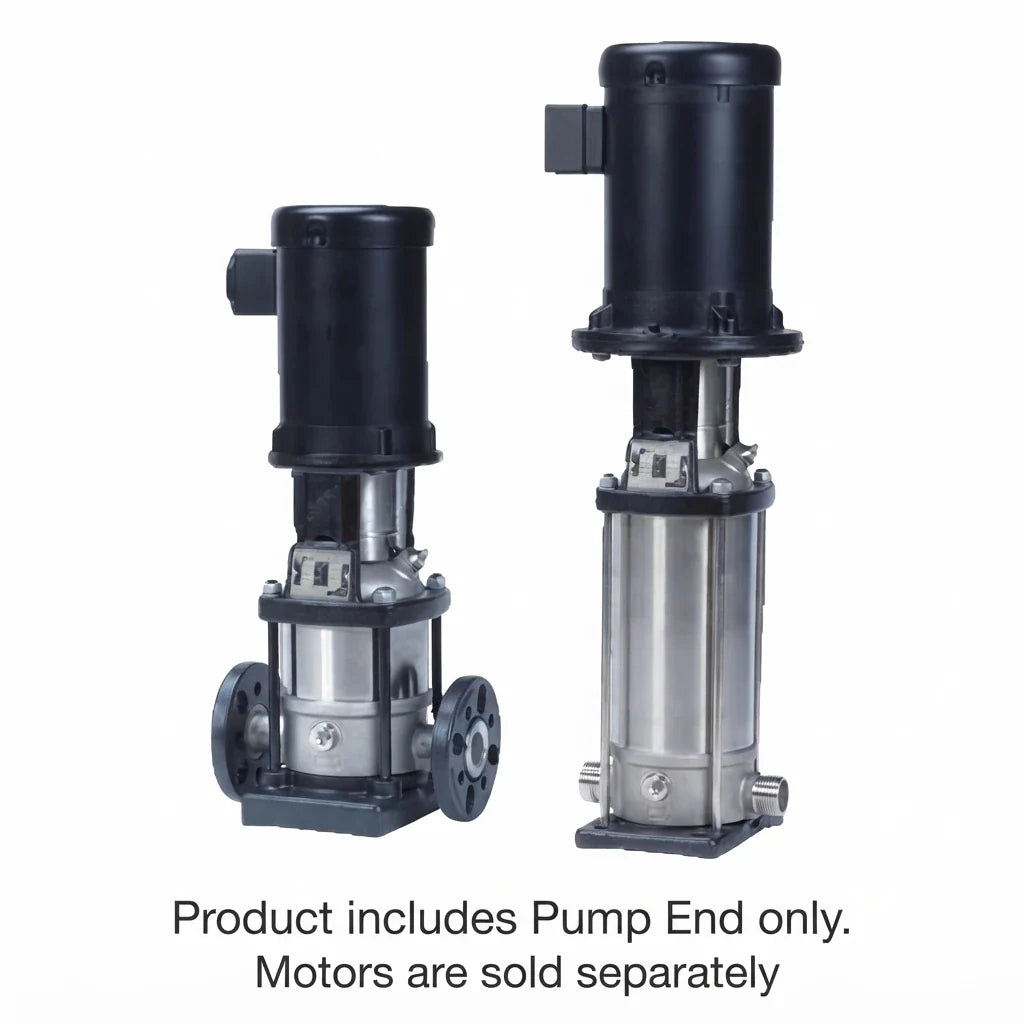

Grundfos CRN 10 vertical multistage pump end, motor not included

Grundfos CR / CRI / CRN Pump Ends

Grundfos CR, CRI and CRN pump ends: the complete vertical multistage hydraulic assembly - pump head, base, chamber stack, impellers, shaft and cartridge seal - supplied without a motor.
Three material grades cover the range: CR with a cast iron head and AISI 304 internals, CRI in all 304, and CRN in all 316 for chloride-bearing water.
556 published part numbers across 9 product pages, in ANSI flanged, NPT oval flange, FlexiClamp and Victaulic grooved connections.
The horsepower and NEMA frame shown against a part number are a selection rating and a mounting face - they say what motor the pump end accepts, not what ships with it.
NSF/ANSI 61 certified, ISO9906:2012 3B curve tolerance, cartridge shaft seal in HQQE or HQQV.
Engineering-led sizing against the published curve: send the pump nameplate and the duty point and we will confirm the part number before you order.
Call 1-888.510.4036 or email sales@watermainsupply.com.

9 products
Sort by:
Most relevant
Sort by:
Most relevant
Grundfos CRN 10 Vertical Multistage Pump End, Motor Not Included
Grundfos CRN 10 vertical multistage pump end, motor not included

Grundfos

Free Shipping $499 or more

Grundfos CRN 10 Vertical Multistage Pump End, Motor Not Included

From $3,697.15
Grundfos CRN 5 Vertical Multistage Pump End, Motor Not Included
Grundfos CRN 10 vertical multistage pump end, motor not included

Grundfos

Free Shipping $499 or more

Grundfos CRN 5 Vertical Multistage Pump End, Motor Not Included

From $1,990.72
Grundfos CRN 3 Vertical Multistage Pump End, Motor Not Included
Grundfos CRN 10 vertical multistage pump end, motor not included

Grundfos

Free Shipping $499 or more

Grundfos CRN 3 Vertical Multistage Pump End, Motor Not Included

From $1,879.29
Grundfos CRI 10 Vertical Multistage Pump End, Motor Not Included
Grundfos CRI 10 vertical multistage pump end, motor not included

Grundfos

Free Shipping $499 or more

Grundfos CRI 10 Vertical Multistage Pump End, Motor Not Included

From $2,805.72
Grundfos CRI 5 Vertical Multistage Pump End, Motor Not Included
Grundfos CRI 10 vertical multistage pump end, motor not included

Grundfos

Free Shipping $499 or more

Grundfos CRI 5 Vertical Multistage Pump End, Motor Not Included

From $1,540
Grundfos CRI 3 Vertical Multistage Pump End, Motor Not Included
Grundfos CRI 10 vertical multistage pump end, motor not included

Grundfos

Free Shipping $499 or more

Grundfos CRI 3 Vertical Multistage Pump End, Motor Not Included

From $1,515.72
Grundfos CR 10 Vertical Multistage Pump End, Motor Not Included
Grundfos CR 10 vertical multistage pump end, motor not included

Grundfos

Free Shipping $499 or more

Grundfos CR 10 Vertical Multistage Pump End, Motor Not Included

From $2,512.15
Grundfos CR 5 Vertical Multistage Pump End, Motor Not Included
Grundfos CRI 10 vertical multistage pump end, motor not included

Grundfos

Free Shipping $499 or more

Grundfos CR 5 Vertical Multistage Pump End, Motor Not Included

From $1,370.72
Grundfos CR 3 Vertical Multistage Pump End, Motor Not Included
Grundfos CRI 10 vertical multistage pump end, motor not included

Grundfos

Free Shipping $499 or more

Grundfos CR 3 Vertical Multistage Pump End, Motor Not Included

From $1,342.15

Grundfos CR / CRI / CRN Pump Ends

Grundfos · Vertical Multistage

Grundfos CR / CRI / CRN Pump Ends

The complete hydraulic assembly — pump head, base, chamber stack, impellers, shaft and cartridge seal — supplied without a motor. What you order to rebuild a CR installation, to re-stage a pump whose duty has changed, or to build onto a motor you already have.

556Part numbers listed
9Product pages
3Material grades
3 / 5 / 10Frames
No motorPump end only

A CR pump end is an entire Grundfos vertical multistage hydraulic assembly with the motor left off. Suction and discharge sit on the same centreline at the same height, so it drops into a straight pipe run; head comes from stacking stages rather than from a bigger impeller, so the same footprint covers a wide pressure range and a system can be re-tuned by changing the stack rather than the pump.

The horsepower and NEMA frame printed against each part number are a selection rating and a mounting face — they say what motor the pump end is built to accept, not what ships with it. Watermain Supply lists 556 published part numbers across 9 product pages, with the Grundfos order number on every variant, and offers engineering-led sizing against the published curve — call 1-888.510.4036 or email sales@watermainsupply.com with the nameplate off the pump you are rebuilding.

Genuine Grundfos equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier.

Motor not included. Every part number on this page is the pump end alone. The motor, the coupling and coupling guard, the motor stool where one is required, controls, drives, base plates and isolation valves are all ordered separately. If you want a complete pump, the CR, CRI and CRN complete-pump range is the page you want and we will quote it against the same duty.

The Three Ranges

Same hydraulics, three metals. Rebuild like for like — the metal in the pump you are opening up decides which of these you order.

Grundfos CR vertical multistage pump end, motor not included

Grundfos CR Pump Ends

Cast iron head, 304 internals
172 part numbers3 frames304 stainless pathHQQE and HQQV

The standard rebuild. A cast iron pump head and base with an AISI 304 stainless liquid path -- the hydraulic assembly out of the CR pump most commercial boosting, HVAC and irrigation duty already runs on.

  • Liquid path — AISI 304 stainless (EN 1.4301); pump head and base cast iron.
  • Connections — ANSI flanged, or oval flange, NPT female.
  • ANSI flange — ANSI 250 lb on CR 3 and CR 5 and ANSI 300 lb on CR 10.
  • Frames — CR 3, CR 5 and CR 10.
  • Maximum operating pressure — 232 or 362 psi by model and connection.
  • Shaft seal — cartridge, HQQE and HQQV.
  • Shipping weight — 35 to 240 lb depending on frame, stack and connection.
Best for: Municipal and well water, HVAC circulation, boiler feed, irrigation, general pressure boosting.
Grundfos CRI vertical multistage pump end, motor not included

Grundfos CRI Pump Ends

All 304 stainless
180 part numbers3 frames304 stainless pathHQQE and HQQV

The same hydraulics with the cast iron taken out: head, base, chambers, impellers and shaft all AISI 304. Order it when the pump you are rebuilding is a CRI, or when the housing itself has to be stainless.

  • Liquid path — AISI 304 stainless (EN 1.4301); pump head and base aisi 304 stainless.
  • Connections — ANSI flanged, or FlexiClamp.
  • ANSI flange — ANSI 300 lb on every frame.
  • Frames — CRI 3, CRI 5 and CRI 10.
  • Maximum operating pressure — 232 or 362 psi by model and connection.
  • Shaft seal — cartridge, HQQE and HQQV.
  • Shipping weight — 31 to 234 lb depending on frame, stack and connection.
Best for: Treated and demineralised water, food and beverage, light chemical duty, anywhere a cast iron housing is not acceptable.
Grundfos CRN vertical multistage pump end, motor not included

Grundfos CRN Pump Ends

All 316 stainless
204 part numbers3 frames316 stainless pathHQQE and HQQV

All AISI 316. The molybdenum in 316 is what resists chloride pitting, and it is the whole reason to choose CRN over CRI -- so it is also the reason a CRN pump must be rebuilt with a CRN pump end, not a CRI one.

  • Liquid path — AISI 316 stainless (EN 1.4401); pump head and base aisi 316 stainless.
  • Connections — ANSI flanged, or Victaulic grooved.
  • ANSI flange — ANSI 300 lb on every frame.
  • Frames — CRN 3, CRN 5 and CRN 10.
  • Maximum operating pressure — 362 psi.
  • Shaft seal — cartridge, HQQE and HQQV.
  • Shipping weight — 31 to 234 lb depending on frame, stack and connection.
Best for: Chloride-bearing and brackish water, RO and process duty, coastal installations, aggressive liquids.

Which One

The metal is the decision. Everything else on this table follows from it.

Range Head and base Liquid path ANSI flange Second connection Max pressure Part numbers
CR Cast iron AISI 304 stainless ANSI 250 lb on CR 3 and CR 5 and ANSI 300 lb on CR 10 oval flange, NPT female 232 or 362 psi by model and connection 172
CRI AISI 304 stainless AISI 304 stainless ANSI 300 lb on every frame FlexiClamp 232 or 362 psi by model and connection 180
CRN AISI 316 stainless AISI 316 stainless ANSI 300 lb on every frame Victaulic grooved 362 psi 204
Quick rule. Rebuild like for like. A CRN pump exists because the water has chlorides in it, so putting a CRI pump end into it takes away the reason the pump was specified. Going the other way — a CRN pump end into a CR installation — works mechanically and costs more than it needs to. If the nameplate is unreadable, send us a photograph of the pump and the duty point and we will identify it.

Frames & Stages

Stage count is the second number in the model. More stages means more head at the same flow, in the same footprint.

Range Frame Models Count Stages Motor rating accepted Max pressure Shipping weight
CR CR 3 CR 3-2 to CR 3-25 18 2 to 25 1/3 to 5 HP 232 and 362 psi 35–83 lb
CR CR 5 CR 5-2 to CR 5-24 19 2 to 24 3/4 to 7-1/2 HP 232 and 362 psi 41–171 lb
CR CR 10 CR 10-1 to CR 10-17 14 1 to 17 3/4 to 15 HP 232 and 362 psi 86–240 lb
CRI CRI 3 CRI 3-2 to CRI 3-25 18 2 to 25 1/3 to 5 HP 362 psi 31–76 lb
CRI CRI 5 CRI 5-2 to CRI 5-24 19 2 to 24 3/4 to 7-1/2 HP 362 psi 36–164 lb
CRI CRI 10 CRI 10-1 to CRI 10-17 14 1 to 17 3/4 to 15 HP 232 and 362 psi 71–234 lb
CRN CRN 3 CRN 3-2 to CRN 3-25 18 2 to 25 1/3 to 5 HP 362 psi 31–76 lb
CRN CRN 5 CRN 5-2 to CRN 5-24 19 2 to 24 3/4 to 7-1/2 HP 362 psi 36–164 lb
CRN CRN 10 CRN 10-1 to CRN 10-17 14 1 to 17 3/4 to 15 HP 362 psi 66–234 lb

The motor rating column is the motor the pump end is built to accept. No motor is supplied. Shipping weights are the freight figures, which run heavier than net weight — the tall stacks on the 10 frame ship by LTL freight rather than parcel, and the product pages say which models those are. For a duty point against a specific model, request the Grundfos curve; head converts at 0.433 psi per foot of elevation.

Connections

Every range offers an ANSI flanged build and one alternative. The connection is cast into the head and base, so it is not something that can be changed in the field.

Range Connection Port ANSI flange Grundfos type Part numbers
CR ANSI flanged 1 1/4 in and 2 in ANSI 250 lb on CR 3 and CR 5 and ANSI 300 lb on CR 10 FGJ and GJ 102
CR oval flange, NPT female 1 in, 1 1/4 in and 2 in — B and BN 70
CRI ANSI flanged 1 1/4 in and 2 in ANSI 300 lb on every frame FGJ 102
CRI FlexiClamp 1 1/4 in and 2 in — CA 78
CRN ANSI flanged 1 1/4 in and 2 in ANSI 300 lb on every frame FGJ 102
CRN Victaulic grooved 1 1/4 in and 2 in — P 102
CRI is FlexiClamp, not NPT. Some price lists describe the non-flanged CRI connection as NPT. Grundfos Product Center returns FlexiClamp, type CA for all 78 of those part numbers, at 1 1/4 in and 2 in. It is a clamped stub, not a threaded port, and a pump end ordered on the wrong assumption will not thread onto existing pipework.
Victaulic couplings are rated above the pump. The grooved coupling on a CRN pump end is a PN 50 fitting, but the pump end itself is a 25 bar assembly, so the pump rating is the binding limit — design to the pressure in the table above, not to the coupling. Couplings and gaskets are not supplied with the pump end.

How to Order

Five things off the nameplate, in this order. Get the first four right and the part number falls out of the table on the product page.

1. The range. CR, CRI or CRN. It is the first thing on the nameplate and it is the material grade — cast iron head with 304 internals, all 304, or all 316. Rebuild like for like.

2. The frame and stage count. The model reads as frame dash stages: CR 5-16 is the 5 frame with sixteen stages. The frame sets the flow band, the stage count sets the head. If the duty has changed, this is the number to change — that is the whole point of buying a pump end rather than a pump.

3. The connection. ANSI flanged, or the second style your range offers. Cast into the head and base; it has to match the pipework already in the ground.

4. The seal code. HQQE or HQQV. The last letter is the elastomer — E is EPDM, V is FKM (Viton). If you are pumping water, HQQE. Match what is in the pump unless the liquid has changed.

5. The motor you already have. Confirm the NEMA frame and the coupling against the motor you intend to fit before you buy. The HP and frame printed against a part number are what the pump end accepts, not what ships. A pump end that fits the pipe but not the motor is still the wrong part.

Re-staging. Changing stage count changes the head at the same flow, and the motor has to carry it. Going up two stages on the same motor is often fine; going up six is often not. Send us the existing model, the new duty and the motor nameplate and we will check the absorbed power against the curve before you order.

Selection Guide

Water and duty Typical application Range Why
Municipal or well water, no chlorides General boosting, HVAC, irrigation CR The default. Cast iron head is not in contact with anything the water will attack at these levels.
Treated, softened or demineralised water Process make-up, light industrial CRI All-304 housing where a cast iron head would discolour or shed.
Chloride-bearing, brackish or coastal RO, process, seawater-adjacent CRN 316 for the molybdenum. This is the pitting case, and it is not optional.
Food, beverage or pharmaceutical Clean-in-place, utility water CRI or CRN 304 is usually enough; 316 where chlorides or cleaning chemistry demand it.
Rebuilding an existing pump Any of the above Match the nameplate The range on the pump is the range to order. Changing metal mid-life defeats the original specification.
Re-staging for a new duty Pressure has changed Same range, new stage count Keep the frame and the connection; change the stack. Confirm the motor can carry the new absorbed power.

Features

Cartridge shaft seal

The seal arrives as a complete unit with the faces pre-set. No lapping, no measuring, no setting spring length on the bench — which is most of the reason a pump-end swap is a morning rather than a day.

In-line hydraulics

Suction and discharge on one centreline at one height. The pump end drops back into the same straight pipe run with no offset and no re-piping.

Stage stack, not impeller size

Head comes from how many chambers are stacked. The footprint stays the same across the whole pressure range, and a duty change is a stack change.

Silicon carbide faces

Both seal codes run silicon carbide against silicon carbide. The difference between HQQE and HQQV is the elastomer, not the faces.

NSF/ANSI 61

Certified on the published part numbers across all three ranges — the drinking-water approval most municipal and commercial specifications call for.

ISO9906:2012 3B

The curve tolerance Grundfos publishes for this platform, so the performance you design to is the performance the grade allows.

Genuine Grundfos assemblies

Factory-built pump ends with the Grundfos order number on every variant, not a rebuilt or aftermarket equivalent.

No ambient rating

A pump end carries no maximum ambient temperature because there is no motor to rate. The ambient limit comes from whichever motor you fit.

Service Kits and Companions

What a pump-end order usually needs alongside it.

Shaft Seal Kits

The replacement cartridge seal for CR, CRI and CRN, in HQQE and HQQV, covering the 1s, 1, 3 and 5 frames and the 10, 15 and 20 frames.

Shaft seal kits

Gasket Kits

The elastomer set that goes back in when a pump is opened up, in EPDM and FKM, in the same two size groups. A seal kit and a gasket kit are separate products and are ordered separately.

Gasket kits

Complete Pumps

If you need the motor as well, the complete CR, CRI and CRN range is priced and listed as a pump rather than an assembly.

Complete pumps

Motors, couplings, coupling guards and motor stools are quoted against the frame you are fitting — send us the pump end part number and the motor nameplate.

Why Watermain Supply

Engineering-led sizing

Send the nameplate and the duty point and we check the model, the stage count and the absorbed power against the published curve before you order.

Multi-brand honesty

We sell more than one pump line. If a Grundfos pump end is not the right fit for the installation, we will say so.

The right US build

60 Hz data, US connection styles and the correct flange class for the frame — not an international variant that looks the same on paper.

Everything on one order

Pump end, seal kit, gasket kit and the motor hardware quoted together, so the rebuild does not arrive in pieces across three weeks.

Parts and aftermarket

Service kits listed with their Grundfos order numbers, so the next rebuild is a reorder rather than a research project.

Houston and the Gulf Coast

Account terms, submittals and service support from people who take the call.

Frequently Asked

Does a pump end include the motor?

No. A pump end is the hydraulic assembly only: pump head, base, chamber stack, impellers, shaft, sleeves and the cartridge shaft seal, factory assembled. The horsepower and NEMA frame shown against each part number are a selection rating and a mounting face, not a motor that ships.

What else is not included?

The motor, the coupling and coupling guard, the motor stool where one is required, controls, starters, drives, base plates, foundation bolts and isolation valves. Oval flanges are included on the NPT build of CR. Victaulic couplings and gaskets are not included on CRN.

Can I fit a CRI pump end to a CRN pump?

Mechanically it will go together, but it defeats the specification. CRN exists because the liquid carries chlorides and 316 resists chloride pitting where 304 does not. Rebuild like for like.

How do I read the model number?

Frame dash stage count. CR 5-16 is the 5 frame with sixteen stages. The frame sets the flow band and the stage count sets the head.

Can I change the stage count when I rebuild?

Yes, and it is one of the main reasons to buy a pump end. Keep the frame and the connection and change the stack. Confirm the motor can carry the new absorbed power before ordering, because more stages at the same flow means more power.

What is the difference between HQQE and HQQV?

The elastomer. Both are cartridge seals with silicon carbide faces. E is EPDM, V is FKM (Viton). For water, HQQE. Match what is already in the pump unless the liquid has changed.

Is the CRI connection NPT?

No. Grundfos Product Center returns FlexiClamp, type CA, for every non-flanged CRI pump end. Some price lists describe it as NPT and that is wrong. It is a clamped stub, not a threaded port.

Which flange class do the ANSI builds use?

CR 3 and CR 5 are ANSI 250 lb; CR 10 is ANSI 300 lb on a different flange type. Every CRI and CRN ANSI pump end is 300 lb. Check the frame, not the range.

Do I need a gasket kit as well as a seal kit?

A full strip-down usually needs both, but they are separate products and are ordered separately. Buying one does not bring the other with it.

How are these shipped?

Most ship by parcel carrier. The heavier stacks ship on a pallet by LTL freight, and the product page names which models those are. A delivery appointment, a dock or a liftgate may be needed.

Ready to Size a Rebuild?

Send the pump nameplate and the duty point. We will confirm the frame, the stage count, the connection and the seal code, and quote the seal and gasket kits with it.

1-888.510.4036Email sales@watermainsupply.comRequest a Quote

Specifications, dimensions and part numbers are subject to change without notice; confirm against the current Grundfos documentation before ordering.

Grundfos, CR, CRI, CRN and FlexiClamp are trademarks of Grundfos Holding A/S. Victaulic is a trademark of Victaulic Company. Viton is a trademark of The Chemours Company. All are used here for product identification only.

Watermain Supply — A division of E4 Industrial LLC.
