Grundfos CR 10 vertical multistage pump end, motor not included
Grundfos CR 10 vertical multistage pump end, motor not included

Grundfos CR 10 Vertical Multistage Pump End, Motor Not Included

Model: CR 10-1
Connection and Seal: ANSI Flanged - HQQE

Product variant with selected options does not exist!
$2,512.15
SKU: 96126730
Weight : 87.9997 lb
Free Shipping $499 or more
Need it fast? Call for same-day shipping options: 281.664.8000
Description

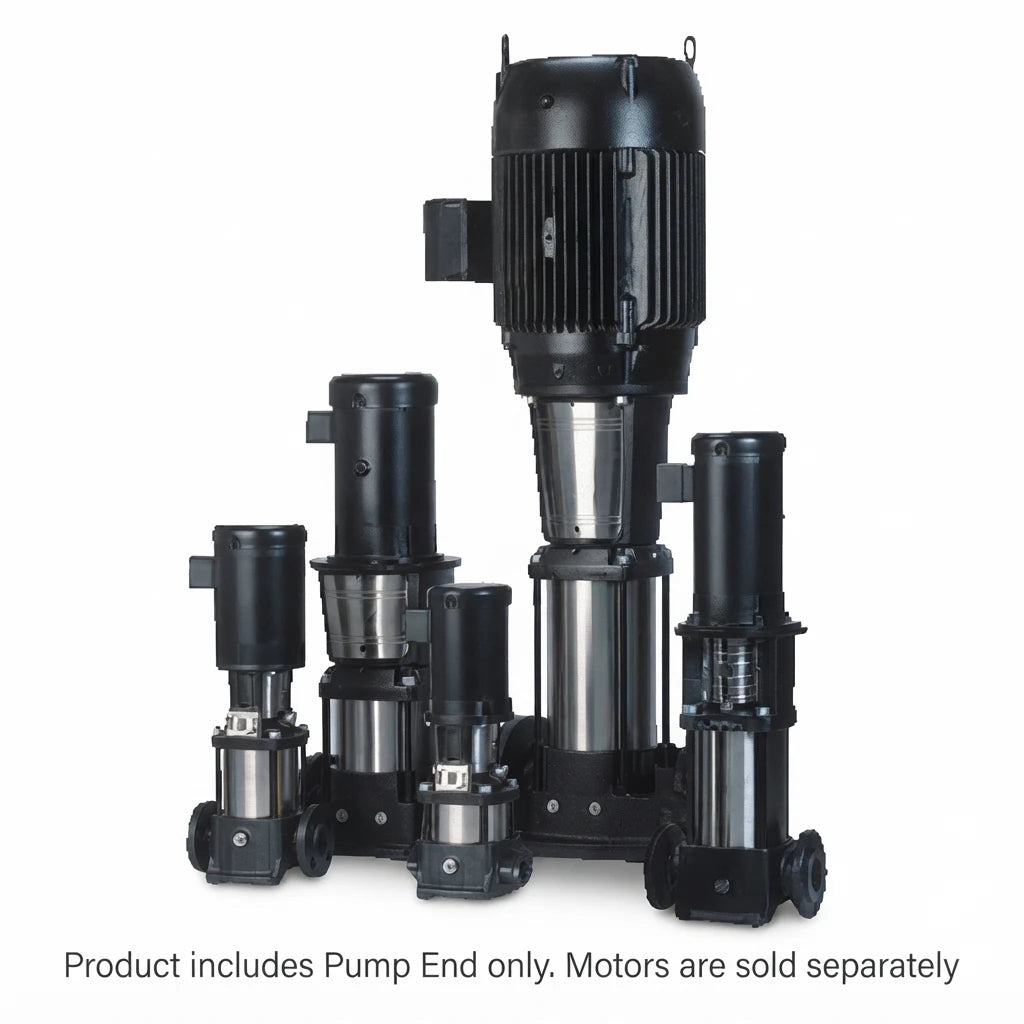

Product includes Pump End only. Motors are sold separately.
GRUNDFOS · VERTICAL MULTISTAGE PUMP END
CR 10 Pump End
Vertical multistage pump end in cast iron and AISI 304 stainless, 14 stage counts from CR 10-1 to CR 10-17, cartridge shaft seal, in 2 in ANSI 300 lb flanged and 2 in oval flanges, NPT female. Motor not included.
Pump End Only
14 Models
1–17 Stages
2 in ANSI 300 lb or 2 in NPT
232 or 362 psi
Cast Iron / 304 SS
Motor Not IncludedThis listing is the pump end only — the hydraulic assembly with its chambers, impellers, shaft and cartridge seal, with no motor. The horsepower and NEMA frame against each part number are a selection rating and a mounting face: they tell you what motor the pump end is built to accept, not what ships with it. Order the motor separately and confirm the frame and coupling against the part number before you buy.
Ships by FreightCR 10-5, CR 10-7, CR 10-8, CR 10-9, CR 10-10, CR 10-12, CR 10-14, CR 10-16 and CR 10-17 on the 2 in ANSI 300 lb build ship on a pallet by LTL freight rather than by parcel carrier. A delivery appointment, a dock or a liftgate may be needed; ask us before ordering if the site has none of those. Only the builds named here ship by freight; every other model and connection in this listing ships by parcel carrier as usual. Weight does not rise strictly with stage count on this frame, so read the list rather than assuming everything above a given model ships by freight.
What This Is

A CR pump end is an entire Grundfos vertical multistage hydraulic assembly — pump head, base, chamber stack, impellers, shaft and cartridge shaft seal — supplied without a motor. It is what you order to rebuild an existing CR installation, to re-stage a pump whose duty has changed, or to build a pump onto a motor you already have.

The pump head and base are cast iron; the chambers, impellers, shaft and sleeves in contact with the liquid are AISI 304 stainless. The layout is in-line: suction and discharge sit on the same centreline at the same height, so it drops into a straight pipe run.

This listing covers the CR 10 frame in 2 in ANSI 300 lb flanged and 2 in oval flanges, NPT female. Choose the connection with the seal in the variant selector — the two builds differ in port size, pressure rating and shipping weight, and the table below sets them side by side.

Genuine Grundfos equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier.
Connections
Connection Port Flange Max pressure Models Shipping weight
2 in ANSI 300 lb 2 in ANSI 300 lb 232 psi to CR 10-10, 362 psi from CR 10-12 up CR 10-1 to CR 10-17 (14) 88–240 lb
2 in NPT 2 in Oval flange, NPT female 232 psi CR 10-1 to CR 10-6 (6) 86–108 lb

The two builds are not interchangeable in the field: the connection is cast into the pump head and base, so a pump end ordered in the wrong style will not bolt to existing pipework. Match it to what is already installed.

Models
2 in ANSI 300 lb
Model Stages Motor rating NEMA frame Max pressure Shipping weight
CR 10-1 1 3/4 HP 56C 232 psi 88 lb
CR 10-2 2 1-1/2 HP 56C 232 psi 88 lb
CR 10-3 3 3 HP 182TC 232 psi 104 lb
CR 10-4 4 3 HP 182TC 232 psi 106 lb
CR 10-5 5 5 HP 182TC 232 psi 112 lb
CR 10-6 6 5 HP 182TC 232 psi 110 lb
CR 10-7 7 7-1/2 HP 213TC 232 psi 112 lb
CR 10-8 8 7-1/2 HP 213TC 232 psi 123 lb
CR 10-9 9 7-1/2 HP 213TC 232 psi 126 lb
CR 10-10 10 7-1/2 HP 213TC 232 psi 128 lb
CR 10-12 12 10 HP 213TC 362 psi 216 lb
CR 10-14 14 15 HP 254TC 362 psi 225 lb
CR 10-16 16 15 HP 254TC 362 psi 236 lb
CR 10-17 17 15 HP 254TC 362 psi 240 lb
2 in NPT
Model Stages Motor rating NEMA frame Max pressure Shipping weight
CR 10-1 1 3/4 HP 56C 232 psi 86 lb
CR 10-2 2 1-1/2 HP 56C 232 psi 86 lb
CR 10-3 3 3 HP 182TC 232 psi 101 lb
CR 10-4 4 3 HP 182TC 232 psi 104 lb
CR 10-5 5 5 HP 182TC 232 psi 106 lb
CR 10-6 6 5 HP 182TC 232 psi 108 lb

The motor rating and NEMA frame are the motor this pump end is built to accept. No motor is supplied. Stage count is the second number in the model — more stages means more head at the same flow without changing the footprint.

Shaft Seal Options
  • HQQE — silicon-carbide faces, EPDM elastomers, -4 to 248 °F liquid range.
  • HQQV — silicon-carbide faces, FKM (Viton) elastomers, -4 to 194 °F liquid range.

Both are cartridge seals: the seal is replaced as a complete unit without dismantling the pump or setting faces by hand. In the Grundfos code the last letter is the elastomer — E = EPDM, V = FKM (Viton). If you are pumping water, HQQE.

Specifications
Specification Value
Supplied as Pump end only — no motor
Frame CR 10
Stage counts 1 to 17 (14 models)
Connections available 2 in ANSI 300 lb flanged (Grundfos type GJ, ANSI / JIS)
2 in oval flanges, NPT female (Grundfos type BN)
Maximum operating pressure 2 in ANSI 300 lb: 232 psi to CR 10-10, 362 psi from CR 10-12 up
2 in NPT: 232 psi
Motor rating accepted 3/4 to 15 HP, NEMA 182TC, 213TC, 254TC, 56C C-face
Pump head and base Cast iron
Chambers, impellers, shaft, sleeves AISI 304 stainless steel (EN 1.4301)
Shaft seal Cartridge, silicon carbide / silicon carbide faces
Seal codes available HQQE and HQQV
Drinking water approval NSF/ANSI 61
Curve tolerance ISO9906:2012 3B
Pumped liquid Clean, thin, non-aggressive, non-explosive liquids without solid particles or fibres
Orientation Vertical in-line

A pump end carries no maximum ambient temperature, because there is no motor to rate. The ambient limit comes from whichever motor you fit.

Part Numbers
Model Connection Seal Motor rating NEMA frame Part No.
CR 10-1 2 in ANSI 300 lb HQQE 3/4 HP 56C 96126730
CR 10-1 2 in ANSI 300 lb HQQV 3/4 HP 56C 96126750
CR 10-1 2 in NPT HQQE 3/4 HP 56C 96126724
CR 10-1 2 in NPT HQQV 3/4 HP 56C 96126744
CR 10-2 2 in ANSI 300 lb HQQE 1-1/2 HP 56C 96126731
CR 10-2 2 in ANSI 300 lb HQQV 1-1/2 HP 56C 96126751
CR 10-2 2 in NPT HQQE 1-1/2 HP 56C 96126725
CR 10-2 2 in NPT HQQV 1-1/2 HP 56C 96126745
CR 10-3 2 in ANSI 300 lb HQQE 3 HP 182TC 96126732
CR 10-3 2 in ANSI 300 lb HQQV 3 HP 182TC 96126752
CR 10-3 2 in NPT HQQE 3 HP 182TC 96126726
CR 10-3 2 in NPT HQQV 3 HP 182TC 96126746
CR 10-4 2 in ANSI 300 lb HQQE 3 HP 182TC 96126733
CR 10-4 2 in ANSI 300 lb HQQV 3 HP 182TC 96126753
CR 10-4 2 in NPT HQQE 3 HP 182TC 96126727
CR 10-4 2 in NPT HQQV 3 HP 182TC 96126747
CR 10-5 2 in ANSI 300 lb HQQE 5 HP 182TC 96126734
CR 10-5 2 in ANSI 300 lb HQQV 5 HP 182TC 96126754
CR 10-5 2 in NPT HQQE 5 HP 182TC 96126728
CR 10-5 2 in NPT HQQV 5 HP 182TC 96126748
CR 10-6 2 in ANSI 300 lb HQQE 5 HP 182TC 96126735
CR 10-6 2 in ANSI 300 lb HQQV 5 HP 182TC 96126755
CR 10-6 2 in NPT HQQE 5 HP 182TC 96126729
CR 10-6 2 in NPT HQQV 5 HP 182TC 96126749
CR 10-7 2 in ANSI 300 lb HQQE 7-1/2 HP 213TC 96801331
CR 10-7 2 in ANSI 300 lb HQQV 7-1/2 HP 213TC 97743224
CR 10-8 2 in ANSI 300 lb HQQE 7-1/2 HP 213TC 96126737
CR 10-8 2 in ANSI 300 lb HQQV 7-1/2 HP 213TC 96126757
CR 10-9 2 in ANSI 300 lb HQQE 7-1/2 HP 213TC 96126738
CR 10-9 2 in ANSI 300 lb HQQV 7-1/2 HP 213TC 96126758
CR 10-10 2 in ANSI 300 lb HQQE 7-1/2 HP 213TC 96126739
CR 10-10 2 in ANSI 300 lb HQQV 7-1/2 HP 213TC 96126759
CR 10-12 2 in ANSI 300 lb HQQE 10 HP 213TC 96126740
CR 10-12 2 in ANSI 300 lb HQQV 10 HP 213TC 96126760
CR 10-14 2 in ANSI 300 lb HQQE 15 HP 254TC 97744331
CR 10-14 2 in ANSI 300 lb HQQV 15 HP 254TC 97744332
CR 10-16 2 in ANSI 300 lb HQQE 15 HP 254TC 96126742
CR 10-16 2 in ANSI 300 lb HQQV 15 HP 254TC 96126762
CR 10-17 2 in ANSI 300 lb HQQE 15 HP 254TC 96126743
CR 10-17 2 in ANSI 300 lb HQQV 15 HP 254TC 96126763
What Is Supplied

Pump end only: pump head, base, chamber stack, impellers, shaft, sleeves and the cartridge shaft seal, factory assembled. Oval flanges are included on the NPT build.

Not included: the motor, the coupling and coupling guard, the motor stool where one is required, controls, starters, drives, base plates, foundation bolts and isolation valves. If you need a complete pump, order the CR complete-pump listing instead and we will quote it against the same duty.

Before You OrderConfirm three things: the model and stage count against the duty you need, the motor frame and coupling against the motor you intend to fit, and the connection — the 2 in ANSI 300 lb or 2 in NPT builds are not interchangeable in the field. Send us the duty point and the existing pump nameplate and we will confirm the part number.
For engineering-led sizing and selection support or a factory submittal, email sales@watermainsupply.com or call 1-888.510.4036.
© Watermain Supply — A division of E4 Industrial LLC
Data Sheet
CR, CRI, CRN 60 Hz Data BookletCR, CRI, CRN Product Guide (USA)CR, CRI, CRN, CRT Installation and Operating Instructions

All three documents describe the complete CR pump. A pump end is that same hydraulic assembly without its motor, so the performance curves, dimensions and materials read across — the motor and electrical sections do not apply to what ships. For a dimensional drawing or a factory submittal against a specific part number, email sales@watermainsupply.com.
