Close-coupled AG, D, FAC, HC and XS surface pumps for water transfer, pressure boosting, circulation and irrigation — threaded and flanged, with engineering-led selection from Watermain Supply.
Franklin Electric builds close-coupled centrifugal surface pumps in five families — AG, D, FAC, HC and XS — that between them cover fractional-horsepower transfer duties up to large flanged water-handling installations. The families differ in hydraulic range, connection type, casing and impeller materials, seal construction and motor configuration, so the right choice is set by the duty point and the installation, not by horsepower alone.
We supply the U.S. 60 Hz range in NPT and flanged configurations and select each pump against the manufacturer’s published curve for your flow, head, liquid and electrical supply. Compare the families below, or call 1-888.510.4036 and we will size it for you. Genuine Franklin Electric equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier.
Compare construction and published limits first, then confirm the individual model curve.
Threaded and flanged water handling
Cast-iron casing with a stainless-steel impeller and back-pullout construction. Its mix of NPT and Class 125 flanged connections makes AG a useful starting point for water supply, pressure boosting and recirculation where piping fit matters as much as the duty point.
Threaded, broad motor range
Spans small fractional-horsepower pumps through larger threaded centrifugals. DA, DB and DC designations identify different hydraulic designs; the L versions identify the 1,800 RPM selections. Compare the complete model rather than treating every D Series pump as interchangeable.
Focused 3–5 HP range
The FAC range shown here uses 2 in × 2 in NPT suction and discharge, a CF8M stainless-steel impeller and a silicon-carbide-based mechanical seal. A focused option for circulation, liquid transfer and booster or jockey service when its published curve matches the required flow and head.

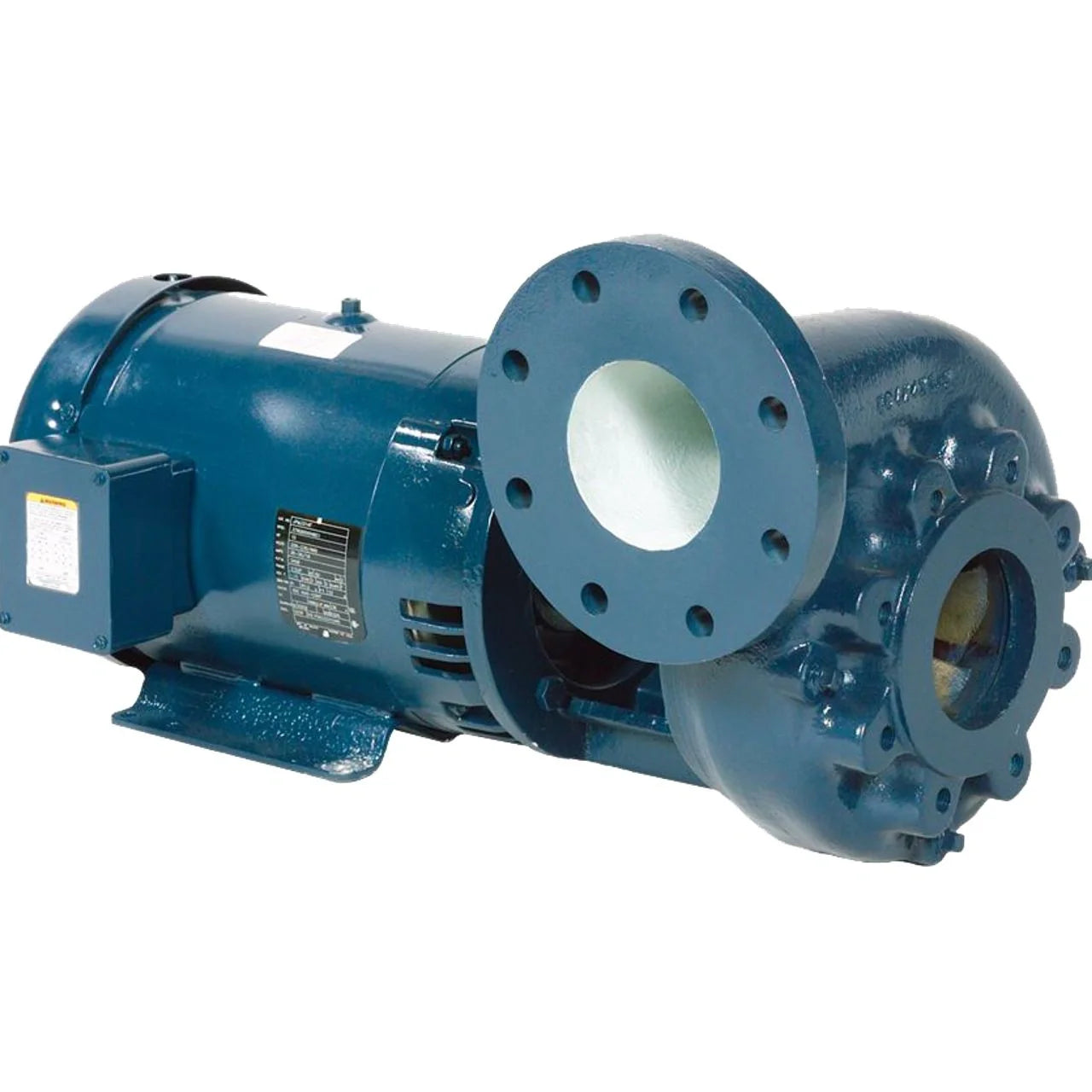

Highest head and casing limits
A ductile-iron volute, stainless-steel impeller and the highest published head and working-pressure limits of the five families. A candidate for demanding flanged water-handling installations, subject to the individual curve, motor and suction conditions.

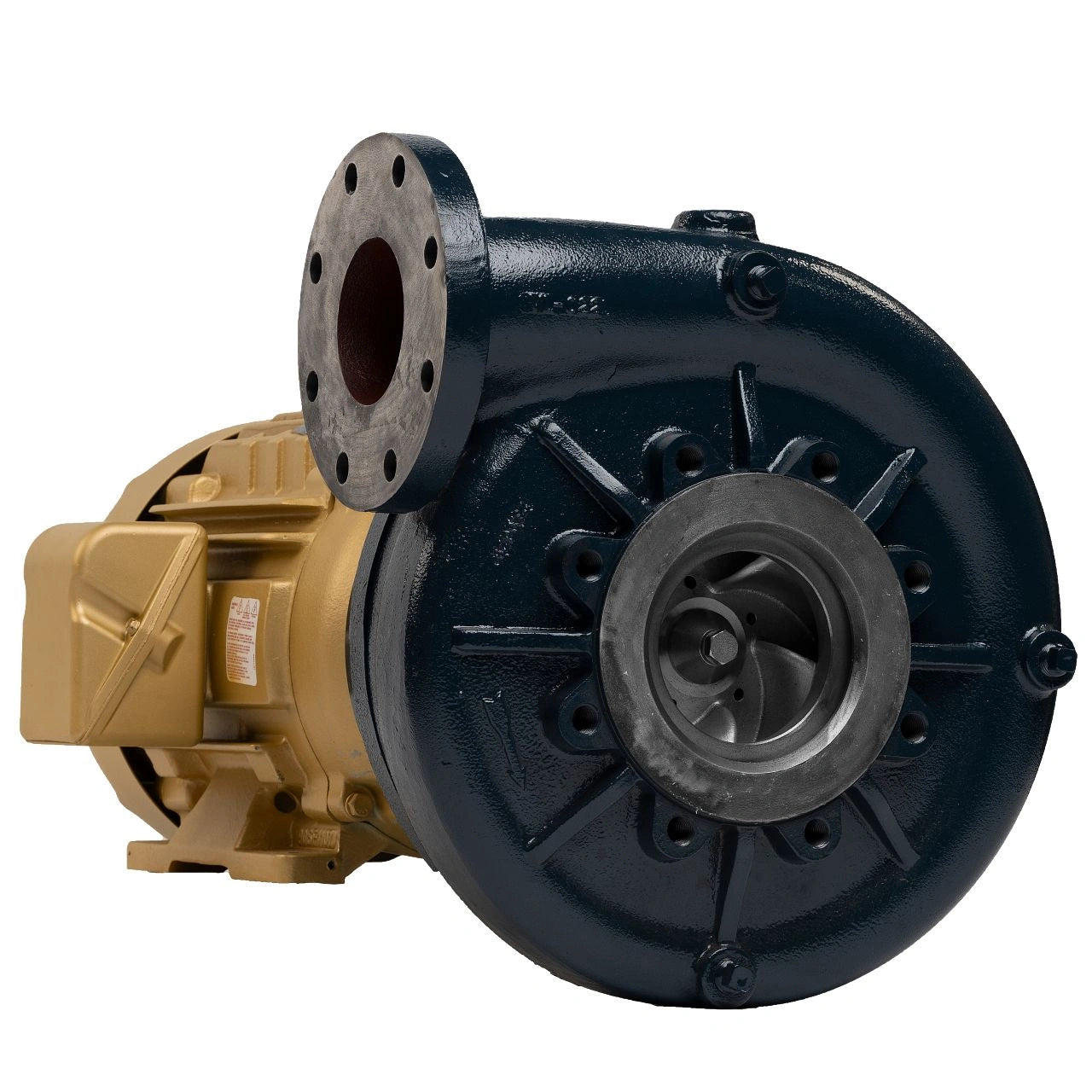

High-flow, 1,800 RPM
The highest published capacity ceiling in this group with a lower head ceiling than HC. Its 1,800 RPM design, Class 125 flanged connections and hydraulically balanced impeller suit requirements centered on moving a larger volume at a compatible head.
Capacity, head and working pressure are separate catalog limits — maximum capacity and maximum head do not occur at the same operating point. Listed motor ranges describe the linked selections, not every configuration Franklin Electric may offer.
Published family ceilings from the Franklin Electric catalogs. These are screening values, not guaranteed duty points.
| Series | Capacity up to | Head up to | Max. working pressure | Max. liquid temp | Catalog speed | Connections |
|---|---|---|---|---|---|---|
| AG | 900 GPM | 325 ft | 150 psi | 212°F | 1,800 / 3,600 RPM | NPT or Class 125 flanged, by model |
| D | 650 GPM | 300 ft | 150 psi | 212°F | 1,800 / 3,600 RPM | NPT threaded |
| FAC | 150 GPM | 160 ft | 120 psi | 212°F | 3,600 RPM | 2 in × 2 in NPT |
| HC | 1,900 GPM | 450 ft | 350 psi | 212°F | 1,800 / 3,600 RPM | Class 150 flanged |
| XS | 2,000 GPM | 180 ft | 250 psi | 212°F | 1,800 RPM | Class 125 flanged |
| Comparison | Practical distinction |
|---|---|
| AG vs D | Both list 150 psi working pressure and threaded selections. AG also offers flanged versions and stainless-steel impellers; D impeller material varies by hydraulic model. AG ceilings are 900 GPM / 325 ft versus 650 GPM / 300 ft for D. |
| FAC vs D | FAC is the focused 3–5 HP, 2 in × 2 in NPT option; D spans more hydraulic sizes and a wider horsepower range. FAC uses GL-SiC seal faces and FKM elastomers; the D catalog describes carbon/ceramic faces with nitrile as standard. |
| AG vs HC | AG offers NPT and Class 125 flanged selections; HC uses Class 150 flanged connections and a ductile-iron volute. HC limits extend to 1,900 GPM, 450 ft and 350 psi — selection still requires the specific curve. |
| HC vs XS | HC has the higher head ceiling (450 ft vs 180 ft); XS the higher capacity ceiling (2,000 GPM vs 1,900 GPM). XS is 1,800 RPM only; HC includes 1,800 and 3,600 RPM designs. These figures do not establish a direct replacement. |
The catalogs publish family ceilings and model curves, not tabulated duty points, so we quote the nominal ceilings and select from the curve — we never invent curve points.
The figures in the comparison above are the highest capacity, head and working pressure each family reaches somewhere across its models. They do not occur together: a pump at its maximum flow is near zero added head, and a pump at maximum head is near zero flow. The usable duty point sits between those extremes and is read from the curve for the specific model, speed and impeller trim.
Working pressure is a separate equipment limit from the head the pump adds. A 350 psi HC casing rating is not a 350 psi pressure rise; the curve sets pump-added head at the operating flow, and inlet pressure adds on top of that when you check the casing, seal and piping limits.
How we size a centrifugal pump, and what to check before installing.
Required boost = target pressure at the highest fixture + 0.433 psi per foot of elevation + friction loss at design flow − available inlet pressure. Worked example: a three-story building with the highest fixture 30 ft above the pump, 45 psi wanted at that fixture, 12 psi of friction loss at design flow and 40 psi city inlet needs 45 + (0.433 × 30) + 12 − 40 ≈ 30 psi of boost — about 70 ft of head (30 ÷ 0.433). Select a model that delivers roughly that head at the design flow, read from the curve.
Size flow to simultaneous demand, not the sum of every fixture. For residential and multi-family, convert fixture units with the Hunter curve (IPC Table 604.3 water-supply fixture units); for light commercial, use the IAPMO Water Demand Calculator, which gives lower, more realistic peaks for modern low-flow fixtures. Oversizing to a fixture-count total pushes the pump left of its best-efficiency point and shortens seal and bearing life.
Confirm the 60 Hz variant’s inlet-pressure and suction-lift limits, the 212°F maximum liquid temperature, and the enclosure (ODP vs TEFC) for the environment. Match connection type and size — NPT versus flanged, and the flange class — and remember a flange-class number is a joint rating, not the pump’s working-pressure limit. Verify all wetted materials and elastomers against the actual liquid.
Starting points to shortlist a family; final selection depends on the actual operating point and installation. Call with flow, head, elevation and fixture count for an engineering-led pick.
| Requirement | Start by comparing | What to verify |
|---|---|---|
| Compact 3–5 HP transfer or circulation | FAC | 2 in × 2 in NPT connections, 3,600 RPM curve, liquid compatibility, available power. |
| Threaded replacement pump | D and AG | Complete model, suction/discharge sizes, motor speed, impeller trim, dimensional fit. |
| Water supply, washdown or treatment feed | AG | Required pressure at design flow, inlet conditions, seal materials, any application approvals. |
| Higher-head flanged duty | HC; compare AG where its curve fits | Flow at head, casing pressure including inlet pressure, motor power, NPSH. |
| High-flow transfer or circulation | XS and HC | Actual system curve and suction conditions; efficiency and NPSH at the intended duty, not at max flow. |
| Irrigation installation | AG, D and HC | Zone demand, elevation, piping losses, source-water conditions, connection requirements. |
| Municipal, construction or industrial water handling | D and HC; compare others by duty | Liquid characteristics and materials — an application label does not establish solids or chemical compatibility. |
Material and configuration differences can decide a selection even when two pumps cover a similar flow and head.
| Series | Volute / casing | Impeller | Standard seal (per catalog) | Motor |
|---|---|---|---|---|
| AG | ASTM A48 Class 30 cast iron | CA6NM stainless steel | Carbon/ceramic faces, nitrile elastomers, 316 SS components | JM / JP frame; ODP or TEFC |
| D | Cast iron | Stainless, silicon brass or cast iron, by model | Carbon/ceramic faces, nitrile elastomers, 300-series SS | 56C or JM frame; ODP / TEFC |
| FAC | Cast iron | CF8M stainless steel | GL-SiC / GL-SiC faces, FKM elastomers, 300-series SS | JM frame; ODP or TEFC |
| HC | Ductile iron | CA6NM stainless steel | Silicon-carbide faces, FKM elastomers | JP frame; ODP or TEFC |
| XS | Cast iron | Cast iron (9 in) or stainless (13 in) | Carbon/ceramic faces, nitrile elastomers, 300-series SS | JP frame; ODP or TEFC |
A stainless-steel impeller does not make the whole pump stainless. Confirm all wetted materials and elastomers against the liquid; catalog options and repair-kit configurations can differ from the standard construction summarized here.
NPT and flanged versions need different piping. Match suction size, discharge size and flange class — and do not read a flange-class number as the pump’s working-pressure rating.
An 1,800 RPM selection and a 3,600 RPM selection are not equivalent, and impeller trim shifts the curve. Match the complete catalog model when replacing an existing pump.
AG, HC and XS use back-pullout construction; HC and XS add casing jack-out holes. Allow space for the service arrangement shown in the dimensional drawing.
ODP is open drip-proof; TEFC is totally enclosed fan-cooled. Availability varies by model — choose for the installation environment.
Faces and elastomers differ across families — carbon/ceramic with nitrile on D, AG and XS; silicon-carbide with FKM on FAC and HC. Match them to the liquid, not to the pump size.
These are pump-and-motor units. A variable-frequency drive, pressure sensor, tank or control panel is defined separately when the pump is used in a constant-pressure booster system.
Open a hydraulic model, then choose the required voltage, phase, motor enclosure and horsepower. Each link leads to a Watermain Supply product listing.
Configuration choices and pricing are on the individual product pages. Confirm the selected factory order number and availability before placing a project order.
Download the series catalog for model-specific head-versus-flow curves, dimensions, motor data and replacement-part drawings.
| Catalog | Use it to check |
|---|---|
| AG Series Catalog (PDF) | Curves, order information, construction and service detail for AG. |
| D Series Catalog (PDF) | Curves, order information, construction and service detail for D. |
| FAC Series Catalog (PDF) | Curves, order information, construction and service detail for FAC. |
| HC Series Catalog (PDF) | Curves, order information, construction and service detail for HC. |
| XS Series Catalog (PDF) | Curves, order information, construction and service detail for XS. |
For an actual selection use the curve for the correct speed and impeller trim, and review head, efficiency, power and NPSHR at your design flow. A family maximum cannot substitute for that check.
We supply the U.S. 60 Hz range with the correct voltage, phase and NPT or flanged connections — not an international variant that looks the same on paper but differs on limits and fit.
Send flow, head, elevation, inlet pressure and fixture count and we select against the manufacturer curve — not the family ceiling — so the pump lands near its best-efficiency point.
We sell every major line, so if a Franklin centrifugal is not the right fit we will say so and quote the one that is.
Based in Houston and serving the Gulf Coast, we handle replacement identification, submittals and project timelines directly.
Net-30 for qualified contractor, property-management and municipal accounts.
Genuine spare parts by model and serial — seals, sleeves, wear rings and repair kits — identified from the catalog drawing for your pump.
For contractors, maintenance teams and buyers comparing Franklin Electric centrifugal pumps.
They are close-coupled centrifugal surface pumps. The five families differ in hydraulic range, connection type, materials, seals and motor configuration. Use the complete model and its performance curve to select a pump.
The XS catalog lists capacity up to 2,000 GPM, followed by HC at 1,900 GPM, AG at 900 GPM, D at 650 GPM and FAC at 150 GPM. These are family limits; actual flow depends on the selected model and system head.
HC lists head up to 450 ft, then AG at 325 ft, D at 300 ft, XS at 180 ft and FAC at 160 ft. Maximum head and maximum flow are not simultaneous operating points.
D Series uses NPT connections and the FAC range shown here has 2 in × 2 in NPT. AG includes both NPT and flanged versions. HC and XS use flanged connections.
No. The catalogs identify cast-iron casings for AG, D, FAC and XS and ductile iron for HC. Several families use stainless-steel impellers, but D and XS impeller materials vary by hydraulic model.
No. Working pressure is an equipment limit, not the pressure rise the pump produces. The selected curve sets pump-added head at the operating flow, and inlet pressure must also be considered.
These listings cover centrifugal pump and motor configurations. Do not assume they include a variable-frequency drive, pressure sensor, tank or control panel — define the control requirements separately when using a pump in a booster system.
No. Match the hydraulic model, speed, impeller trim, connections, voltage, phase and installation dimensions. Two pumps of the same horsepower can differ in performance and fit.
Do not assume liquid compatibility or approval from the series name. Confirm the exact wetted materials, seal, operating limits and any required certification for the selected model.
For a replacement, send the complete nameplate, the factory order number if available, and piping or installation photos. For a new duty, provide flow, total dynamic head, liquid and temperature, suction conditions, voltage, phase and connection requirements.
Send your required flow and head, available power and connection details — or a photo of the pump you are replacing — and we will respond with a sized selection and lead time.
