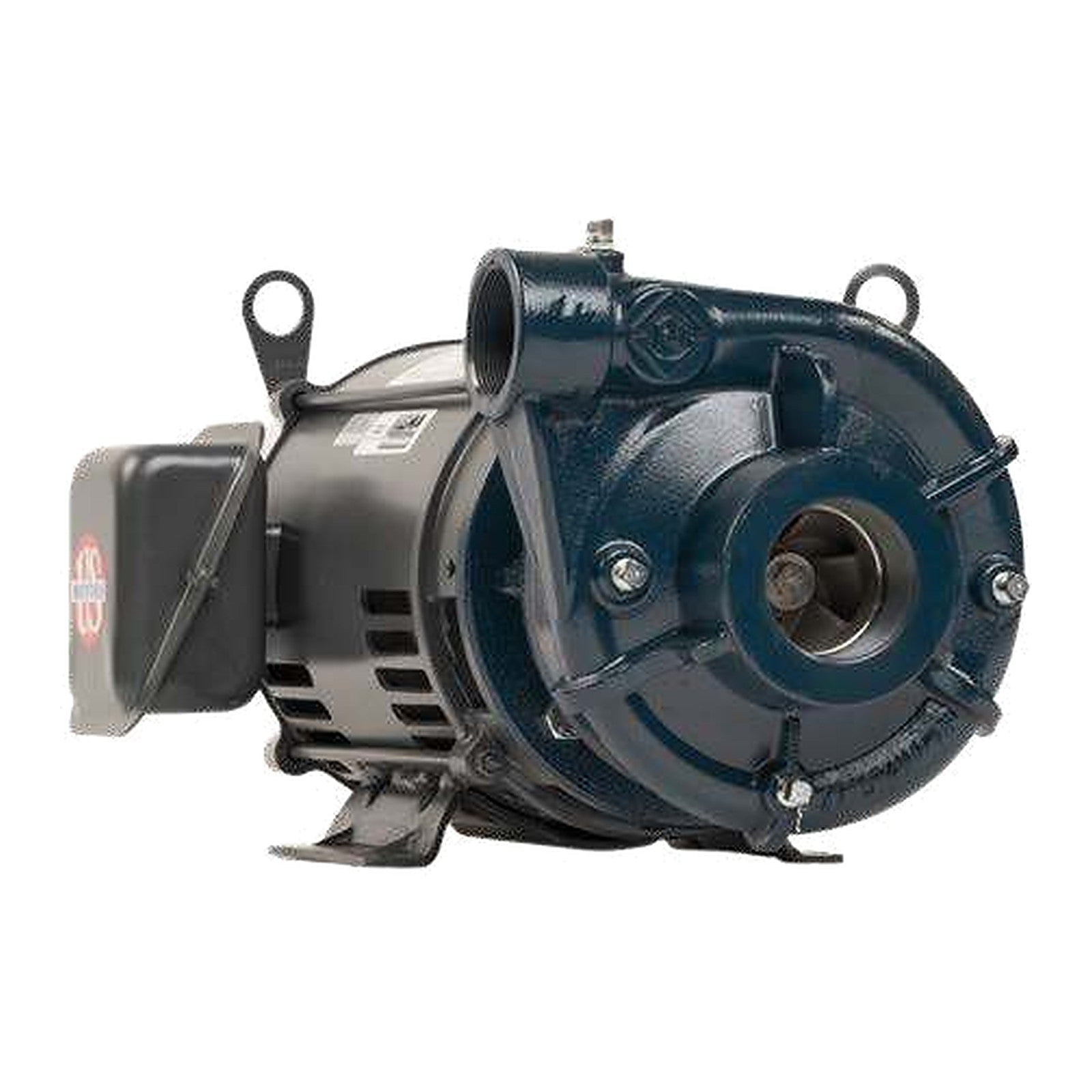

Franklin Electric AG AL1157 NPT Centrifugal Pump

Model: AL1157NM-1T4P3
HP - Voltage: 1 HP - 230/460V 3Ph

Product variant with selected options does not exist!
$3,709.47
SKU: 9645218325
Weight : 85.0 lb
Free Shipping $499 or more
Need it fast? Call for same-day shipping options: 281.664.8000
Description
Franklin Electric · Centrifugal Pump
AG AL1157 NPT Centrifugal Pump
AG Series close-coupled centrifugal pump, 1.5 x 1 in NPT connections, motor included.
Close-Coupled
1.5 x 1 in NPT
1800 RPM
TEFC
Cast Iron Body
Back Pull-Out
Overview

The AG Series is Franklin’s close-coupled, electric motor-driven centrifugal pump for agriculture, with flows from 65 to 900 gpm across the series. It has a heavy-duty cast iron body, standard NEMA JM and JP motor frames and a back pull-out design for easy seal replacement.

Franklin’s single-stage centrifugal pumps are Department of Energy compliant, electric motor-driven close-coupled pumps, offered with flanged or threaded connections, mechanical seal or packing gland, at 1800 or 3600 RPM in ODP or TEFC enclosures.

Genuine Franklin Electric equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier.
One Pump or Several?

A single pump. Parallel or staged installations are engineered per site; send us the duty and we will size them.

Models & Ratings
Model Part No. HP Voltage & Phase Enclosure RPM Impeller
AL1157NM-1T4P3 9645218325 1 230/460V 3Ph TEFC 1800 7.12 in

Where two voltages are shown, the first is the factory wiring setting. Voltage is changed on the motor terminal board, never at the pressure switch. All models are single phase unless the table states 3Ph.

Source: Franklin Electric Surface Pumps brochure (M5287) and Franklin Electric price list effective 15 Jun 2026.

Performance — Will It Do What You Need?

Franklin publishes this model’s performance as curves, so this page does not reproduce figures read off a plot. Send your flow and the head you need and we will select from the published curve.

Before You BuyConfirm horsepower, voltage and phase against your service, and the connection size against your piping. Single-phase and three-phase units are not interchangeable.
For engineering-led sizing and selection support or a factory submittal, email sales@watermainsupply.com or call 1-888.510.4036.
