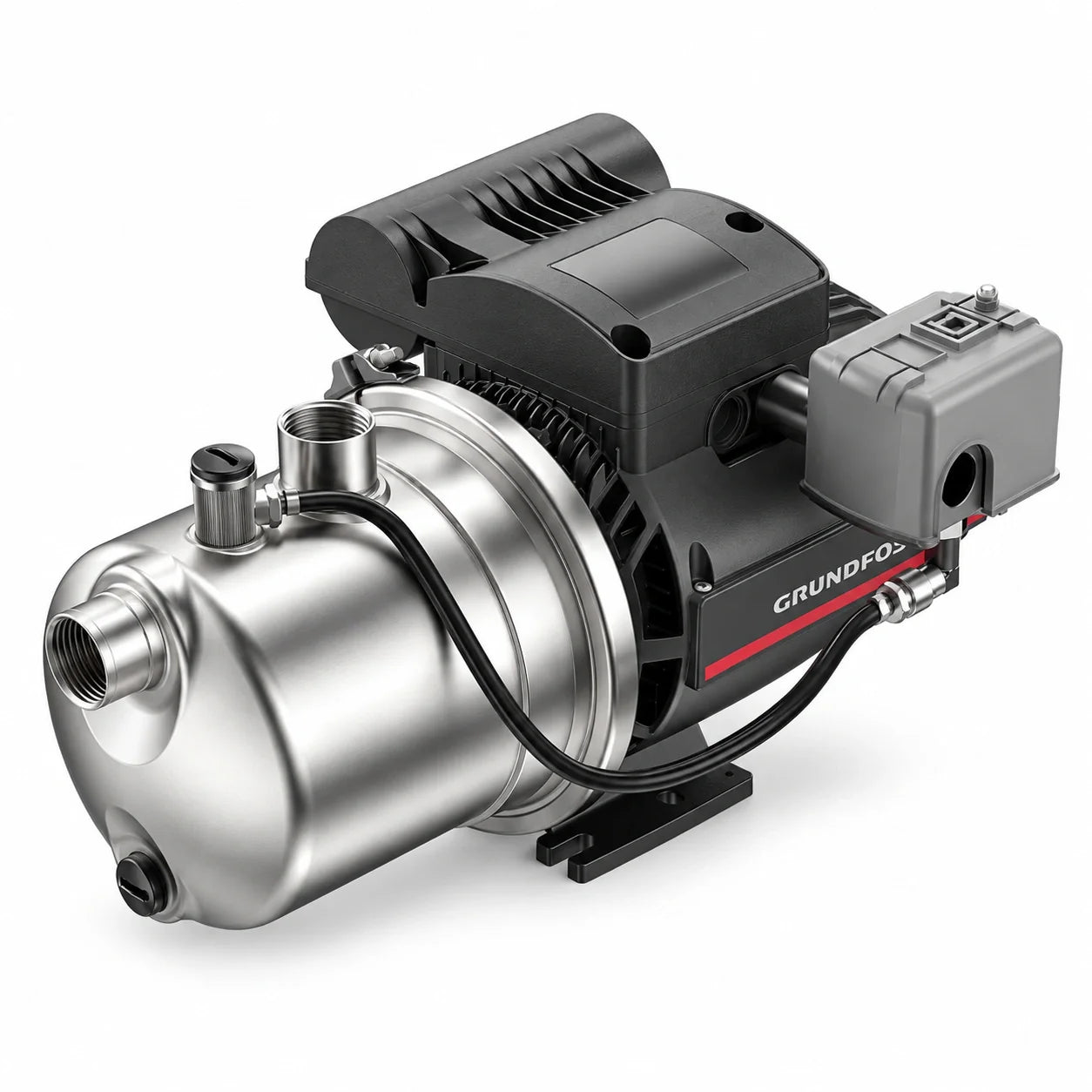

Grundfos JP PS Shallow Well Jet Pump
Stainless steel self-priming jet pump with a factory-set 30-50 psi pressure switch — suction lift to 26 ft, 1/3 through 1 HP, NSF 61/372 certified for drinking water.
1/3 - 1 HP
Up to 21 gpm
137 - 187 ft Max Head
26 ft Suction Lift
304 Stainless Housing
NSF 61 / 372
Genuine Grundfos equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial distributor.
Overview

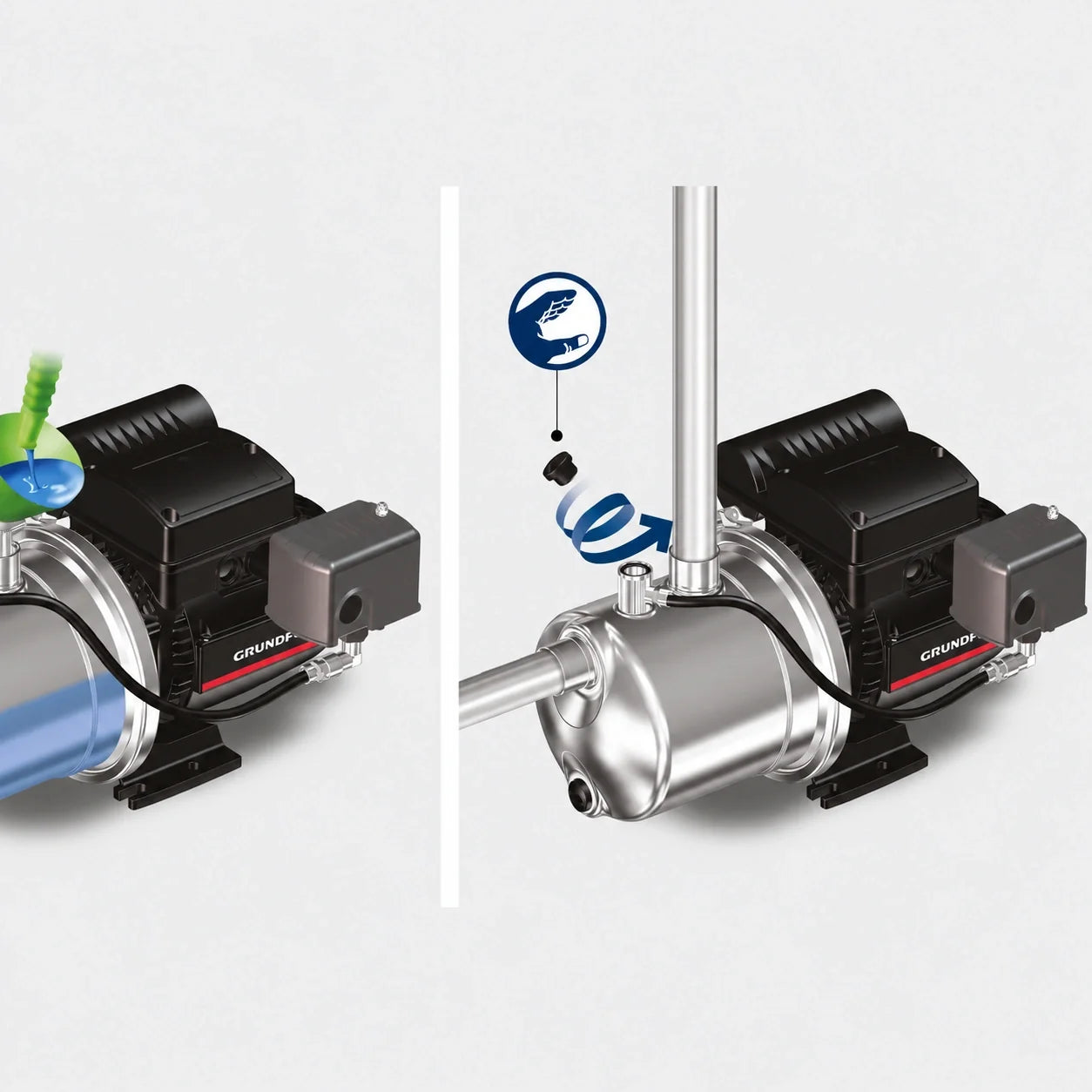

The Grundfos JP PS is a single-stage centrifugal jet pump built for domestic and light commercial water supply where the water source sits above the pump's suction limit — a shallow well, driven point, cistern, break tank, lake or stream. A built-in ejector with guide vanes gives the pump its self-priming capability and a suction lift of up to 26 ft, and the mounted pressure switch starts and stops the pump on demand so the system runs unattended.

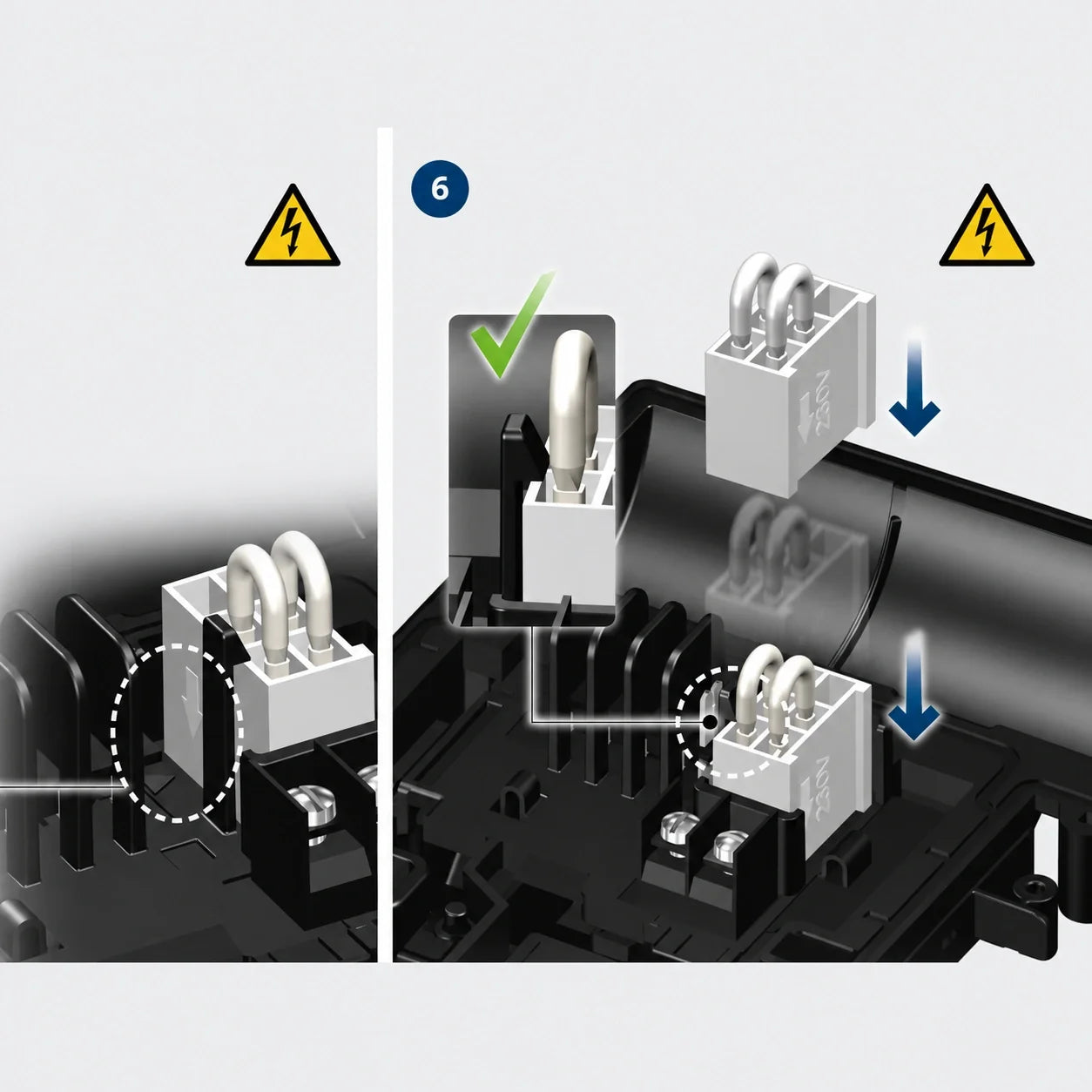

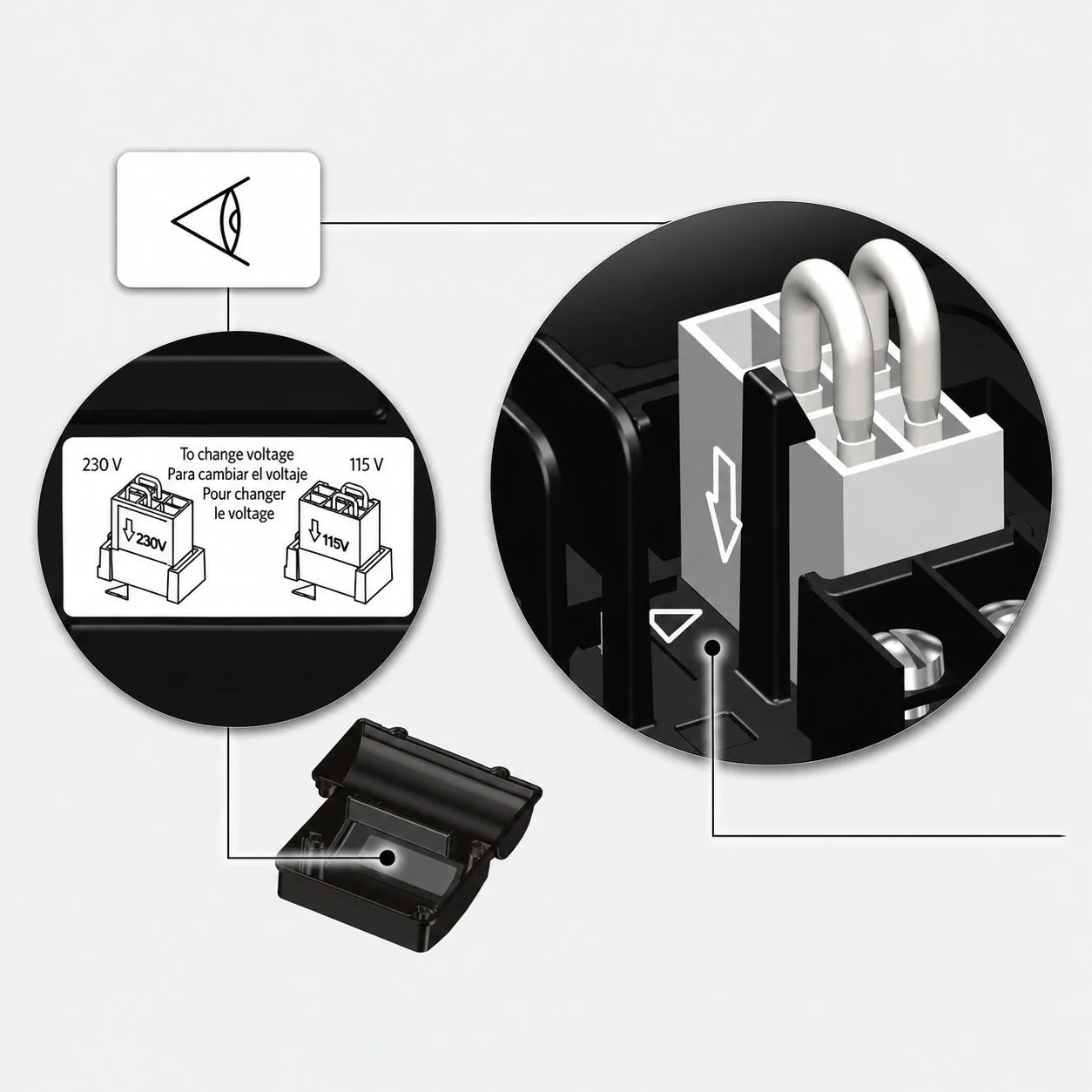

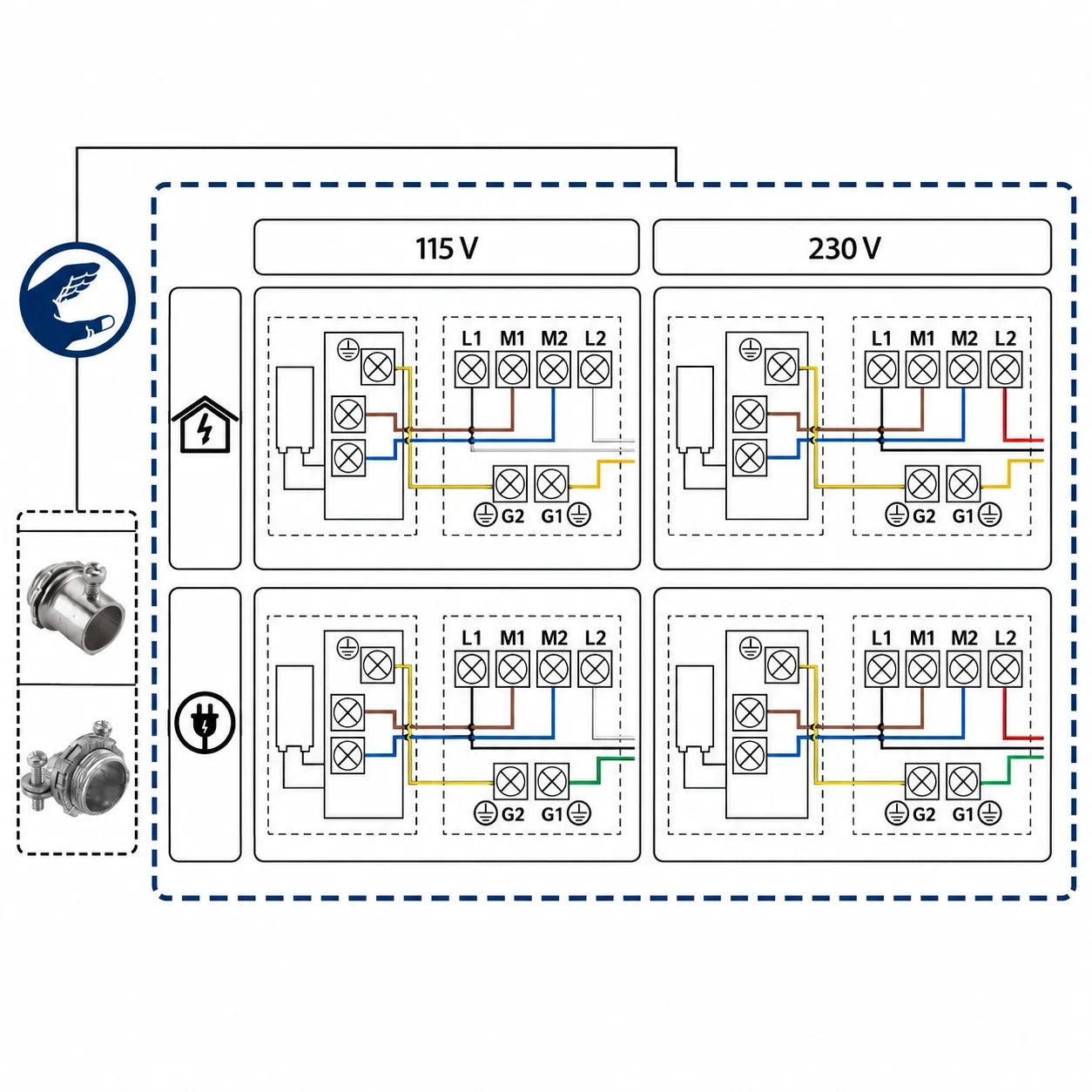

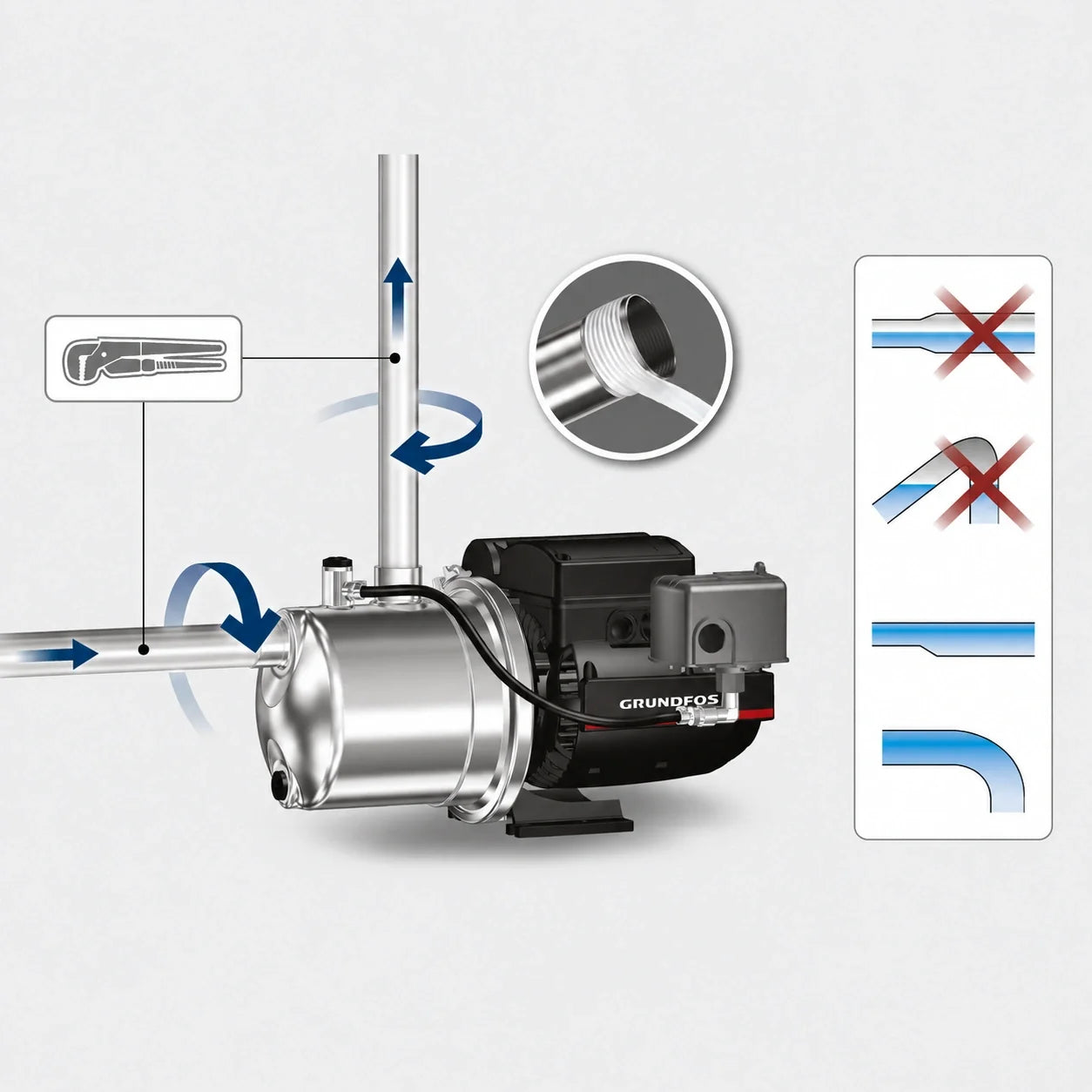

The pump housing, housing ring and seal disc are AISI 304 stainless steel; the impeller, diffuser and venturi are composite. Inlet and outlet are both 1 in NPT female, with the outlet on top for a compact footprint in a pump house, basement or utility room. Every model is dual voltage and ships wired for 115 V or 230 V selection in the field, and each pressure switch leaves the factory set at 30-50 psi.
Specifications by Model
| Specification |
JP PS 13-03-137 |
JP PS 16-05-154 |
JP PS 16-07-177 |
JP PS 16-10-187 |
| Grundfos product number |
99463938 |
99463939 |
99463940 |
99463941 |
| Rated power P2 |
0.3 HP (1/3) |
0.5 HP (1/2) |
0.75 HP (3/4) |
1 HP |
| Power input P1 |
1 HP (750 W) |
1.26 HP (930 W) |
1.5 HP (1120 W) |
2 HP (1480 W) |
| Max. flow rate |
15 gpm |
20 gpm |
17 gpm |
21 gpm |
| Nominal flow rate |
13 gpm |
18 gpm |
18 gpm |
22 gpm |
| Max. head |
137 ft |
145 ft |
171 ft |
187 ft |
| Nominal head |
64 ft |
65 ft |
80 ft |
95 ft |
| Full-load current, 230 V |
3.3 A |
4.2 A |
5.2 A |
7.1 A |
| Full-load current, 115 V |
6.5 A |
8.2 A |
10.3 A |
13.8 A |
| Starting current, 115 V |
22.35 A |
26.30 A |
47.54 A |
59.50 A |
| Sound pressure level |
68 dB(A) |
70 dB(A) |
74 dB(A) |
81 dB(A) |
| Length x height |
15.9 x 8.23 in |
15.9 x 8.23 in |
16.9 x 8.74 in |
16.9 x 8.74 in |
| Net weight |
22.3 lb |
22.3 lb |
27.4 lb |
27.4 lb |
| Shipping weight |
52 lb |
57 lb |
68 lb |
76 lb |
The last three digits of the type designation are the nominal maximum head in feet. Values above are the figures published in the current Grundfos JP PS data booklet; confirm the duty point against the published pump curve before specifying.
Shared Specifications
| Specification |
All JP PS models |
| Pump type |
Self-priming single-stage centrifugal jet pump with built-in ejector |
| Supply voltage |

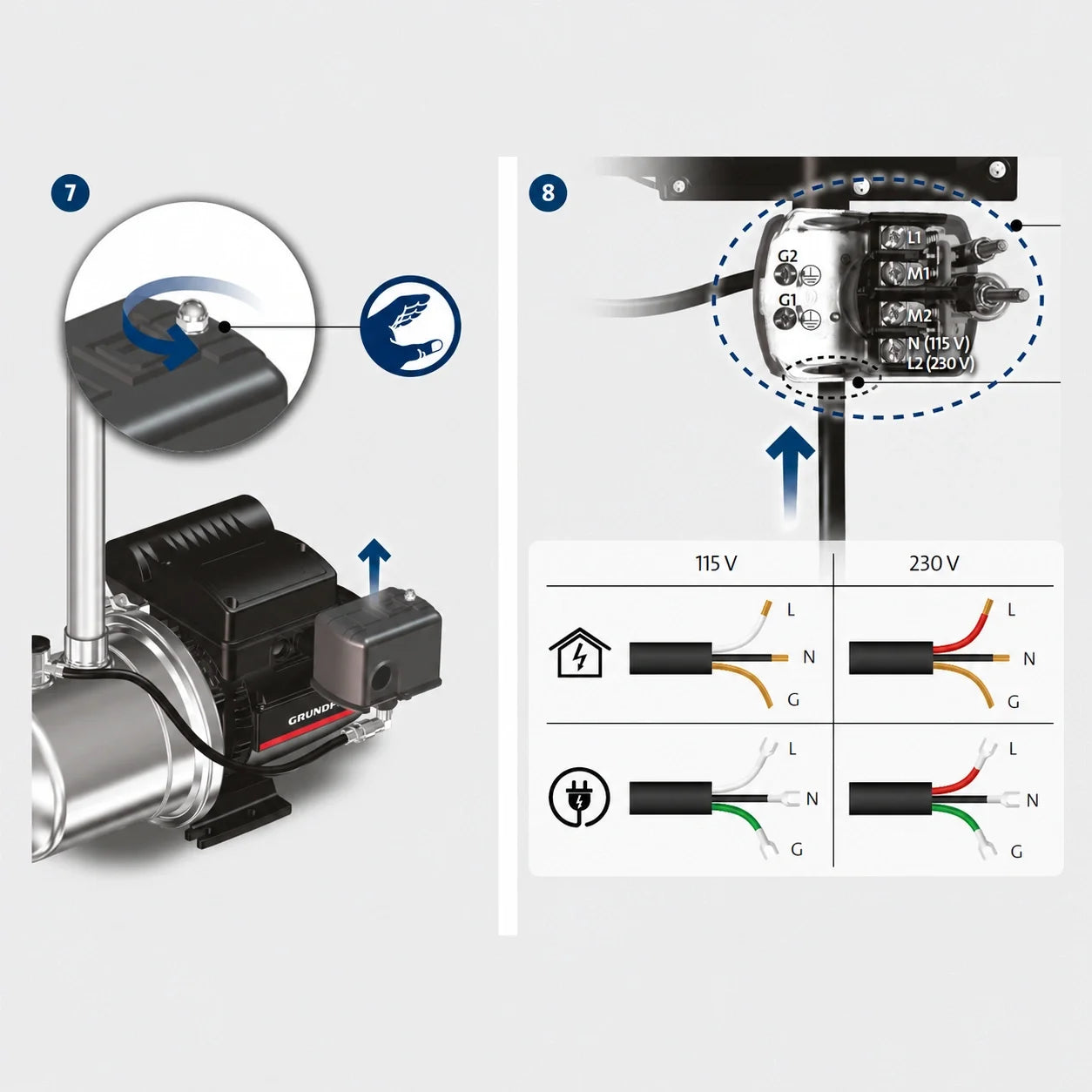

1 x 115 V or 1 x 230 V, 60 Hz, single phase (field selectable) |
| Pressure switch |
Factory preset 30-50 psi cut-in / cut-out |
| Max. system pressure |
87 psi (6 bar) |
| Max. suction lift |
26.25 ft (8 m), including inlet-pipe friction loss at 68 °F |
| Inlet / outlet |
1 in NPT (F) / 1 in NPT (F) |
| Speed |
3400 rpm |
| Service factor |
1.75 |
| Start / stop frequency |
Max. 20 per hour |
| Pump housing |
Stainless steel AISI 304 (EN 1.4301) |
| Impeller / diffuser / venturi |
Composite |
| Shaft seal |
Carbon / NBR / AISI 304 rotary, Alox / NBR stationary |
| Motor protection |
Built-in thermal switch, auto reset; no external protection required |
| Insulation class |
F |
| Enclosure |
IP44, Type 3R |

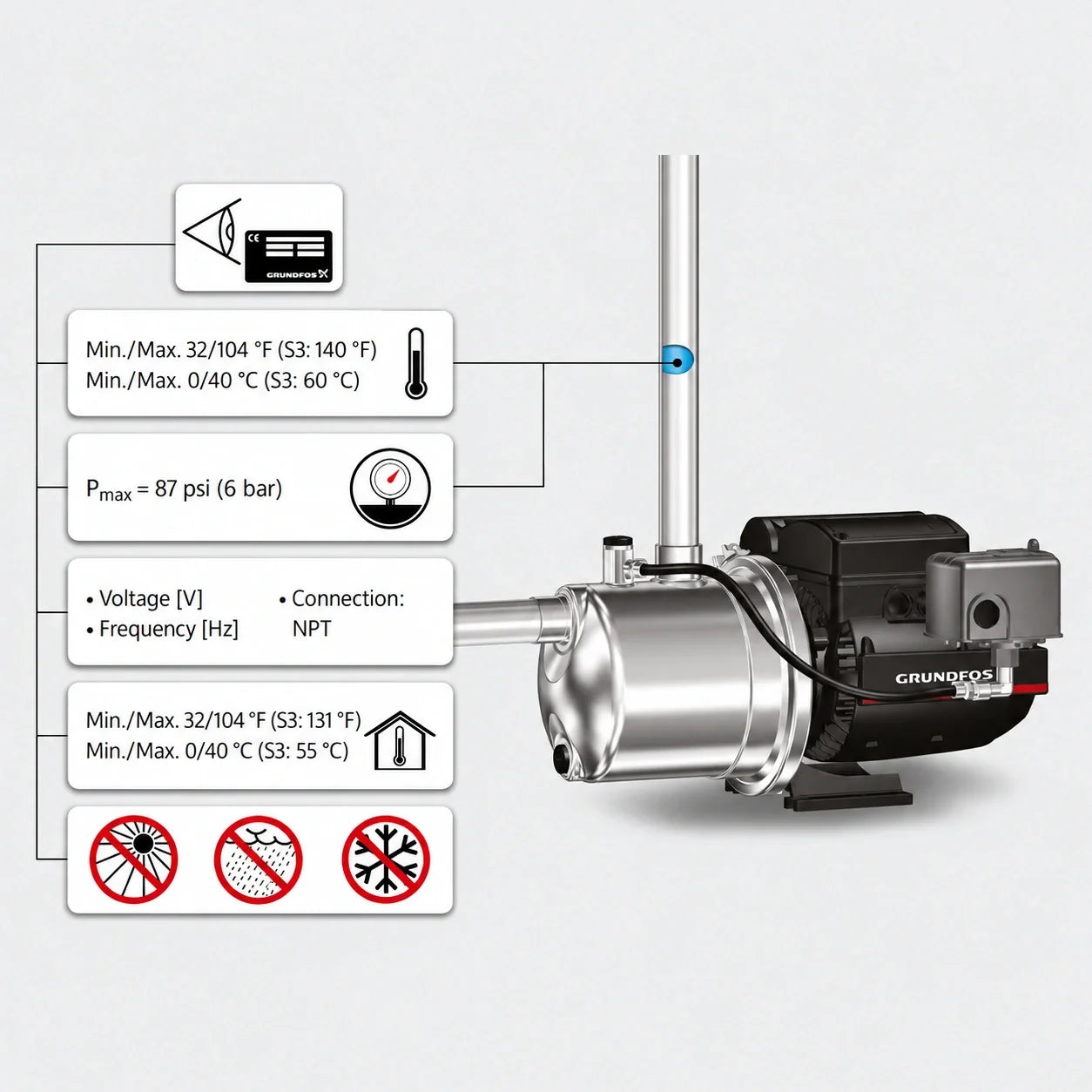

| Liquid temperature |
Max. 104 °F continuous (140 °F intermittent) |
| Ambient temperature |
Max. 104 °F continuous (131 °F intermittent) |
| Pumped liquids |
Clean, thin, non-aggressive, non-explosive liquids without solids or fibers |
| Approvals |
CSA C/US; NSF/ANSI 61 and NSF/ANSI 372 drinking water |
Applications
- Shallow wells and driven points
- Cisterns and break tanks
- Roof-tank and rooftop supply
- Houses and duplexes
- Garden and landscape irrigation
- Small-scale agriculture and horticulture
- Livestock and stock-tank supply
- Car wash and washdown
- Cabins and cottages
- Light commercial water supply
Motor and Protection
The single-phase motor is air-cooled and runs on oversized, sealed, greased-for-life ball bearings. Current- and temperature-dependent protection is built in: if the pump runs dry, is blocked, or is otherwise overloaded, the internal thermal switch cuts out and resets automatically once the motor has cooled. No external motor protection is required. The ejector includes a clean-out port so a blocked nozzle can be cleared without dismantling the pump end.

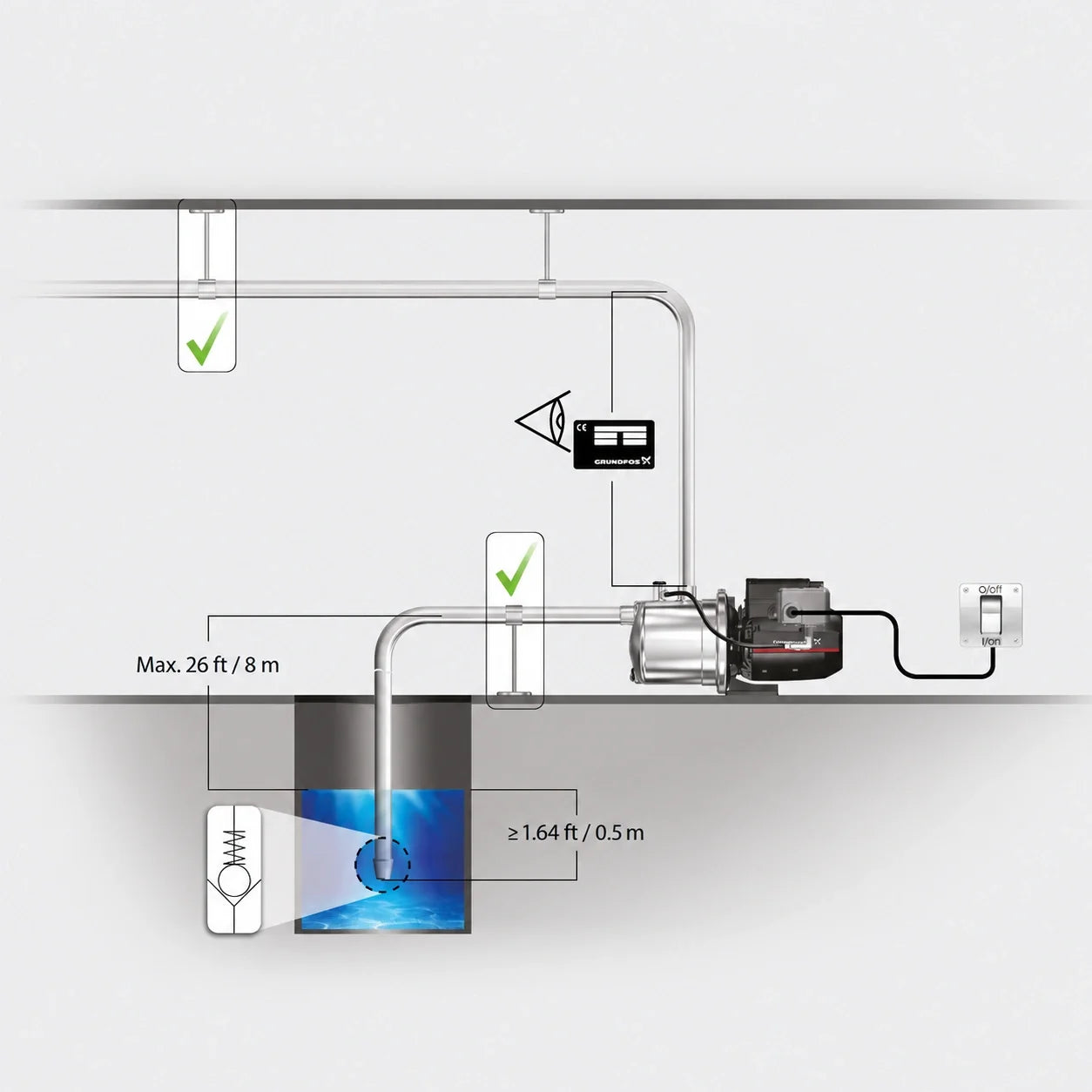

Selection & SizingA jet pump on suction lift is limited to about 26 ft of vertical lift from the water surface to the pump — measure the static water level before selecting, and move to a convertible pump with a down-hole ejector or a submersible if you are past that. A diaphragm pressure tank is required and is not supplied with the pump; set the tank pre-charge 2 psi below cut-in (28 psi for the factory 30-50 psi switch). Use an inlet pipe larger than 1 in if the run exceeds 32.8 ft or the suction lift exceeds 13.1 ft, and fit a foot valve with strainer at the intake. Send us your static water level, run length, and fixture count and we will size the pump, tank and inlet piping together.
Technical data on this page is taken from Grundfos product literature and is subject to change by the manufacturer. Confirm against the current installation manual before specifying.
