Included: the utility pump, a 10 ft power cord and a 3/4 in garden hose adapter.
Sized at install: garden hose or 1-1/4 in discharge pipe.
The 5020PUUP handles up to 26 GPM. Built with a tough thermoplastic construction, its sleek design fits a 6 in or larger opening. It has no float switch: it runs while plugged in, so stay with it while it pumps.
Covered for 3 years from the date of installation under Baker Manufacturing’s published limited warranty (A.Y. McDonald Pumps & Accessories price list, effective 7/1/26). Per Baker’s terms, the warranty does not cover failure caused by sand or abrasive materials in the water.
Single unit.
| Model | 5020PUUP |
| Part No. | 6190-145 |
| HP | 1/5 |
| Voltage | 120V, 1 phase, 60 Hz |
| Amps | 3.6 |
| Discharge | 1-1/4 in; 3/4 in garden hose adapter included |
| Solids | 1/8 in |
| Cord | 10 ft |
| Construction | Thermoplastic |
| Weight | 7 lb |

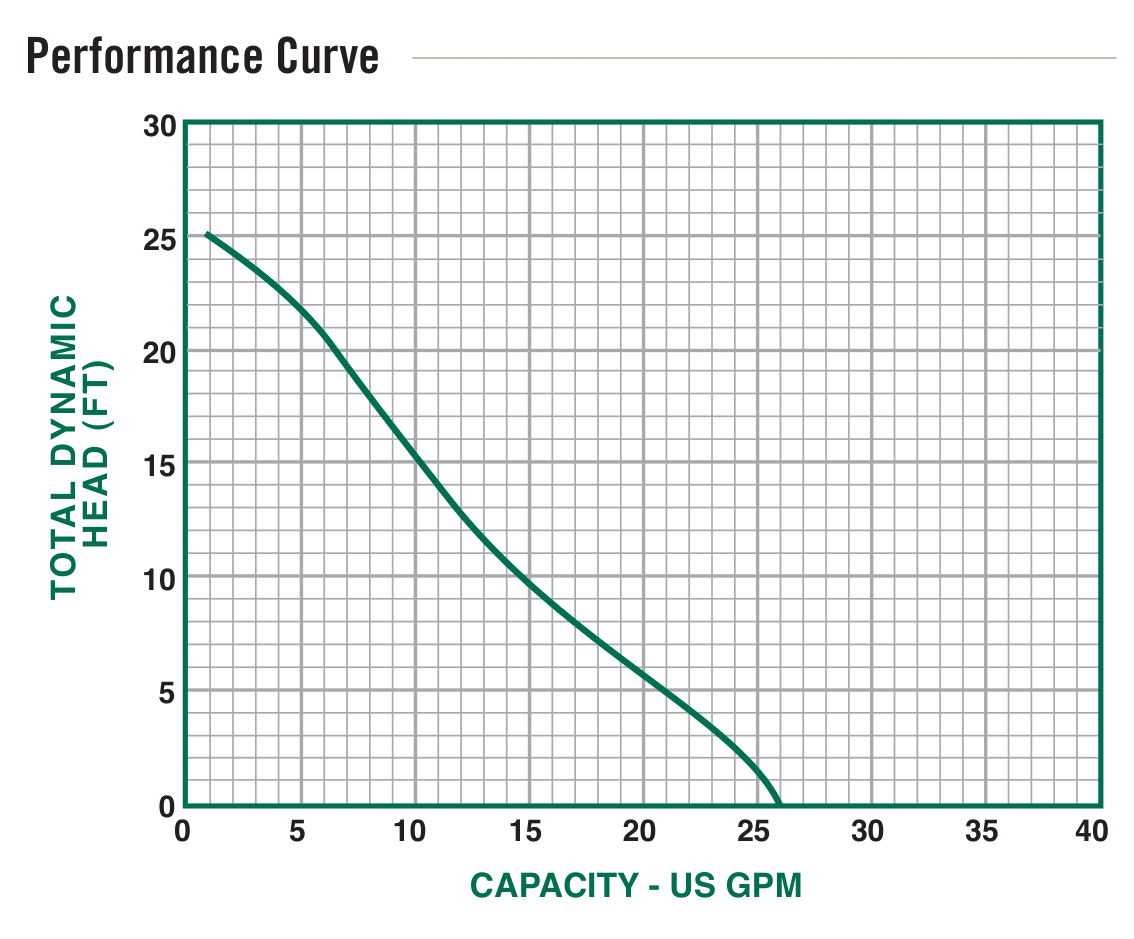

| Total head → | 0 ft | 5 ft | 10 ft | 15 ft | 20 ft | 25 ft |
|---|---|---|---|---|---|---|
| 5020PUUP | 26 | 21 | 14 | 10 | 7 | 1 |
Gallons per minute at each total head, as printed by A.Y. McDonald. Total head is the vertical lift from the water level to the highest point of the discharge, plus pipe and fitting friction. A dash is a head the pump does not reach. Source: A.Y. McDonald Pumps by Baker catalog, rev 3/26, p. 291.
| Water | Clear water. Non-potable. |
| Switch | None; the pump runs while plugged in. |
| Lift | Up to 25 ft of vertical height. |
| Power | 120V single phase. |
