Franklin Electric AG A2256 NPT Centrifugal Pump

HP - Voltage: 3 HP - 230/460V 3Ph
Motor Enclosure: ODP
Model: A2256NM-3D2P3

Product variant with selected options does not exist!
Call for pricing
SKU: 9647219105
Weight : 82.0 lb
Free Shipping $499 or more
Need it fast? Call for same-day shipping options: 281.664.8000
Description
Franklin Electric AG Series

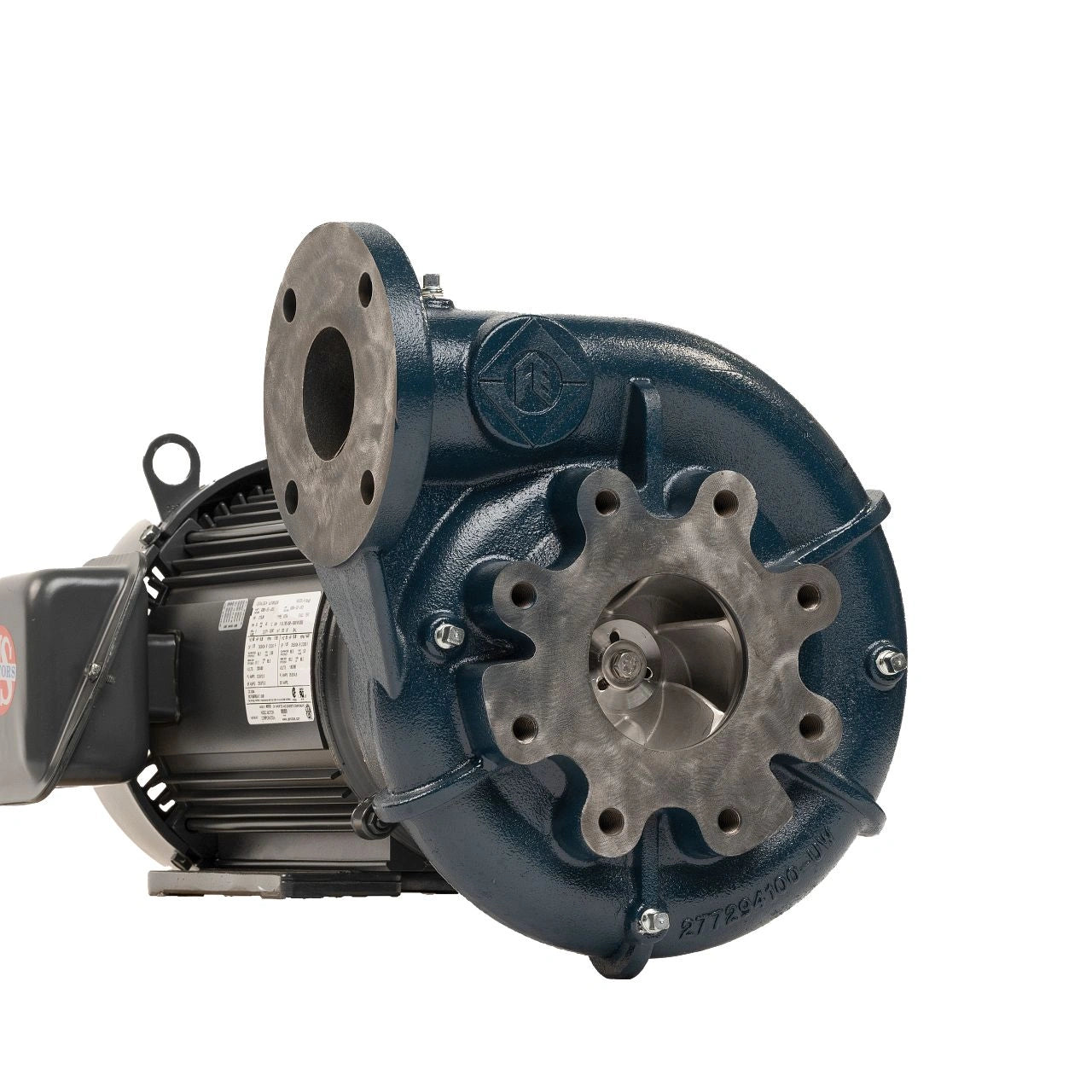

Franklin Electric AG A2256 NPT Centrifugal Pump
Close-coupled, electric motor driven centrifugal pumps producing flows to 900 GPM. All-iron construction, enclosed impellers, mechanical shaft seals, replaceable stainless steel shaft sleeves, back pull-out design.
NPT
3600 RPM
3 HP – 15 HP
Flows to 900 GPM
ASTM-A48 CL30 Cast Iron Volute
CA6NM Stainless Impeller
416 SS Shaft Sleeves
Back Pull-Out Design
NEMA JM & JP Motors
ODP & TEFC
Genuine Franklin Electric equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial distributor.
Overview

Close-coupled, electric motor driven centrifugal pumps producing flows to 900 GPM. All-iron construction, enclosed impellers, mechanical shaft seals, replaceable stainless steel shaft sleeves, back pull-out design.

This listing covers the AG A2256 hydraulic end with NPT connections at 3600 RPM. Select horsepower, motor enclosure, and voltage below — each combination is a distinct factory order number.

Features
  • Back Pull-Out Design — The rotating assembly withdraws without disturbing suction or discharge piping.
  • CA6NM Stainless Impeller — Enclosed impeller for increased efficiency and performance.
  • 8 Volute Positions — Factory horizontal discharge with eight optional rotations.
  • Replaceable Shaft Sleeves — 416 stainless steel sleeves protect the motor shaft.
  • Threaded or Flanged — NPT and 125# flanged connection options.
  • Standard Mechanical Seal — Carbon/ceramic/nitrile with 316 stainless components.
Order Information
Order No. Model No. HP Enclosure Voltage Wt. (lbs)
9647219105 A2256NM-3D2P3 3 HP ODP 230-460V 82
9647219100 A2256NM-3D2P1 3 HP ODP 230V 119
9647218105 A2256NM-3T2P3 3 HP TEFC 230-460V 87
9647218100 A2256NM-3T2P1 3 HP TEFC 230V 95
9647218205 A2256NM-3T2P5 3 HP TEFC 575V 83
9647219115 A2256NM-5D2P3 5 HP ODP 230-460V 97
9647219110 A2256NM-5D2P1 5 HP ODP 230V 145
9647218115 A2256NM-5T2P3 5 HP TEFC 230-460V 112
9647218110 A2256NM-5T2P1 5 HP TEFC 230V 126
9647218215 A2256NM-5T2P5 5 HP TEFC 575V 107
9647219125 A2256NM-7.5D2P3 7-1/2 HP ODP 230-460V 108
9647219120 A2256NM-7.5D2P1 7-1/2 HP ODP 230V 152
9647218125 A2256NM-7.5T2P3 7-1/2 HP TEFC 230-460V 134
9647218126 A2256NM-7.5T2P3 7-1/2 HP TEFC 230-460V 161
9647218120 A2256NM-7.5T2P1 7-1/2 HP TEFC 230V 157
9647218225 A2256NM-7.5T2P5 7-1/2 HP TEFC 575V 190
9647219135 A2256NM-10D2P3 10 HP ODP 230-460V 156
9647219130 A2256NM-10D2P1 10 HP ODP 230V 177
9647218135 A2256NM-10T2P3 10 HP TEFC 230-460V 166
9647218130 A2256NM-10T2P1 10 HP TEFC 230V 157
9647218235 A2256NM-10T2P5 10 HP TEFC 575V 154
9647219140 A2256NM-15D2P3 15 HP ODP 230-460V 167
9647218140 A2256NM-15T2P3 15 HP TEFC 230-460V 205
9647218240 A2256NM-15T2P5 15 HP TEFC 575V 205
For engineering-led sizing and selection support or a factory submittal, email sales@watermainsupply.com or call 1-888.510.4036.
