Description
A.Y. McDonald · Centrifugal Pump
Workhorse Centrifugal Pump
Heavy-duty cast-iron centrifugal pump covering the widest horsepower range in its class — booster, irrigation, transfer, and HVAC duty from 1/3 through 3 HP, single and three phase, with heads to 150 ft.
1/3-3 HP
To 65 PSI
Genuine A.Y. McDonald equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial distributor.
Performance — Will It Do What You Need?
Find the total head your system needs across the top. The figure is gallons per minute at that head.
| Model | HP | 30 | 40 | 50 | 60 | 70 | 80 | 90 | 100 | 110 | 120 | 130 | 140 | Max shut-off |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 92030 / 93030 | 1/3 | 28 | 23 | 20 | 16 | 10 | -- | -- | -- | -- | -- | -- | -- | 84 ft / 36 psi |
| 92050 / 93050 | 1/2 | 33 | 30 | 26 | 21 | 14 | -- | -- | -- | -- | -- | -- | -- | 83 ft / 36 psi |
| 92070 / 93070 | 3/4 | 42 | 40 | 36 | 31 | 28 | 21 | 11 | -- | -- | -- | -- | -- | 100 ft / 43 psi |
| 92100 / 93100 | 1 | 57 | 52 | 49 | 42 | 39 | 32 | 28 | 19 | -- | -- | -- | -- | 113 ft / 48 psi |
| 92150 / 93150 | 1-1/2 | 68 | 62 | 60 | 55 | 50 | 43 | 38 | 30 | 18 | -- | -- | -- | 118 ft / 51 psi |
| 92200 / 93200 | 2 | 79 | 76 | 73 | 69 | 63 | 58 | 50 | 41 | 32 | 22 | -- | -- | 132 ft / 57 psi |
| 92250 | 2-1/2 | -- | 84 | 79 | 75 | 70 | 65 | 59 | 52 | 45 | 35 | 24 | -- | 142 ft / 61 psi |
| 92300 / 93300 | 3 | -- | 115 | 110 | 103 | 98 | 91 | 85 | 78 | 69 | 59 | 46 | 30 | 150 ft / 65 psi |
Max shut-off is the pressure at zero flow — the ceiling, not a working point. A dash means the pump will not deliver at that combination. Need help matching a duty point? See our jet pump sizing guide or call 1-888.510.4036.
Models, Voltage & Phase
| Model | HP | Voltage & Phase | Part No. |
|---|---|---|---|
| 92030 | 1/3 HP | 115/230V 1Ph | 6712-000 |
| 92050 | 1/2 HP | 115/230V 1Ph | 6712-001 |
| 92070 | 3/4 HP | 230/115V 1Ph | 6712-002 |
| 92100 | 1 HP | 230V 1Ph | 6712-003 |
| 92150 | 1-1/2 HP | 230V 1Ph | 6712-004 |
| 92200 | 2 HP | 230V 1Ph | 6712-005 |
| 92250 | 2-1/2 HP | 230V 1Ph | 6712-006 |
| 92300 | 3 HP | 230V 1Ph | 6712-007 |
| 93050 | 1/2 HP | 230V 3Ph | 6712-010 |
| 93070 | 3/4 HP | 230V 3Ph | 6712-011 |
| 93100 | 1 HP | 230V 3Ph | 6712-012 |
| 93150 | 1-1/2 HP | 230V 3Ph | 6712-013 |
| 93200 | 2 HP | 230V 3Ph | 6712-014 |
| 93300 | 3 HP | 230V 3Ph | 6712-008 |
Where two voltages are shown, the first is the factory wiring setting. Voltage is changed on the motor terminal board inside the motor cover, never at the pressure switch, and must be set to match your supply before power is applied. All models listed are single phase unless the table states 3Ph.
Overview
A.Y. McDonald · 92000 / 93000 Series
Heavy-duty cast-iron centrifugal pump covering the widest horsepower range in its class — booster, irrigation, transfer, and HVAC duty from 1/3 through 3 HP, single and three phase, with heads to 150 ft.
1/3 – 3 HP
Single & Three Phase
Heads to 150 ft / 65 PSI
Noryl or No-Lead Bronze Impeller
Four-Position Discharge
Rear Pull-Out Service
Pump sitting above the water? The Workhorse is an end-suction centrifugal — it runs best on a flooded suction or with a foot valve. If the pump must lift and self-prime from a pond, tank, or shallow source, choose the self-priming 8900 E-Series Sprinkler Pump.
View 8900 Series ?
Overview
The A.Y. McDonald 92000 (single-phase) and 93000 (three-phase) Workhorse is a heavy-duty end-suction centrifugal pump built to cover an unusually wide range of duties from one platform — booster systems, farms, light industry, lawn sprinkling, irrigation, air conditioning, cooling-tower circulation, and general water transfer.
Eight single-phase sizes and six three-phase sizes span 1/3 through 3 HP, so the pump is matched to the duty instead of the duty forced onto the pump. A precision-molded Noryl impeller (no-lead bronze available), NEMA square-flange motor, and cast-iron casing deliver dependable pressure to 150 ft of head. Rear pull-out construction services the motor and impeller without disturbing the suction or discharge piping. For non-potable service only.

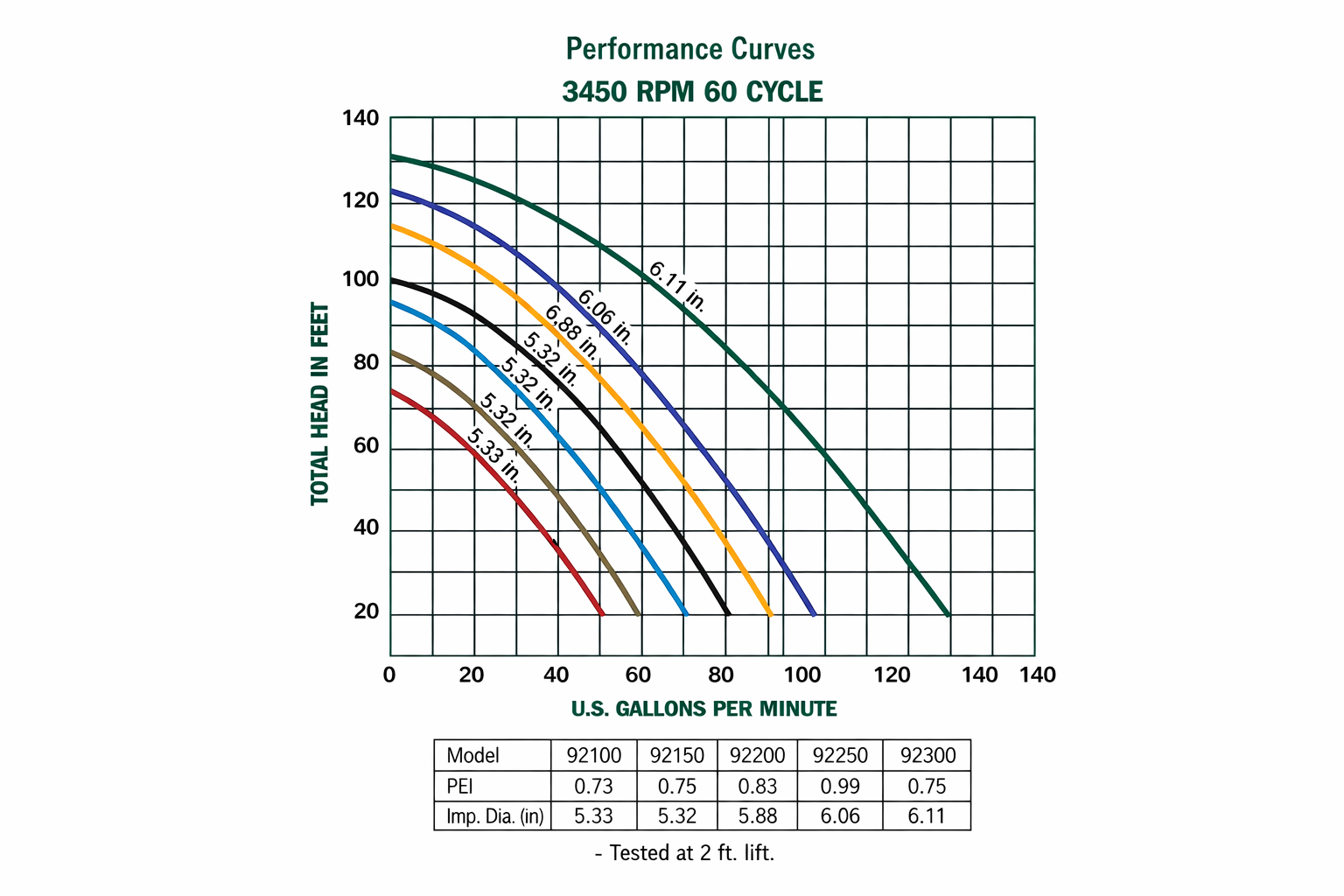

Pump & Performance Curve
92000 / 93000 Workhorse
Performance Curve
Key Advantages
Widest HP Range
1/3 through 3 HP in eight single-phase and six three-phase sizes — size precisely to head and flow instead of over-pumping.
Single & Three Phase
115/230 V single phase on smaller sizes, 230 V on larger, and 208/230/460 V three phase by wire selection.
Four-Position Discharge
Discharge rotates vertical or horizontal to suit the piping run, with three drain ports for complete winterizing.
Rear Pull-Out Design
Service the motor and impeller without breaking the suction or discharge connections — piping stays in place.
Noryl or Bronze Impeller
Precision-molded glass-filled Noryl standard; no-lead bronze impeller available for demanding service.
NEMA Square-Flange Motor
Capacitor-start, high-service-factor motor built to NEMA standards for ready local service availability.
Heads to 150 ft / 65 PSI
The 3 HP size develops 150 ft of shutoff head — strong pressure for booster and high-zone irrigation.
Cast-Iron, 175°F Rated
Heavy-duty cast-iron casing rated to 175°F maximum liquid temperature for continuous-duty transfer.
Construction & Materials
Casing & Adapter
Heavy-Duty Cast Iron
Four-position discharge, three drain ports
Impeller
Precision-Molded Noryl
No-lead bronze available
Motor
NEMA Square-Flange, Capacitor-Start
High service factor, threaded shaft
Shaft Seal
Ceramic / Carbon Mechanical Seal
Rotating mechanical seal
Max Liquid Temp
175°F
Continuous duty
Serviceability
Rear Pull-Out
No need to disturb plumbing
Suction & Priming — Read Before Installing
The Workhorse is an end-suction centrifugal pump, not a self-priming pump. Install it with a flooded suction (pump at or below the supply level) or with a foot valve and a primed suction line. If the installation requires the pump to lift and prime itself from an open source, select the self-priming 8900 E-Series Sprinkler Pump instead.
Models & Specifications
| Part No. | Model | HP | Voltage & Phase | Full-Load Amps | Suction (in) | Discharge (in) | Max Head | Wt (lbs) |
|---|---|---|---|---|---|---|---|---|
| 6712-000 | 92030 | 1/3 | 115/230 / 1 | 8.4 / 4.2 | 1-1/4 | 1 | 84 ft / 36 PSI | 36 |
| 6712-001 | 92050 | 1/2 | 115/230 / 1 | 9.6 / 4.8 | 1-1/4 | 1 | 83 ft / 36 PSI | 36 |
| 6712-002 | 92070 | 3/4 | 230/115 / 1 | 12.8 / 6.4 | 1-1/4 | 1 | 100 ft / 43 PSI | 36 |
| 6712-003 | 92100 | 1 | 230/115 / 1 | 13.4 / 6.7 | 1-1/4 | 1 | 113 ft / 48 PSI | 38 |
| 6712-004 | 92150 | 1-1/2 | 230/115 / 1 | 14.0 / 7.0 | 1-1/4 | 1 | 118 ft / 51 PSI | 42 |
| 6712-005 | 92200 | 2 | 230 / 1 | 8.6 | 1-1/2 | 1-1/4 | 132 ft / 57 PSI | 43 |
| 6712-006 | 92250 | 2-1/2 | 230 / 1 | 8.6 | 2 | 1-1/2 | 142 ft / 61 PSI | 43 |
| 6712-007 | 92300 | 3 | 230 / 1 | 14.8 / 13.5 | 2 | 1-1/2 | 150 ft / 65 PSI | 54 |
| 6712-010 | 93050 | 1/2 | 230 / 3 | 2.9-2.6 / 1.3 | 1-1/4 | 1 | 83 ft / 36 PSI | 32 |
| 6712-011 | 93070 | 3/4 | 230 / 3 | 4.1-3.8 / 1.9 | 1-1/4 | 1 | 100 ft / 43 PSI | 34 |
| 6712-012 | 93100 | 1 | 230 / 3 | 4.8-4.6 / 2.3 | 1-1/4 | 1 | 113 ft / 48 PSI | 37 |
| 6712-013 | 93150 | 1-1/2 | 230 / 3 | 6.4-6.2 / 3.1 | 1-1/4 | 1 | 118 ft / 51 PSI | 41 |
| 6712-014 | 93200 | 2 | 230 / 3 | 7.0-6.6 / 3.3 | 1-1/2 | 1-1/4 | 132 ft / 57 PSI | 48 |
| 6712-008 | 93300 | 3 | 230 / 3 | 9.6-9.4 / 4.7 | 2 | 1-1/2 | 150 ft / 65 PSI | 58 |
Three-phase amps shown at 208-230 / 460 V; select voltage by wiring. Single- and three-phase pumps of equal HP share identical hydraulic performance.
Performance — GPM at Total Head
| Model (1 PH / 3 PH) | HP | 40 ft | 60 ft | 80 ft | 100 ft | 120 ft | Shutoff |
|---|---|---|---|---|---|---|---|
| 92030 | 1/3 | 23 | 16 | — | — | — | 84 ft / 36 PSI |
| 92050 / 93050 | 1/2 | 30 | 21 | — | — | — | 83 ft / 36 PSI |
| 92070 / 93070 | 3/4 | 40 | 31 | 21 | — | — | 100 ft / 43 PSI |
| 92100 / 93100 | 1 | 52 | 42 | 32 | 19 | — | 113 ft / 48 PSI |
| 92150 / 93150 | 1-1/2 | 62 | 55 | 43 | 30 | — | 118 ft / 51 PSI |
| 92200 / 93200 | 2 | 76 | 69 | 58 | 41 | 22 | 132 ft / 57 PSI |
| 92250 | 2-1/2 | 79 | 70 | 59 | 45 | 24 | 142 ft / 61 PSI |
| 92300 / 93300 | 3 | 110 | 98 | 85 | 69 | 46 | 150 ft / 65 PSI |
Flow in U.S. GPM at total dynamic head, tested at 2 ft lift. Not sure which size fits your zone count and elevation? Send your flow, head, and suction conditions for engineering-led sizing.
Dimensions (in)
| Model | A | B | C | F | H | Packing (in) |
|---|---|---|---|---|---|---|
| 92030 / 92050 | 15.40 | 2.35 | 6.10 | 4.35 | 5.60 | 15.5 x 8.5 x 10 |
| 92070 / 93070 | 15.90 | 2.35 | 6.10 | 4.35 | 5.60 | 16.5 x 9.5 x 10 |
| 92100 / 93100 | 16.40 | 2.35 | 6.10 | 4.35 | 5.60 | 16.5 x 9.5 x 10 |
| 92150 / 93150 | 16.60 | 2.35 | 6.10 | 4.35 | 5.60 | 16.5 x 9.5 x 10 |
| 92200 thru 92300 / 93200 / 93300 | 18.15 | 2.90 | 6.75 | 4.70 | 6.30 | 18.25 x 9.5 x 10 |
Applications
Booster Systems
Raise pressure on municipal or well-fed lines where the pump sits on a flooded supply.
Irrigation & Sprinkling
Drive multi-zone lawn and field sprinkler systems with pressure to 65 PSI.
Farm & Industry
General water transfer, wash-down, and process duty across a wide flow range.
HVAC & Cooling Towers
Air-conditioning circulation and cooling-tower make-up and transfer.
Datasheets & Downloads
Workhorse Spec Sheet
Full 92000 / 93000 dimensional and performance data for engineering review and project files.
Download Spec Sheet
? For Non-Potable Use Only
The A.Y. McDonald 92000 / 93000 Workhorse is rated for non-potable service only and to 175°F maximum liquid temperature. Do not install on drinking-water systems. Confirm suction conditions, available power, and required flow and head before ordering.
Ready to Size Your Pump?
Confirm horsepower, phase, and suction conditions before ordering — or send us your duty point.
Goulds Equivalent Model
Shopping the Goulds GT IRRI-Gator or other Goulds Water Technology pumps? This A.Y. McDonald end-suction centrifugal pump covers the same duty. Match a Goulds model to the comparable A.Y. McDonald pump below by horsepower, or buy the Goulds pump direct.
| A.Y. McDonald Model | HP | Comparable Goulds Model |
|---|---|---|
| 92070 / 93070 | 3/4 | GT07 / GT073 |
| 92100 / 93100 | 1 | GT10 / GT103 |
| 92150 / 93150 | 1-1/2 | GT15 / GT153 |
| 92200 / 93200 | 2 | GT20 / GT203 |
| 92300 / 93300 | 3 | GT30 / GT303 |
Shop the Goulds GT IRRI-Gator →
Cross-reference by horsepower and pump type for comparison only. The Workhorse is end-suction; the Goulds GT IRRI-Gator is self-priming. The Workhorse also offers 1/3, 1/2, and 2-1/2 HP sizes the Goulds GT range does not. For a self-priming match to the Goulds Irri-Gator, see our A.Y. McDonald 8900 E-Series. Engineering-led sizing available — call 1-888.510.4036 or email sales@watermainsupply.com.
For engineering-led sizing and selection support or a factory submittal, email sales@watermainsupply.com or call 1-888.510.4036.
