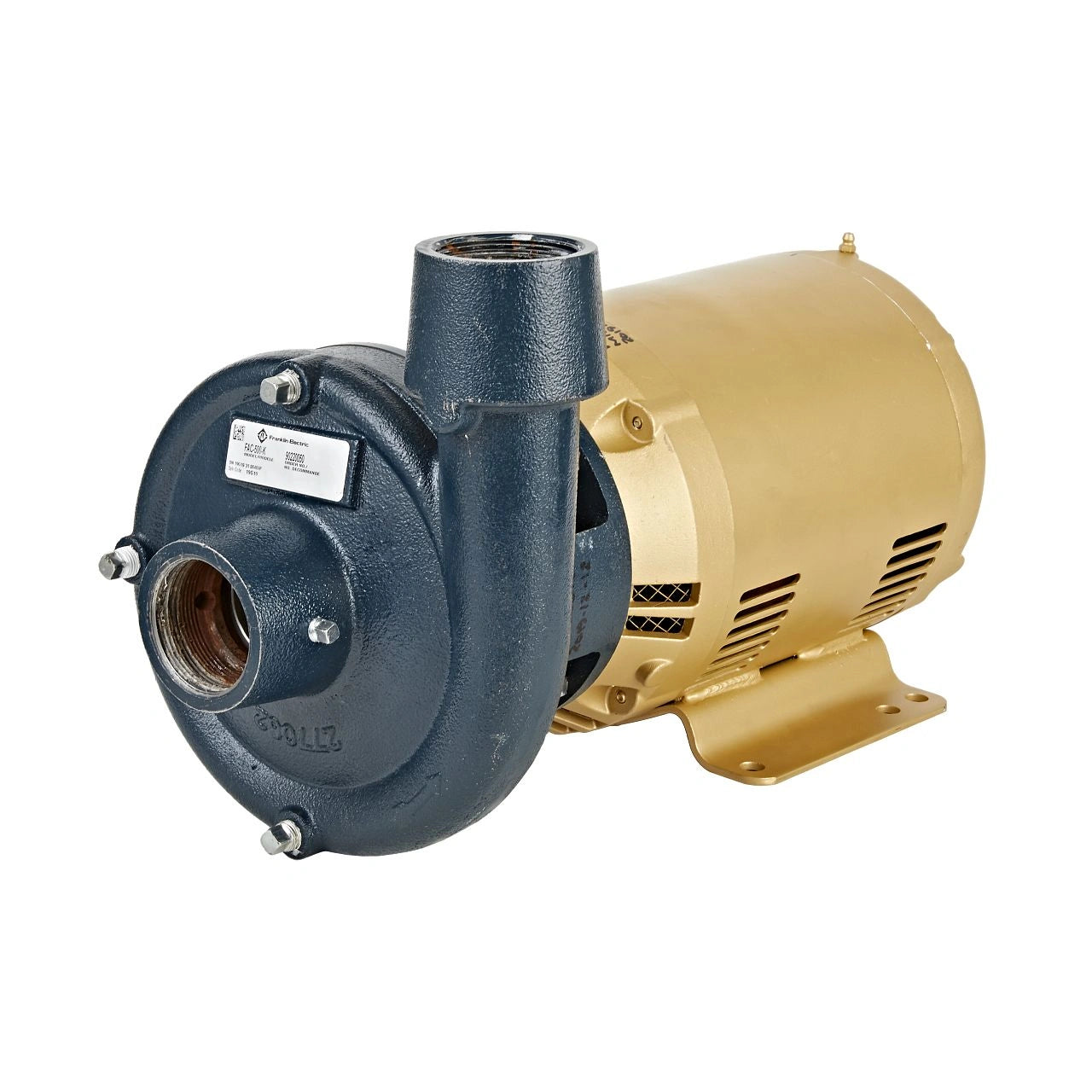

Franklin Electric FAC FAC close-coupled centrifugal pump
Franklin Electric FAC FAC close-coupled centrifugal pump

Franklin Electric FAC NPT Centrifugal Pump

HP - Voltage: 3 HP - 115/230V 1Ph
Motor Enclosure: ODP
Model: FAC-300S

Product variant with selected options does not exist!
Call for pricing
SKU: 90210030
Weight : 83.0 lb
Free Shipping $499 or more
Need it fast? Call for same-day shipping options: 281.664.8000
Description
Franklin Electric FAC Series
Franklin Electric FAC NPT Centrifugal Pump
Cast iron volute with CF8M stainless enclosed impeller and silicon carbide seal faces. Vertical or horizontal mounting, 3600 RPM JM frame motors.
NPT
3600 RPM
3 HP – 5 HP
Capacities to 150 GPM
Heads to 160 ft
120 PSI Max Working Pressure
212°F Max Temperature
CF8M Stainless Impeller
GL-SiC Seal
Vertical or Horizontal
Genuine Franklin Electric equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial distributor.
Overview

Cast iron volute with CF8M stainless enclosed impeller and silicon carbide seal faces. Vertical or horizontal mounting, 3600 RPM JM frame motors.

This listing covers the FAC FAC hydraulic end with NPT connections at 3600 RPM. Select horsepower, motor enclosure, and voltage below — each combination is a distinct factory order number.

Features
  • CF8M Stainless Impeller — Enclosed design for high efficiency.
  • Rotatable Cast Iron Volute — Can be rotated for ease of installation; tapped drain openings.
  • Silicon Carbide Seal — GL-SiC/GL-SiC faces with FKM elastomers and 300-series stainless.
  • Vertical or Horizontal — Mounts in either orientation.
  • 3600 RPM JM Motors — Standard ODP and TEFC JM frame motors.
  • 120 PSI / 212°F — Rated to 120 psi maximum working pressure and 212°F.
Order Information
Order No. Model No. HP Enclosure Voltage Wt. (lbs)
90210030 FAC-300S 3 HP ODP 115/230V 83
90213030 FAC-300T 3 HP ODP 230-460V 83
90210130 FAC-300SE 3 HP TEFC 115/230V 83
90213130 FAC-300TE 3 HP TEFC 230-460V 83
90214130 FAC-300T5E 3 HP TEFC 575V 79
90213050 FAC-500T 5 HP ODP 230-460V 129
90210050 FAC-500S 5 HP ODP 230V 134
90213150 FAC-500TE 5 HP TEFC 230-460V 129
90210150 FAC-500SE 5 HP TEFC 230V 134
90214150 FAC-500T5E 5 HP TEFC 575V 124
For engineering-led sizing and selection support or a factory submittal, email sales@watermainsupply.com or call 1-888.510.4036.
