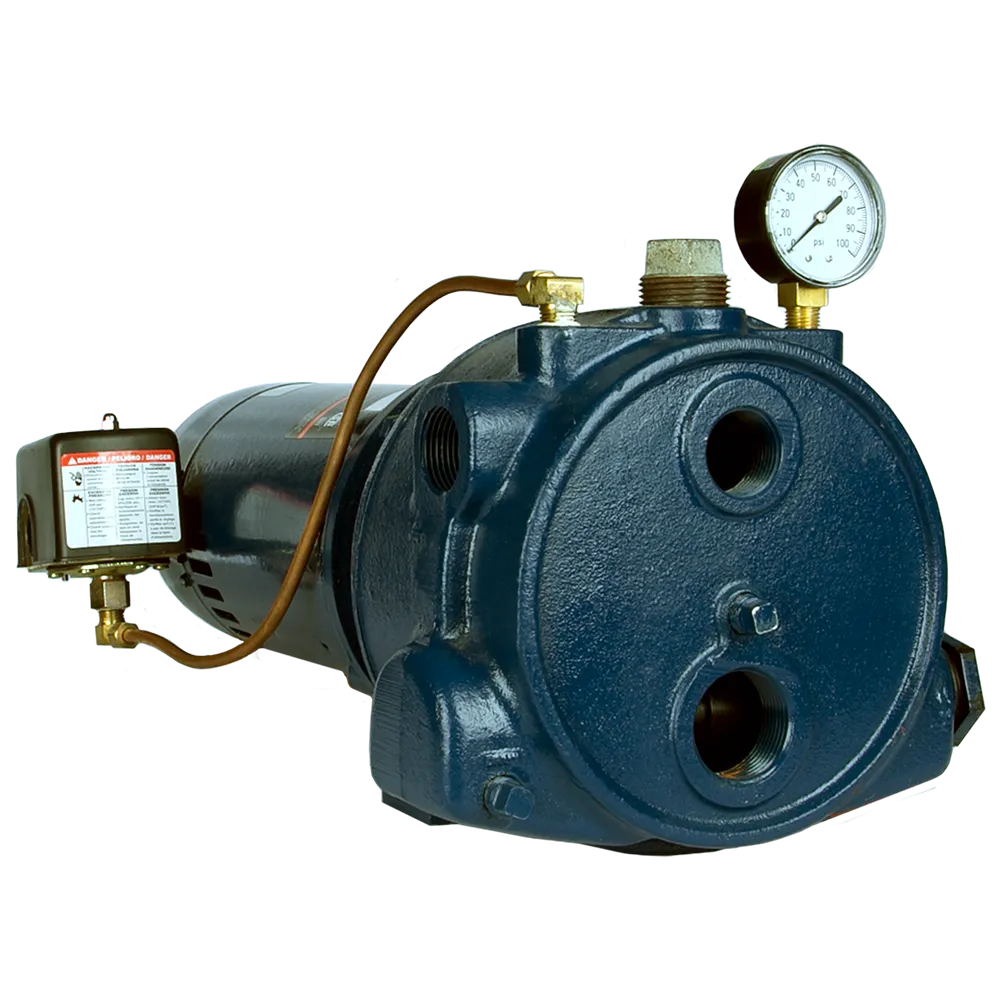

Franklin Electric Convertible Pro (RM2) Series Cast Iron Convertible Jet Pump - NSF 372, Shallow & Deep Well, 1/2-1 HP
Franklin Electric Convertible Pro (RM2) Series Cast Iron Convertible Jet Pump - NSF 372, Shallow & Deep Well, 1/2-1 HP

Franklin Electric Convertible Pro (RM2) Series Cast Iron Convertible Jet Pump - NSF 372, Shallow & Deep Well, 1/2-1 HP

Horse Power: 1/2 HP
Phase: Single-Phase
Voltage: 115/230 VAC

Product variant with selected options does not exist!
$872.19
SKU: FP05CI-C
Weight : 48.0 lb
Need it fast? Call for same-day shipping options: 281.664.8000
Description
Franklin Electric Jet Pump

Convertible Pro (RM2) Series
Cast Iron Convertible

Convertible jet pump with stainless steel impeller. Lifts from 100 ft and delivers up to 23 gpm in shallow or deep well service.

1/2 – 1 HP
Single & Three-Phase
NSF 372 Certified
140 °F Max Fluid Temp
115/230 & 230/460 V
Overview

Equipped with a stainless steel impeller for high performance and longevity. Capable of lifting from 100 ft and delivering up to 23 gpm from either shallow well or deep well installations.

Each pump is factory equipped with an internal shallow well injector that is easily replaced with a bypass plug for deep well operation.

Key Advantages
Heavy-duty cast iron case
Heavy-duty cast iron case with 1-1/4" inlet and (3) 1" outlets
Stainless steel impeller
Stainless steel impeller ensures optimum durability
Thermoplastic diffuser
Thermoplastic diffuser is precision molded for optimum efficiency
Each pump factory equipped
Each pump factory equipped with internal shallow well injector easily replaced with bypass plug for deep well operation
Shaft coupling designed
Shaft coupling designed for easy removal of keyed shaft motor
Carbon/ceramic faced mechanical shaft seal
Carbon/ceramic faced mechanical shaft seal with nitrile elastomer ensures positive sealing at all pressures
High service factor 56C-frame motor
High service factor 56C-frame motor for maximum performance
Adjustable pressure switch
Adjustable pressure switch is factory installed and set at 30/50 psi
Maximum temperature of 140 °F/60 °C; 150
Maximum temperature of 140 °F/60 °C; 150 PSI maximum working pressure
NSF/ANSI/CAN 372 Certified
NSF/ANSI/CAN 372 Certified
Order Information
Item Model Horse Power Phase Voltage
91140005 FP05CI-C 1/2 HP Single-Phase 115/230 VAC
91140007 FP07CI-C 3/4 HP Single-Phase 115/230 VAC
91140010 FP1CI-C 1 HP Single-Phase 115/230 VAC
91112011 1RM2-T 1 HP Three-Phase 230/460 VAC
Documentation & Spec Sheets
Convertible Pro RM2 Spec Sheet
Spec Sheet — Franklin Electric published document (PDF).
Download PDF
Convertible Jet Manual
Owner’s Manual — Franklin Electric published document (PDF).
Download PDF
Specification Source

Specifications, model numbers and Franklin item numbers on this page are taken from Franklin Electric published product data. Engineering-led pump sizing available — call 281.664.8000 or email sales@watermainsupply.com.

Ready to Order?
Confirm horsepower, phase, voltage and flow requirements before placing your order. Engineering-led pump sizing available.
