Franklin Electric C Series Cast Iron Convertible Jet Pump - NSF 372, Shallow & Deep Well, 1/2-3/4 HP
Franklin Electric C Series Cast Iron Convertible Jet Pump - NSF 372, Shallow & Deep Well, 1/2-3/4 HP

Franklin Electric C Series Cast Iron Convertible Jet Pump - NSF 372, Shallow & Deep Well, 1/2-3/4 HP

Horse Power: 1/2 HP
Phase: Single-Phase
Voltage: 115/230 VAC

Product variant with selected options does not exist!
$760.42
SKU: FE05CI-C
Weight : 45.0 lb
Need it fast? Call for same-day shipping options: 281.664.8000
Description

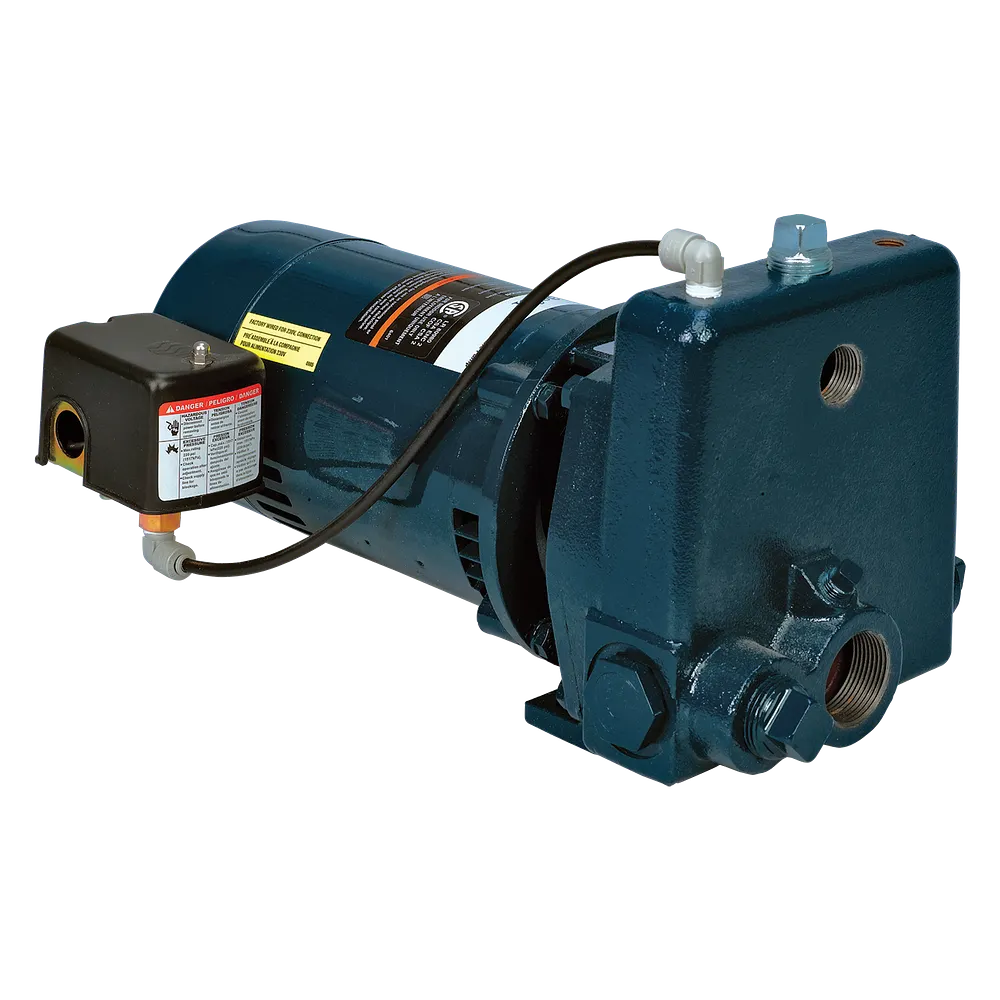

Franklin Electric Jet Pump

C Series Jet Pump
Cast Iron Convertible

Convertible jet pump delivering up to 16 gpm from shallow or deep well installations, with screw-in injector and bypass plug.

1/2 – 3/4 HP
Single-Phase
NSF 372 Certified
140 °F Max Fluid Temp
Dual Voltage 115/230 V
Overview

Equipped with a stainless steel impeller for high performance and durability. Delivers up to 16 gpm from either shallow well or deep well installations.

Heavy-duty cast iron volute and motor bracket with a screw-in injector and bypass plug for easy conversion from shallow- to deep-well installation.

Key Advantages
Heavy-duty cast iron volute and motor bracket
Heavy-duty cast iron volute and motor bracket for long life
1-1/2" inlet
1-1/2" inlet, (2) 3/4" outlets and (1) 1" outlet - all models
1/4" NPT ports
1/4" NPT ports for pressure gauge and AVC connection
Stainless steel impeller
Stainless steel impeller for high performance and durability
Thermoplastic diffuser
Thermoplastic diffuser is precision molded for efficiency
Screw-in injector & bypass plug
Screw-in injector & bypass plug for easy conversion from shallow- to deep-well installation
Stainless steel shaft on 56J threaded shaft
Stainless steel shaft on 56J threaded shaft motor for direct mounting of impeller
Carbon/ceramic faced mechanical seal
Carbon/ceramic faced mechanical seal with nitrile elastomer ensures leak-proof operation at all discharge pressures
Adjustable pressure switch
Adjustable pressure switch is factory installed and set to 30-50 PSI
Maximum temperature of 140 °F/60 °C; 75
Maximum temperature of 140 °F/60 °C; 75 PSI maximum working pressure
Deep well injector kits must be ordered
Deep well injector kits must be ordered separately
NSF/ANSI/CAN 372 Certified
NSF/ANSI/CAN 372 Certified
Order Information
Item Model Horse Power Phase Voltage
91060020 FE05CI-C 1/2 HP Single-Phase 115/230 VAC
91060053 FE07CI-C 3/4 HP Single-Phase 115/230 VAC
Documentation & Spec Sheets
C Series Spec Sheet
Spec Sheet — Franklin Electric published document (PDF).
Download PDF
C Series Manual
Owner’s Manual — Franklin Electric published document (PDF).
Download PDF
Specification Source

Specifications, model numbers and Franklin item numbers on this page are taken from Franklin Electric published product data. Engineering-led pump sizing available — call 281.664.8000 or email sales@watermainsupply.com.
