Franklin Electric's FPS wastewater line covers both ways sewage is moved. The 3NC, 4NC and 4NCH non-clog pumps pass solids up to 3 in whole and move up to 948 GPM through 3 or 4 in flanged force mains for commercial and municipal lift stations. The IGP and IGPH grinder pumps cut solids to a slurry and push up to 40 GPM to heads of 175 ft through a 1-1/4 in line for pressure sewers. The PowerSewer station and the simplex, duplex and hard-piped fiberglass packages put basin, pump, panel and valves in one order, with matching grinder control panels, rail hardware and repair parts. We supply the U.S. 60 Hz range from 208-230V single phase to 575V three phase and size every pump against the Franklin curve. Call 1-888.510.4036 or email sales@watermainsupply.com.

18 products
Sort by:
Featured
Sort by:
Featured
Franklin Electric 4NC Non-Clog Solids Handling Pump - 4 in Flanged
Franklin Electric FPS 4NC submersible non-clog pump, 4 in flanged discharge

Franklin Electric

Free Shipping $499 or more

Franklin Electric 4NC Non-Clog Solids Handling Pump - 4 in Flanged

From $4,070.18
Franklin Electric 3NC Non-Clog Solids Handling Pump - 3 in Flanged
Franklin Electric FPS 3NC submersible non-clog pump, 3 in flanged discharge

Franklin Electric

Free Shipping $499 or more

Franklin Electric 3NC Non-Clog Solids Handling Pump - 3 in Flanged

From $4,010.53
Franklin Electric 4NCH Non-Clog Solids Handling Pump - 4 in Flanged
Franklin Electric FPS 4NCH submersible non-clog pump with air-filled IE3 motor

Franklin Electric

Free Shipping $499 or more

Franklin Electric 4NCH Non-Clog Solids Handling Pump - 4 in Flanged

From $8,150.18
Franklin Electric NC Series Non-Clog Pump Repair Parts
Franklin Electric NC Series Non-Clog Pump Repair Parts

Franklin Electric

Free Shipping $499 or more

Franklin Electric NC Series Non-Clog Pump Repair Parts

From $7.12

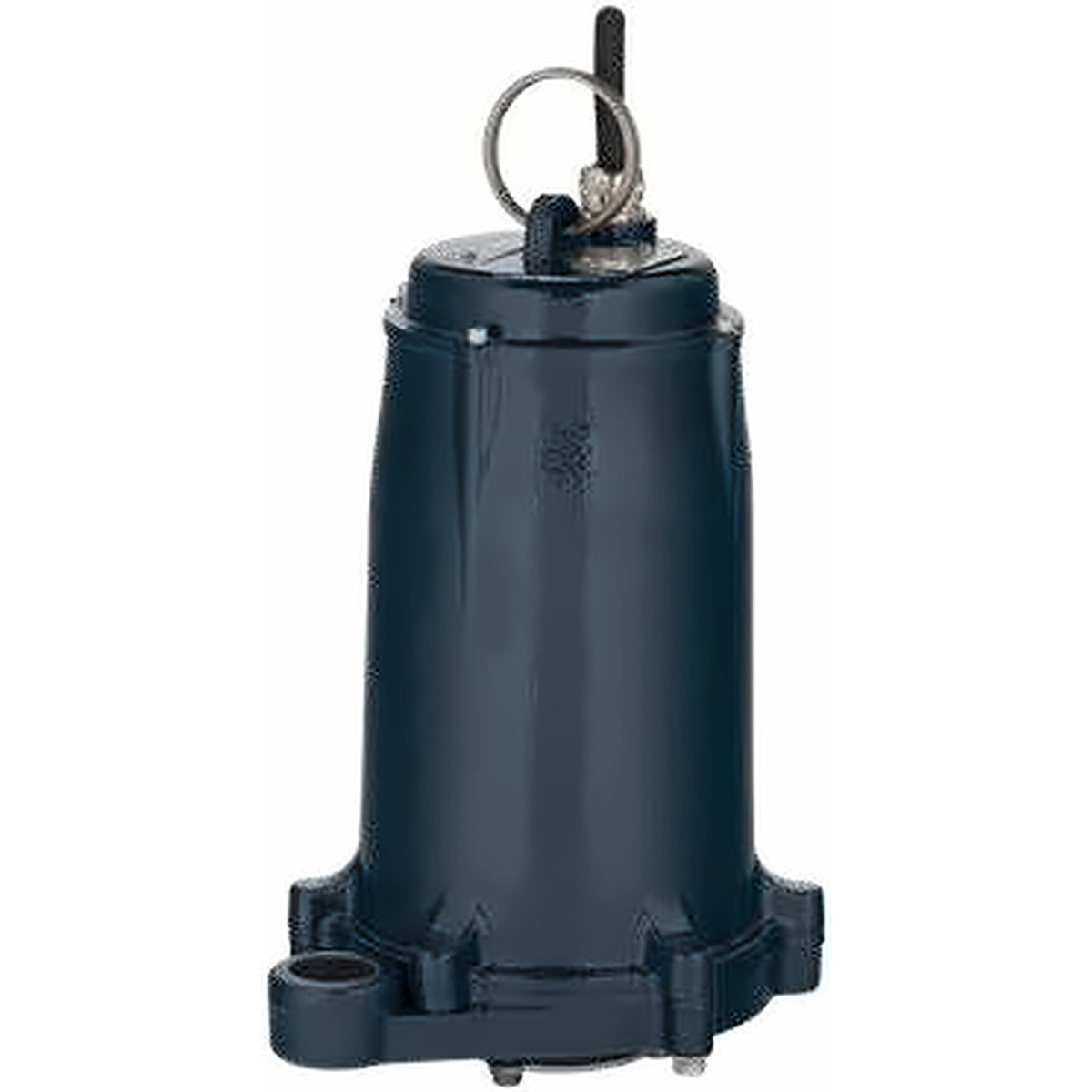

Franklin Electric IGP-M Series Manual Grinder Pump - 2 HP, 1-1/4 in FNPT Discharge
Franklin Electric FPS IGP-M Series manual grinder pump

Franklin Electric

Free Shipping $499 or more

Franklin Electric IGP-M Series Manual Grinder Pump - 2 HP, 1-1/4 in FNPT Discharge

From $1,869.47

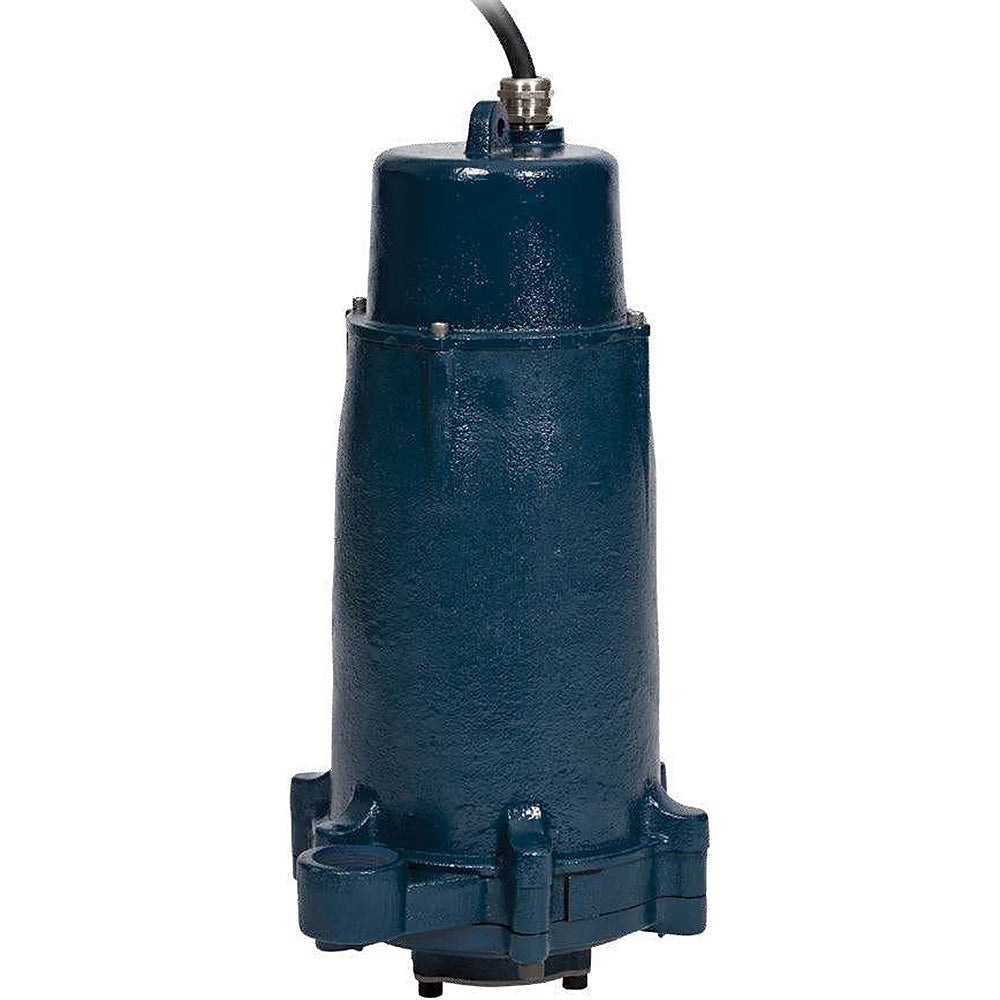

Franklin Electric IGPH-A Series High Head Automatic Grinder Pump - 2 HP 208-230V 1Ph
Franklin Electric FPS IGPH-A Series high head automatic grinder pump

Franklin Electric

Free Shipping $499 or more

Franklin Electric IGPH-A Series High Head Automatic Grinder Pump - 2 HP 208-230V 1Ph

From $2,478.60

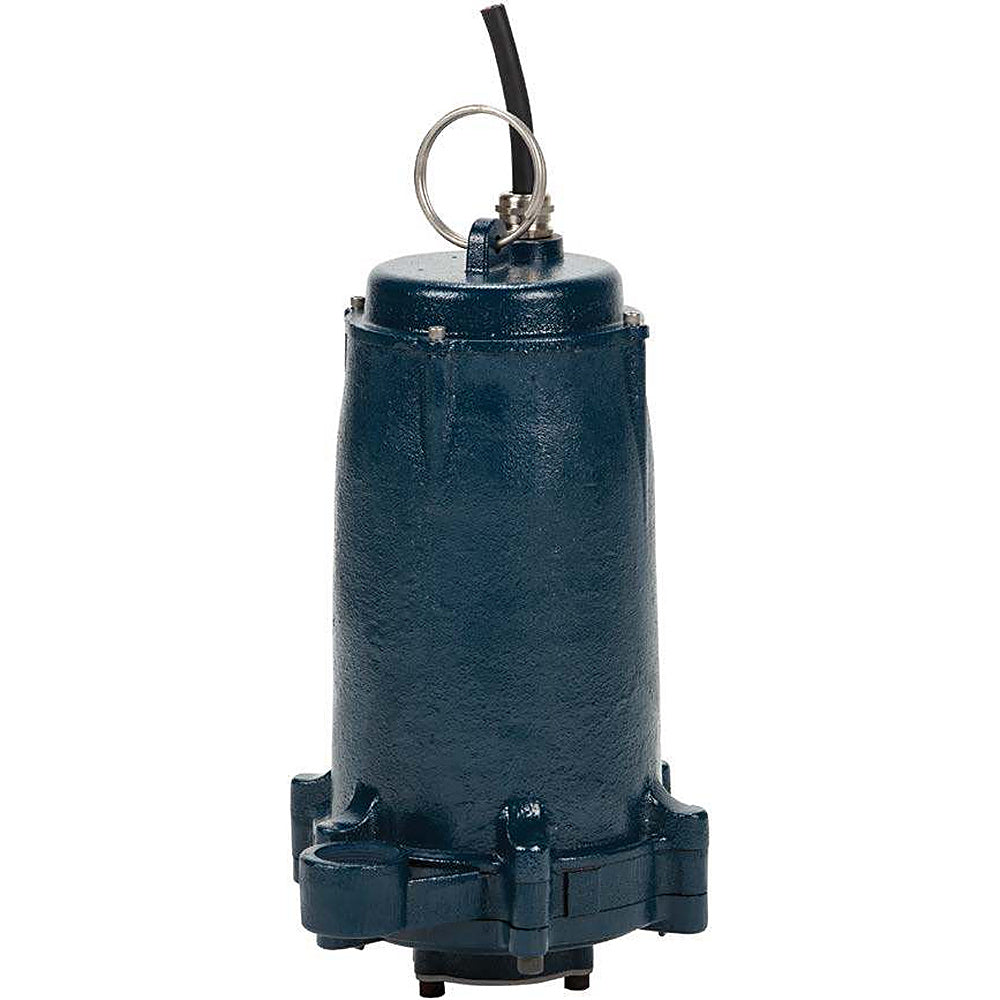

Franklin Electric IGPH-M Series High Head Grinder Pump - 2 HP Dual-Stage, Manual
Franklin Electric FPS IGPH-M Series high head manual grinder pump

Franklin Electric

Free Shipping $499 or more

Franklin Electric IGPH-M Series High Head Grinder Pump - 2 HP Dual-Stage, Manual

From $2,383.86

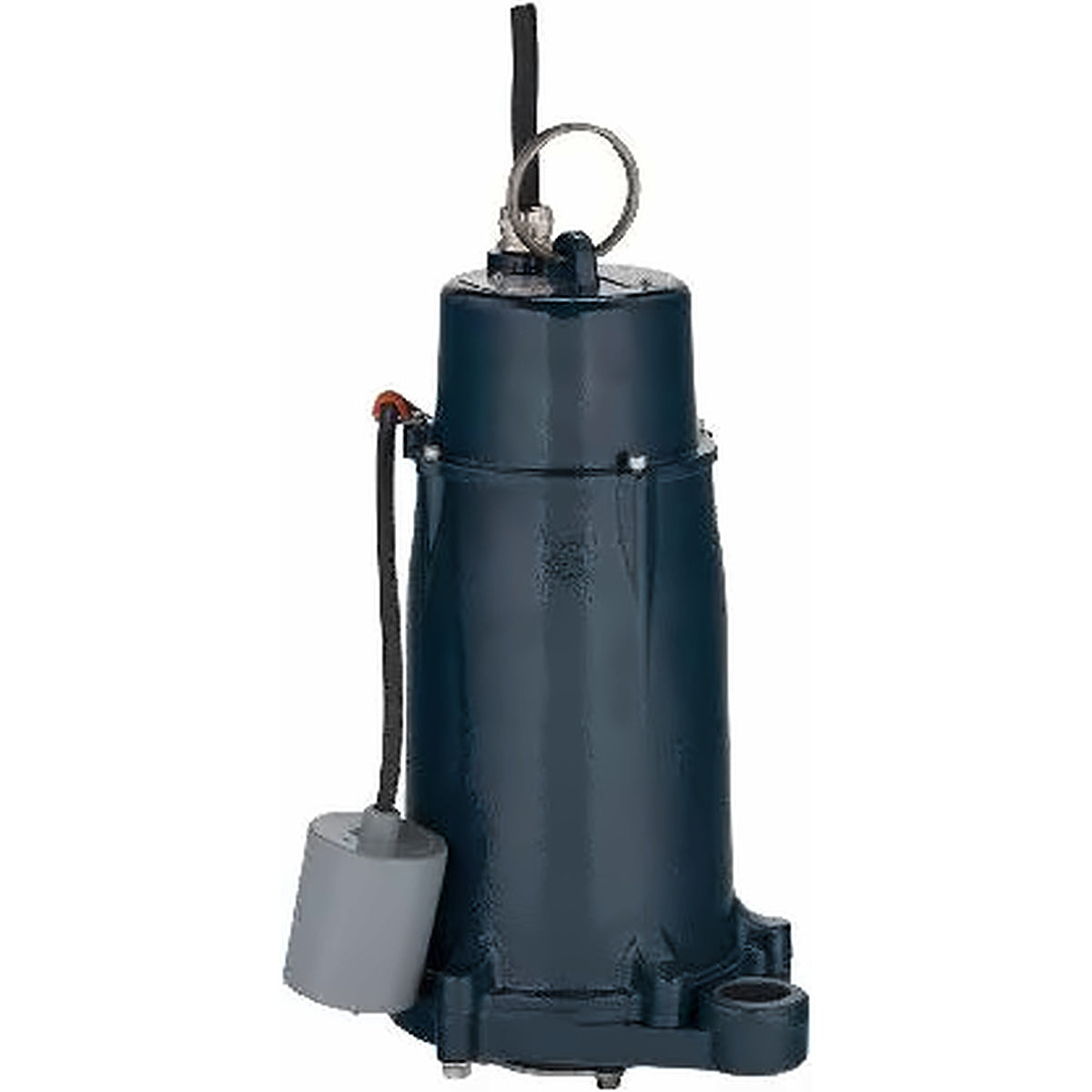

Franklin Electric IGP-A Series Automatic Grinder Pump - 2 HP 208-230V 1Ph, 1-1/4 in FNPT
Franklin Electric FPS IGP-A Series automatic grinder pump with float

Franklin Electric

Free Shipping $499 or more

Franklin Electric IGP-A Series Automatic Grinder Pump - 2 HP 208-230V 1Ph, 1-1/4 in FNPT

From $2,211.93

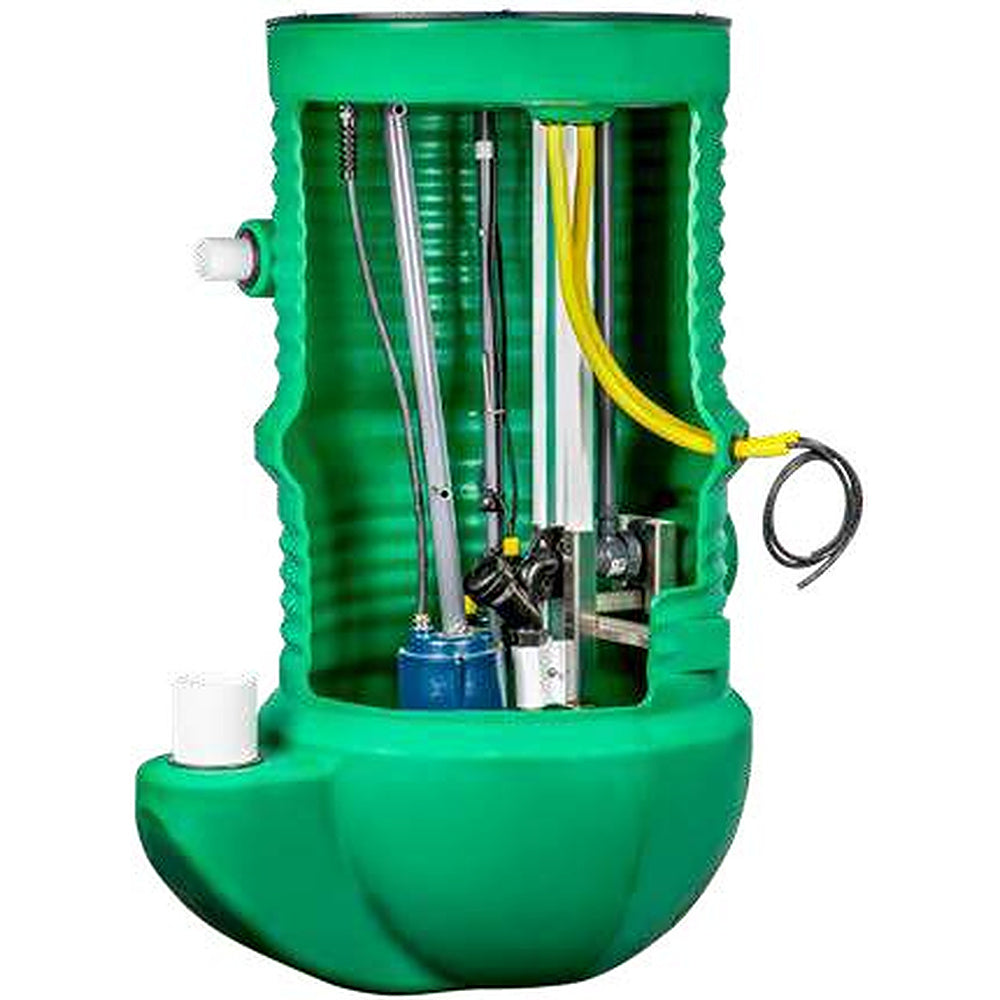

Franklin Electric PowerSewer V4PS Grinder Pump Station - Low Pressure Sewer System
Franklin Electric FPS PowerSewer V4PS grinder pump station

Franklin Electric

Free Shipping $499 or more

Franklin Electric PowerSewer V4PS Grinder Pump Station - Low Pressure Sewer System

From $5,630.88

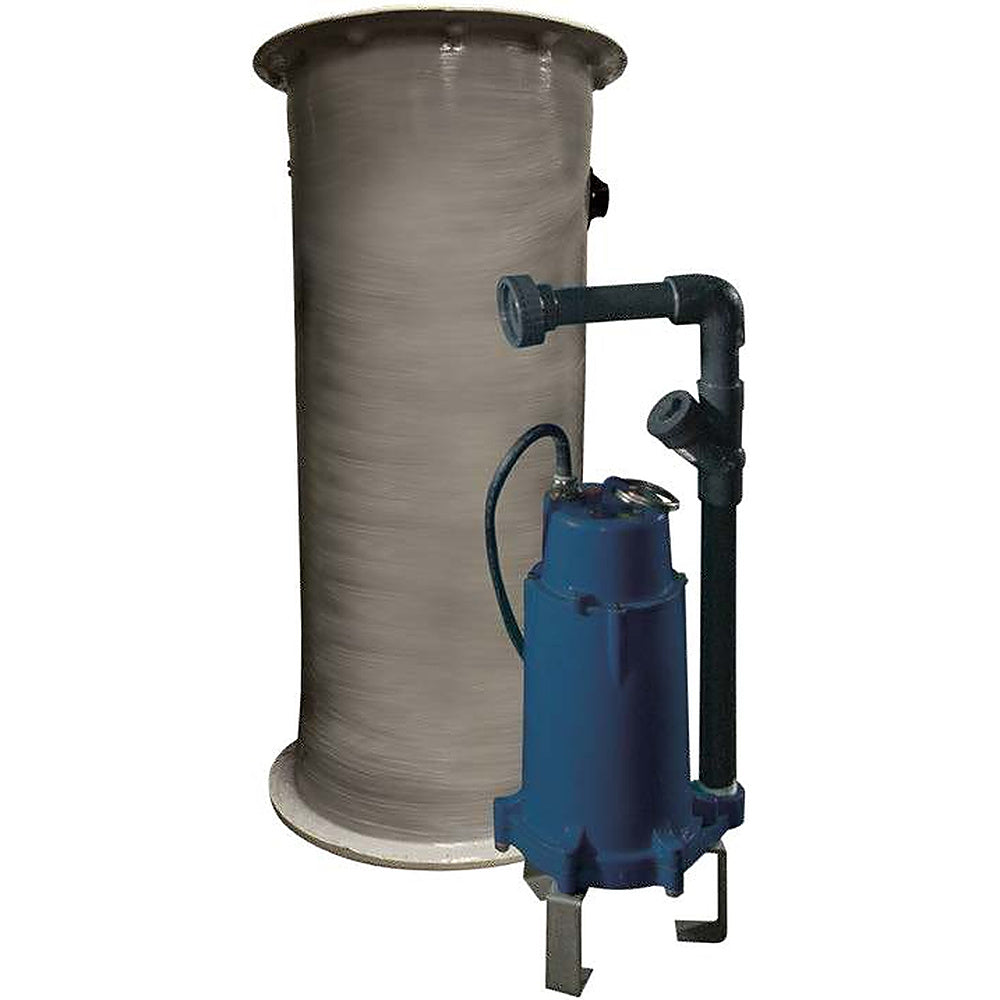

Franklin Electric IGP-SMPXFG-HP Hard-Piped Simplex Grinder Package - 24 in Fiberglass Basin
Franklin Electric hard-piped simplex grinder package in fiberglass basin

Franklin Electric

Free Shipping $499 or more

Franklin Electric IGP-SMPXFG-HP Hard-Piped Simplex Grinder Package - 24 in Fiberglass Basin

From $3,894.74

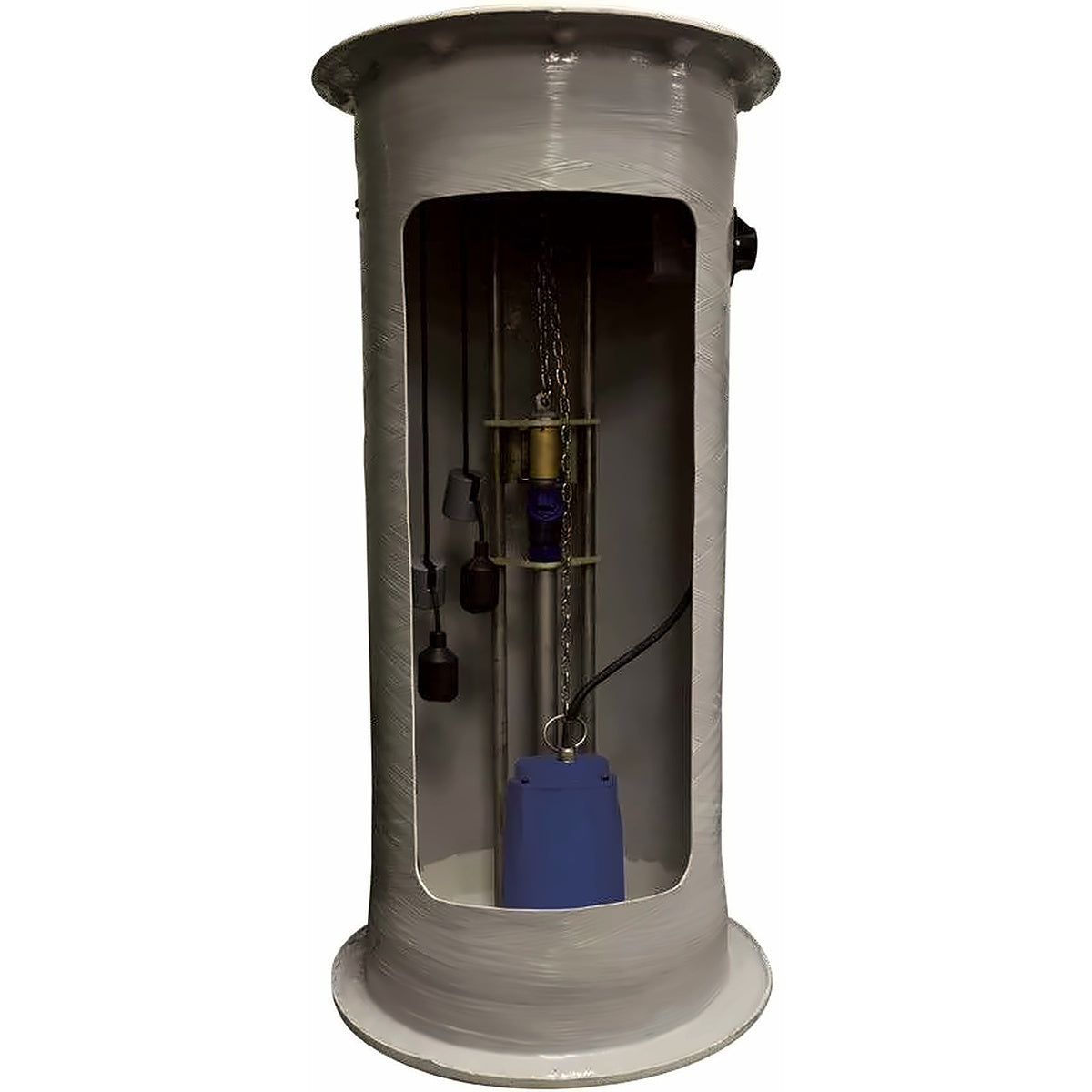

Franklin Electric IGP-SMPX Simplex Fiberglass Grinder Package - Rail System, 24 in Basin
Franklin Electric simplex fiberglass grinder package with rail system

Franklin Electric

Free Shipping $499 or more

Franklin Electric IGP-SMPX Simplex Fiberglass Grinder Package - Rail System, 24 in Basin

From $7,223.16

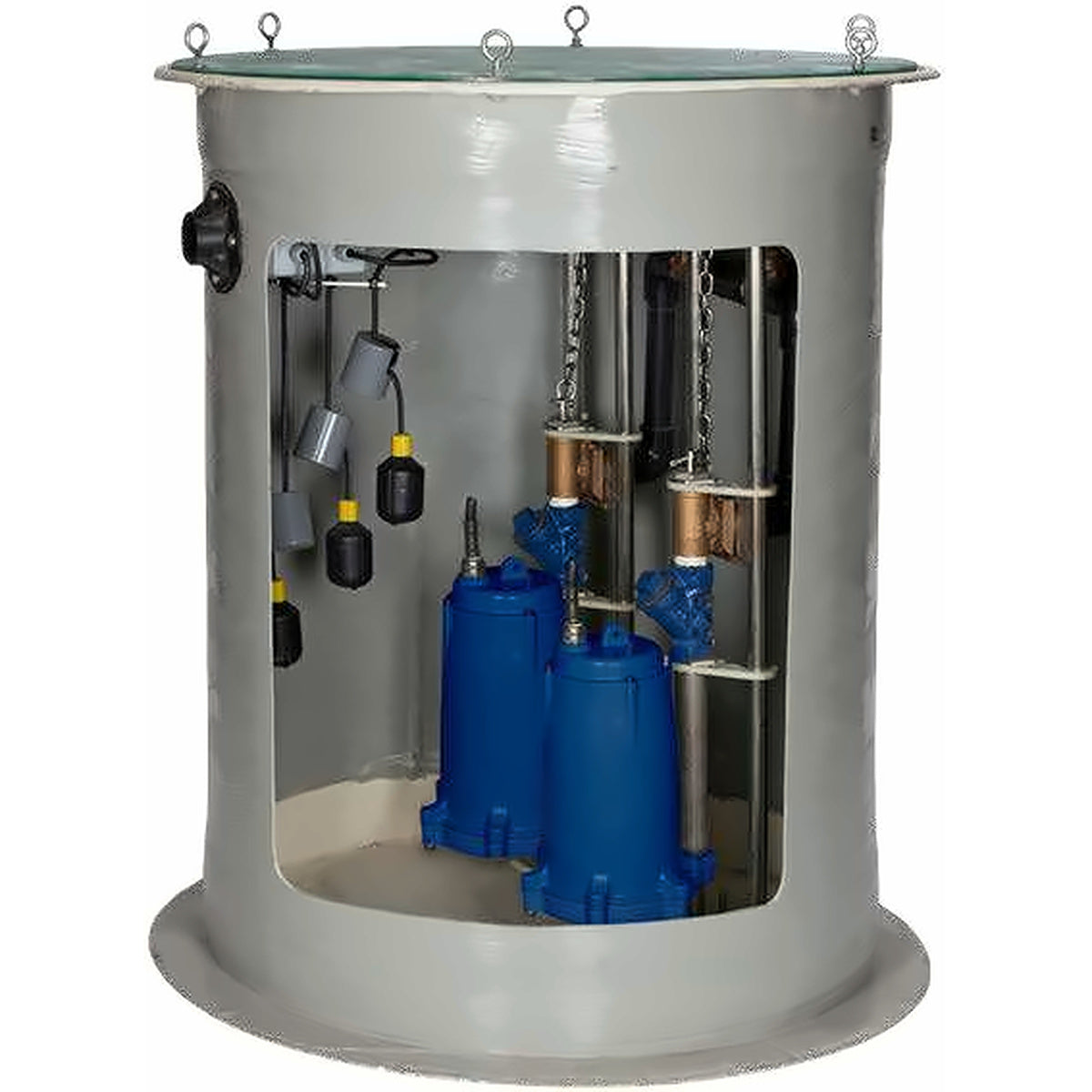

Franklin Electric IGP-DPLX Duplex Fiberglass Grinder Package - Rail System, 36 in Basin
Franklin Electric duplex fiberglass grinder package with rail system

Franklin Electric

Free Shipping $499 or more

Franklin Electric IGP-DPLX Duplex Fiberglass Grinder Package - Rail System, 36 in Basin

From $11,343.86

Franklin Electric Wastewater Pumps

Franklin Electric · FPS Wastewater

Franklin Electric Wastewater Pumps and Lift Stations

The FPS engineered wastewater range in one place: 3NC, 4NC and 4NCH non-clog pumps for commercial lift stations, IGP and IGPH grinder pumps for pressure sewers, the PowerSewer station and fiberglass grinder packages, grinder control panels, and the rail hardware and repair parts that keep them running.

Franklin Electric FPS submersible wastewater pump
2–20 HPGrinder to non-clog
948 GPMMax flow, 4NCH
200 ftShut-off head, IGPH
3 inSolids passed, NC
18 ListingsPumps, stations, parts

Franklin Electric builds its FPS wastewater line for the two ways sewage is moved. A non-clog (solids-handling) pump passes the solids whole through an open impeller and moves large volumes through a 3 or 4 in force main: the job of a commercial or municipal lift station. A grinder pump cuts the solids into a slurry so it can push a small flow to a high head through a 1-1/4 in line: the job of a pressure sewer serving homes, lake communities and developments where gravity sewer is not practical. Around the pumps Franklin builds complete stations (the PowerSewer and fiberglass grinder packages), the control panels that run them, and the rail hardware and parts to service them.

We supply the U.S. 60 Hz range, from 208-230V single phase to 575V three phase. Our engineering-led selection matches the pump, trim or horsepower to your peak inflow and total dynamic head on the Franklin curve: call 1-888.510.4036 or email sales@watermainsupply.com. Genuine Franklin Electric equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier.

Will It Work for Me?

Four checks that settle most wastewater pump orders.

Warranty

NC Series, IGP-A and IGP-M: 2 years from the date of original purchase by the consumer, per Franklin's owner manuals. PowerSewer V4PS: 3 years from original purchase. IGPH pumps, fiberglass packages, control panels and parts: 12 months from the date of purchase. Single-phase manual pumps must run from the matched FPS panel or capacitor kit to keep the warranty.

Reliability

NC pumps: tandem silicon carbide seals in an oil bath, a seal-fail probe, an adjustable wear plate and bearings rated for a B-10 life of 30,000 h (100,000 h on the 4NCH). Grinders: 440C stainless cutters making 414,000 cuts per minute, carbon/ceramic seal, on-winding thermal protection. Repair parts are listed by Franklin order number.

Fit

Grinder or non-clog is decided by flow and head. Grinders: up to about 40 GPM, heads to 175 ft, 1-1/4 in discharge. Non-clog: roughly 100 to 950 GPM at up to 110 ft, 3 or 4 in flange, solids to 3 in. Grinder pumps are 2 HP; NC pumps run 3 to 20 HP, and the 4NCH is three phase only.

Size It Now

Send the peak inflow in GPM, the static lift, the force main length and size, and your voltage and phase. We pick the model from the Franklin curve.

Request a quote
1-888.510.4036 · sales@watermainsupply.com

See the Line

Franklin Electric's own videos of the high-head grinder and the PowerSewer station.

FPS High Head Grinder

PowerSewer System - Features and Benefits

The FPS Wastewater Line

Three families. Pick the family from the job, then the model from the duty point.

Franklin Electric FPS 3NC non-clog solids handling pump

NC Non-Clog Pumps

3 and 4 in flange · 3–20 HP

948 GPMMax flow
114 ftMax head
3 inSolids
54 models1Ph and 3Ph

Submersible solids-handling pumps for raw, unscreened sewage, effluent and dewatering. The 3NC and 4NC (3 and 5 HP, oil-filled motors) are selected by impeller trim; the 4NCH (7.5 to 20 HP, air-filled IE3 motor) by horsepower.

Listings

Best forCommercial, industrial and small municipal lift stations moving 100 to 950 GPM through a flanged force main.

Shop 3NC
Franklin Electric FPS IGP-A automatic grinder pump

IGP and IGPH Grinder Pumps

1-1/4 in FNPT · 2 HP

40 GPMMax flow, IGPH
200 ftShut-off, IGPH
414,000Cuts per minute
20 modelsAuto and manual

Grinders that cut solids to a slurry and push them up long or high force mains. IGP single-stage to about 120 ft; IGPH dual-stage to 175 ft. A models carry their own start components and float; M models run from a panel.

Listings

Best forPressure sewers, residential and light commercial lift stations, and replacing positive displacement grinders.

Shop IGP-A
Franklin Electric FPS PowerSewer V4PS grinder pump station

Grinder Stations and Packages

Basin, pump, panel · simplex and duplex

60–96 inPowerSewer basins
24 and 36 inFiberglass basins
3 yearsPowerSewer warranty
22 buildsReady to set

Complete stations: the HDPE PowerSewer with dry well and isolated pump support, rail-mounted simplex and duplex fiberglass packages with panel and floats, and the hard-piped simplex package that needs no panel.

Listings

Best forDevelopers, site contractors and utilities who want one order for the basin, pump, controls and valves.

Shop PowerSewer

Every FPS Wastewater Pump Side by Side

Figures from Franklin's FPS Wastewater Catalog (M5276), owner manuals and our listings. Max flow and shut-off head are separate limits, never reached together.

Model Type HP Max flow Shut-off head Discharge Solids Power
3NC Non-clog 3, 5 555 GPM 58 ft 3 in flange 2.5 in 230V 1Ph; 200/230, 460, 575V 3Ph
4NC Non-clog 3, 5 545 GPM 49 ft 4 in flange 3 in 230V 1Ph; 200/230, 460, 575V 3Ph
4NCH Non-clog 7.5–20 948 GPM 114 ft 4 in flange 3 in 208-230V or 460V 3Ph
IGP-M Grinder, manual 2 33 GPM 130 ft 1-1/4 in FNPT Ground 208-230V 1Ph or 3Ph; 460V 3Ph
IGP-A Grinder, automatic 2 33 GPM 130 ft 1-1/4 in FNPT Ground 208-230V 1Ph
IGPH-M Grinder, dual-stage 2 40 GPM 200 ft 1-1/4 in FNPT Ground 208-230V 1Ph or 3Ph; 460V 3Ph
IGPH-A Grinder, dual-stage auto 2 40 GPM 200 ft 1-1/4 in FNPT Ground 208-230V 1Ph
Retrofit kit Grinder drop-in 2 31 GPM at 40 ft 130 ft (IGPHR: 200 ft) 1-1/4 in NPT Ground 208-230V 1Ph
PowerSewer Station, HDPE 2 35 GPM 200 ft (IGPH) 1.25 and 2 in Ground 230V 1Ph
Simplex FG Package, rail 2 33 GPM 130 ft 1-1/4 in Ground 208-230V 1Ph
Duplex FG Package, 2 pumps 2 x 2 33 GPM per pump 130 ft 1-1/4 in Ground 208-230V 1Ph
Hard-piped Package, no panel 2 33 GPM 130 ft 1-1/4 in FNPT Ground 208-230V 1Ph
Quick rule. Over about 45 GPM of peak inflow, or a 3 or 4 in gravity-fed force main: a non-clog pump. Up to about 40 GPM pushed up a long or small force main: a grinder. Grinder heads to about 120 ft: IGP; above that: IGPH. Want the basin, panel and valves in one order: a PowerSewer or fiberglass package.

Franklin vs A.Y. McDonald and Grundfos

We supply all three brands' wastewater pumps. The A.Y. McDonald and Grundfos figures are from our own product pages for those lines.

Grinder pumps

Feature Franklin IGP-A and IGP-M Franklin IGPH A.Y. McDonald 1 and 2 HP grinder
Motor 2 HP 2 HP, dual-stage 1 or 2 HP
Max flow 33 GPM 40 GPM 44 GPM
Max head 130 ft shut-off 200 ft shut-off; rated to 175 ft 103 ft TDH
Power 208-230V 1Ph; IGP-M also 3Ph 208-230V 1Ph; IGPH-M also 3Ph 115V or 208-230V
Discharge 1-1/4 in vertical FNPT 1-1/4 in vertical FNPT 1-1/4 in vertical; optional 2 in FNPT adapter
Starting IGP-A: start components and float in the pump; IGP-M: panel IGPH-A: in the pump; IGPH-M: panel Internal capacitor run
Warranty 2 years from original purchase 12 months from purchase 3 years from date of manufacture
Shop IGP-A · IGP-M IGPH-A · IGPH-M A.Y. McDonald grinder
Honest verdict. The A.Y. McDonald grinder wins on flow (44 GPM), on the 115V option and on a 1 HP size for lighter duty. The Franklin IGP-A wins where no panel is wanted, since it starts and switches itself. The Franklin IGPH wins on head: rated to 175 ft against 103 ft, which decides long or uphill pressure sewers.

Sewage and non-clog pumps

Feature Franklin FPS 3NC, 4NC, 4NCH A.Y. McDonald sewage pumps Grundfos Unilift AP35 and AP50
Pump type Non-clog, semi-open impeller Sewage pump, solids handling Vortex impeller, effluent and sewage
Motor 3–20 HP 1/2–2 HP 1 and 1.5 HP
Max flow To 948 GPM 1/2 HP to 109 GPM 79–140 GPM
Max head To 114 ft 1/2 HP to 25 ft 39–49 ft
Solids 2.5 or 3 in, passed whole 2 in AP35 1.4 in; AP50 2.0 in
Discharge 3 or 4 in ANSI Class 125 flange 2 in FNPT (1/2 HP) 1-1/2 or 2 in NPT
Power 230V 1Ph (3NC, 4NC); 200–575V 3Ph 115V or 230V 1Ph 230V 1Ph
Level control From the control panel Per model; floats listed separately Integral float switch
Warranty 2 years from original purchase 3 years from date of manufacture Per Grundfos terms
Shop 3NC · 4NC · 4NCH A.Y. McDonald sewage pump Unilift AP
Honest verdict. For a house, a small building or a septic effluent basin, the A.Y. McDonald sewage pumps and the Grundfos Unilift AP are the right tools: single-phase power, NPT discharge, a fraction of the price, and on the Grundfos an integral float. The Franklin NC Series wins everything above that: 100 to 950 GPM, solids passed whole at 2.5 to 3 in, flanged 3 or 4 in force mains, three-phase power to 575V and a seal-fail probe.

Which Wastewater Pump Do You Need?

Start from the job. We confirm the final model against the published curve before you order.

Job Start with What to check
Strip center, school or apartment lift station 3NC duplex Peak inflow, TDH, 3 in force main, voltage
Larger solids or a 4 in force main at low head 4NC 3 in solids, head under about 45 ft
Long or uphill force main, larger station 4NCH TDH to 110 ft, three-phase service
Home or lot on a pressure sewer, head under 120 ft IGP-A (no panel) or IGP-M with a panel TDH, 208-230V service, basin 24 in x 48 in minimum
Pressure sewer with a long or high force main IGPH-A or IGPH-M TDH 100 to 175 ft; IGPHR only above 100 ft
New lot, buried station with dry-well access PowerSewer V4PS Basin depth 60–96 in, ballast, pump by head
Basement or light commercial, basin and panel in one order Simplex or duplex fiberglass package 24 in simplex or 36 in duplex basin depth
Simplest station, no control panel Hard-piped simplex package 48–72 in basin, automatic IGP-A pump
Replacing a positive displacement grinder IGP retrofit kit Plug type (black or gray), cover opening
Panel for a manual grinder Simplex or duplex grinder panel Pump FLA, phase, start components
Home basement or septic sewage basin A.Y. McDonald sewage pump or Grundfos Unilift AP Basin size, 2 in discharge, float
Dirty water pumped from above, no sump Franklin FBSE self-priming Suction lift under 25 ft

How to Size a Wastewater Pump

Every wastewater pump is sized on two numbers: the flow it must beat and the total dynamic head it must push against at that flow.

1. Peak inflow. The pump must move more than the highest flow arriving at the basin. Estimate it from the fixtures or units served, or from the design flow the engineer or local authority sets.

2. Total dynamic head (TDH). TDH = static lift (from the pump-off level to the highest point of the force main) + friction loss in the force main, check valve and fittings at the design flow. Convert a pressure to head at 2.31 ft per psi.

3. Grinder or non-clog. Read the TDH across the performance tables below. Grinders cover small flows at high heads; NC pumps cover large flows at lower heads. Then check solids, discharge size against the force main, and voltage.

4. Simplex or duplex. Most commercial lift stations run duplex, two pumps alternating lead and lag from a duplex panel, so one can be serviced while the other runs. A single home on a pressure sewer usually runs simplex with a high-level alarm.

Worked example, grinder. A house on a pressure sewer sits 50 ft below the high point of the force main, and friction adds 30 ft, so TDH = 80 ft. Franklin tabulates the IGP at 25 GPM at 80 ft: an IGP-A does the job. If the lot is 95 ft below the high point with the same friction, TDH = 125 ft, past the IGP's 120 ft rated point. The IGPH is tabulated at 24 GPM at 125 ft, so the high-head IGPH is the pick.
Worked example, lift station. A small commercial station must handle 300 GPM. Static lift is 15 ft and the force main loses 12 ft at 300 GPM, so TDH = 27 ft. The 3NC 184 mm trim gives 385 GPM at 20 ft and 270 GPM at 30 ft: at 27 ft it is barely enough. The 196 mm trim (5 HP, three phase) gives 470 and 355 GPM at the same heads, a comfortable margin. Run duplex, that is two 3NC 5 HP pumps and a duplex panel. We confirm the pick where the system curve crosses the pump curve.

Wastewater Pump Performance

Franklin tabulated points only, in GPM at total dynamic head. A dash means no rated flow at that head; shut-off is the head at zero flow.

Franklin 3NC non-clog pump performance curve
3NC by impeller trim
Franklin 4NC non-clog pump performance curve
4NC by impeller trim
Franklin 4NCH non-clog pump performance curves
4NCH by horsepower
Franklin IGP grinder pump performance curve
IGP grinder
Franklin IGPH high head grinder pump performance curve
IGPH high-head grinder

Grinder pumps, GPM at total dynamic head

Model 10 ft 20 ft 25 ft 40 ft 50 ft 60 ft 75 ft 80 ft 100 ft 120 ft 125 ft 150 ft 175 ft Shut-off
IGP (A and M) 33 32 — 31 — 30 — 25 20 10 — — — 130 ft
IGPH (A and M) 40 — 39 — 36 — 33 — 30 — 24 18 10 200 ft
IGPHR (A and M) — — — — — — — — 30 — 24 18 10 200 ft

A dash here also marks heads Franklin did not tabulate for that model. IGPHR is rated only above about 100 ft. Sources: IGP-A and IGP-M owner manual 998760 (10 ft point) and FPS Wastewater Catalog M5276 (09-25).

3NC, GPM at total dynamic head

Impeller 10 ft 20 ft 30 ft 40 ft 50 ft Shut-off
160 mm (6.29 in) 360 220 75 — — 35 ft
172 mm (6.77 in) 425 300 165 — — 42 ft
184 mm (7.24 in) 480 385 270 125 — 50 ft
190 mm 1Ph / 196 mm 3Ph 555 470 355 235 95 58 ft

4NC, GPM at total dynamic head

Impeller 10 ft 20 ft 30 ft 40 ft Shut-off
146 mm (5.74 in) 300 150 0 — 30 ft
160 mm (6.29 in) 380 240 100 — 36 ft
170 mm (6.69 in) 455 330 195 34 42 ft
176 mm 1Ph / 182 mm 3Ph 545 434 309 141 49 ft

4NCH, GPM at total dynamic head

Model HP 20 ft 40 ft 60 ft 70 ft 80 ft 90 ft 110 ft
7.5 HP 741 432 144 25 — — —
10 HP 948 609 293 150 21 — —
12.5 HP — 765 443 287 132 — —
15 HP — 918 618 463 295 109 —
20 HP — — 887 741 587 425 83

Source: FPS Wastewater Catalog M5276 (09-25). Confirm the duty point against the factory curve before ordering.

What Makes FPS Wastewater Pumps Last

The engineering behind the line, from Franklin's catalog and bid specifications.

Dual SiC Seals, Seal-Fail Probe

NC pumps run tandem silicon carbide seals in an oil bath, and a probe in the seal chamber signals the panel when water gets past the lower seal, before it reaches the motor.

Adjustable Wear Plate

As the NC semi-open impeller and wear plate wear, flow drops. The field-adjustable wear plate closes the gap again without new parts.

IE3 Air-Filled 4NCH Motor

The 7.5 to 20 HP 4NCH runs an air-filled IE3 premium-efficiency motor with Class H insulation and an IP68 stator enclosure, with bearings rated for 100,000 h.

414,000 Cuts per Minute

IGP and IGPH grinders cut solids ahead of the impeller with through-hardened 440C stainless cutters, so the slurry passes a 1-1/4 in line without roping.

Dual-Stage High Head

The IGPH puts two brass impellers in series: 30 GPM at 100 ft where the single-stage IGP is down to 20 GPM, and rated to 175 ft.

Automatic or Manual

A models carry their start and run components in an oil-free chamber and switch on their own float. M models keep the start components in the panel, which suits duplex stations.

PowerSewer Dry Well

The PowerSewer puts the junction box in an OSHA-compliant dry well, hangs the pump on an isolated stainless support and lifts it out on a C-channel.

NEMA 4X Controls

Simplex and duplex grinder panels in NEMA 4X enclosures with Hand-Off-Auto switches and audible and visual high-water alarms; duplex panels alternate the pumps.

FPS Wastewater Model and Part Numbers

Every model is on our listings by Franklin order number.

Model Order no. Build Listing
IGP-M231-15 / -30 515864 / 515879 2 HP, 208-230V 1Ph, 15 / 30 ft cord IGP-M
IGP-M233-30 / IGP-M463-30 515870 / 515871 2 HP, 208-230V / 460V 3Ph IGP-M
IGP-A231-20 515861 / 515862 2 HP, 20 ft, with / without float IGP-A
IGP-A231-30 515873 / 515874 2 HP, 30 ft, with / without float IGP-A
IGPH-M231-30 / IGPHR-M231-30 515712 / 515700 2 HP dual-stage, 208-230V 1Ph IGPH-M
IGPH-M233-30 / IGPH-M463-30 515704 / 515706 2 HP dual-stage, 208-230V / 460V 3Ph IGPH-M
IGPH-A231-30 515713 / 515716 Dual-stage, with / without float IGPH-A
IGPHR-A231-30 515701 / 515711 Dual-stage, with / without float IGPH-A
IGP-A-RFKS / IGPHR-A-RFK 515805, 515806 / 515803, 515804 Retrofit kits by plug Retrofit kit
V4PS60 / 72 / 84 / 96 e.g. V4PS72IGP-A231 IGP-A231, IGP-M231 or IGPH-M231 in each basin PowerSewer
IGP-SMPXFG-HP 515201 / 515202 / 515203 24 x 48, 60, 72 in Hard-piped
IGP-SMPX2460 / 2472 / 2484 515204 / 515205 / 515206 24 in basin, 60, 72, 84 in Simplex FG
IGP-DPLX3648 / 3660 / 3672 / 3684 515207 / 515208 / 515209 / 515210 36 in basin, 48 to 84 in Duplex FG
A-SF230CBG-215 / 1052443 / 1033514 / 1026539 / 1052445 515354 / 515361 / 515353 / 515352 / 515363 Simplex panels, 15–30 FLA Simplex panel
1026540 / 1052444 / 3221W301, 401, 511H17A 515355 / 515362 / 515308, 515285, 515287 Duplex panels, 1Ph and 3Ph Duplex panel
3NC, 22 models 87109896-01 to 87110379-01 3 and 5 HP, 3 in flange 3NC
4NC, 22 models 87110382-01 to 87110407-01 3 and 5 HP, 4 in flange 4NC
4NCH, 10 models 87110471-00 to 87110480-00 7.5–20 HP, 3Ph 4NCH

Source: Franklin Electric price list (June 2026) and FPS Wastewater Catalog M5276. Full model tables, FLA and weights are on each listing.

Controls, Rail Hardware and Repair Parts

What goes in the basin with the pump, and what keeps it running.

Franklin Electric simplex grinder pump control panel

Simplex Grinder Panel

NEMA 4X, with or without start components.

Franklin Electric duplex grinder pump control panel

Duplex Grinder Panel

Alternating control, 1Ph and 3Ph.

Franklin Electric IGP grinder capacitor kit

Grinder Accessories

Floats, capacitors, J-boxes, check valves, leg kit.

Franklin Electric PowerSewer anti-siphon check valve

PowerSewer Parts

Rails, float trees, risers, check valve, wire.

Franklin Electric NC Series non-clog pump for rail installation

NC Base Elbows and Rails

3, 4 and 6 in base elbows, SST brackets.

Franklin Electric NC Series repair parts

NC Repair Parts

Seals, impellers, bearings, stators.

Manual grinders need the matched panel or the 520859 capacitor kit; single-phase NC pumps need an FPS panel or the 520851 starter kit. Panels take floats sold separately: three for simplex, four for duplex.

Catalogs and Manuals

Franklin Electric's own literature. Each opens as a PDF.

FPS Wastewater Catalog (M5276)Every pump, station, panel and part IGP-A and IGP-M Owner Manual (998760)Install, wiring, parts, warranty IGP-A Series Cut SheetAutomatic grinder data IGP-M Series Cut SheetManual grinder data PowerSewer V4PS Owner Manual (998076)Excavation, ballast, wiring PowerSewer System BrochureStation overview NC Series Brochure (M5141)3NC, 4NC and 4NCH overview NC Owner Manual (10000017761)Install, maintenance, warranty NC Bid Specifications (10000020402)3NC and 4NC engineering specs 4NCH Bid Specifications (10000018876)4NCH engineering specs

Why Buy Wastewater Pumps from Watermain Supply

Engineering-Led Sizing

We read your peak inflow and TDH on the Franklin curve, choose grinder or non-clog, pick the model and send the submittal before you order.

Three Brands, One Answer

We supply Franklin Electric, A.Y. McDonald and Grundfos wastewater pumps. If a smaller pump fits the job, we will say so and quote it.

Account Terms Available

Net-30 for qualified contractor, developer, property-management and municipal accounts.

Parts and Aftermarket

Seals, impellers, capacitors, floats, rails and risers by Franklin order number for the stations already in the ground.

One Order for the Station

Pump, basin, panel, floats, rail hardware and valves on one order, matched to each other.

Houston and Gulf Coast

Based in Houston and serving Gulf Coast contractors, developers, plants and utilities.

Wastewater Pump FAQ

The questions contractors, developers and facility managers ask most.

Grinder pump or non-clog pump?

A grinder pump cuts solids to a slurry so it can push a small flow to a high head through a 1-1/4 in line, which suits a pressure sewer. A non-clog pump passes solids whole at a much higher flow through a 3 or 4 in force main, which suits a gravity-fed lift station. Franklin grinders move up to about 40 GPM; the NC Series up to 948 GPM.

IGP or IGPH grinder?

Franklin places the single-stage IGP below about 120 ft of total head. Above that, the dual-stage IGPH is rated to 175 ft with a 200 ft shut-off. The IGPHR version is rated only above about 100 ft.

What is the difference between A and M grinder models?

A models (IGP-A, IGPH-A) carry their start and run components inside the pump and, on the float builds, switch themselves on and off, so they need no control panel. M models (IGP-M, IGPH-M) keep the start components outside and run from a matched FPS control panel or capacitor kit.

Do I need a control panel?

Manual grinders and all NC pumps run from a control panel. Automatic IGP-A and IGPH-A pumps with a float do not need one, though Franklin recommends a high-water alarm wherever a stopped pump could cause flooding. Panels take floats sold separately.

Which NC pump: 3NC, 4NC or 4NCH?

Up to about 50 ft of head with a 3 in force main, the 3NC. The same duty with 3 in solids or a 4 in force main, the 4NC. Above about 50 ft of head or 550 GPM, the 4NCH, which is three phase only.

What warranty comes with these pumps?

Franklin warrants the NC Series and the IGP-A and IGP-M for 2 years from the date of original purchase by the consumer, and the PowerSewer V4PS for 3 years. IGPH pumps, packages, panels and parts carry 12 months from the date of purchase.

What is the PowerSewer?

Franklin's low-pressure sewer station: a monolithic HDPE basin 60 to 96 in deep with a dry well, isolated pump support, C-channel lift-out, anti-siphon check valve and NEMA 4X panel, sold with an IGP or IGPH grinder. It is an alternative to gravity sewer and septic tanks.

Can I replace an old positive displacement grinder?

Yes. The IGP retrofit kit is a drop-in simplex replacement with its own cover, check valve, alarm float and quick-disconnect plug. Match the plug to the basin wiring; adapter harnesses convert between the black and gray plugs.

Franklin, A.Y. McDonald or Grundfos?

For a house or small building, the A.Y. McDonald sewage pumps and Grundfos Unilift AP cost less and run on single-phase power. For grinder duty, the A.Y. McDonald grinder moves more flow while the Franklin IGPH reaches higher head. For a commercial lift station moving 100 to 950 GPM, the Franklin NC Series. We supply all three.

What should I send for a quote?

The peak inflow in GPM, the static lift, the force main length, size and material, your voltage and phase, and whether the station is simplex or duplex. For a replacement, the pump nameplate and a photo of the basin.

Sizing a Station? Let's Spec It.

Send the peak inflow, static lift and force main details. We return the matched Franklin grinder, non-clog pump or packaged station, with the panel and rail hardware, or tell you if an A.Y. McDonald or Grundfos pump fits the job better.

1-888.510.4036Email sales@watermainsupply.comRequest a Quote
Technical data on this page is taken from Franklin Electric U.S. 60 Hz product literature and, for other brands, from our product pages; it is subject to change by the manufacturer. Confirm against the current installation manual and pump curve before specifying.
Franklin Electric, FPS and PowerSewer are trademarks of Franklin Electric Co., Inc. A.Y. McDonald and Baker are trademarks of A.Y. McDonald Mfg. Co. Grundfos and Unilift are trademarks of Grundfos Holding A/S. All are used here for product identification only.
Watermain Supply is a DBA of E4 Industrial LLC, an independent industrial supplier based in Houston, Texas.
