Franklin Electric · Submersible Non-Clog Solids Handling Pump
FPS 4NCH Series
7.5 to 20 HP three-phase submersible non-clog pump with an air-filled IE3 premium-efficient Class H motor, 4 in ANSI Class 125 flanged discharge and 3 in solids.
7.5-20 HP
948 GPM Max Flow
114 ft Max Head
4 in ANSI 125 Flange
3 in Solids
1750 RPM
208-230V or 460V 3Ph
cCSAus
430-606 lb Weight
Overview
The FPS 4NCH Series is a submersible solids handling (non-clog) pump for raw, unscreened domestic sewage, effluent, irrigation and general dewatering in commercial and industrial service. Franklin Electric builds it with a semi-open ductile iron impeller, a field-adjustable wear plate and dual silicon carbide mechanical seals with a seal-fail probe.
Motor: Air-filled IE3 premium-efficient, Class H insulation, IP68 stator enclosure. Available in 208-230V and 460V three-phase. Each horsepower has its own hydraulic, running from 741 GPM at 20 ft (7.5 HP) to 83 GPM at 110 ft (20 HP).
Pick the horsepower from the duty point: find your total dynamic head in the performance table and choose the smallest motor that delivers the flow you need there, then confirm with a factory curve before ordering.
Genuine Franklin Electric equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier.
Warranty: 2 years from the date of original purchase by the consumer. Covers defects in materials and workmanship under Franklin Electric's NC Series limited warranty. Source: NC Series owner manual 10000017761 and FPS Wastewater Catalog M5276.
Growth & Multiplex
Runs as a single pump or as a duplex lift station, with two pumps alternating lead and lag from a duplex control panel. Franklin Electric publishes matching NC Series control panels, and guide-rail base elbows are offered for lift-out installation (see Accessories).
Models & Ratings
| Model |
Part No. |
HP |
Voltage and Phase |
FLA |
Cord |
Weight lb |
| 4NCH-07523P3 |
87110471-00 |
7.5 |
208-230V 3Ph |
22 |
50 ft |
430 |
| 4NCH-07546P3 |
87110472-00 |
7.5 |
460V 3Ph |
11 |
50 ft |
430 |
| 4NCH-10023P3 |
87110473-00 |
10 |
208-230V 3Ph |
31 |
50 ft |
452 |
| 4NCH-10046P3 |
87110474-00 |
10 |
460V 3Ph |
15 |
50 ft |
452 |
| 4NCH-12523P3 |
87110475-00 |
12.5 |
208-230V 3Ph |
36 |
50 ft |
507 |
| 4NCH-12546P3 |
87110476-00 |
12.5 |
460V 3Ph |
18 |
50 ft |
507 |
| 4NCH-15023P3 |
87110477-00 |
15 |
208-230V 3Ph |
42 |
50 ft |
540 |
| 4NCH-15046P3 |
87110478-00 |
15 |
460V 3Ph |
21 |
50 ft |
540 |
| 4NCH-20023P3 |
87110479-00 |
20 |
208-230V 3Ph |
56 |
50 ft |
606 |
| 4NCH-20046P3 |
87110480-00 |
20 |
460V 3Ph |
27 |
50 ft |
606 |
Source: Franklin Electric price list 996791 (June 2026) and FPS Wastewater Catalog M5276. FLA = full-load amps.
Specifications
| Specification |
Value |
| Discharge |
4 in horizontal, ANSI Class 125 flange (ASME B16.1) |
| Maximum spherical solids |
3 in |
| Speed |
1750 RPM at 60 Hz |
| Motor |
Air-filled IE3 premium-efficient, Class H insulation, IP68 stator enclosure |
| Continuous duty |
Up to 104 °F (40 °C) fully submerged |
| Cord |
50 ft |
| Agency listing |
cCSAus |
| Dimensions |
Overall height 35.1 in (7.5-12.5 HP) / 37.9 in (15-20 HP) |
| Bearing life |
B-10 life 100,000 h minimum |
Source: FPS Wastewater Catalog M5276 (09-25), NC Series Brochure M5141 (06-24) and bid specifications.

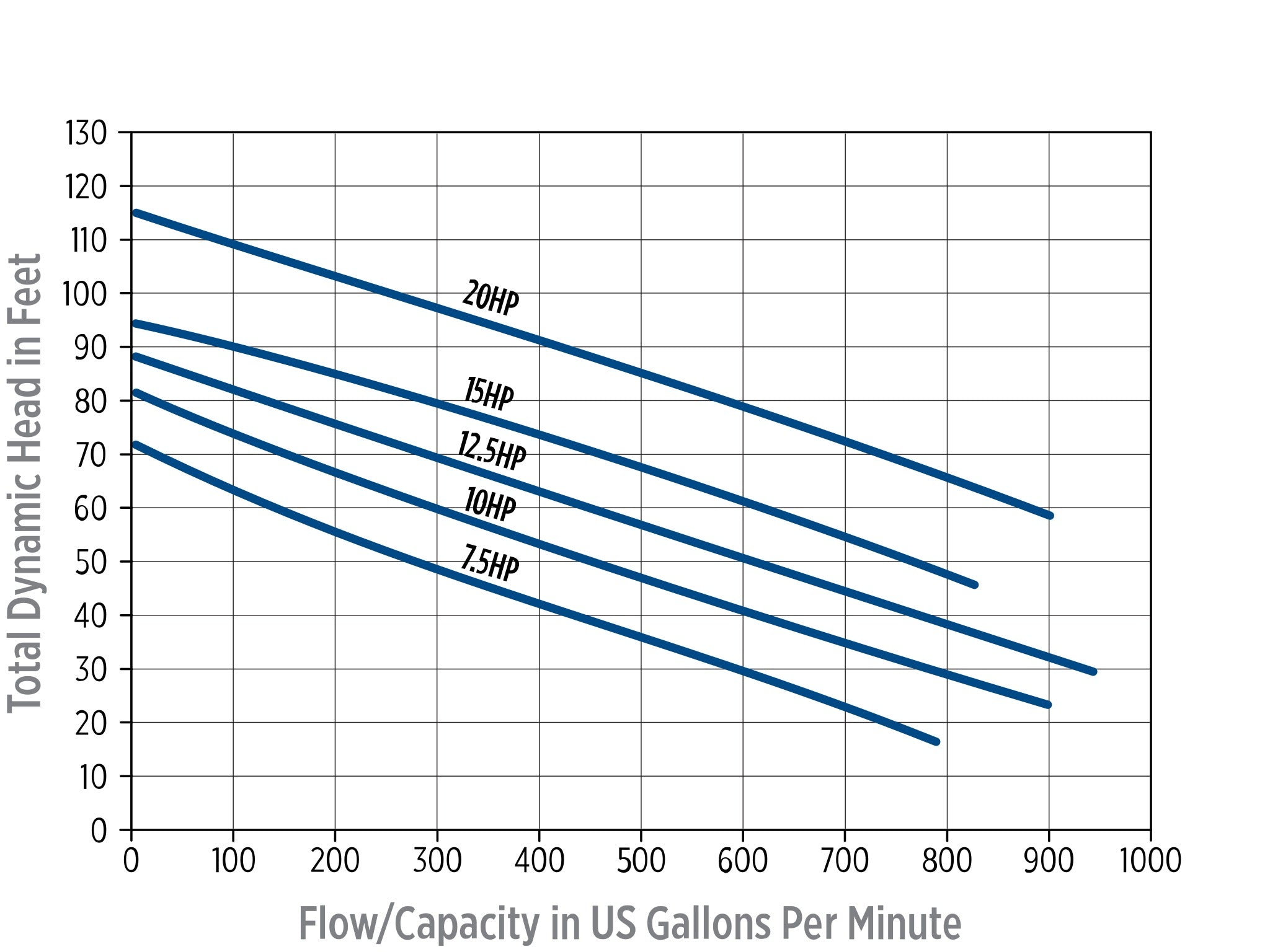

Performance — Will It Do What You Need?
Find your total dynamic head across the top (static lift plus friction in the force main). The figure is gallons per minute at that head.
| Model HP |
20 ft |
40 ft |
60 ft |
70 ft |
80 ft |
90 ft |
110 ft |
| 7.5 HP |
741 |
432 |
144 |
25 |
- |
- |
- |
| 10 HP |
948 |
609 |
293 |
150 |
21 |
- |
- |
| 12.5 HP |
- |
765 |
443 |
287 |
132 |
- |
- |
| 15 HP |
- |
918 |
618 |
463 |
295 |
109 |
- |
| 20 HP |
- |
- |
887 |
741 |
587 |
425 |
83 |
Manufacturer tabulated points only. Shut-off is the head at zero flow, the ceiling rather than a working point. A dash means no rated flow at that head. Source: FPS Wastewater Catalog M5276 (09-25).
Before You Buy — The Limits That Decide the Fit
| Limit |
Value |
| Solids |
Non-abrasive spherical solids up to 3 in |
| Liquid temperature |
Continuous duty up to 104 °F (40 °C) fully submerged |
| Power |
Three-phase only; motor starter and overload protection in the control panel |
| Seal-fail signal |
The seal-fail probe needs a control panel with seal-fail circuitry |
| Mounting |
Flange carries the pump weight; lift-out rail systems and base elbows sold separately |
| App |
None: the pump runs from its control panel |
Materials of Construction
| Component |
Material |
| Motor housing |
Gray cast iron, ASTM A48 Class 25 equivalent, epoxy-coated |
| Impeller |
Ductile iron, ASTM A536 80-55-06 equivalent; single vane, semi-open, balanced |
| Shaft |
AISI 420 stainless steel |
| Mechanical seals |
Tandem silicon carbide / silicon carbide, upper and lower, in oil bath; 300 series SST hardware; NBR elastomers |
| Seal-fail sensor |
Single probe in the seal-fail chamber |
| Bearings |
Single-row upper and double-row lower ball bearings |
| Power cable |
4-conductor Type SOOW or SEOOW, 600 V |
Source: Franklin Electric bid specifications 10000020402 (NC) and 10000018876 (4NCH), 09/24.
Accessories
| Accessory |
Order No. |
| 4.00 in Base Elbow (FPSBEA400) |
115930104 |
| 4 in Lift-Out Flange, 3 and 4 in ANSI Double Tapped (FPSPF400) |
115930128 |
| 4 in Lift-Out Kit, Hardware and Gasket (FPSPK400) |
115930131 |
Service Parts
Franklin Electric publishes 4NCH repair kits by horsepower: wiring, cable, impeller, motor, O-ring, basic repair, hardware and wear kits. Email sales@watermainsupply.com with the pump model for the kit order number.
