Simplex Grinder Pump Control Panel
Single-pump control and high-level alarm for FPS IGP Series grinder pumps: NEMA 4X fiberglass enclosure, HOA switch, audible and visual alarm, with or without pump starting components.
208-230V 1Ph
15-30 FLA
NEMA 4X Fiberglass
HOA Switch
Audible and Visual Alarm
cULus Listed
10.5-11.9 L x 7.0-7.8 W x 12.5-14.4 H in
12-15 lb Weight
Overview

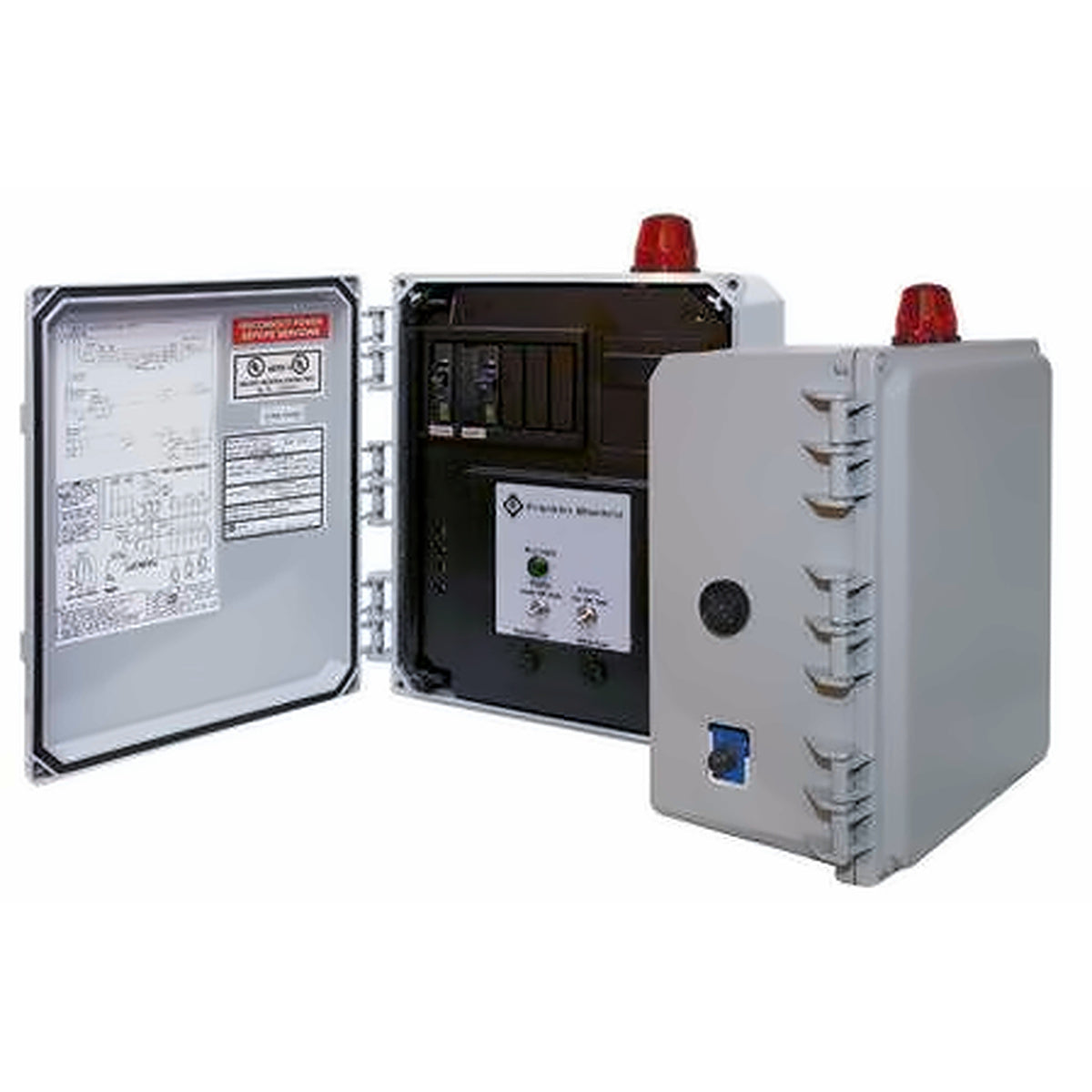

Franklin's simplex grinder pump control panels are designed exclusively for the IGP Grinder Series, in lift pump chambers and sewage ejector basins. The panel controls the pump and warns of high liquid levels.
The enclosure is corrosion-resistant NEMA 4X fiberglass, waterproof, with padlock provision. A Hand-Off-Auto switch gives manual, off or automatic operation, three floats (sold separately) control the on, off and alarm functions, and an alarm on/off switch controls power to the audible and visual alarm. Wiring lands on a color-coded terminal strip.
Pick the panel by the pump. A panel with start components carries the capacitor starting parts a single-phase manual pump needs: the IGP-M and IGPH-M. A panel without start components suits automatic pumps, which carry their own (IGP-A and IGPH-A), and is the panel Franklin wires to automatic grinders in the PowerSewer station. Then match the panel FLA to the pump: IGP-M 13.9 A, IGPHR 16 A, IGPH 18.5 A.
Genuine Franklin Electric equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier.
Warranty: 12 months from the date of purchase.
Models & Ratings
| Model |
Part No. |
Volts |
FLA |
Start Components |
Height x Length x Width |
Weight lb |
| A-SF230CBG-215 |
515354 |
208/230 |
16 |
Yes |
14.36 x 11.94 x 7.78 in |
15 |
| 1052443 |
515361 |
208/230 |
22 |
Yes |
14.36 x 11.94 x 7.78 in |
15 |
| 1033514 |
515353 |
208/230 |
15 |
No |
Not published |
Not published |
| 1026539 |
515352 |
230 |
18 |
No |
12.54 x 10.54 x 7.01 in |
12 |
| 1052445 |
515363 |
208/230 |
30 |
No |
Not published |
Not published |
All single-phase, 60 Hz. Source: FPS Wastewater Catalog M5276 (09-25), spec sheet 996781. 515353 and 515363 are not in the catalog; their ratings are from Franklin Electric price list 996791 (June 2026), which lists 515353 for V2 to float retrofits. The price list gives 515361 as 30 FLA; the catalog figure of 22 FLA is shown.
Specifications
| Specification |
Value |
| Enclosure |
NEMA 4X fiberglass, waterproof, corrosion-resistant, padlock provision |
| Controls |
Hand-Off-Auto switch; alarm on/off switch |
| Level control |
Three floats for on, off and alarm, sold separately |
| Terminals |
Color-coded terminal strip |
| Listing |
cULus listed |
| Mounting |
Mount height x length: 9.63 x 7.63 in (515352); 13.5 x 7.25 in (515354, 515361) |
Source: FPS Wastewater Catalog M5276 (09-25), spec sheet 996781.
Before You Buy — The Limits That Decide the Fit
| Limit |
Value |
| Pump |
IGP Grinder Series only; single-phase |
| Floats |
Not included: order three control floats (CFSW 950266) |
| Supply |
Supply voltage and phase must match the pump motor |
| Cable entries |
Liquid-tight connectors on every cable entering the panel; seal any conduit connectors. A moisture-free junction box may be needed for the connections |
| Installation |
By a competent plumber, electrician or qualified service person to national and local electrical codes |
