Description

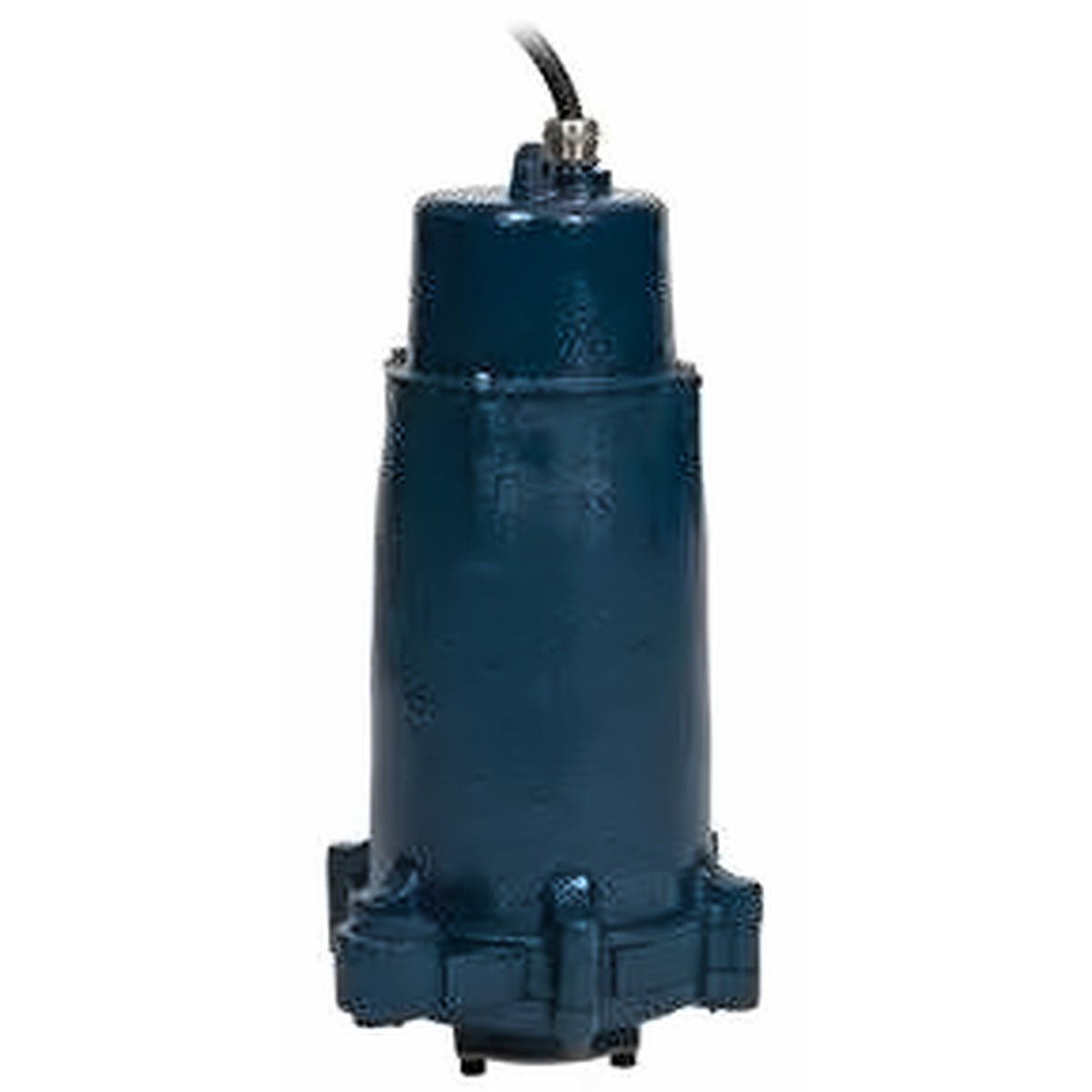

Franklin Electric · Submersible High Head Grinder Pump
FPS IGPH-A Series
2 HP dual-stage high-head grinder, 208-230V single-phase, with start and run components sealed in the pump. IGPH for full-range duty, IGPHR for high-head duty above 100 ft; float and no-float builds.
2 HP
3450 RPM
Dual-Stage
40 GPM Max Flow
200 ft Max Head
1-1/4 in FNPT Discharge
208-230V 1Ph
No Control Panel Needed
10.9 W x 18.8 H in
109 lb Weight
Overview

The FPS IGPH Series is Franklin Electric's dual-stage, high-head grinder pump for the toughest residential and commercial wastewater service: sewage lift stations, and low-pressure sewer systems for housing developments and lake communities where high vertical lift or long force mains are present.

Two brass impellers in series (dual-stage hydraulics) build the head. Ahead of them a cutting mechanism grinds solids at 414,000 cuts per minute. The 2 HP, 3450 RPM motor has built-in overload protection, a carbon/ceramic mechanical seal and a short, deflection-resistant shaft, in epoxy-coated cast iron.

The start and run components are encased in an oil-free chamber, so the pump starts without a control panel. The float builds (515713, 515701) run automatically; the no-float builds (515716, 515711) are for basins where level is switched externally.

IGPH or IGPHR? Both are 2 HP dual-stage pumps. The IGPH is rated across its whole curve, from 40 GPM at 10 ft to 10 GPM at 175 ft. The IGPHR is rated only in the high-head region above the line Franklin marks at about 100 ft, and draws 16 FLA against the IGPH 18.5 FLA single-phase. Choose the IGPHR only where the total head stays above 100 ft.

Genuine Franklin Electric equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier.
Warranty: 12 months from the date of purchase.
Growth & Multiplex

Runs as a simplex station, or as a duplex with two pumps alternating from a duplex grinder panel. The IGPH-M231 is the high-head option in the PowerSewer V4PS station.

Models & Ratings
Model Part No. Float Switch FLA / Watts Weight lb
IGPH-A231-30 515713 Float 18.5 / 3600 109
IGPH-A231-30 515716 No float 18.5 / 3600 109
IGPHR-A231-30 515701 Float 16 / 3600 109
IGPHR-A231-30 515711 No float 16 / 3600 109

All 2 HP, 60 Hz, 30 ft cord. Source: FPS Wastewater Catalog M5276 (09-25) and Franklin Electric price list 996791 (June 2026).

Specifications
Specification Value
Motor 2 HP, 3450 RPM; single-phase capacitor start, capacitor run
Hydraulics Dual-stage, upper and lower brass impellers
Insulation class F
Overload protection Internal, on-winding thermal protector
Discharge 1.25 in vertical FNPT
Cutting 414,000 cuts per minute
Start components Encased in an oil-free chamber in the pump
Dimensions 10.9 in wide; 18.8 in high
Power cable Type SOW or SOOW 12/3, 30 ft
Patent U.S. Patent No. 7,237,736

Source: FPS Wastewater Catalog M5276 (09-25), IGPH-A spec sheet 996738.

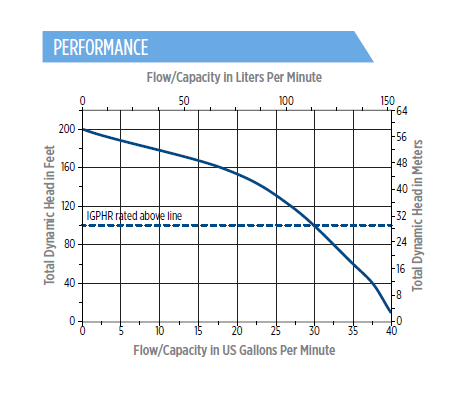

Performance — Will It Do What You Need?

Find your total dynamic head across the top: the vertical lift from the basin to the highest point of the force main plus friction in the pipe. The figure below it is gallons per minute at that head.

Head (TDH) 10 ft 25 ft 50 ft 75 ft 100 ft 125 ft 150 ft 175 ft Shut-Off
IGPH, GPM 40 39 36 33 30 24 18 10 200 ft
IGPHR, GPM - - - - 30 24 18 10 200 ft

Manufacturer tabulated points only. IGPHR models are rated only above the line Franklin marks on the curve at about 100 ft, so no IGPHR points are published below 100 ft; a dash means no rated point. Shut-off is the head at zero flow. Source: FPS Wastewater Catalog M5276 (09-25), IGPH-M spec sheet 996739 and IGPH-A spec sheet 996738.

The dual-stage IGPH keeps 30 GPM at 100 ft, where the single-stage IGP is down to 20 GPM, which is why Franklin specifies it for long force mains and high vertical lift.

Before You Buy — The Limits That Decide the Fit
Limit Value
Liquid Residential sewage, effluent, wastewater and other non-explosive, non-abrasive, non-corrosive liquids
Basin Gas-tight basin at least 24 in diameter and 48 in deep, vented to local, state and federal plumbing code
Discharge piping No smaller than the 1-1/4 in pump discharge; ABS, PVC, polyethylene or stainless steel. Full-flow ball check valve mounted horizontally, a 3/16 in air-relief hole between pump and check valve, and a shut-off valve after the check valve
Power 208-230V single-phase on its own branch circuit with a double-pole disconnect near the pump
Level control Float builds run automatically; no-float builds need external level control, wired to a panel without start components (515352 or 515363)
IGPHR head range Rated only above about 100 ft total head
App None
Materials of Construction
Component Material
Motor cover Cast iron with epoxy coating
Motor cover O-ring Nitrile
Motor shaft AISI 300 series stainless steel (in contact with fluid pumped)
Upper bearing Single row ball, 6203
Lower bearing Single row ball, 6306
Seal housing Cast iron with epoxy coating
Mechanical seal Carbon/ceramic
Volute Cast iron with epoxy coating
Impellers Brass, upper and lower
Rotating cutter AISI 440C stainless steel, through-hardened to Rockwell 55-60C
Stationary cutter AISI 440C stainless steel, hardened to Rockwell 55-60C
External hardware 300 series stainless steel
Power cable Type SOW or SOOW 12/3

Source: FPS Wastewater Catalog M5276 (09-25), construction tables.

Accessories
Accessory Order No. Where to buy
1.25 in Base Elbow / Base Elbow with Check Valve 115930101 / 115930102 Grinder accessories and parts
1.25 in Check Valve, ductile iron ball 115930120 Grinder accessories and parts
1.25 in Vertical Flange Discharge Adapter 115383 Grinder accessories and parts
Horizontal Discharge Adapter Kit 515837 Grinder accessories and parts
Service Parts
Part Order No. Where to buy
Capacitor Replacement Kit, IGP and IGPH, 208-230V 520859 Grinder accessories and parts
Seal Ring, 7.356 ID x 0.134 wall 928048 Grinder accessories and parts
Grinder Leg Kit (GLK) 599078 Grinder accessories and parts

Confirm fit against the pump nameplate before ordering; Franklin publishes no separate IGPH parts list in the catalog.

For engineering-led sizing and selection support or a factory submittal, email sales@watermainsupply.com or call 1-888.510.4036.
