Franklin Electric · Grinder Pump Station
FPS PowerSewer V4PS
Low-pressure sewer grinder station in a monolithic HDPE basin, 60 to 96 in deep: isolated pump support, C-channel lift-out, anti-siphon check valve, OSHA-compliant dry well and NEMA 4X control panel, with a 2 HP IGP or IGPH grinder.
2 HP Grinder
35 GPM Max Flow
200 ft Max Head
230V 1Ph
4 in Drop Inlet
1.25 in Socket and 2 in Spigot Discharge
157-248 gal Basin
32 in Top, 42 in Base x 60-94 in H
Overview
The FPS PowerSewer System is a low-pressure sewer station that pumps wastewater to a collection or treatment area, a proven alternative to gravity sewer and septic tanks for residential and commercial sites. It comes in 60, 72, 84 and 96 in basin sizes and ships ready to install.
The basin is monolithic, rugged HDPE with a drop inlet and rounded bottom. The grinder sits on an isolated stainless steel pump support that carries heavier pumps, and lifts out on a PVC C-channel assembly; the discharge runs through a cast iron anti-siphon ball check valve. Electrical connections are made in a NEMA 4X junction box in an OSHA-compliant dry well, and the station is run from a NEMA 4X control panel. A 2 in remote vent cap in non-corrosive polypropylene with a stainless steel bug screen lets the vent sit away from the basin to keep the landscaping clean.
Choose the pump by head. Franklin places the IGP standard series in applications below about 120 ft of head, and the dual-stage IGPH high-head series up to about 180 ft; with the IGPH the station reaches a maximum shut-off head of 200 ft and a maximum flow of 35 GPM. The patented cutting mechanism and high starting torque grind through tough material, and the hydraulics were designed to eliminate roping.
Genuine Franklin Electric equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier.
Warranty: 3 years from the date of original purchase by the consumer. Source: PowerSewer V4PS owner manual 998076.
Growth & Multiplex
A simplex station: one grinder per basin, with the pump option (IGP automatic, IGP manual or IGPH high-head manual) and the basin depth chosen at purchase. For two pumps alternating in one basin, Franklin builds the duplex fiberglass grinder package.
Models & Ratings
| Model and Part No. |
Basin |
Grinder |
Full-Load Amps |
| V4PS60IGP-A231 |
60 in |
IGP automatic |
13.9 A |
| V4PS60IGP-M231 |
60 in |
IGP manual |
13.9 A |
| V4PS60IGPH-M231 |
60 in |
IGPH high-head manual |
18.5 A |
| V4PS72IGP-A231 |
72 in |
IGP automatic |
13.9 A |
| V4PS72IGP-M231 |
72 in |
IGP manual |
13.9 A |
| V4PS72IGPH-M231 |
72 in |
IGPH high-head manual |
18.5 A |
| V4PS84IGP-A231 |
84 in |
IGP automatic |
13.9 A |
| V4PS84IGP-M231 |
84 in |
IGP manual |
13.9 A |
| V4PS84IGPH-M231 |
84 in |
IGPH high-head manual |
18.5 A |
| V4PS96IGP-A231 |
96 in |
IGP automatic |
13.9 A |
| V4PS96IGP-M231 |
96 in |
IGP manual |
13.9 A |
| V4PS96IGPH-M231 |
96 in |
IGPH high-head manual |
Not listed |
All 2 HP, 230 VAC, 1.25 in pump discharge, 10 ft pump lead. The part number is the model number. Source: FPS Wastewater Catalog M5276 (09-25), PowerSewer spec sheet 996896, and Franklin Electric price list 996791 (June 2026).
Basin Dimensions and Volumes
| Basin |
Height A |
Discharge Depth B |
Top Width C |
Drop Inlet Minimum D |
Base Width E |
Total Volume |
Working Volume to Alarm |
Alarm to Top |
| V4PS60 |
60 in |
34 in |
32 in |
36 in |
42 in |
157 gal |
87 gal |
70 gal |
| V4PS72 |
72 in |
46 in |
32 in |
36 in |
42 in |
188 gal |
99 gal |
89 gal |
| V4PS84 |
84 in |
58 in |
32 in |
36 in |
42 in |
222 gal |
99 gal |
123 gal |
| V4PS96 |
94 in |
68 in |
32 in |
36 in |
42 in |
248 gal |
99 gal |
149 gal |
Source: FPS Wastewater Catalog M5276 (09-25). The V4PS96 basin is published at 94 in high.
Specifications
| Component |
Value |
| Basin |
High density polyethylene |
| Basin discharge |
1.25 in (inner) and 2 in (outer): 1-1/4 in PVC socket and 2 in PVC spigot |
| Cover |
Fiberglass |
| C-channel |
Extruded PVC |
| Junction box |
NEMA 4X polycarbonate, in the dry well |
| Pump lift handle |
SCH 80 PVC |
| Anti-siphon ball check valve |
Cast iron |
| Grinder |
2 HP, cast iron |
| Control panel |
NEMA 4X |
| Isolated pump support |
Stainless steel |
| Inlet |
4 in Schedule 40 PVC female coupling in the drop inlet chute; the drop inlet rotates over 180° and raises or lowers |
| Vent |
2 in remote vent cap, polypropylene with stainless steel bug screen; 2 in Schedule 40 PVC coupling in the vent boss |
| Pump cord |
10 ft, regardless of basin size |
| Shipping weight |
200 to 400 lb depending on basin depth; ships upright on a pallet |
Source: FPS Wastewater Catalog M5276 (09-25) and PowerSewer V4PS owner manual 998076.
Performance — Will It Do What You Need?
Find your total dynamic head across the top: the vertical lift from the basin to the highest point of the force main plus friction in the pipe. The figure below it is gallons per minute at that head.
| Head (TDH) |
10 ft |
20 ft |
40 ft |
60 ft |
80 ft |
100 ft |
120 ft |
Shut-Off |
| IGP, GPM |
33 |
32 |
31 |
30 |
25 |
20 |
10 |
130 ft |
Manufacturer tabulated points only. 10 ft point: IGP-A and IGP-M Series owner manual 998760 (Rev. 003, 01/23). 20 to 120 ft and shut-off: FPS Wastewater Catalog M5276 (09-25). Shut-off is the head at zero flow, the ceiling rather than a working point.
| Head (TDH) |
10 ft |
25 ft |
50 ft |
75 ft |
100 ft |
125 ft |
150 ft |
175 ft |
Shut-Off |
| IGPH, GPM |
40 |
39 |
36 |
33 |
30 |
24 |
18 |
10 |
200 ft |

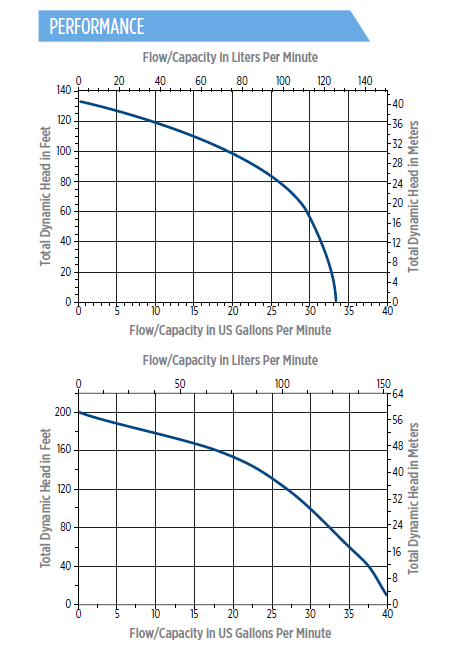

IGPH high-head grinder, manufacturer tabulated points: FPS Wastewater Catalog M5276 (09-25), IGPH-M spec sheet 996739. The PowerSewer spec sheet 996896 plots the same two pump curves.
IGP models (A231 and M231) for total heads below about 120 ft; IGPH-M231 for long force mains and high lift up to about 180 ft.
Before You Buy — The Limits That Decide the Fit
| Limit |
Value |
| Excavation |
Depth equal to the tank depth plus 4-1/2 in, on at least 6 in of compacted rounded gravel (1/8 to 3/4 in). Keep 7 ft and a 45° slope from structures, footings and property lines unless code says otherwise |
| Anti-flotation ballast |
Concrete over the integral anti-flotation flange, at least 8 in thick, 4 in above the flange and 12 in out from the tank (at least 7 cu ft). This is the only ballast method Franklin accepts |
| Grade |
Rim at least 1-1/2 in above final grade, with grade sloping away. Below-grade installation voids the warranty |
| Backfill |
Class 1A, 1B or 2 material in 12 in lifts compacted to 85% Standard Proctor; no heavy clays or silts |
| Drop inlet |
Never cut shorter than 12 in |
| Electrical |
20/30 A breaker for the main supply; 15 A, 115 VAC alarm circuit; 12 AWG 3-conductor direct-bury pump cable (125 ft max) and 18 AWG 6-conductor float cable, installer supplied |
| Not provided |
4 in intake plumbing, redundant check valve and stop valve at the force main, direct-bury cable or conduit, property service panel connection |
| App |
None: the station runs from its control panel |
Source: PowerSewer V4PS owner manual 998076.
Accessories
Franklin also builds units with 50 or 100 ft of direct-bury cable pre-assembled (model suffix -50 or -100); quoted on request.
