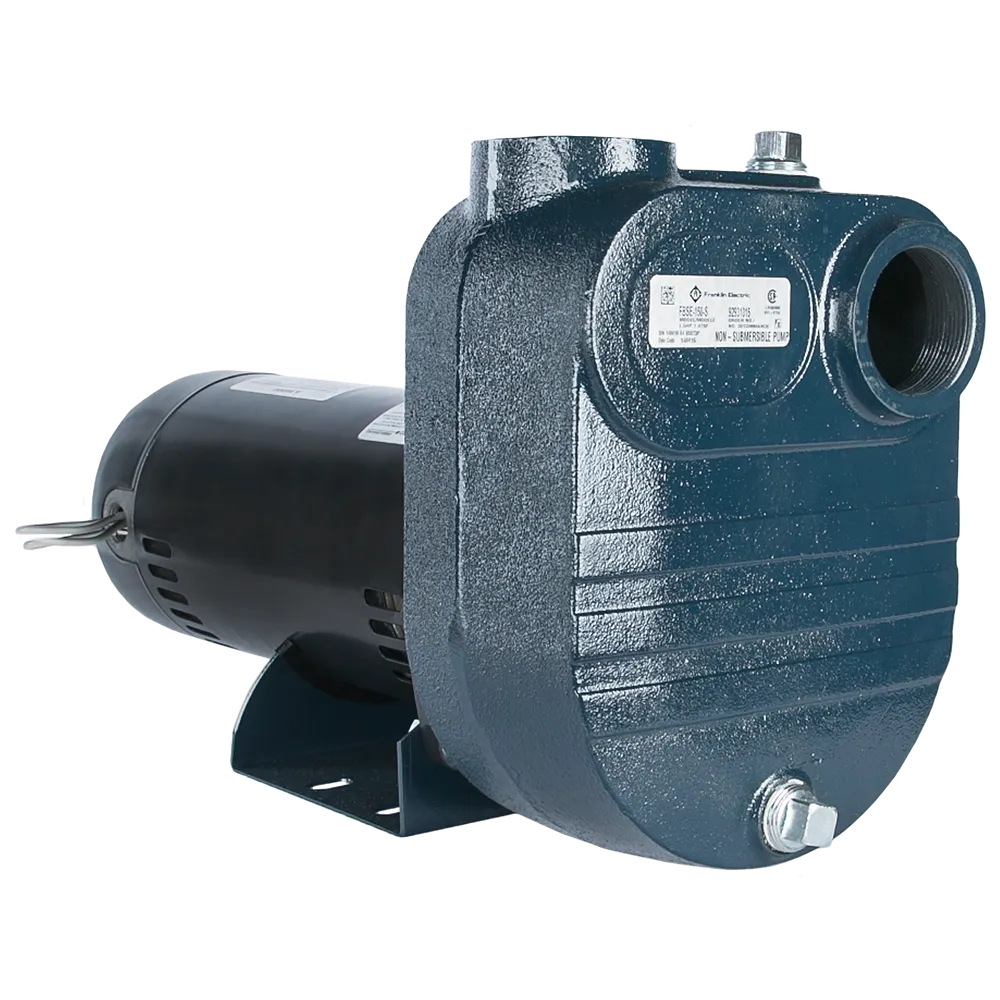

Close-coupled self-priming pump with durable cast iron construction for irrigation, construction, mining, commercial and municipal use.
The semi-open cast iron impeller is ideal for handling fertilizer, salt water, or dirty water. The impeller is blind hole tapped so liquid will not corrode the shaft.
| Volute | Cast iron rugged construction with tapped openings provided for priming, v… — Franklin published spec |
| Impeller | Semi open cast iron, ideal for handling fertilizer, salt water, dirty wate… — Franklin published spec |
| Seal | Standard carbon/ceramic faces, Fluoroelastomer (FKM), and 300 series stain… — Franklin published spec |
| Motor | Comes with a reliable industry standard motor. Motors range from 1/2 to 3 … — Franklin published spec |
| Item | Model | Horse Power | Phase | Voltage |
|---|---|---|---|---|
| 92931005 | FBSE-50-S | 1/2 HP | Single-Phase | 115/230 VAC |
| 92931007 | FBSE-75-S | 3/4 HP | Single-Phase | 115/230 VAC |
| 92931010 | FBSE-100-S | 1 HP | Single-Phase | 115/230 VAC |
| 92931015 | FBSE-150-S | 1.5 HP | Single-Phase | 115/230 VAC |
| 92931020 | FBSE-200-S | 2 HP | Single-Phase | 230 VAC |
| 92931030 | FBSE-300-S | 3 HP | Single-Phase | 230 VAC |
| 92933030 | FBSE-300-T | 3 HP | Three-Phase | 230/460 VAC |

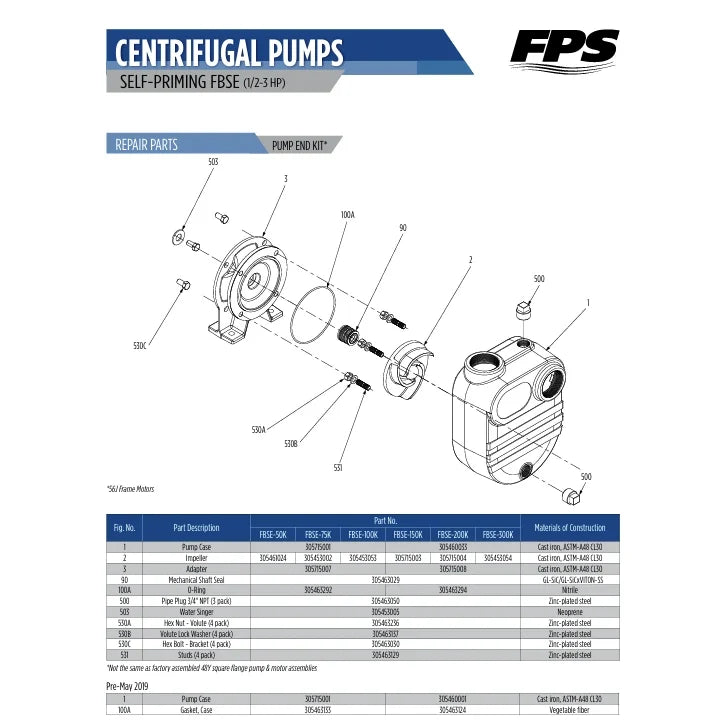

Franklin also lists six FBSE pump-end kits (FBSE-50K through FBSE-300K, 1/2-3 HP, motor not included). These are not included as variants here because they ship without a motor.
Product videos are being added to this listing. For a walkthrough in the meantime, email sales@watermainsupply.com.
