Franklin Electric · Grinder Pump Package
FPS IGP-SMPXFG-HP Hard-Piped Simplex Package
Simplex grinder package in a 24 in fiberglass basin, hard-piped at the factory, with the 2 HP IGP-A231-20 automatic grinder: no control panel needed. 48, 60 and 72 in basin depths.
2 HP IGP-A Grinder
33 GPM Max Flow
130 ft Max Head
1-1/4 in FNPT Discharge
4 in Inlet
208-230V 1Ph
No Control Panel Needed
24 in Dia x 48-72 in H Basin
Overview
The hard-piped simplex package is Franklin's simplest grinder station, for low-pressure sewer service and sewage transfer in light commercial and residential buildings. The fiberglass basin comes configured for a hard-pipe installation, with the pump, check valve, ball valve and discharge piping already in place.
The pump is the 2 HP IGP-A231-20 automatic grinder (515861), which carries its own start components and float switch, so the package runs without a control panel. Discharge is SCH 80 PVC piping with a union disconnect, through a 1-1/4 in SCH 80 PVC check valve and ball valve, to a 1-1/4 in FNPT discharge flange installed at the factory. The inlet is a 4 in Adapt-A-Flex grommet, and the cover is ribbed structural foam.
Genuine Franklin Electric equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier.
Warranty: 12 months from the date of purchase.
Models & Ratings
| Model |
Part No. |
Basin |
Basin Height |
Discharge Centerline from Top |
Basin |
| IGP-SMPXFG-HP |
515201 |
24 x 48 in |
48 in |
18 in |
BS2448FGHP |
| IGP-SMPXFG-HP |
515202 |
24 x 60 in |
60 in |
18 in |
BS2460FGHP |
| IGP-SMPXFG-HP |
515203 |
24 x 72 in |
72 in |
24 in |
BS2472FGHP |
Pump in every package: IGP-A231-20 (515861), 208-230V. Source: FPS Wastewater Catalog M5276 (09-25), spec sheet 996798.
Specifications
| Component |
Value |
| Basin |
Fiberglass, 24 in diameter, configured for hard-pipe installation |
| Pump |
IGP-A231-20, 2 HP, 3450 RPM automatic grinder with float |
| Check and ball valves |
1-1/4 in SCH 80 PVC |
| Discharge piping |
SCH 80 PVC with union disconnect |
| Discharge flange |
1-1/4 in FNPT, factory installed |
| Inlet |
4 in Adapt-A-Flex |
| Cover |
Ribbed structural foam |
Source: FPS Wastewater Catalog M5276 (09-25), spec sheet 996798.

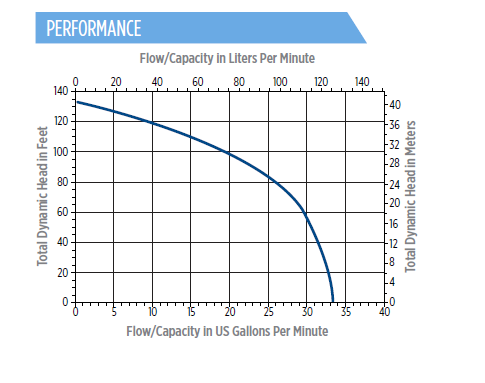

Performance — Will It Do What You Need?
Find your total dynamic head across the top: the vertical lift from the basin to the highest point of the force main plus friction in the pipe. The figure below it is gallons per minute at that head.
| Head (TDH) |
10 ft |
20 ft |
40 ft |
60 ft |
80 ft |
100 ft |
120 ft |
Shut-Off |
| IGP, GPM |
33 |
32 |
31 |
30 |
25 |
20 |
10 |
130 ft |
Manufacturer tabulated points only. 10 ft point: IGP-A and IGP-M Series owner manual 998760 (Rev. 003, 01/23). 20 to 120 ft and shut-off: FPS Wastewater Catalog M5276 (09-25). Shut-off is the head at zero flow, the ceiling rather than a working point.
Franklin places the IGP series in lower-head service, below about 120 ft of total head. For higher heads it points to the dual-stage IGPH high-head series, which reaches 175 ft on its rated curve. The package uses the IGP-A231-20, so this is its curve.
Before You Buy — The Limits That Decide the Fit
| Limit |
Value |
| Power |
208-230V single-phase on its own branch circuit, with a double-pole disconnect near the package |
| Liquid |
Residential sewage, effluent and wastewater; non-explosive, non-abrasive, non-corrosive |
| Venting |
Vent the basin to local, state and federal plumbing code |
| High-level alarm |
None is included; Franklin recommends an alarm or back-up wherever a stopped pump could cause flooding |
| Freight |
Ships by truck (LTL) |
| App |
None |
