Franklin Electric · Grinder Pump Package
FPS IGP-SMPX Simplex Fiberglass Package
A 2 HP IGP-M231-15 grinder on a stainless steel rail system in a 24 in fiberglass basin, with NEMA 4X alarm panel, three control floats, check valve and shut-off valve. 60, 72 and 84 in depths.
2 HP IGP-M Grinder
33 GPM Max Flow
130 ft Max Head
4 in Inlet
208-230V 1Ph
NEMA 4X Panel and 3 Floats Included
24 in Dia x 60-84 in H Basin
Overview
Franklin's fiberglass grinder packages are complete stations for low-pressure sewer service and sewage transfer in light commercial and residential buildings: basin, rail-mounted grinder, control panel, floats and valves, supplied as one package.
The grinder is the 2 HP, 3450 RPM IGP-M231-15 with capacitor start/run motor and built-in overload protection, a high-starting-torque motor for grinding domestic sewage, epoxy-coated cast iron, and a seven-vane, angled-face, non-clogging brass impeller behind cutters that make 414,000 cuts per minute. The pump lifts out on the stainless steel rail system, so it can be serviced without entering the basin.
Genuine Franklin Electric equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier.
Warranty: 12 months from the date of purchase.
Models & Ratings
| Model |
Part No. |
Basin |
Basin Height |
Discharge Centerline from Top |
| IGP-SMPX2460 |
515204 |
24 x 60 in |
60 in |
24 in |
| IGP-SMPX2472 |
515205 |
24 x 72 in |
72 in |
36 in |
| IGP-SMPX2484 |
515206 |
24 x 84 in |
84 in |
48 in |
Source: FPS Wastewater Catalog M5276 (09-25), spec sheet 996800, and Franklin Electric price list 996791 (June 2026). The catalog prints the 84 in model as IGP-SPMX2484; the price list model IGP-SMPX2484 is used here.
What Is in the Package
| Item |
Supplied |
| Pump |
IGP-M231-15 (515864), 2 HP, 3450 RPM, 208-230V 1Ph, capacitor start/run |
| Control panel |
A-SF230CBG-215 (515354), NEMA 4X waterproof enclosure, audible alarm, silence switch, red flashing light and integral pump starting components |
| Control floats |
Three CFSW weighted control floats (950266): on, off and high-water alarm |
| Basin |
Heavy-duty fiberglass, 24 in diameter |
| Rail system |
Stainless steel rail system with sealing flange, discharge pipe disconnect and stainless steel lifting chain |
| Valves |
Cast iron ball check valve and brass gate (shut-off) valve with stainless steel extension handle |
| Inlet |
4 in rubber Adapt-A-Flex inlet grommet |
| Cover |
Structural foam |
| Other |
Stainless steel float bracket; junction box |
Source: FPS Wastewater Catalog M5276 (09-25).

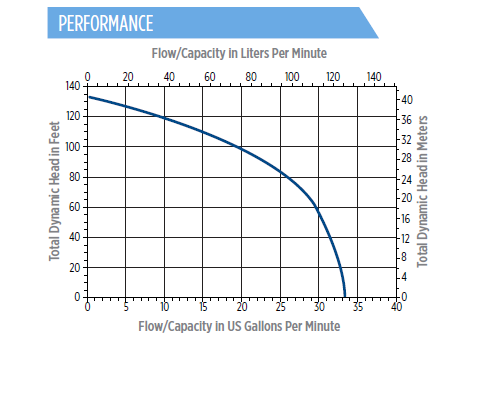

Performance — Will It Do What You Need?
Find your total dynamic head across the top: the vertical lift from the basin to the highest point of the force main plus friction in the pipe. The figure below it is gallons per minute at that head.
| Head (TDH) |
10 ft |
20 ft |
40 ft |
60 ft |
80 ft |
100 ft |
120 ft |
Shut-Off |
| IGP, GPM |
33 |
32 |
31 |
30 |
25 |
20 |
10 |
130 ft |
Manufacturer tabulated points only. 10 ft point: IGP-A and IGP-M Series owner manual 998760 (Rev. 003, 01/23). 20 to 120 ft and shut-off: FPS Wastewater Catalog M5276 (09-25). Shut-off is the head at zero flow, the ceiling rather than a working point.
Franklin places the IGP series in lower-head service, below about 120 ft of total head. For higher heads it points to the dual-stage IGPH high-head series, which reaches 175 ft on its rated curve. The package uses the IGP-M231-15, so this is its curve.
Before You Buy — The Limits That Decide the Fit
| Limit |
Value |
| Power |
208-230V single-phase; the control panel carries the pump starting components |
| Liquid |
Residential sewage, effluent and wastewater; non-explosive, non-abrasive, non-corrosive |
| Venting |
Vent the basin to local, state and federal plumbing code |
| Head |
IGP pump: best below about 120 ft of total head |
| Freight |
Ships by truck (LTL) |
| App |
None |
