Franklin Electric · Submersible High Head Grinder Pump
FPS IGPH-M Series
2 HP dual-stage high-head grinder with externally mounted start components, run from a matched FPS control panel: single-phase IGPH and IGPHR, three-phase 230V and 460V.
2 HP
3450 RPM
Dual-Stage
40 GPM Max Flow
200 ft Max Head
1-1/4 in FNPT Discharge
1Ph and 3Ph
Manual - Panel Operated
10.9 W x 16.3 H in
105-107 lb Weight
Overview

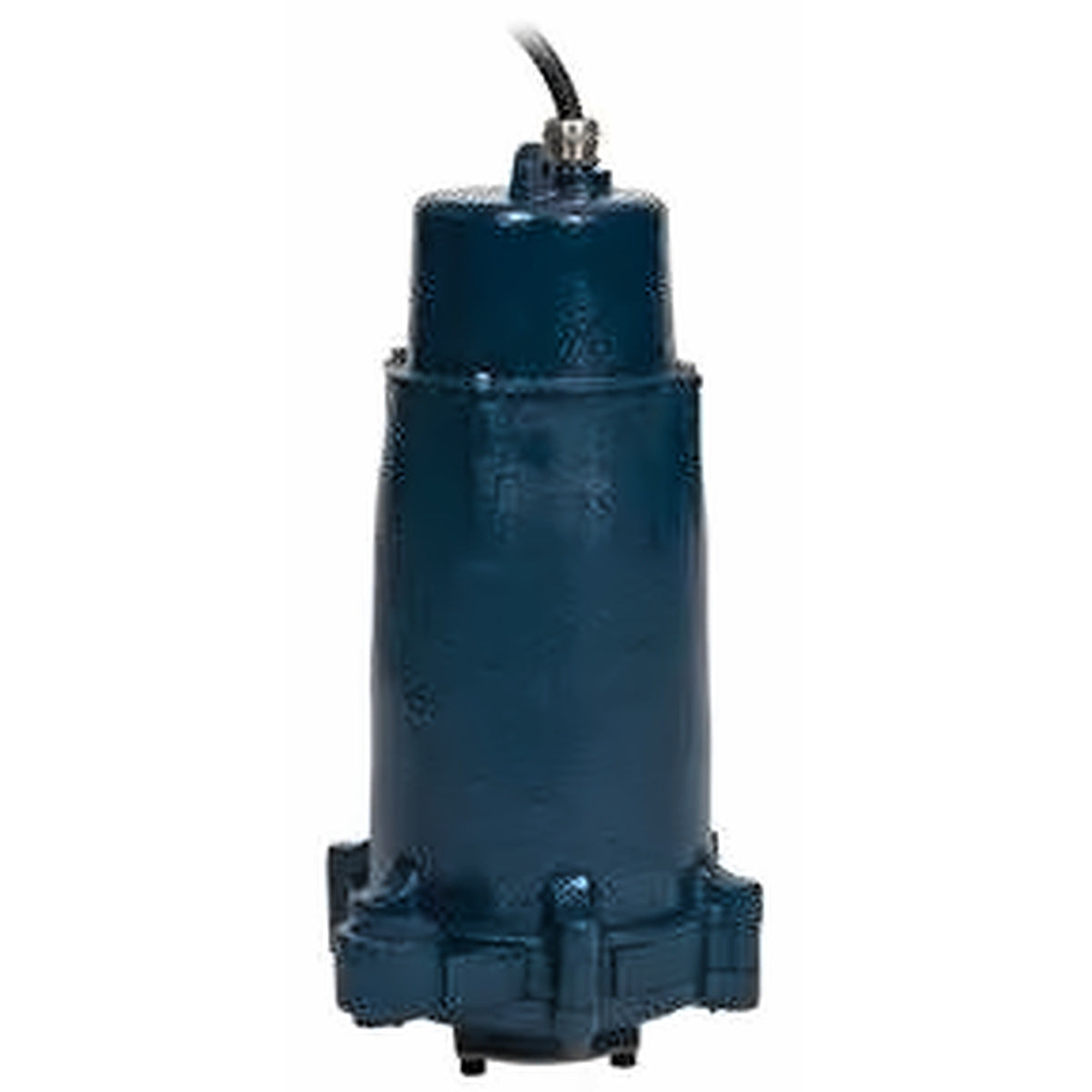

The FPS IGPH Series is Franklin Electric's dual-stage, high-head grinder pump for the toughest residential and commercial wastewater service: sewage lift stations, and low-pressure sewer systems for housing developments and lake communities where high vertical lift or long force mains are present.
Two brass impellers in series (dual-stage hydraulics) build the head. Ahead of them a cutting mechanism grinds solids at 414,000 cuts per minute. The 2 HP, 3450 RPM motor has built-in overload protection, a carbon/ceramic mechanical seal and a short, deflection-resistant shaft, in epoxy-coated cast iron.
The M in IGPH-M means manual: the start components are mounted outside the pump. Every IGPH-M runs from a control panel. Franklin states that IGPH and IGPHR single-phase pumps require the specific FPS control panel or capacitor kit matched to the pump for proper operation and third-party approval; three-phase models need an approved motor control with overloads. For a pump that starts on its own, choose the IGPH-A automatic series.
IGPH or IGPHR? Both are 2 HP dual-stage pumps. The IGPH is rated across its whole curve, from 40 GPM at 10 ft to 10 GPM at 175 ft. The IGPHR is rated only in the high-head region above the line Franklin marks at about 100 ft, and draws 16 FLA against the IGPH 18.5 FLA single-phase. Choose the IGPHR only where the total head stays above 100 ft.
Genuine Franklin Electric equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier.
Warranty: 12 months from the date of purchase.
Growth & Multiplex
Runs as a simplex station, or as a duplex with two pumps alternating from a duplex grinder panel. The IGPH-M231 is the high-head option in the PowerSewer V4PS station.
Models & Ratings
| Model |
Part No. |
Voltage and Phase |
FLA / Watts |
Weight lb |
| IGPH-M231-30 |
515712 |
208-230V 1Ph |
18.5 / 3600 |
107 |
| IGPHR-M231-30 |
515700 |
208-230V 1Ph |
16 / 3600 |
107 |
| IGPH-M233-30 |
515704 |
208-230V 3Ph |
13 / 1650 |
105 |
| IGPH-M463-30 |
515706 |
460V 3Ph |
6 / 1300 |
105 |
All 2 HP, 60 Hz, 30 ft cord. Source: FPS Wastewater Catalog M5276 (09-25) and Franklin Electric price list 996791 (June 2026).
Specifications
| Specification |
Value |
| Motor |
2 HP, 3450 RPM; single-phase or three-phase |
| Hydraulics |
Dual-stage, upper and lower brass impellers |
| Insulation class |
F |
| Overload protection |
Internal, on-winding thermal protector |
| Discharge |
1.25 in vertical FNPT |
| Cutting |
414,000 cuts per minute |
| Dimensions |
10.9 in wide; 16.3 in high |
| Power cable |
Type SOW or SOOW 12/4, 30 ft |
| Patent |
U.S. Patent No. 7,237,736 |
Source: FPS Wastewater Catalog M5276 (09-25), IGPH-M spec sheet 996739.

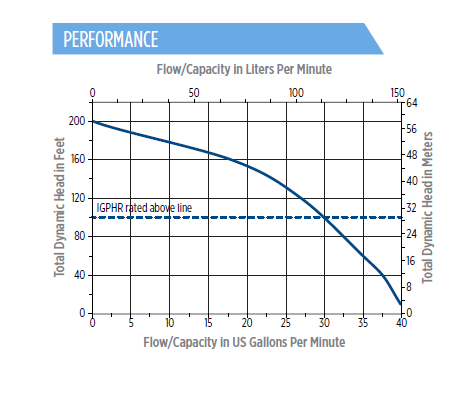

Performance — Will It Do What You Need?
Find your total dynamic head across the top: the vertical lift from the basin to the highest point of the force main plus friction in the pipe. The figure below it is gallons per minute at that head.
| Head (TDH) |
10 ft |
25 ft |
50 ft |
75 ft |
100 ft |
125 ft |
150 ft |
175 ft |
Shut-Off |
| IGPH, GPM |
40 |
39 |
36 |
33 |
30 |
24 |
18 |
10 |
200 ft |
| IGPHR, GPM |
- |
- |
- |
- |
30 |
24 |
18 |
10 |
200 ft |
Manufacturer tabulated points only. IGPHR models are rated only above the line Franklin marks on the curve at about 100 ft, so no IGPHR points are published below 100 ft; a dash means no rated point. Shut-off is the head at zero flow. Source: FPS Wastewater Catalog M5276 (09-25), IGPH-M spec sheet 996739 and IGPH-A spec sheet 996738.
The dual-stage IGPH keeps 30 GPM at 100 ft, where the single-stage IGP is down to 20 GPM, which is why Franklin specifies it for long force mains and high vertical lift.
Before You Buy — The Limits That Decide the Fit
| Limit |
Value |
| Liquid |
Residential sewage, effluent, wastewater and other non-explosive, non-abrasive, non-corrosive liquids |
| Basin |
Gas-tight basin at least 24 in diameter and 48 in deep, vented to local, state and federal plumbing code |
| Discharge piping |
No smaller than the 1-1/4 in pump discharge; ABS, PVC, polyethylene or stainless steel. Full-flow ball check valve mounted horizontally, a 3/16 in air-relief hole between pump and check valve, and a shut-off valve after the check valve |
| Power and control |
Single-phase: matched FPS panel with start components (515361 covers the 18.5 FLA IGPH; 515354 the 16 FLA IGPHR) or the 520859 capacitor kit. Three-phase: approved motor control with overloads (duplex 3221W series panels); check cutter rotation before running |
| Level control |
Control floats wired to the panel; sold separately |
| IGPHR head range |
Rated only above about 100 ft total head |
| App |
None |
Materials of Construction
| Component |
Material |
| Motor cover |
Cast iron with epoxy coating |
| Motor cover O-ring |
Nitrile |
| Motor shaft |
AISI 300 series stainless steel (in contact with fluid pumped) |
| Upper bearing |
Single row ball, 6203 |
| Lower bearing |
Single row ball, 6306 |
| Seal housing |
Cast iron with epoxy coating |
| Mechanical seal |
Carbon/ceramic |
| Volute |
Cast iron with epoxy coating |
| Impellers |
Brass, upper and lower |
| Rotating cutter |
AISI 440C stainless steel, through-hardened to Rockwell 55-60C |
| Stationary cutter |
AISI 440C stainless steel, hardened to Rockwell 55-60C |
| External hardware |
300 series stainless steel |
| Power cable |
Type SOW or SOOW 12/4 |
Source: FPS Wastewater Catalog M5276 (09-25), construction tables.
Service Parts
Confirm fit against the pump nameplate before ordering; Franklin publishes no separate IGPH parts list in the catalog.
