Franklin Electric · Grinder Pump Control Panel

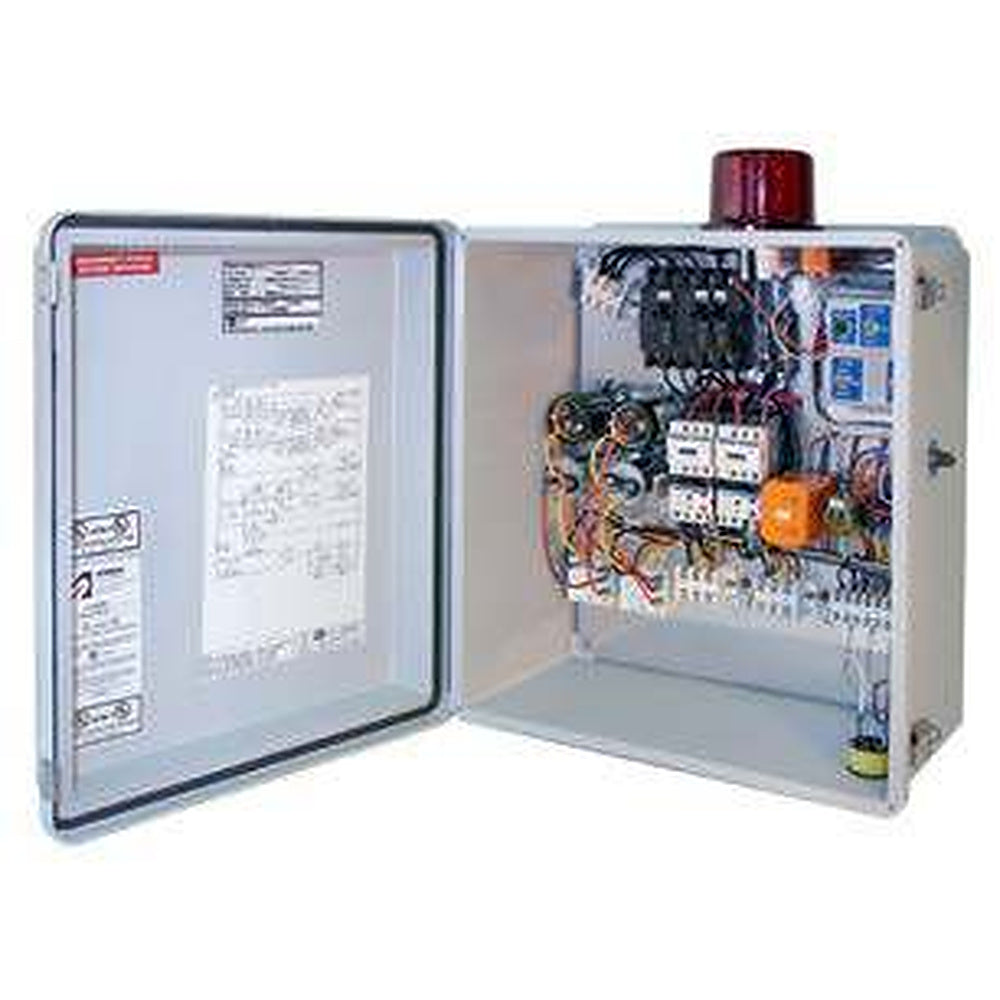

Duplex Grinder Pump Control Panel
Two-pump alternating control and alarm for FPS IGP Series grinder pumps: NEMA 4X enclosure, red alarm beacon and horn, HOA switches, alternating circuit board. Single-phase with starting components; three-phase with motor protective switches.
1Ph and 3Ph
4-22 FLA
NEMA 4X
Alternating Control
HOA Switches
Alarm Beacon and Horn
17.48 W x 10.62 D x 19.49 H in
Overview
Franklin's duplex grinder pump control panels are designed exclusively for IGP Grinder Series pumps in lift pump chambers and sewage ejector basins where two pumps are needed. An alternating circuit board runs the pumps in turn, and the lag pump starts on its own float when one pump cannot keep up.
Single-phase panels carry mounted starting components designed for the 2 HP IGP Series grinders, and circuit breakers for safe servicing. Three-phase panels have motor protective switches that give adjustable overload, branch circuit protection and pump disconnect, plus a multi-tap transformer. Both use IEC motor contactors.
Pick the panel by the pump full-load amps. Single-phase: 1026540 up to 16 A (IGP-M 13.9 A, IGPHR 16 A); 1052444 up to 22 A (IGPH 18.5 A). Three-phase: 3221W301H17A for 4.0-6.3 A (IGP-M463 4.5 A, IGPH-M463 6 A), 3221W401H17A for 6.0-10.0 A (IGP-M233 10 A), 3221W511H17A for 9.0-14.0 A (IGPH-M233 13 A).
Genuine Franklin Electric equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier.
Warranty: 12 months from the date of purchase.
Models & Ratings
| Model |
Part No. |
Volts |
Phase |
Pump FLA |
| 1026540 |
515355 |
208/230 |
1 |
16 max |
| 1052444 |
515362 |
230 |
1 |
22 max |
| 3221W301H17A |
515308 |
208/240/480 |
3 |
4.0-6.3 |
| 3221W401H17A |
515285 |
208/240/480 |
3 |
6.0-10.0 |
| 3221W511H17A |
515287 |
208/240/480 |
3 |
9.0-14.0 |
All 60 Hz. Source: FPS Wastewater Catalog M5276 (09-25), spec sheet 996782. The price list describes 515355 as 34 FLA and 515362 as 30 FLA at 208/230V; the catalog ratings are shown. Dimensions from the catalog drawing.
Features
- NEMA 4X enclosure
- Red alarm beacon for a 360° visual check of an alarm condition
- Alarm horn for audible warning
- Exterior alarm test/normal/silence switch; the alarm resets automatically once the condition clears
- Horn silence relay
- IEC motor contactors
- Multi-tap transformer (three-phase only)
- Mounted starting components for 2 HP IGP Series grinders (single-phase only)
- Motor protective switches for adjustable overload, branch circuit protection and pump disconnect (three-phase only)
- Circuit breakers for safety when servicing (single-phase only)
- Alternating circuit board for pump control and alternation
- Hand-Off-Auto switches for manual pump control
- Control on/off switch
- Alarm and control fuses and indicators
- Float switch terminal block, input power terminal block and ground lugs
Before You Buy — The Limits That Decide the Fit
| Limit |
Value |
| Pump |
IGP Grinder Series; two pumps of the same model |
| Floats |
Not included: a duplex station uses four (off, on, lag on and alarm) |
| Supply |
Supply voltage and phase must match the pump motors |
| Cable entries |
Liquid-tight connectors on every cable entering the panel; seal any conduit connectors |
| Installation |
By a competent plumber, electrician or qualified service person to national and local electrical codes |
