Franklin Electric · Submersible Grinder Pump
FPS IGP-M Series
2 HP manual grinder pump for residential and commercial lift stations and low-pressure sewer systems: 1-1/4 in FNPT discharge, single- and three-phase builds, run from a matched FPS control panel.
2 HP
3450 RPM
33 GPM Max Flow
130 ft Max Head
1-1/4 in FNPT Discharge
414,000 Cuts per Minute
1Ph and 3Ph
Manual - Panel Operated
11.4 x 9.6 x 16.1-19.4 in
75 lb Weight
Overview
The FPS IGP-M Series is a submersible grinder pump for the toughest residential and commercial wastewater service, from sewage lift stations to low-pressure sewer systems serving housing developments and lake communities, or anywhere high vertical lift or long force mains are present.
A cutting mechanism on the suction side cuts solids into a slurry at 414,000 cuts per minute, and a seven-vane, angled-face, non-clogging brass impeller passes that slurry through the volute into the discharge line. The 2 HP, 3450 RPM motor has built-in overload protection against over-current and over-temperature damage, a carbon/ceramic mechanical seal and a short, deflection-resistant shaft. The finish is epoxy-coated cast iron.
The M in IGP-M means manual: the start components are mounted outside the pump. Every IGP-M runs from a control panel. Single-phase models need the specific FPS control panel or capacitor kit matched to the pump for proper operation and third-party approval; three-phase models need an approved motor control with overloads set to the pump full-load amps. If you want a pump that runs on its own float with no panel, the IGP-A automatic series is the one to choose.
Genuine Franklin Electric equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier.
Warranty: 2 years from the date of original purchase by the consumer. Franklin Electric: the IGP Manual Series requires a specific FPS control panel or capacitor kit, matched to the pump, for proper operation and third-party approval. Source: IGP-A and IGP-M Series owner manual 998760.
Growth & Multiplex
Runs as a simplex station from a simplex grinder panel, or as a duplex station with two pumps alternating lead and lag from a Franklin duplex grinder panel, which carries the starting components for single-phase IGP pumps. The IGP-M231-15 is the pump Franklin builds into its simplex and duplex fiberglass grinder packages.
Models & Ratings
| Model |
Part No. |
Voltage and Phase |
FLA / Watts |
Cord |
Leg Kit |
Weight lb |
| IGP-M231-15 |
515864 |
208-230V 1Ph |
13.9 / 3200 |
15 ft |
No legs |
75 |
| IGP-M231-30 |
515879 |
208-230V 1Ph |
13.9 / 3200 |
30 ft |
With legs |
75 |
| IGP-M233-30 |
515870 |
208-230V 3Ph |
10 / 1300 |
30 ft |
With legs |
75 |
| IGP-M463-30 |
515871 |
460V 3Ph |
4.5 / 1025 |
30 ft |
With legs |
75 |
All 2 HP, 60 Hz. Source: FPS Wastewater Catalog M5276 (09-25) and Franklin Electric price list 996791 (June 2026). The 515864 ships without the leg kit; the 599078 leg kit is sold separately.
Specifications
| Specification |
Value |
| Motor |
2 HP, 3450 RPM; single-phase capacitor start, capacitor run, or three-phase |
| Insulation class |
F |
| Overload protection |
Internal, on-winding thermal protector (three-phase: run through a control panel for thermal protection) |
| Discharge |
1.25 in vertical FNPT |
| Cutting |
414,000 cuts per minute |
| Dimensions |
11.40 x 9.62 in plan; 16.10 in high, 19.39 in with the optional leg kit |
| Cord |
15 ft or 30 ft, Type SOW-A or SOW 14/4 AWG |
| Patent |
U.S. Patent No. 7,237,736 |
Source: FPS Wastewater Catalog M5276 (09-25), IGP-M spec sheet 996649.

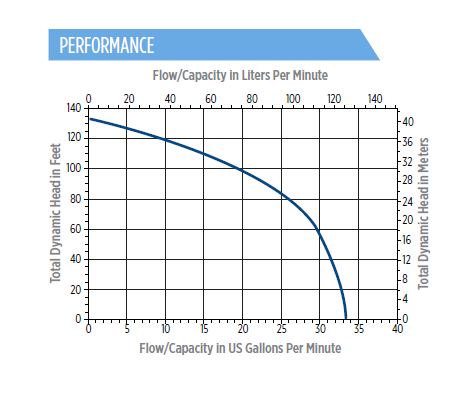

Performance — Will It Do What You Need?
Find your total dynamic head across the top: the vertical lift from the basin to the highest point of the force main plus friction in the pipe. The figure below it is gallons per minute at that head.
| Head (TDH) |
10 ft |
20 ft |
40 ft |
60 ft |
80 ft |
100 ft |
120 ft |
Shut-Off |
| IGP, GPM |
33 |
32 |
31 |
30 |
25 |
20 |
10 |
130 ft |
Manufacturer tabulated points only. 10 ft point: IGP-A and IGP-M Series owner manual 998760 (Rev. 003, 01/23). 20 to 120 ft and shut-off: FPS Wastewater Catalog M5276 (09-25). Shut-off is the head at zero flow, the ceiling rather than a working point.
Franklin places the IGP series in lower-head service, below about 120 ft of total head. For higher heads it points to the dual-stage IGPH high-head series, which reaches 175 ft on its rated curve.
Before You Buy — The Limits That Decide the Fit
| Limit |
Value |
| Liquid |
Residential sewage, effluent, wastewater and other non-explosive, non-abrasive, non-corrosive liquids |
| Basin |
Gas-tight basin at least 24 in diameter and 48 in deep, vented to local, state and federal plumbing code |
| Discharge piping |
No smaller than the 1-1/4 in pump discharge; ABS, PVC, polyethylene or stainless steel. Full-flow ball check valve mounted horizontally, a 3/16 in air-relief hole between pump and check valve, and a shut-off valve after the check valve |
| Liquid temperature |
140 °F (60 °C) maximum (IGP-A and IGP-M owner manual) |
| Power and control |
Manual pump: single-phase needs the matched FPS panel with start components (515354 or 515361) or the 520859 capacitor kit; three-phase needs an approved motor control with overloads. Three-phase cutter rotation must be checked before running |
| Level control |
Three control floats (off, on and alarm) wired to the panel; sold separately |
| App |
None: the pump runs from its control panel |
Materials of Construction
| Component |
Material |
| Motor cover |
Cast iron with epoxy coating |
| Motor cover O-ring |
Nitrile |
| Motor shaft |
AISI 300 series stainless steel (in contact with fluid pumped) |
| Upper bearing |
Single row ball, 6203 |
| Lower bearing |
Single row ball, 6306 |
| Seal housing |
Cast iron with epoxy coating |
| Mechanical seal |
Carbon/ceramic |
| Volute |
Cast iron with epoxy coating |
| Impeller |
Brass, seven-vane, angled face, non-clogging, balanced |
| Rotating cutter |
AISI 440C stainless steel, through-hardened to Rockwell 55-60C |
| Stationary cutter |
AISI 440C stainless steel, hardened to Rockwell 55-60C |
| External hardware |
300 series stainless steel |
| Power cable |
Type SOW-A or SOW 14/4 AWG |
Source: FPS Wastewater Catalog M5276 (09-25), construction tables.
Service Parts
| Part |
Order No. |
Where to buy |
| Seal Ring, 7.356 ID x 0.134 wall |
928048 |
Grinder accessories and parts |
| Key, 1/4 x 1/4 x 5/8, 304 SST |
282542201 |
Grinder accessories and parts |
| Grinder Leg Kit (GLK) |
599078 |
Grinder accessories and parts |
| Float, 20 A, 30 ft (RFSN-30) |
950348 |
Grinder accessories and parts |
| Capacitor Replacement Kit, IGP and IGPH, 208-230V |
520859 |
Grinder accessories and parts |
| Impeller |
120456101 |
Quoted on request |
| Volute |
120123801 |
Quoted on request |
| IGP Cutter Kit (stationary cutter, retaining plate, screws, rotating cutter) |
14940131 |
Quoted on request |
Order numbers from the IGP-A and IGP-M Series owner manual 998760, replacement parts table.
