Franklin Electric · Grinder Pump Retrofit Kit
FPS IGP Series Retrofit Kits
Drop-in simplex replacement grinder for positive displacement grinder systems: 2 HP automatic grinder, anti-siphon check valve, alarm float and quick-disconnect plug on an epoxy-coated steel cover.
2 HP
3450 RPM
31 GPM at 40 ft
130 ft Max Head (IGP-A-RFKS)
1-1/4 in NPT Piping
208-230V 1Ph
Quick-Disconnect Plug
16.75 in Cover x 44.15 in H
123 lb Weight (IGP-A-RFKS)
Overview

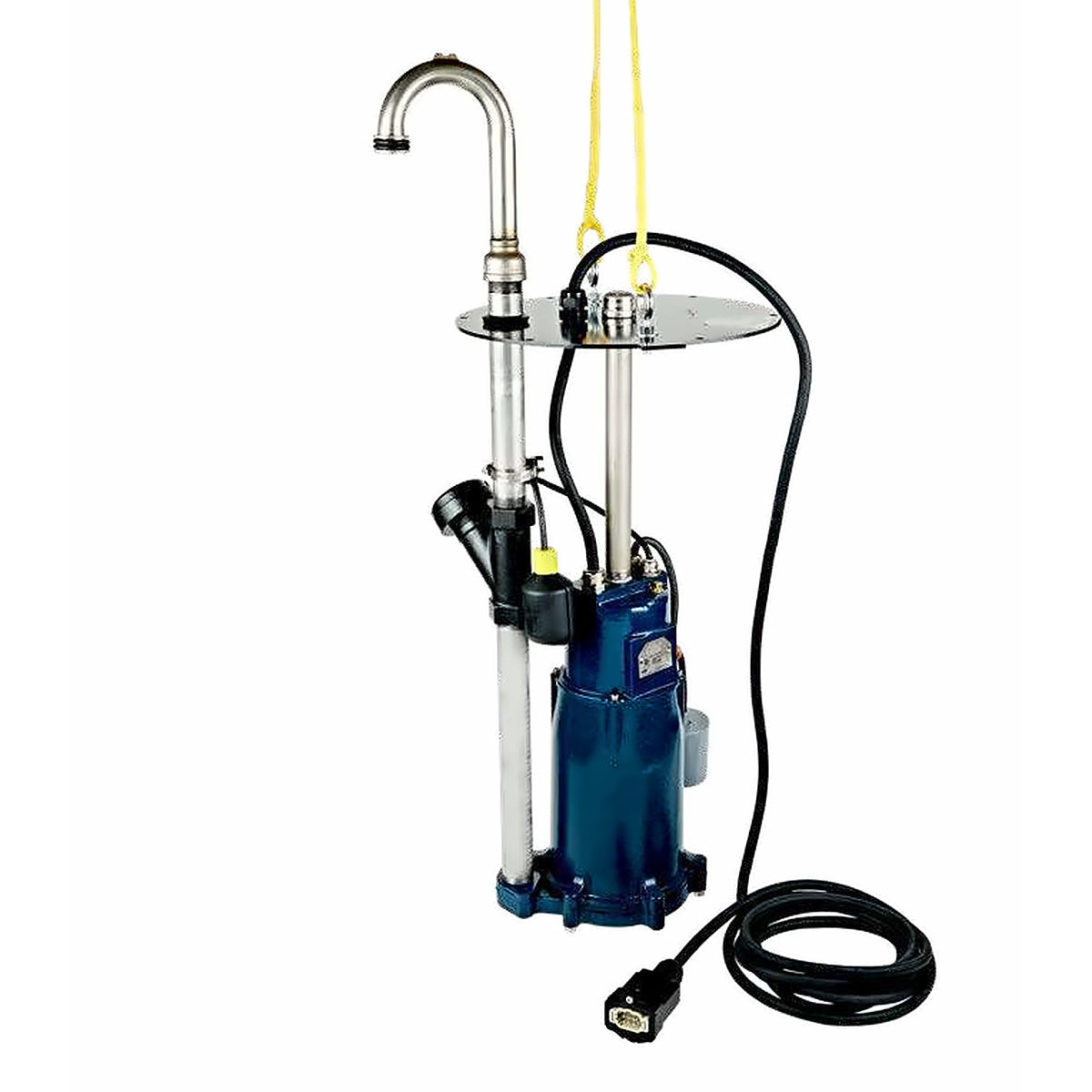

The IGP Series Retrofit Kit is a direct simplex replacement grinder for positive displacement grinder systems. It lifts out the old unit's job in one assembly: a 2 HP, 3450 RPM automatic grinder pump with mechanical float switch, a 1-1/4 in cast iron anti-siphon/check valve, 1-1/4 in NPT piping and an adjustable alarm float switch preset at the factory, all hung from an epoxy-coated steel cover.

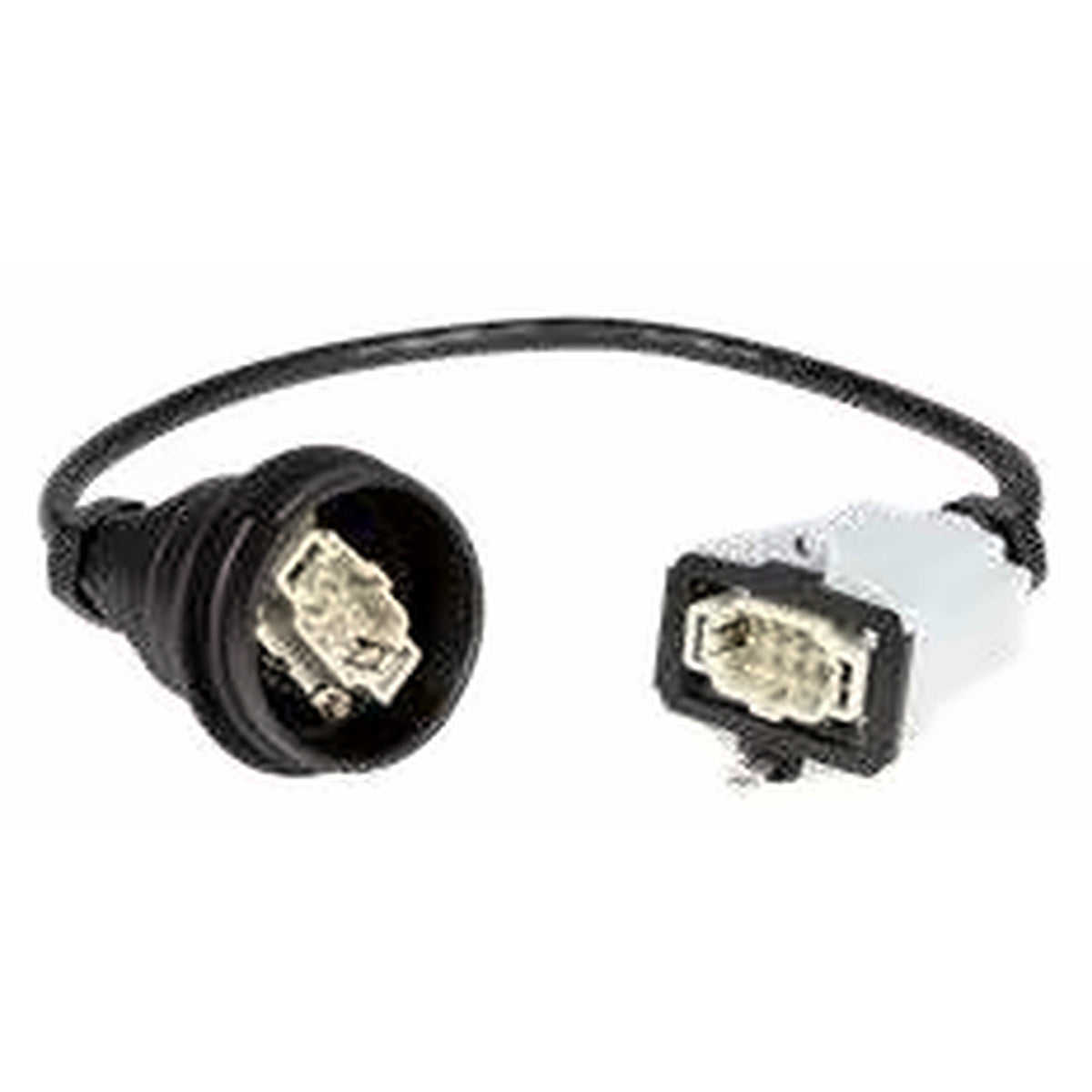

Electrical connections are made in a dry top housing, and the kit plugs in through a quick-disconnect plug. Match the plug to the existing basin wiring. The kit is built with a black or a gray plug; where the plug on site is the other one, Franklin offers 1 ft adapter harnesses (115156 and 115159) to convert between them.
The IGP-A-RFKS is the standard-head kit on the IGP-A pump. The IGPHR-A-RFK is Franklin's high-head kit, built on the IGPHR dual-stage pump.
Genuine Franklin Electric equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier.
Warranty: 12 months from the date of purchase.
Growth & Multiplex
A simplex replacement: one kit replaces one grinder in an existing basin.
Models & Ratings
| Model |
Part No. |
Plug |
Pump |
FLA / Watts |
Total Height |
Cover Depth |
Weight lb |
| IGP-A-RFKS |
515805 |
Black |
IGP-A, 2 HP |
13.9 / 3200 |
44.15 in |
31.89 in |
123 |
| IGP-A-RFKS |
515806 |
Gray |
IGP-A, 2 HP |
13.9 / 3200 |
44.15 in |
31.89 in |
123 |
| IGPHR-A-RFK |
515803 |
Gray |
IGPHR-A, 2 HP dual-stage |
16 / 3600 |
Not published |
Not published |
Not published |
| IGPHR-A-RFK |
515804 |
Round |
IGPHR-A, 2 HP dual-stage |
16 / 3600 |
Not published |
Not published |
Not published |
All 208-230V, 1Ph, 60 Hz. Source: FPS Wastewater Catalog M5276 (09-25), retrofit kit spec sheet 996801, and Franklin Electric price list 996791 (June 2026). The IGPHR-A-RFK is not in the catalog; its pump rating is taken from the IGPHR-A pump on the IGPH-A page.
Specifications
| Specification |
Value |
| Pump |
2 HP, 3450 RPM automatic grinder with mechanical float switch |
| Check valve |
1-1/4 in cast iron anti-siphon/check valve |
| Piping |
1-1/4 in NPT |
| Alarm |
Adjustable alarm float switch, preset at the factory |
| Cover |
Epoxy-coated steel, 16.75 in wide, with lifting rope |
| Electrical |
Connections in a dry top housing; quick-disconnect plug |
| Motor |
Single-phase capacitor start, capacitor run; insulation class F; internal on-winding thermal protector |
| Power cable |
Type SOOW or SOW 14/6 AWG |
Source: FPS Wastewater Catalog M5276 (09-25), retrofit kit spec sheet 996801.
Performance — Will It Do What You Need?
Find your total dynamic head across the top: the vertical lift from the basin to the highest point of the force main plus friction in the pipe. The figure below it is gallons per minute at that head.
| Head (TDH) |
40 ft |
60 ft |
80 ft |
100 ft |
120 ft |
Shut-Off |
| IGP-A-RFKS, GPM |
31 |
30 |
25 |
20 |
10 |
130 ft (56 psi) |
Manufacturer tabulated points only. Source: FPS Wastewater Catalog M5276 (09-25), retrofit kit spec sheet 996801.
| Head (TDH) |
100 ft |
125 ft |
150 ft |
175 ft |
Shut-Off |
| IGPHR-A-RFK, GPM |
30 |
24 |
18 |
10 |
200 ft |
IGPHR pump rating from the IGPH-A page of catalog M5276: rated only above about 100 ft, so no points are published below 100 ft. Franklin publishes no separate curve for the IGPHR-A-RFK kit.
Before You Buy — The Limits That Decide the Fit
| Limit |
Value |
| Existing system |
Direct simplex replacement for positive displacement grinder systems; confirm the basin and cover opening against the 16.75 in cover and 31.89 in cover depth |
| Plug |
Black, gray or round plug, fixed at purchase; 115156 and 115159 adapter harnesses convert between square and round plugs |
| Power |
208-230V single-phase |
| Head |
IGP-A-RFKS for heads up to about 120 ft; IGPHR-A-RFK for high-head service above 100 ft |
| App |
None |
