Franklin Electric Deep Well Jet Injectors

Pump Model and Depth: 7C, 80-120 ft

Product variant with selected options does not exist!
$242.91
SKU: 147E0914
Weight : 7.0 lb
Free Shipping $499 or more
Need it fast? Call for same-day shipping options: 281.664.8000
Description
Franklin Electric · Jet Pump Accessory

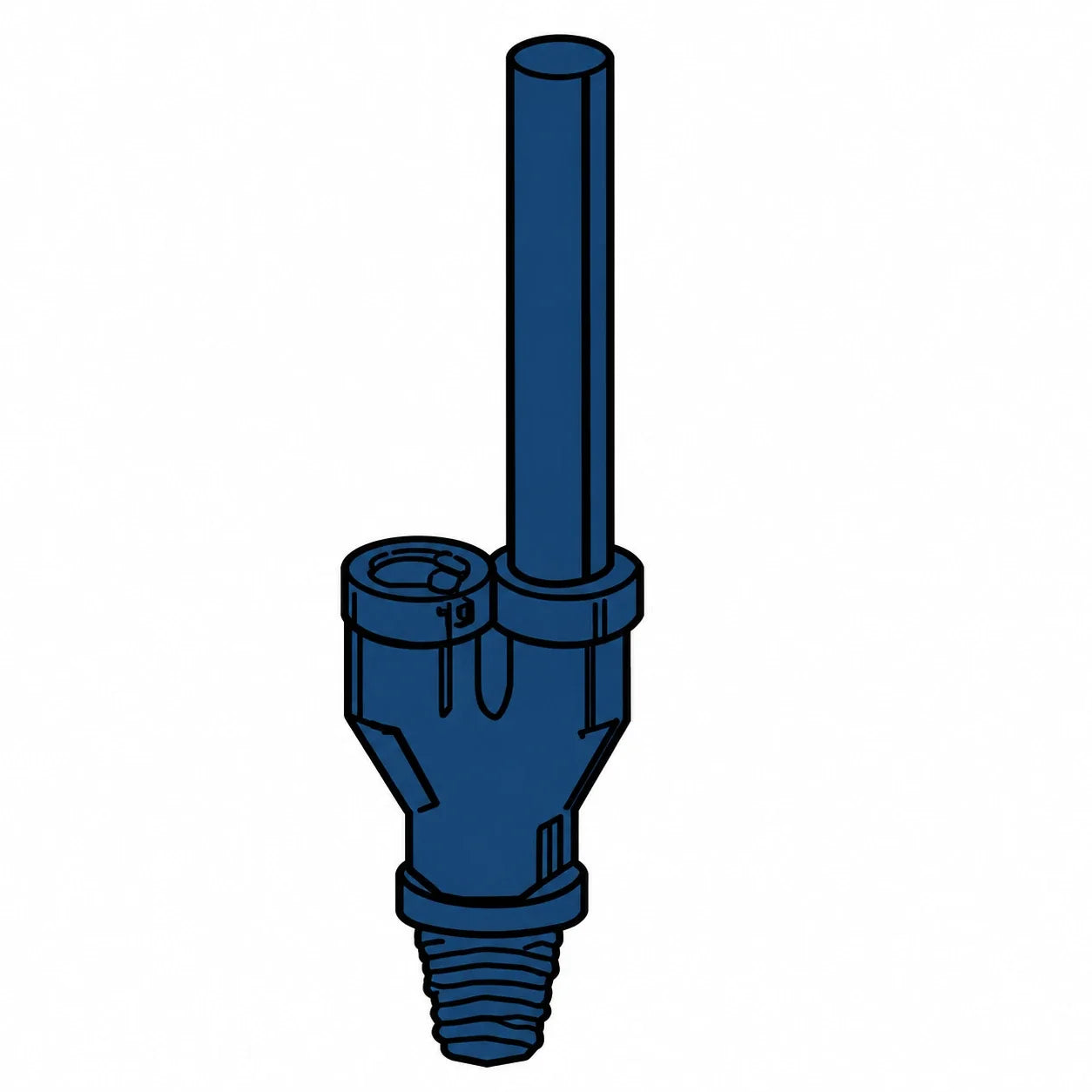

4 in Deep Well Injectors
Franklin Electric 4 in deep well injectors for convertible jet pumps, matched to the pump model and the depth to water.
12 Injectors
4 in Well
20 to 120 ft
7 lb Each
Overview

Franklin Electric lists these as 4 in deep well injectors, the jet pump accessory that converts a convertible jet pump to deep well duty. Each injector is matched to a pump model and a depth-to-water range.

Pick the row with your pump model and the depth range your water level falls in. Pump models: C Series (5C, 7C), RM2 Pro (FP05CI-C, FP07CI-C, FP1CI-C) and SRP3. The owner’s manual on the Data Sheet tab shows the exploded view and where each part sits.

Genuine Franklin Electric equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier.
Injectors and Fitment
Order No. Pump Model and Depth to Water
147E0914 7C, 80-120 ft
147E0915 FP05CI-C, 5RM2, 50-100 ft
147E1018 5C, 20-60 ft
147E1019 7C, 50-90 ft
147E1023 FP07CI-C, 7RM2, 30-60 ft
147E1115 5C, 90-120 ft and 5SRP3, 60-90 ft
147E1117 5C, 60-90 ft
147E1118 FP07CI-C, 7RM2, 50-100 ft and 5SRP3, 30-60 ft and 7SRP3, 1SRP3, 60-90 ft
147E1120 FP05CI-C, 5RM2, 30-60 ft and FP1CI-C, 1RM2, 50-100 ft
147E1123 7SRP3, 1SRP3, 30-60 ft
147E1124 7C, 20-60 ft
147E1125 FP1CI-C, 1RM2, 30-60 ft
Confirm Before OrderingThe injector has to match both the pump model and the depth to water. Send us the pump nameplate and the measured water level and we will confirm the order number.
For engineering-led sizing and selection support or a factory submittal, email sales@watermainsupply.com or call 1-888.510.4036.
