Franklin Electric VersaJet Pro Jet Pump

Model: FVJ05CI-P
HP - Voltage: 1/2 HP - 115/230V 1Ph

Product variant with selected options does not exist!

Price
$822.69
SKU: 91181005
Weight : 34.0 lb
Free Shipping $499 or more
Need it fast? Call for same-day shipping options: 281.664.8000
Description
Franklin Electric Jet Pump

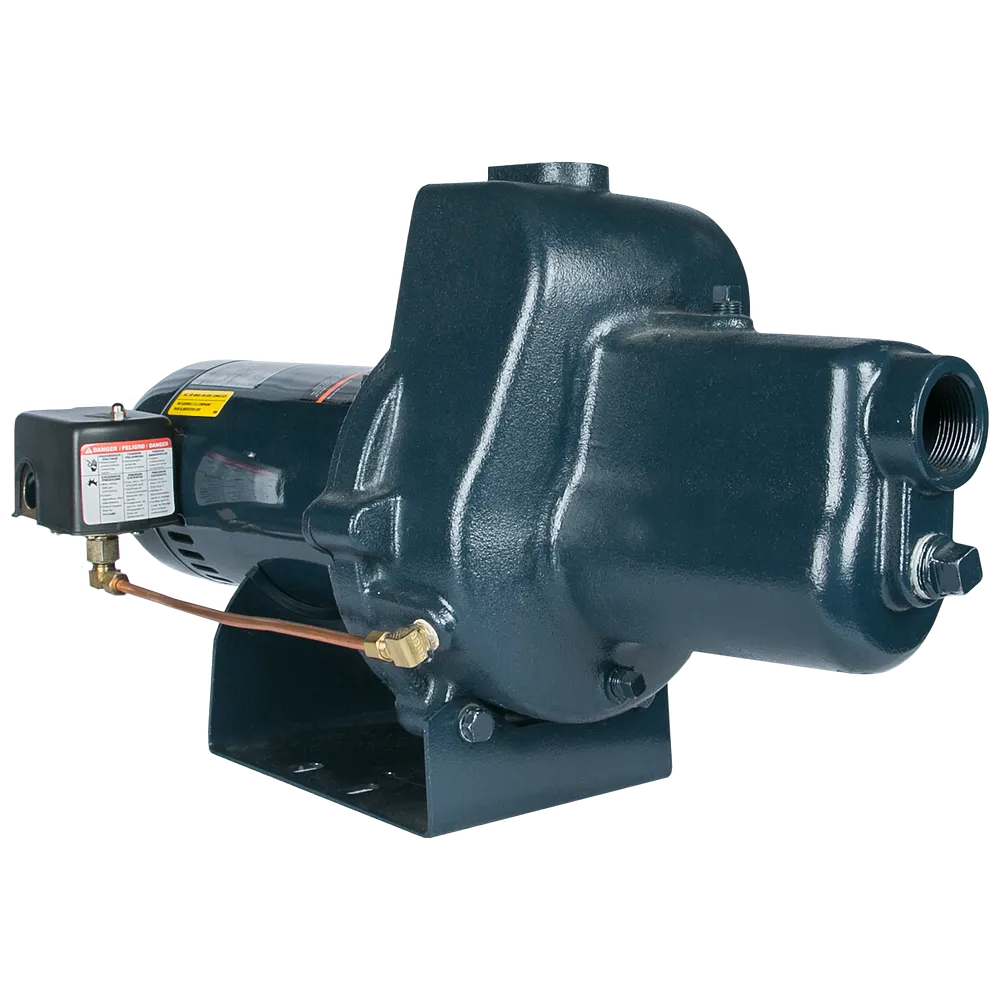

Franklin Electric VersaJet Pro Jet Pump
Cast iron shallow well jet pump supplied with three nozzles, covering a range of performance needs from a single pump.
1/2 – 1 HP
Single-Phase
NSF 372 Certified
UL / CSA Listed
120 °F Max Fluid Temp
Dual Voltage 115/230 V
Genuine Franklin Electric equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial distributor.
Overview

Built for easy customization - one VersaJet Pro covers a variety of performance needs via a patent-pending nozzle replacement system with three supplied nozzles.

Heavy-duty cast iron case with a phenolic/ceramic mechanical shaft seal for positive sealing and longevity.

Key Advantages
  • Revolutionary "Quick-Change" jet nozzle replacement system — Revolutionary "Quick-Change" jet nozzle replacement system allows for easy customization of the pump; performance can be quickly changed from a high pressure to high flow set-up without removing the plumbing or opening the case
  • Impeller (with stainless steel insert) — Impeller (with stainless steel insert), diffuser, jet nozzle, and venturi all molded with Modified PPO, a material that increases efficiency and hydraulic performance
  • Phenolic/Ceramic mechanical shaft seal — Phenolic/Ceramic mechanical shaft seal with nitrile elastomers and 18-8SS hardware ensures positive sealing and longevity
  • Heavy-duty cast iron case includes both pressure — Heavy-duty cast iron case includes both pressure and drain ports
  • Floating stainless steel eye seal — Floating stainless steel eye seal provides maximum performance and efficiency
  • Powered by high quality — Powered by high quality, industry proven, UL778 approved, indoor/outdoor square-flange single phase motors
  • Pressure switch installed and set at 30/50 — Pressure switch installed and set at 30/50 psi
  • Water temperatures up to 120 °F/49 °C; — Water temperatures up to 120 °F/49 °C; 75 psi maximum working pressure
  • 1-1/4 in inlet and 1 in outlet — 1-1/4 in inlet and 1 in outlet - all models
  • NSF/ANSI/CAN 372 Certified — NSF/ANSI/CAN 372 Certified
Order Information
Item Model Horse Power Phase Voltage
91181005 FVJ05CI-P 1/2 HP Single-Phase 115/230 VAC
91181007 FVJ07CI-P 3/4 HP Single-Phase 115/230 VAC
91181010 FVJ1CI-P 1 HP Single-Phase 115/230 VAC
Ordering Notes

Franklin Electric publishes the same Features & Benefits list for both VersaJet and VersaJet Pro. The Pro is supplied with three nozzles in the box rather than requiring separate nozzle purchase.

For engineering-led sizing and selection support or a factory submittal, email sales@watermainsupply.com or call 1-888.510.4036.
© Watermain Supply — A division of E4 Industrial LLC
Data Sheet
Videos

Product videos are being added to this listing. For a walkthrough in the meantime, email sales@watermainsupply.com.
