Monitor PJ Pitless Unit - Concentric, Single-Pipe Deep Well
Monitor PJ Pitless Unit - Concentric, Single-Pipe Deep Well

Monitor PJ Pitless Unit - Concentric, Single-Pipe Deep Well

Bury Depth: 2 ft
Suction Pipe: 1 in

Product variant with selected options does not exist!
$1,081
SKU: 2PJ23CBWX11
Weight : 47.0 lb
Need it fast? Call for same-day shipping options: 281.664.8000
Description

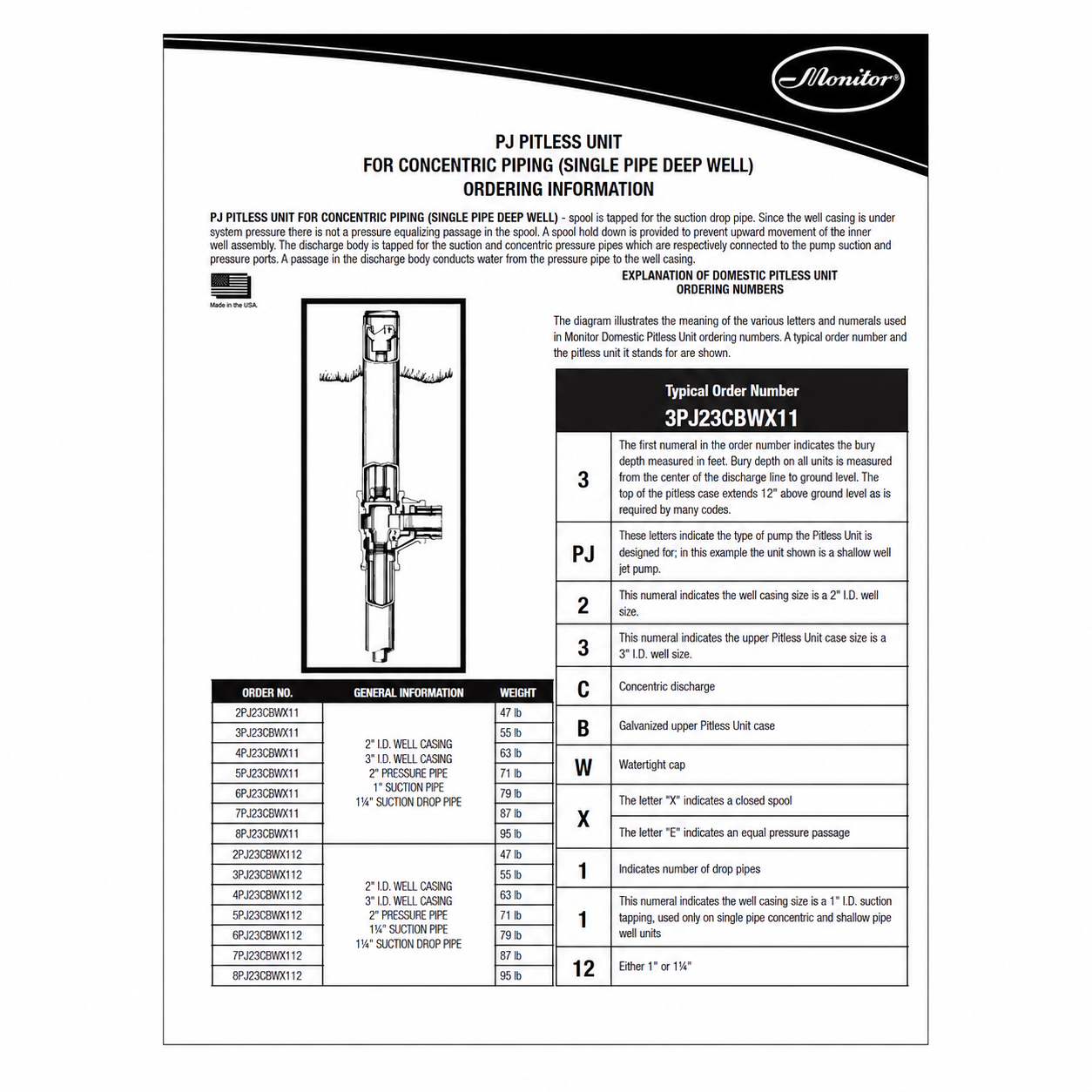

The Monitor PJ Pitless Unit for single-pipe deep wells is tapped for the suction drop pipe with a closed spool and a spool hold-down, since the well casing is under system pressure. A passage in the discharge body conducts water from the pressure pipe to the well casing.

2 in I.D. well casing with 3 in I.D. upper case, concentric discharge, galvanized upper case, watertight cap. Conforms to PAS-97(2017). Select bury depth and suction pipe size.

Application Single-pipe deep well jet, concentric piping
Well x case 2 in x 3 in
Pressure pipe 2 in
Spool Closed, with hold-down
Bury depths 2 ft to 5 ft
Standards PAS-97(2017)

Downloads: Monitor Domestic Products Catalog | Monitor Repair Parts & Installation Catalog

For engineering-led selection support or a factory submittal, email sales@watermainsupply.com or call 281.664.8000.
