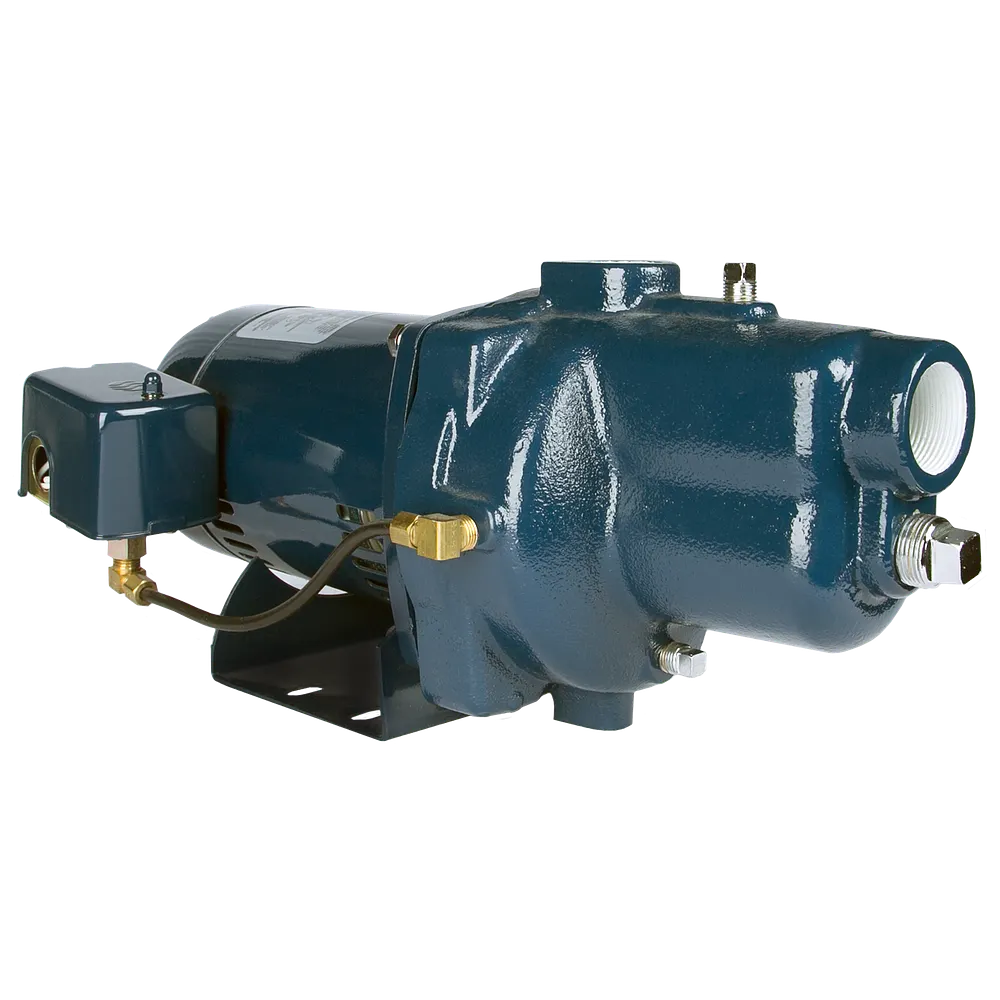

Franklin Electric VersaJet shallow well jet pump

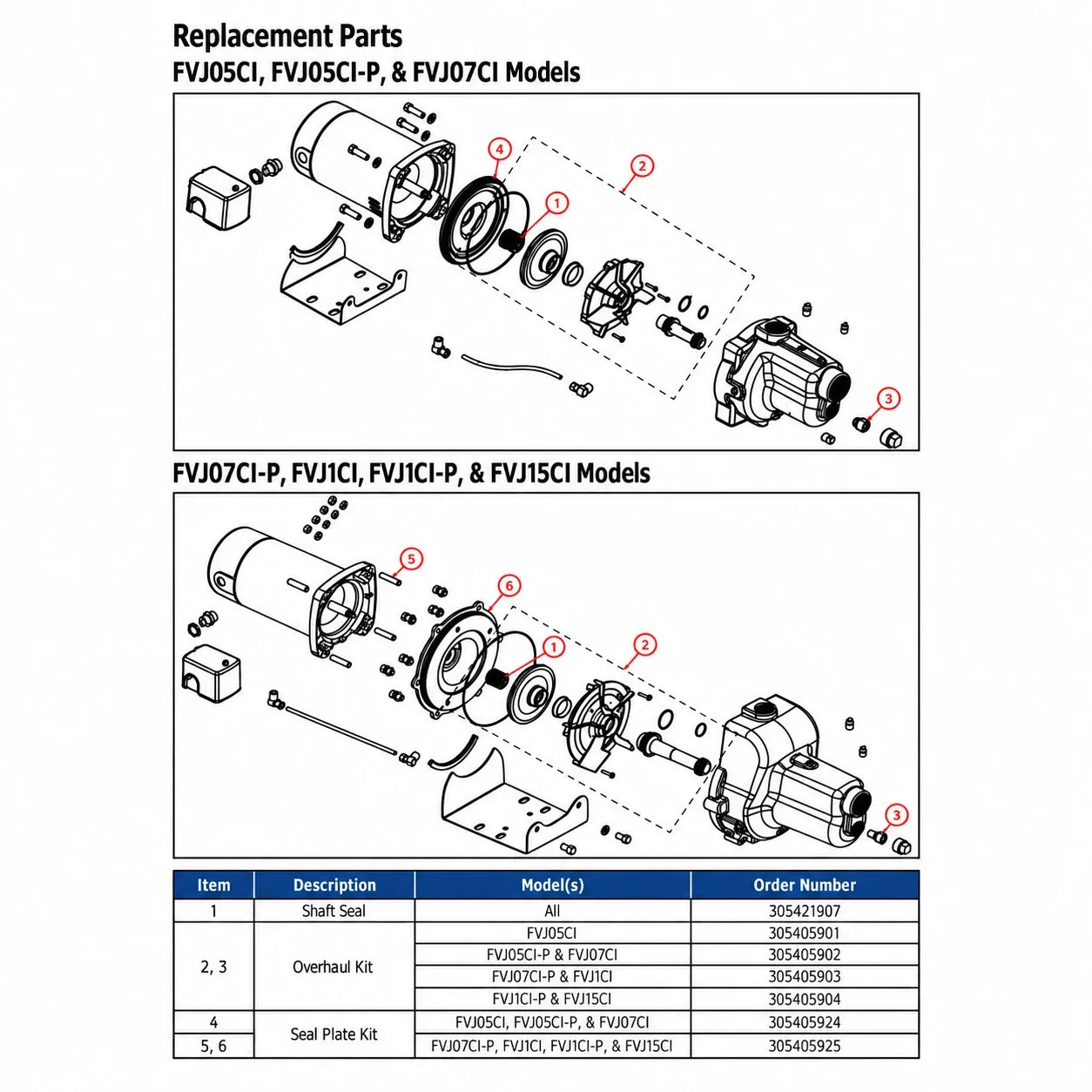

Franklin Electric VersaJet and VersaJet Pro exploded view with part callouts

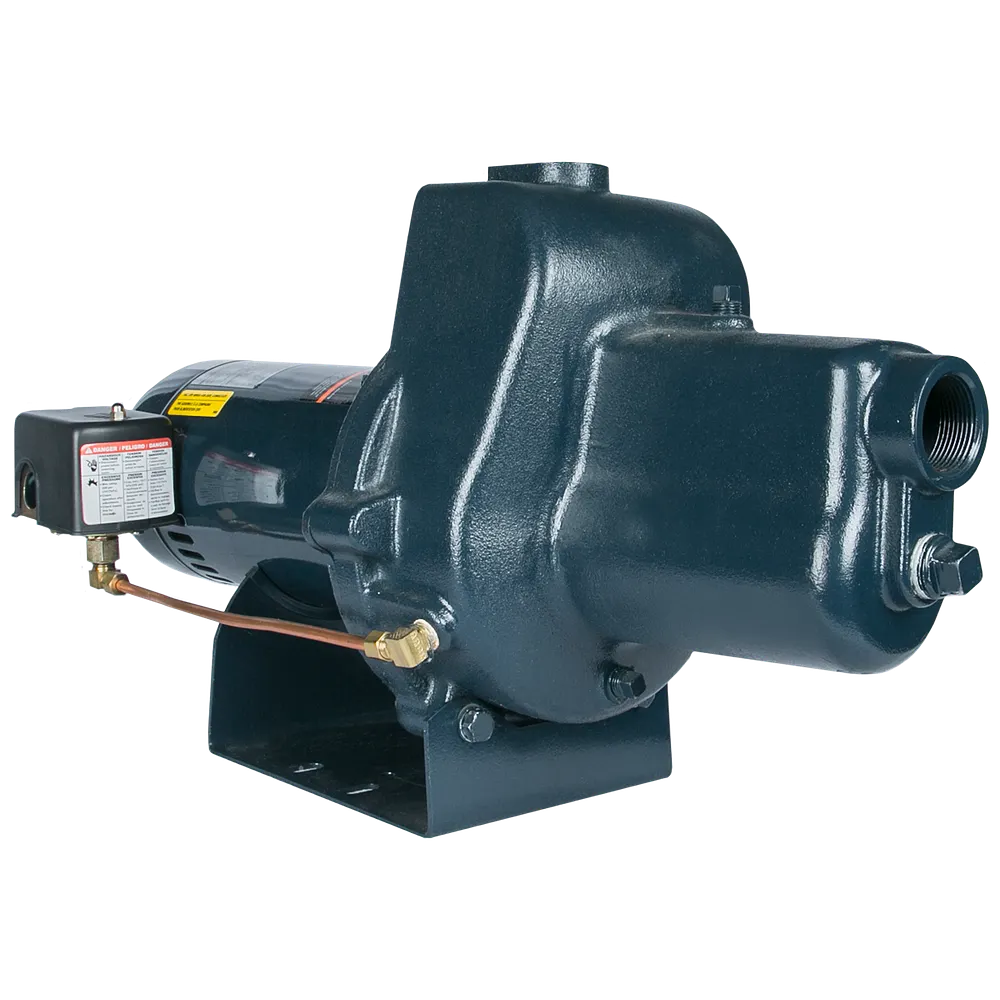

Franklin Electric VersaJet Pro shallow well jet pump

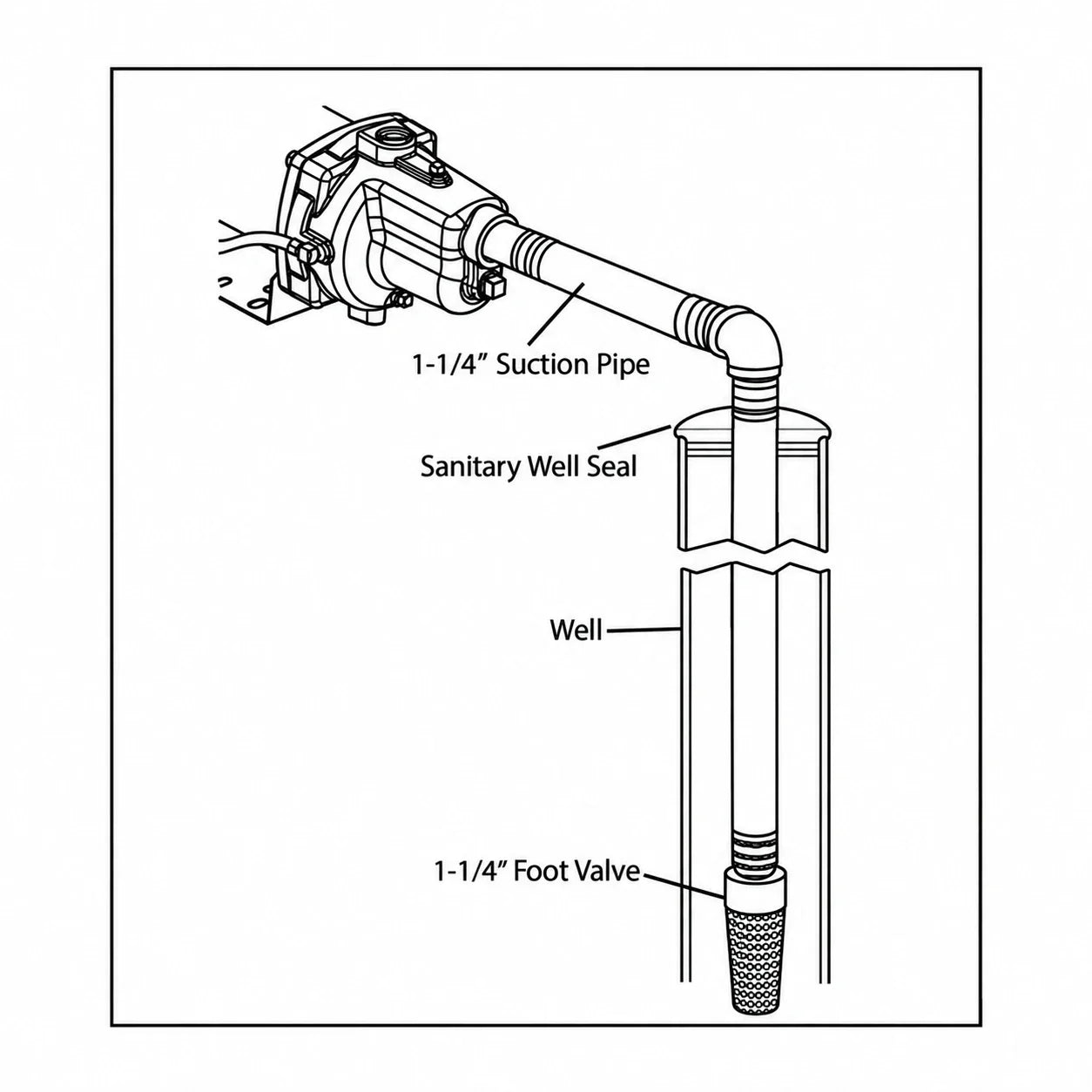

Franklin Electric VersaJet and VersaJet Pro typical setup
Franklin Electric VersaJet shallow well jet pump
Franklin Electric VersaJet and VersaJet Pro exploded view with part callouts
Franklin Electric VersaJet Pro shallow well jet pump
Franklin Electric VersaJet and VersaJet Pro typical setup

Franklin Electric VersaJet Repair Parts

Part: O-ring Kit - 05VJ, 07VJ, 05VR-P

Product variant with selected options does not exist!
$13.04
SKU: 305368901
Weight : 0.5 lb
Free Shipping $499 or more
Need it fast? Call for same-day shipping options: 281.664.8000
Description
Franklin Electric · Genuine Repair Parts
VersaJet and VersaJet PRO Repair Parts
Genuine Franklin Electric replacement parts and service kits for VersaJet and VersaJet PRO shallow well jet pumps, listed by factory order number.
21 Part Numbers
Genuine Franklin Electric
Order by Factory Number
Overview

Factory replacement parts and service kits for Franklin Electric VersaJet and VersaJet PRO shallow well jet pumps. Every item below is listed under Franklin Electric’s own order number, with the pump models it fits as Franklin publishes them.

Match the part to the model on your pump nameplate. The complete pumps are here: VersaJet and VersaJet PRO pumps. The owner’s manual on the Data Sheet tab shows the exploded view and where each part sits.

Genuine Franklin Electric equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier.
Parts and Fitment
Order No. Part Fits
305368901 O-ring Kit 05VJ, 07VJ, 05VR-P
305368902 O-ring Kit 10VJ, 15VJ, 07VJ-P
305370901 Impeller Kit, 05JV 05VJ
305370902 Impeller Kit 07VJ, 05VJ-P 07VJ, 05VJ-P
305370903 Impeller Kit 10VJ, 15VJ-P 10VJ, 15VJ-P
305370904 Impeller Kit 15VJ, 10VJ-P 15VJ, 10VJ-P
305371901 Mechanical Seal Kit 05VJ, 07VJ, 05VR-P
305371902 Mechanical Seal Kit 10VJ, 15VJ, 07VJ-P
305372901 Seal Plate Kit 05VJ, 07VJ, 05VR-P
305372902 Seal Plate Kit 10VJ, 15VJ, 07VJ-P
305376901 VJ Case, Small (with plugs & O-rings) 05VJ, 07VJ, 05VR-P
305376902 VJ Case, Large (with plugs & O-rings) 10VJ, 15VJ, 07VJ-P
305405901 Overhaul Kit: impeller, wear ring, diffuser, mechanical seal, O-ring, nozzles, venturi, hardware FVJ05CI
305405902 Overhaul Kit: impeller, wear ring, diffuser, mechanical seal, O-ring, nozzles, venturi, hardware FVJ05CI-P and FVJ07CI
305405903 Overhaul Kit: impeller, wear ring, diffuser, mechanical seal, O-ring, nozzles, venturi, hardware FVJ07CI-P and FVJ1CI
305405904 Overhaul Kit: impeller, wear ring, diffuser, mechanical seal, O-ring, nozzles, venturi, hardware FVJ1CI-P and FVJ15CI
305405924 Seal Plate Kit FVJ05CI, FVJ05CI-P, and FVJ07CI
305405925 Seal Plate Kit FVJ07CI-P, FVJ1CI, FVJ1CI-P, and FVJ15CI
305367901 Jet Nozzle Kit 05VJ
305367902 Jet Nozzle Kit 07VJ, 05VJ-P
305367904 Jet Nozzle Kit 15VJ, 10VJ-P
Confirm Before OrderingOrder by the model number on the pump nameplate, not by horsepower alone — the same horsepower is built on more than one hydraulic. Send us the nameplate and we will confirm the part before it ships.
For engineering-led sizing and selection support or a factory submittal, email sales@watermainsupply.com or call 1-888.510.4036.
