A.Y. McDonald 1500 Multi-Stage Jet Pump - NSF 61/372 Potable

HP - Voltage: 3/4 HP - 230/115V 1Ph
Impeller: Plastic
Model - Switch: 1575P - 30/50 PSI Switch

Product variant with selected options does not exist!

MAP
Price
$1,568.20
Coupon 5% off applied automatically in your cart. No code needed.
SKU: 6321-101
Weight : 61.9999 lb
Loading locations...
Free Shipping $499 or more
Skip the chatbot. Talk to an expert.
1-888.510.4036 · Same-day shipping available
Description
A.Y. McDonald · Multi-Stage Jet Pump
1500 Multi-Stage Jet Pump
Cast iron multi-stage jet pump, 3/4 to 1 1/2 HP, for high pressure from shallow wells or deep wells to 160 ft. Certified for drinking water.
Shallow to 25 ft · Deep Well to 160 ft
3/4-1 1/2 HP
230/115V 1Ph
58-102 PSI Max Shut-Off
30/50 PSI Switch
1 1/4 in Suction · 1 in Discharge
NEMA C Motor
Cast Iron Diffusers
NSF/ANSI 61 and 372
19.5-20.5 L x 11 W x 10.5 H in
68-69 lb Weight
What Ships and What It Needs to Run

Included: the pump with its NEMA C keyed-shaft motor and a pressure switch factory set to 30/50 PSI. The 1575 and 1510 carry an automatic diaphragm-type regulating valve for deep well use; SW models are built without it.

Jet ejector required, ordered separately, on the 1575 and 1510. Shallow well: the 1500 Series shallow well ejector package (659JP for the 1575, 658JP for the 1510, 652JP for the 1515SW). Deep well: the 4 in two-pipe or 2 in single-pipe packages by depth to water. The 1510SW and 1515SW also run without an ejector.

Pressure tank, foot valve and well piping: sized to your well and ordered separately. A reliable foot valve is a must on a deep well jet.

Overview

The 1500 Series is A.Y. McDonald’s multi-stage jet pump. Two stages build more pressure than a single-stage jet: shut-off reaches 89 to 102 PSI with the ejector, so it suits higher switch settings and taller buildings. In shallow wells without an ejector, the SW models deliver up to 42 GPM. Two-pipe drop is 1 in x 1 1/4 in with the 108 adapter, and 460V is available from the factory.

Certified for drinking water to NSF/ANSI 61 and NSF/ANSI 372, for private wells and home water systems.

SW models: 1510SW and 1515SW are built without the regulating valve, for shallow well and no-ejector use. The 1575 and 1510 keep the automatic regulating valve for deep wells.

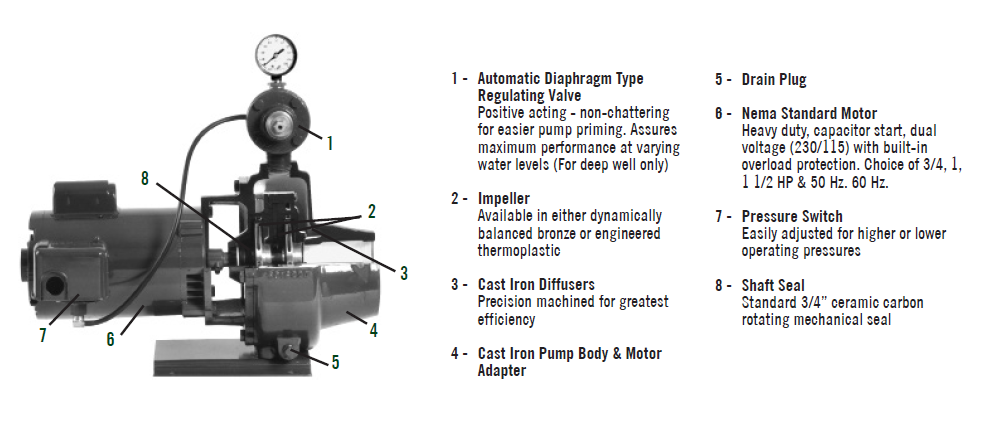

  • Cast iron diffusers, precision machined, and cast iron pump body and motor adapter.
  • Automatic diaphragm-type regulating valve (1575, 1510): positive acting, non-chattering, for easier priming at varying water levels.
  • Brass or thermoplastic impeller, by model (P suffix = plastic).
Genuine A.Y. McDonald equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier. Watermain Supply is an Authorized Stocking A.Y. McDonald and Baker Water Systems Distributor.
12-Month A.Y. McDonald Warranty

Covered for 1 year from the date of installation, or 2 years from the date of manufacture, whichever comes first, under A.Y. McDonald’s published limited warranty terms, as set out in the A.Y. McDonald Pumps & Accessories Price List. Components made by other manufacturers, such as the motor and the pressure switch, carry their original manufacturer’s warranty.

Single Unit

Each pump runs on its own pressure switch and tank. Size it to peak demand at your depth to water.

Models & Ratings (60 Hz)

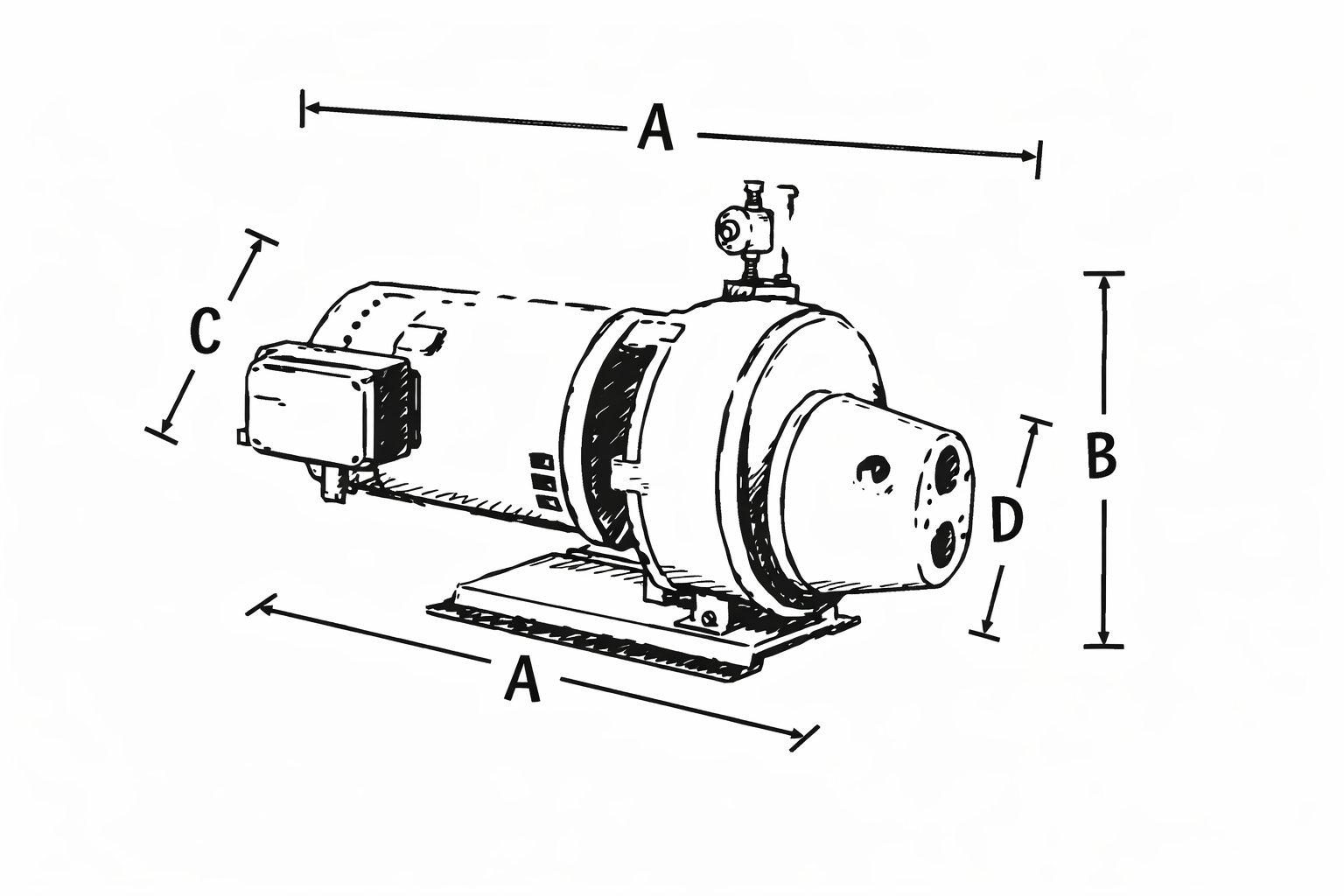

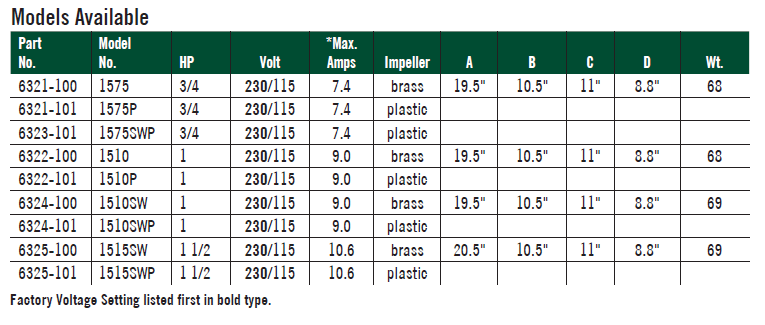

Model Part No. Power Voltage Max Amps Switch, factory set Impeller Regulating valve Length “A” Catalog weight
1575 6321-100 3/4 HP 230/115V 1Ph 7.4 30/50 PSI Brass Yes 19.5 in 68 lb
1575P 6321-101 3/4 HP 230/115V 1Ph 7.4 30/50 PSI Plastic Yes 19.5 in 68 lb
1510 6322-100 1 HP 230/115V 1Ph 9.0 30/50 PSI Brass Yes 19.5 in 68 lb
1510P 6322-101 1 HP 230/115V 1Ph 9.0 30/50 PSI Plastic Yes 19.5 in 68 lb
1510SW 6324-100 1 HP 230/115V 1Ph 9.0 30/50 PSI Brass No 19.5 in 69 lb
1510SWP 6324-101 1 HP 230/115V 1Ph 9.0 30/50 PSI Plastic No 19.5 in 69 lb
1515SW 6325-100 1 1/2 HP 230/115V 1Ph 10.6 30/50 PSI Brass No 20.5 in 69 lb
1515SWP 6325-101 1 1/2 HP 230/115V 1Ph 10.6 30/50 PSI Plastic No 20.5 in 69 lb

Where two voltages are shown, the first is the factory wiring setting. Voltage is changed with the voltage change device on the motor, never at the pressure switch, and must match your supply before power is applied. All models listed are single phase unless the table states 3Ph.

Source: Pumps by Baker catalog, rev 3/26, p. 223; plastic-impeller dimensions and weights as the brass model. 460V available, contact factory.

Specifications
Suction / discharge 1 1/4 in suction; 1 in discharge; two-pipe drop 1 in x 1 1/4 in with the 108 adapter
Motor NEMA C (keyed shaft), heavy duty, capacitor start, dual voltage 230/115V, built-in overload protection
Pressure switch Factory set 30/50 PSI; adjustable
Shaft seal 3/4 in ceramic/carbon rotating mechanical seal
Certification NSF/ANSI 61 and NSF/ANSI 372
App or remote connectivity None — runs from its pressure switch
Performance — Will It Do What You Need?

Each figure is gallons per minute from A.Y. McDonald’s published table; the last column is the shut-off pressure at that lift.

Shallow well — GPM at discharge pressure

Model HP Ejector Suction lift, ft 20 PSI 30 PSI 40 PSI 50 PSI 60 PSI 70 PSI 80 PSI Max shut-off, PSI
1510SW 1 None 10 41.6 37.6 31.6 24.1 65
15 40.0 36.5 30.1 22.1 63
25 29.5 28.5 26.5 16.5 58
1515SW 1 1/2 None 10 42.3 40.5 36.5 32.0 24.5 76
15 41.6 39.8 35.2 29.3 23.0 74
25 33.3 32.5 31.0 26.5 18.8 69
1575 3/4 659JP 10 12.3 12.3 12.1 11.7 10.0 6.1 96
15 11.0 11.0 11.0 10.5 7.6 4.1 94
25 7.1 7.0 7.0 7.0 7.0 3.0 89
1510 1 658JP 10 15.0 14.8 14.7 14.1 13.4 9.1 102
15 13.0 12.9 12.9 12.8 12.4 8.2 100
25 7.6 7.5 7.5 7.5 7.4 6.3 96
1515SW 1 1/2 652JP 10 17.4 17.2 17.1 16.9 15.0 10.0 5.8 100
15 15.0 15.0 14.7 14.5 13.6 9.7 5.0 98
25 9.6 9.2 9.0 8.8 8.8 6.7 3.1 94

Deep well ejectors by depth to water

Pump 4 in two-pipe ejector 2 in single-pipe ejector
1575 (3/4 HP) 7109MP 30-70 ft · 7110MP 60-110 ft · 7111MP 90-150 ft 7125MP 30-70 ft · 7126MP 60-110 ft · 7127MP 90-150 ft
1510 (1 HP) 7112MP 30-80 ft · 7113MP 60-120 ft · 7114MP 100-160 ft 7128MP to 7130MP, by depth

Pressure is the point of a multi-stage: the 1 HP 1510 with its 658JP ejector from 15 ft still delivers 12.4 GPM at 70 PSI and 8.2 GPM at 80 PSI. Without an ejector, the 1515SW moves 35.2 GPM at 40 PSI from 15 ft.

Max shut-off is the pressure at zero flow at that lift — a ceiling, not a working point. Deep well capacities at 30 PSI by ejector are printed on catalog p. 224 (Data Sheet tab). Sources: Pumps by Baker catalog, rev 3/26, pp. 224 and 227.

Before You Buy — The Limits That Decide the Fit
Ejector Required on the 1575 and 1510; optional on the 1515SW (652JP); the SW models also run without one.
Pressure switch Factory set 30/50 PSI. With the ejector, shut-off reaches 89 to 102 PSI, which leaves room for a 40/60 PSI setting.
Depth to water Shallow well to 25 ft; deep well to 160 ft with the 7114MP on the 1 HP.
Priming Start it with the pump and piping completely full of water. A reliable foot valve is a must on a deep well jet; an air leak in the suction line makes it lose prime.
Power Dual voltage 230/115V single phase, factory wired 230V. Max amps 7.4, 9.0 and 10.6 by HP. 460V available from the factory.
Drinking water Certified to NSF/ANSI 61 and NSF/ANSI 372.
Pressure tank Sized separately: the Tank Calculator works it from pump GPM and the switch setting.
Pairing Single unit.
Materials of Construction
Pump body and motor adapter Cast iron
Diffusers Cast iron, precision machined
Impeller Dynamically balanced bronze or engineered thermoplastic, by model
Shaft seal Ceramic/carbon, 3/4 in

Per the Pumps by Baker catalog, rev 3/26, p. 223.

Accessories and Service Parts
Item Code Use
Diaphragm pressure tank 6127-388 and up Stores water between pump cycles; size it with the Tank Calculator
Pressure switch with pulsation plug 3129-027 Replacement 30/50 PSI switch
1500 shallow well ejector package 659JP, 658JP, 652JP Shallow well use
1500 deep well 4 in two-pipe ejector By depth Deep well, 4 in casing
1500 deep well 2 in single-pipe ejector By depth Deep well, 2 in casing
Replacement NEMA C motor 6127-154 / 160 / 156 3/4, 1 and 1 1/2 HP
1000 and 1500 repair parts By part number Repair parts
