Part Type:
Motor 3/4 HP
MAP
$533.33
SKU: 6127-154
Weight: 19.3 lb
Free Shipping $499 or more
Available For Order! Call Sales Counter for accurate lead-time!
Description

Genuine Baker Water Systems replacement parts for 1000 / 1500 Series Jet Pumps. *Impeller prices per each. *Kits include gaskets.

Technical Details
3/4 HP
1075 & 1575		 1 HP
1010 & 1510		 3/4 HP
1075SW & 1575SW		 1 HP
1010SW & 1510SW		 1 1/2 HP
1015SW & 1515SW
Description Part # Part # Part # Part # Part #
1 Motor 6127-154 6127-160 6127-154 6127-160 6127-156
*2 Brass Impeller 6316-209 6316-208 6316-209 6316-208 6316-208
*2 Plastic Impeller 6316-251 6316-250 6316-252 6316-251 6316-250

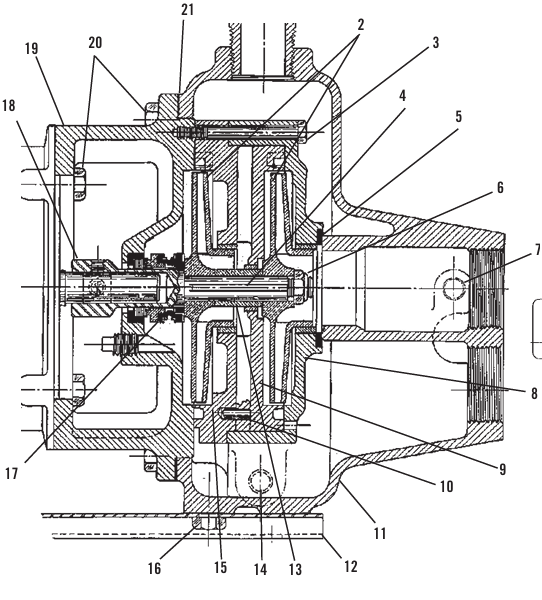

Part # Ref # Description
3100-545 3 Diffuser capscrews
6316-228 4 Impeller Key
6316-213 5 Cover gasket
3104-131 6 Impeller locknut
3126-103 7 1/8" plug
6316-227 8 Diffuser Cover kit*
6316-216 9 1st Diffuser
3121-509 10 Drive pin (supplied w/1 diffuser)
6316-235 11 1500 Series body assembly
6127-248 12 1500 Series pump foot
6127-336 13 Impeller spacer kit*
3126-126 14 1/4" Plug
6316-217 15 2nd diffuser
3100-530 16 Pump foot capscrews
6422-103 17 Shaft Seal
6127-334 18 Shaft assembly
6316-241 19 Adapter
3100-529 20 Capscrews (10)
6152-207 21 Body Gasket

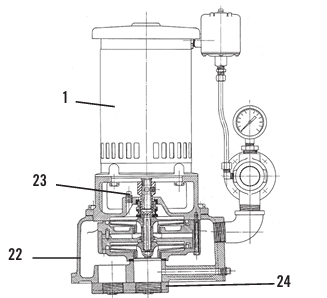

6316-234 22 1000 Series body assembly
5999-902 23 Series vent cock (1000 Series)
6421-124 24 Flange assembly+

*Includes body gasket (5) and cover gasket (21).
+For 1000 series, sold separately.

Shallow Well Jet Package - Venturi Assembly
Models HP Part #
659JP 3/4 6155-314
658JP 1 6155-316
652JP 1 1/2 6155-212
Deep Well Jet Package (2003 & Newer)
Models Venturi Part # Nozzle Part #
7109MP & 7125MP 6414-207 5999-911
7110MP & 7126MP 6413-203 6128-201
7111MP & 7127MP 6421-217 5999-911
7112MP & 7128MP 6421-219 5999-913
7113MP & 7129MP 6414-208 5999-912
7114MP & 7130MP 6414-208 5999-911
