Campbell Ideal Clamps
Availability
Type
Price
$0
$0
Campbell Ideal Single Ear Pinch Clamp
Campbell
Campbell Ideal Single Ear Pinch Clamp
- Price
- Call for pricing
Campbell Ideal Clamp Installation Tools
Campbell
Campbell Ideal Clamp Installation Tools
- Price
- Call for pricing
Campbell Ideal All Stainless Hose Clamp Series
Campbell
Campbell Ideal All Stainless Hose Clamp Series
- Price
- Call for pricing
Campbell Ideal Clamp Standard Series
Campbell
Campbell Ideal Clamp Standard Series
- Price
- Call for pricing
Campbell Ideal Clamps
Ideal Tridon · Worm-Gear · Pinch · Tools
Ideal Hose ClampsQ1 Standard · Q2 All-Stainless · Q3 Tools · Q4 Pinch
Ideal Tridon worm-gear hose clamps in standard zinc-plated and full-stainless construction. Single-ear pinch clamps for one-time crimp installs on PEX and insert fittings. Plus the installation tools that make field work fast and consistent.
4
Series (Q1–Q4)
1/4–5"
Diameter Range
SS
All-Stainless Option
100+
Catalog SKUs
Ideal Clamp Series
Ideal Tridon is the U.S. industry standard for worm-gear hose clamps. Campbell stocks the full Ideal line organized into four series — standard, all-stainless, installation tools, and single-ear pinch.

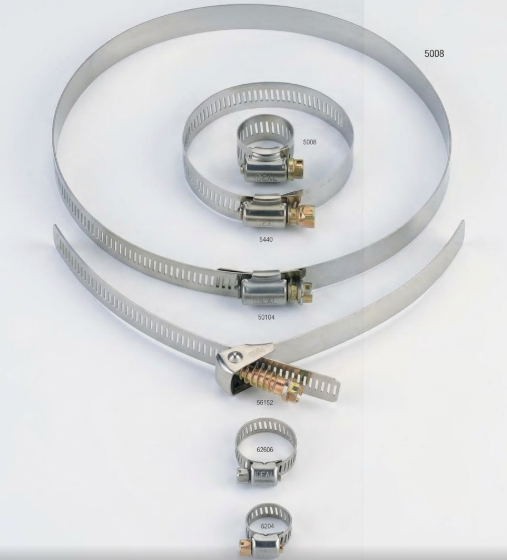

Q1 — Standard Series
Zinc-Plated Band · Stainless Screw · Workhorse
The standard Ideal worm-gear clamp. 200/300 series zinc-plated steel band with stainless steel screw mechanism. The most-installed Ideal clamp in the industry — standard for poly pipe insert fittings, hose connections, and general plumbing service. Sized 1/4 in through 5 in diameter range.
Band MaterialZinc-plated steel
ScrewStainless steel
Diameter Range1/4 in – 5 in
Best ForGeneral plumbing · insert fittings

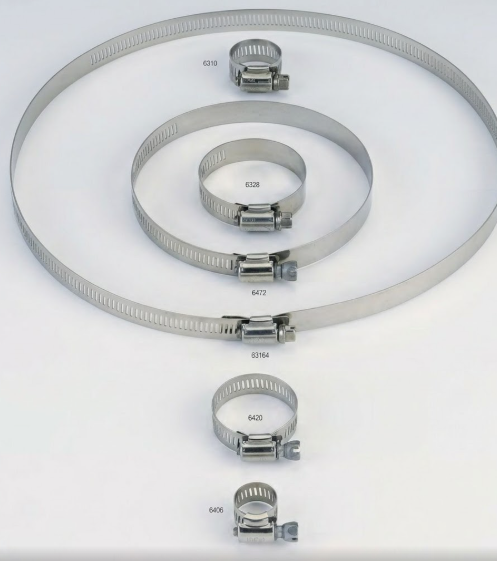

Q2 — All-Stainless Series
300-Series SS Throughout · Corrosion-Immune
Full 300-series stainless steel construction — band, screw, housing. Specify for coastal, marine, food-grade, chemical, or any application where the standard zinc-plated band would corrode. Same diameter range as Q1 but rated for the harshest environments.
Band Material300-series stainless
Screw300-series stainless
Diameter Range1/4 in – 5 in
Best ForCoastal · marine · food · chemical
Q3 — Installation Tools
Pinch Clamp Tool · Ratchet Drivers · Pliers
The installation tools that make Ideal clamps fast and consistent in the field. Pinch-clamp installation tools for compressing single-ear clamps. Ratcheting hose-clamp drivers for worm-gear clamps in tight spaces. Specialty pliers and removal tools.
Pinch ToolFor Q4 single-ear clamps
Ratchet DriverFor Q1 / Q2 worm-gear
Removal ToolFor seized clamps
Best ForPro contractors · field service

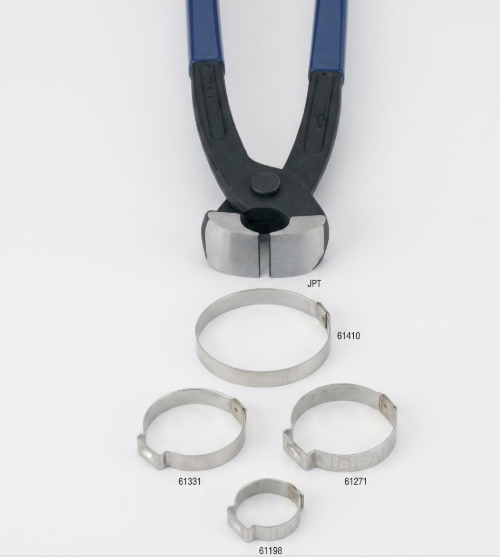

Q4 — Single-Ear Pinch Clamp
One-Time Crimp · PEX · Insert Fittings
Stainless single-ear "Oetiker style" pinch clamps. Crimped once with a pinch tool and never adjusted — lower profile and more consistent than worm-gear, no screw to loosen over time. Standard for PEX-A, PEX-B, polyethylene compression fittings, and OEM hose assemblies.
Material300-series stainless
InstallPinch tool (Q3) · one-time crimp
Best ForPEX · insert fittings · OEM
ProfileLow · flush mount
Q1 vs Q2 vs Q4 Decision Logic
The wrong clamp causes leaks, callbacks, and warranty claims. Match clamp series to application and water chemistry.
| Series | Construction | Reusable | Best Application |
|---|---|---|---|
| Q1 Standard | Zinc band + SS screw | Yes (worm gear) | General plumbing · poly pipe inserts · non-corrosive |
| Q2 All-Stainless | 300-series SS throughout | Yes (worm gear) | Coastal · marine · food · chemical · hot water |
| Q4 Pinch | 300-series SS | No (one-time crimp) | PEX · OEM hose · flush-mount · long-life |
Rule of thumb: Use Q1 indoors and on freshwater general plumbing. Switch to Q2 within 10 miles of the coast, in any food-grade environment, or where chemical service is involved. Use Q4 on PEX and any install where the clamp will never be adjusted again — lower profile and longer life than worm-gear.
Sizing & Pipe Compatibility
Ideal worm-gear clamps are sized by the clamp's outer diameter range — the band closes within a defined min/max range. Always specify a clamp where your pipe OD falls roughly in the middle of the range, not at the extremes.
| Pipe Size | Pipe OD (Approx) | Recommended Clamp Range | Common Application |
|---|---|---|---|
| 1/4 in poly | 0.4 in | 1/4 – 5/8 in | Drip irrigation lateral |
| 3/8 in poly | 0.5 in | 3/8 – 7/8 in | Small irrigation / drain |
| 1/2 in poly | 0.7 in | 1/2 – 1 1/4 in | Small house supply / hose |
| 3/4 in poly | 1.05 in | 3/4 – 1 3/4 in | Standard residential supply |
| 1 in poly | 1.32 in | 1 – 2 in | Standard well drop pipe / supply |
| 1 1/4 in poly | 1.66 in | 1 1/4 – 2 1/4 in | Larger residential / commercial |
| 1 1/2 in poly | 1.9 in | 1 1/2 – 2 1/2 in | Larger commercial supply |
| 2 in poly | 2.38 in | 2 – 3 in | Irrigation main / commercial |
| 3 in poly | 3.5 in | 3 – 4 in | Large irrigation / municipal |
| 4 in poly | 4.5 in | 4 – 5 in | Large commercial / agricultural |
Hose Clamp Best Practices
Most insert-fitting leaks trace back to wrong clamp size, single-clamp installs where double is required, or under-torqued connections. Get these right.
Always Two Clamps on Insert Fittings
Standard practice on poly pipe insert fittings: two clamps per connection, screws offset 180°. The second clamp catches any leak the first misses and prevents the fitting from blowing off under pressure cycling.
Coastal = Q2 All-Stainless
Within 10 miles of the Gulf, the zinc-plated Q1 band corrodes within 2–5 years from salt spray. Specify Q2 all-stainless on every coastal install, even if it doubles the clamp cost. The labor to replace a corroded clamp is the killer.
Pinch Clamps for PEX
Worm-gear clamps tend to crush PEX over time as the band cuts into the soft pipe. Use Q4 single-ear pinch clamps on PEX-A and PEX-B — uniform compression and zero adjustment over the install life.
Don't Over-Torque Worm-Gear
The screw will keep tightening past the band's elastic limit, deforming the pipe and the band. Stop tightening when the band first contacts the pipe surface evenly — another half-turn is enough. Keep going and you crack the fitting.
Match Clamp Width to Application
Standard 1/2 in width clamps work for most applications. 5/8 in or 3/4 in width for high-vibration or large-diameter applications — spreads load over more pipe surface, prevents the band from cutting in.
Inspect Annually on Critical Service
Pressure-cycled connections (well drop pipe, tank tee, booster discharge) benefit from annual clamp inspection. Re-torque worm-gear clamps that have loosened. Replace any with visible band corrosion or screw rust.
Application Selection
Standard Poly Pipe Insert Fitting
Use Q1 standard worm-gear clamps — two per connection, screws offset 180°. The most common Ideal clamp install in residential plumbing.
Coastal / Hurricane Zone Install
Use Q2 all-stainless. Salt-spray corrosion kills zinc-plated bands within 2–5 years. Stainless lasts the life of the pipe.
Well Drop Pipe Connection
Use Q1 (clean water) or Q2 (high iron / aggressive) — two clamps per connection at every threaded joint. Critical — a failed clamp drops the pump.
PEX-A or PEX-B Connection
Use Q4 single-ear pinch clamps with the pinch tool (Q3). Uniform compression, low profile, zero loosening over time. Industry standard for PEX.
Food-Grade / Beverage
Use Q2 all-stainless. Food-grade certifications require stainless construction. Standard for breweries, food processing, and dairy.
Chemical Service
Use Q2 all-stainless. Standard for chemical metering pump connections, brine lines, and water-treatment dosing systems.
OEM Equipment Hose Assembly
Use Q4 pinch clamps. Lower profile fits OEM tight clearances, no field-adjustment needed, longer life than worm-gear under engine vibration.
Pro Contractor Install Kit
Stock Q1 + Q2 + Q4 in standard sizes plus Q3 tools. The Q3 ratcheting driver and pinch tool make field work 3× faster and produce more consistent installs.
Frequently Asked Questions
What's the difference between Q1, Q2, Q3, and Q4?
Q1 = standard worm-gear clamp (zinc-plated band, SS screw). Q2 = all-stainless worm-gear (300-series throughout). Q3 = installation tools (pinch tools, ratchet drivers). Q4 = single-ear pinch clamps (one-time crimp, no screw, lowest profile). Match the series to your application — not interchangeable.
Why two clamps instead of one on insert fittings?
Standard practice on poly pipe insert fittings: two clamps per connection with screws offset 180°. The second clamp catches any leak the first misses and dramatically reduces the chance of the fitting blowing off under pressure cycling. Single-clamp installs work most of the time, but the failure mode is catastrophic — pipe disconnects, water everywhere. Two clamps is cheap insurance.
When do I need stainless (Q2) instead of standard (Q1)?
Anywhere the zinc band would corrode: (1) Within 10 miles of the coast — salt-spray attack. (2) Hot water service — thermal cycling accelerates zinc loss. (3) Food-grade or beverage processing — stainless required by code. (4) Chemical service — especially chlorinated or acidic. (5) High-iron groundwater — common East Texas. The Q2 cost premium is small compared to the labor to replace a corroded clamp.
Why use Q4 pinch clamps on PEX?
Worm-gear clamps cut into PEX over time as the band edges press into the soft pipe wall. The pipe deforms, the seal fails, and you get a slow leak. Q4 single-ear pinch clamps apply uniform 360° compression with no edge cutting — standard for all PEX-A and PEX-B insert fittings. Lower profile too, which matters in tight installs.
How tight should I tighten a worm-gear clamp?
Tighten until the band makes even, full contact with the pipe surface — the entire band should sit flush on the pipe with no gaps. Then add a quarter to half turn for safety margin. Stop — don't keep tightening "just to be sure." Over-torque deforms the pipe, ruins the band geometry, and can crack brass fittings.
Can I reuse a worm-gear clamp?
Once or twice, yes — if the band is undamaged and the screw mechanism still operates smoothly. Inspect for band cracks, screw rust, or housing distortion before reusing. Pinch clamps (Q4) are explicitly one-use — once crimped, they cannot be uncrimped without destroying the clamp.
What size clamp for 3/4 in poly pipe?
3/4 in poly pipe has an OD of approximately 1.05 in. Use a clamp rated for 3/4 in to 1 3/4 in range — the pipe OD falls comfortably in the lower-middle of the range, leaving room for the insert fitting boss without maxing the band. Always check the actual fitting OD before clamping — pipe + insert fitting is wider than pipe alone.
Are Ideal clamps interchangeable with other brands?
Functionally yes — worm-gear clamps from Tridon, Murray, Mr. Gasket, and most other brands work with the same basic geometry. Quality varies significantly — Ideal Tridon is the U.S. industry benchmark for band consistency, screw mechanism reliability, and corrosion resistance. We stock Ideal because the cost difference vs cheaper imports is small relative to the leak-callback labor on a failed import clamp.
Do you sell the installation tools?
Yes — Q3 series. The pinch-clamp installation tool for Q4 single-ear clamps is essential for proper PEX installation (you can't crimp these reliably with pliers). The ratcheting hose-clamp driver for Q1/Q2 worm-gear makes field work 3× faster than a screwdriver, especially in tight spaces. Both are pro-contractor essentials.
Need Help Picking the Right Clamps?
Tell us your pipe size, material (poly, PEX, hose), and application environment (residential, coastal, food, chemical). We'll spec the right Ideal series and shipping case quantities and ship from Houston same day.
