A.Y. McDonald Diaphragm Pressure Tank - In-Line, Horizontal and Vertical, 2-119 Gal
A.Y. McDonald Diaphragm Pressure Tank - In-Line, Horizontal and Vertical, 2-119 Gal

A.Y. McDonald Diaphragm Pressure Tank - In-Line, Horizontal and Vertical, 2-119 Gal

Gallons: 2
Style: In-Line

Product variant with selected options does not exist!
MAP
$92.50
SKU: 6127-388
Weight : 5.0993 lb
Free Shipping $499 or more
Need it fast? Call for same-day shipping options: 281.664.8000
Description

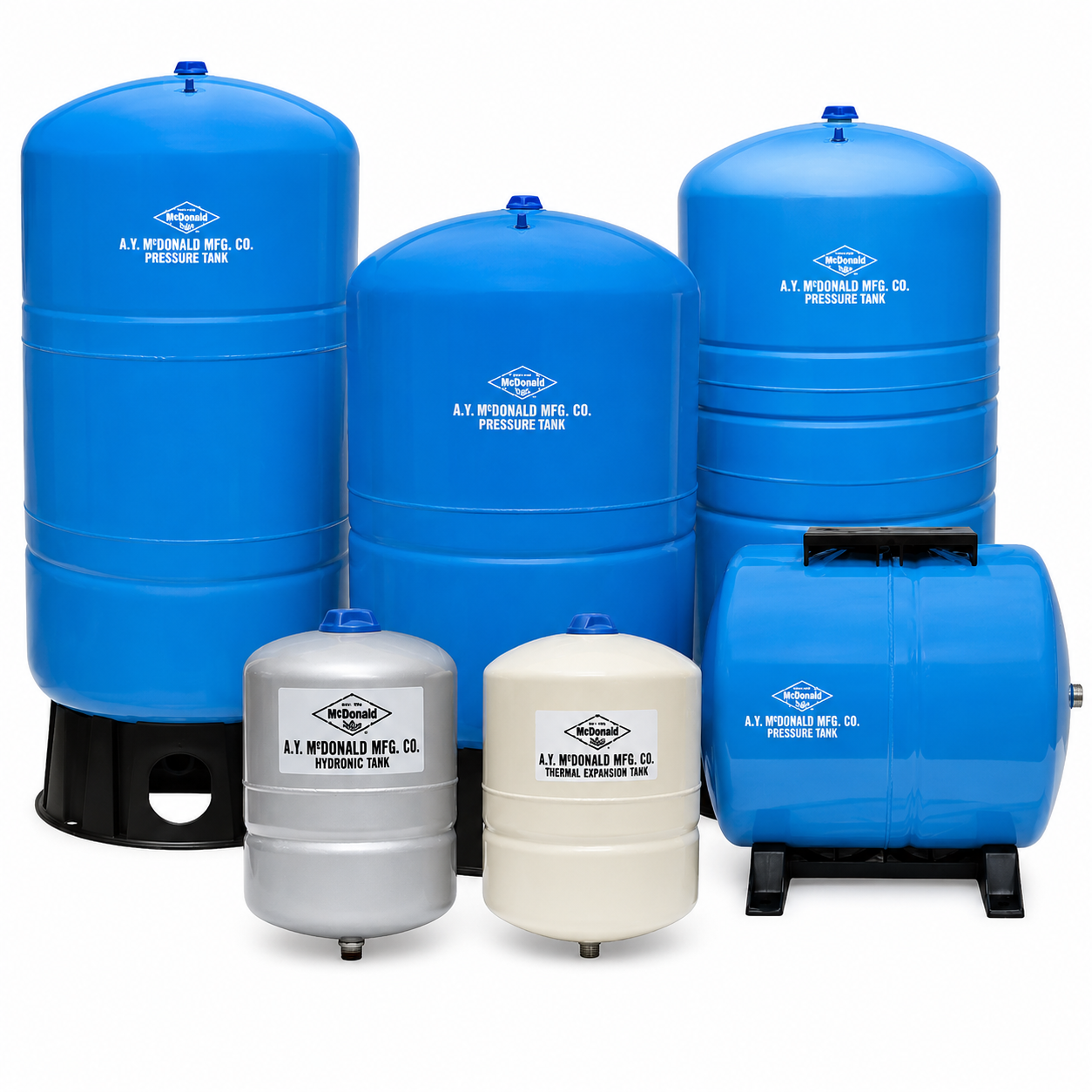

A.Y. McDonald Series 16 diaphragm pressure tanks for water well and booster systems, from 2 gallon in-line tanks to 119 gallon free-standing vertical tanks. A sealed diaphragm separates air charge from water, holding drawdown between pump cycles, reducing pump starts, and protecting the system from short cycling. In-line tanks thread directly into the line; horizontal tanks carry a pump mounting saddle on a plastic base; vertical tanks stand on a plastic or metal base with side system connection.

Model Reference
Part Number Model Number Gallons Style Connection Weight (lb)
6127-388 16002-V3M 2 In-Line 3/4 in male 5.1
6127-389 16005-V3M 5 In-Line 3/4 in male 8.2
6127-390 16006-V3M 6 In-Line 3/4 in male 8.2
6127-391 16006PH4M 5 Horizontal 1 in male 9.7
6127-392 16010PH4M 10 Horizontal 1 in male 16.4
6127-393 16016PH4M 16 Horizontal 1 in male 24.5
6127-394 16021PH4M 21 Horizontal 1 in male 32.5
6127-395 16026PH4M 26 Horizontal 1 in male 33.1
6127-396 16016PV4F 16 Vertical 1 in female 24.3
6127-397 16021PV4F 21 Vertical 1 in female 32.2
6127-398 16026PV4F 26 Vertical 1 in female 33.5
6127-399 16032PV4F 32 Vertical 1 in female 50.1
6127-400 16034PV5F 34 Vertical 1-1/4 in female 54.1
6127-401 16042PV5F 42 Vertical 1-1/4 in female 61.3
6127-402 16053PV5F 53 Vertical 1-1/4 in female 68.6
6127-403 16062PV5F 62 Vertical 1-1/4 in female 83.2
6127-404 16081PV5F 81 Vertical 1-1/4 in female 103.9
6127-405 16086MV5F 86 Vertical 1-1/4 in female, metal base 106.9
6127-406 16119MV5F 119 Vertical 1-1/4 in female, metal base 135.6
Notes
  • NSF/ANSI 61 listed for drinking water contact.
  • Factory pre-charged; verify and adjust pre-charge to your pressure switch setting at installation.
  • Series 16 model coding: base P plastic, M metal; position V vertical, H horizontal; connection size 2 = 1/2 in, 3 = 3/4 in, 4 = 1 in, 5 = 1-1/4 in; M male, F female.
Literature

A.Y. McDonald Pressure Tank Guide (PDF)

Need help sizing a pressure tank? Email sales@watermainsupply.com or call 281.664.8000 with your pump model and drawdown requirement.
