8600 Convertible Jet Pump, NSF 61/372 - Shallow & Deep Well, 1/2-1 HP | A.Y. McDonald

NSF/ANSI/CAN 61 & 372 Certified for Potable Water. This A.Y. McDonald jet pump is independently certified to NSF/ANSI 61 for drinking-water system components and NSF/ANSI 372 for lead-free construction, making it suitable for residential and light-commercial potable water supply, private wells, and home water systems. All wetted materials are lead-free and meet the federal lead-free requirements for pumps used in the delivery of drinking water.

Baker offers a full line of shallow well and convertible jet pumps built for years of trouble free operation, with high-efficiency impellers and diffusers. With appropriate jet ejector the 8600 series convertible capacity is up to 65 gallons per minute (GPM) and pressures to 80 PSI.

All 8600 Series Convertible Pumps come with a 1 1/4" suction pipe and 1" top or side discharge. The sizes range from 1/2 to 1 horsepower (HP).

• • Square Flange Motor 7/16" - 20 Threads
  • Deep Well performance to 120 feet to water
  • Pressure switch factory settings:

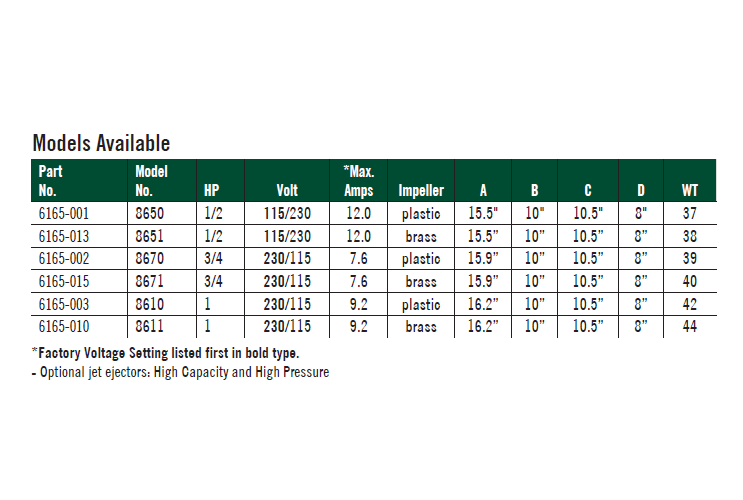

    • 1/2 HP = 20-40 PSI
    • 3/4 and 1 HP = 30-50 PSI
  • Two pipe tapping 1" x 1 1/4"



• *Maximum Amp. Draw at factory voltage setting.

Jet Pump Guide

8600 Series Spec Sheet

Shopping the Goulds JRD Convertible Jet Pumps or other Goulds Water Technology pumps? This A.Y. McDonald jet pump line covers the same duty. Match a Goulds model to the comparable A.Y. McDonald pump below by horsepower, or buy the Goulds pump direct.

Shop the Goulds JRD Convertible Jet Pumps ?

Cross-reference by horsepower and pump type for comparison only. Matched by horsepower and convertible jet design. Engineering-led sizing available — call 281.664.8000 or email sales@watermainsupply.com.
