A.Y. McDonald 8200/8600 Deep Well 4 in Two Pipe Ejector Package - 1/2-1 HP

HP: 1/2 HP
Depth: 30 - 50 ft
Model: 7508JP

Product variant with selected options does not exist!

MAP
Price
$213.84
Coupon 5% off applied automatically in your cart. No code needed.
SKU: 5999-008
Weight : 4.0 lb
Loading locations...
Free Shipping $499 or more
Skip the chatbot. Talk to an expert.
1-888.510.4036 · Same-day shipping available
Description
A.Y. McDonald · Jet Ejector Package

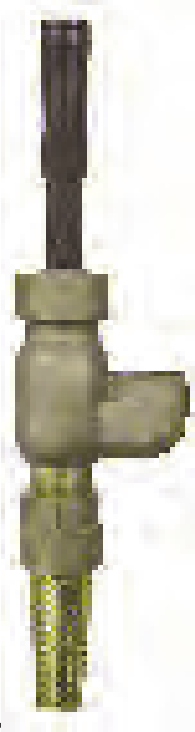

8200 and 8600 Deep Well Ejector Package, 4 in Two Pipe
Single-stage deep well ejectors for 8200 and 8600 Series jet pumps in 4 in casings.
Overview

These packages set an 8200 or 8600 Series convertible jet pump up for a deep well with a 4 in casing, using a 1 in drive pipe and a 1 1/4 in return pipe.

Each package is matched to a pump horsepower and a depth-to-water range. Add L to the model number for the version without the foot valve.

Key Features

  • For 8200 and 8600 Series convertible jet pumps, 1/2 to 1 HP
  • Two pipe: 1 in drive pipe and 1 1/4 in return pipe
  • One package per horsepower and depth range
  • For 4 in and larger well casings
What Ships and What It Needs to Run

Included: the deep well jet ejector package for the horsepower and depth range selected, with foot valve.

Pump required, ordered separately: an 8200 or 8600 Series convertible jet pump of the same horsepower.

Sized at install: drive pipe and return pipe to the setting depth.

Genuine A.Y. McDonald equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier. Watermain Supply is an Authorized Stocking A.Y. McDonald and Baker Water Systems Distributor.
A.Y. McDonald Limited Warranty

Covered for 2 years from the date of manufacture or 1 year from the date of installation, whichever comes first, under A.Y. McDonald’s standard limited warranty for Baker products.

Models & Fit
Part No. HP Depth Model Weight
5999-008 1/2 HP 30 - 50 ft 7508JP 4.0 lb
5999-007 1/2 HP 40 - 80 ft 7509JP 4.0 lb
5999-000 3/4 and 1 HP 30 - 50 ft 7901JP 4.0 lb
5999-001 1 HP 50 - 80 ft 7902JP 4.0 lb
5999-047 1 HP 80 - 110 ft 7903JP 3.0 lb
5999-002 3/4 HP 50 - 80 ft 7906JP 4.0 lb
5999-003 3/4 HP 80 - 120 ft 7907JP 3.0 lb

Models and depth ranges from the Jet Ejectors table, Pumps by Baker catalog (Sept 2025), p. 227.

Before You Order

Pick the package by pump horsepower and by the depth to water in your well, measured to the pumping level. A two-pipe package needs a 4 in or larger casing; a single-pipe package uses a 2 in casing as the drive pipe. If the depth is near the top of a range, email us the well details and we will confirm the package.

For engineering-led sizing and selection support or a factory submittal, email sales@watermainsupply.com or call 1-888.510.4036.
