NSF/ANSI/CAN 61 & 372 Certified for Potable Water. This A.Y. McDonald jet pump is independently certified to NSF/ANSI 61 for drinking-water system components and NSF/ANSI 372 for lead-free construction, making it suitable for residential and light-commercial potable water supply, private wells, and home water systems. All wetted materials are lead-free and meet the federal lead-free requirements for pumps used in the delivery of drinking water.

Baker offers a full line of shallow well and convertible jet pumps built for years of trouble free operation, with high-efficiency impellers and diffusers. The 8200 series convertible capacity is up to 65 gallons per minute (GPM) and pressures to 80 PSI.

All 8200 Series Convertible Pumps come with a 1 1/4" suction pipe and 1" top or side discharge. The sizes range from 1/2 to 1 horsepower (HP).

• • Nema J (Threaded Shaft) Motor 7/16" - 20 Threads
  • Pressure switch factory settings:
    • 1/2 HP = 20-40 PSI
    • 3/4 and 1 HP = 30-50 PSI
  • Two pipe tappings 1" x 1 1/4"

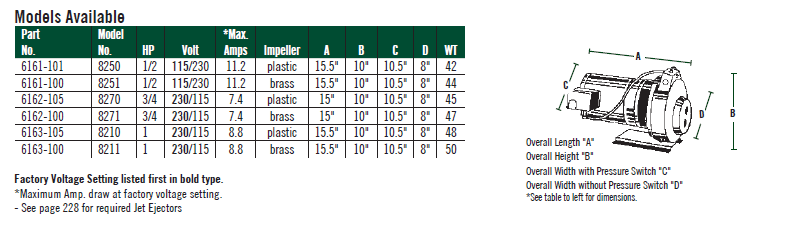

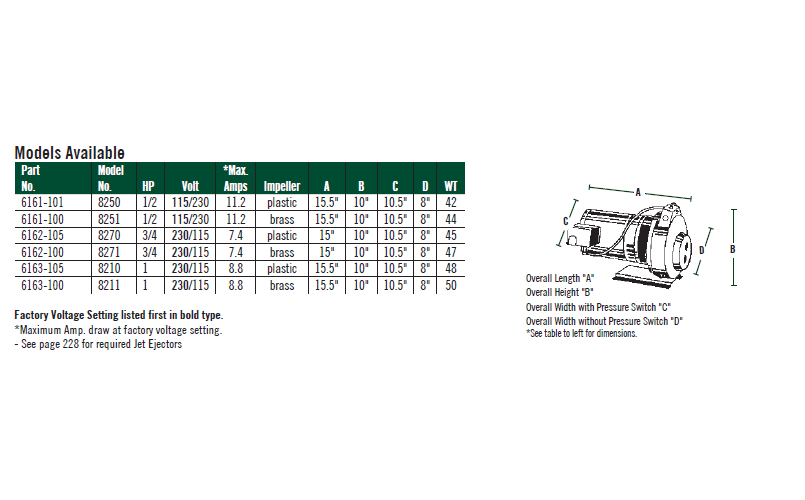

  *Maximum Amp. Draw at factory voltage setting.

Jet Pump Guide

8200 Series Spec Sheet

Shopping the Goulds J+ Convertible Jet Pumps or other Goulds Water Technology pumps? This A.Y. McDonald jet pump line covers the same duty. Match a Goulds model to the comparable A.Y. McDonald pump below by horsepower, or buy the Goulds pump direct.

Shop the Goulds J+ Convertible Jet Pumps ?

Cross-reference by horsepower and pump type for comparison only. Matched by horsepower and convertible jet design. Engineering-led sizing available — call 281.664.8000 or email sales@watermainsupply.com.
