Part Type:
Motor 1/2 HP
MAP
$605.83
SKU: 6155-240
Weight: 16.45 lb
Free Shipping $499 or more
Available For Order! Call Sales Counter for accurate lead-time!
Description

Genuine Baker Water Systems replacement parts for 8100 / 8200 Series Shallow Well & Convertible Jet Pumps. *Kit includes impeller, diffuser, rotary seal & housing gasket with instructions.

Technical Details
HP (1) Motor (5) Imp / Dif Kit* Impeller Diffuser
8130, 8130HP, 8230 6127-324 6155-359 6130-201
8131, 8131HP, 8231 6127-325 6155-331 6130-201
8150, 8150HP, 8250 6155-240 6127-326 6155-358 6130-201
8151, 8151HP, 8251 6155-240 6127-327 6155-330 6130-201
8170, 8170HP, 8270 6155-241 6127-328 6155-370 6155-223
8171, 8171HP, 8271 6155-241 6127-329 6155-334 6155-223
8110, 8110HP, 8210 6155-242 6127-330 6155-369 6155-223
8111, 8111HP, 8211 6155-242 6127-331 6155-333 6155-223

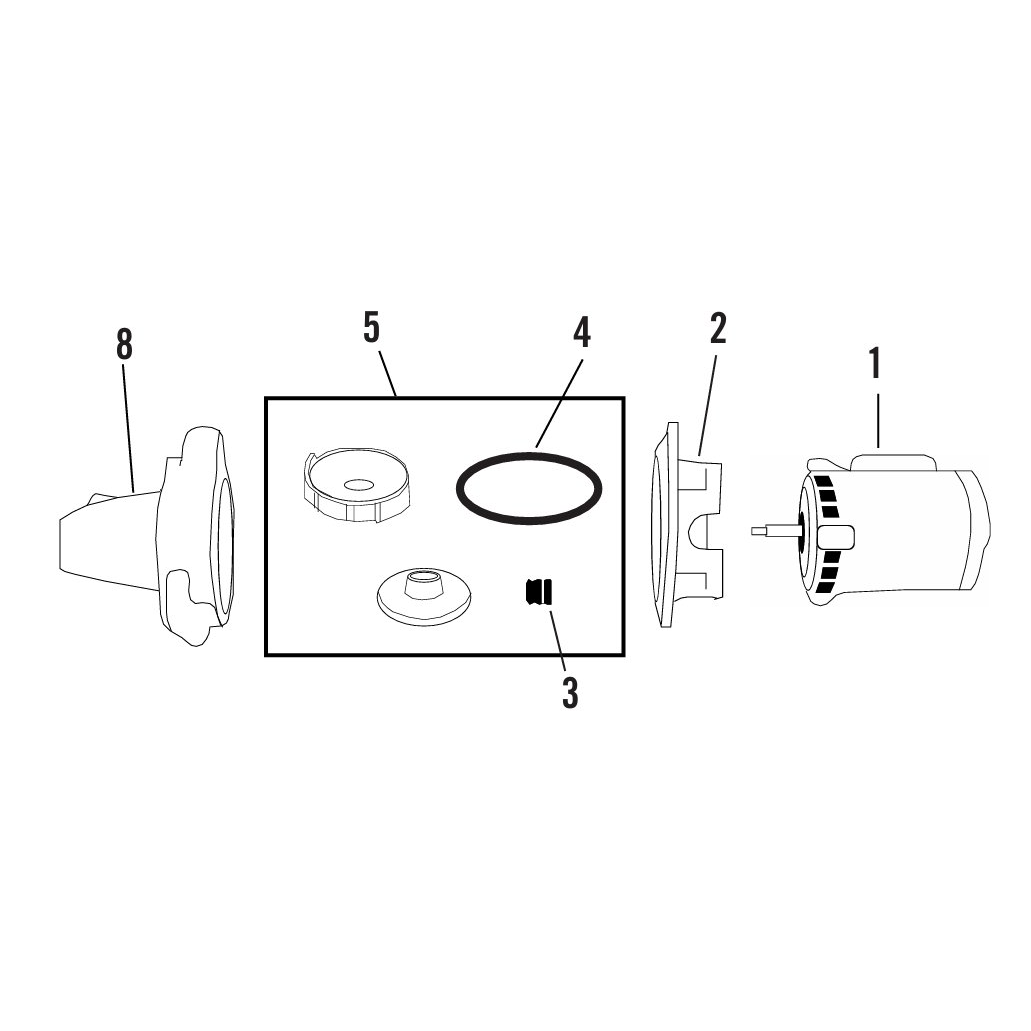

Part # Ref # Description
6156-140 2 Adapter
6422-500 3 Rotary Seal
6155-224 4 Housing Gasket D09 or Older
3138-995 4 O-ring E09 or Newer
3134-114 6 Regulating Valve assembly O-ring
6155-238 7 Regulating Valve assembly
6155-236 8 8100 Pump Body assembly
6155-237 8 8200 Pump Body assembly
Miscellaneous Parts (Not shown above)
Part # Description
6127-248 Pump Foot
3100-530 Foot Capscrews
3100-528 Adapter Capscrews
5999-903 Diffuser Screws
3110-951 Regulating Valve Set Screw
6450-217 Ejector Gasket
5999-958 Bolt-on Jet Body
3134-133 Diffuser O-ring
Shallow Well Venturi - Nozzle - O-ring Assemblies
HP Models Part #
1/3 8130-8131, 650JP, 8530, 8531 6155-203
1/2 8150-8151, 651JP, 8550, 8551 6155-204
3/4 8170-8171, 652JP, 8570, 8571 6155-212
1 8110-8111, 653JP, 8510, 8511 6155-213
1/3 8130HP, 8131HP, 654JP, 8530HP, 8531HP 6155-202
1/2 8150HP, 8151HP, 655JP, 8550HP, 8551HP 6155-205
3/4 8170HP, 8171HP, 656JP, 8570HP, 8571HP 6155-211
1 8110HP, 8111HP, 657JP, 8510HP, 8511HP 6155-214
1/2 8350HP 6156-151
1/2 8350 6156-147

Nozzle/venturi o-ring for assemblies: 3134-120

Deep Well Kits - Jet Package
Models Venturi Part # Nozzle Part #
7502JP, 7733JP 6413-203 6128-201
7503JP, 7734JP 6413-204 6128-201
7508JP, 7735JP 6414-207 6128-201
7509JP, 7736JP 6414-208 6128-201
7901JP, 7808JP 6413-250 6413-246
7902JP, 7809JP 6413-249 6413-246
7903JP, 7810JP 6413-248 6413-246
7906JP, 7812JP 6413-253 6413-246
7907JP, 7813JP 6413-254 6413-246
