Franklin Electric Fhoton SolarPAK 0.5-1.5 HP controller, pump and motor

Franklin Electric Solar Water Pumps

Franklin Electric SolarPAK solar pumping systems, 3–375 GPM with heads to 1,650 ft. SubDrive SolarPAK switches to a generator automatically. Fhoton SolarPAK runs 1/2–10 HP. Fhoton Helical Rotor delivers low flow at high head from a small array. Panels, racking, controllers and replacement pump ends and motors are listed alongside. We size the package and the array to your well and site. Call 1-888.510.4036.

8 products
Sort by:
Best selling
Sort by:
Best selling
Franklin Electric SubDrive SolarPAK Solar Well Pump Package
Franklin Electric SubDrive SolarPAK Packaged System with Carton

Franklin Electric

Free Shipping $499 or more

Franklin Electric SubDrive SolarPAK Solar Well Pump Package

Price
From $5,534.43
Franklin Electric SolarPAK Replacement Pump End
Franklin Electric SubDrive SolarPAK package, the system this replacement pump end serves

Franklin Electric

Free Shipping $499 or more

Franklin Electric SolarPAK Replacement Pump End

Price
From $1,177.17
Franklin Electric SolarPAK Replacement Motor
Franklin Electric 4 in Super Stainless Motor

Franklin Electric

Free Shipping $499 or more

Franklin Electric SolarPAK Replacement Motor

Price
From $992.23
Franklin Electric Solar Pump Controller - SubDrive Solar and Fhoton Drive
Franklin Electric Fhoton SolarPAK Controller Pump and Motor System

Franklin Electric

Free Shipping $499 or more

Franklin Electric Solar Pump Controller - SubDrive Solar and Fhoton Drive

Price
From $687.01
Franklin Electric Solar Panels, Racking and Accessories
Franklin Electric 305709030 Solar PV Panel 72 Cell

Franklin Electric

Free Shipping $499 or more

Franklin Electric Solar Panels, Racking and Accessories

Price
From $143.08
Franklin Electric Fhoton Helical Rotor SolarPAK Solar Well Pump Package
Franklin Electric Fhoton SolarPAK Controller Pump and Motor View 2

Franklin Electric

Free Shipping $499 or more

Franklin Electric Fhoton Helical Rotor SolarPAK Solar Well Pump Package

Price
From $4,051.68
Franklin Electric Fhoton 4 in SolarPAK Solar Well Pump Package
Franklin Electric Fhoton SolarPAK 0.5-1.5 HP Controller Pump and Motor

Franklin Electric

Free Shipping $499 or more

Franklin Electric Fhoton 4 in SolarPAK Solar Well Pump Package

Price
From $3,531.18

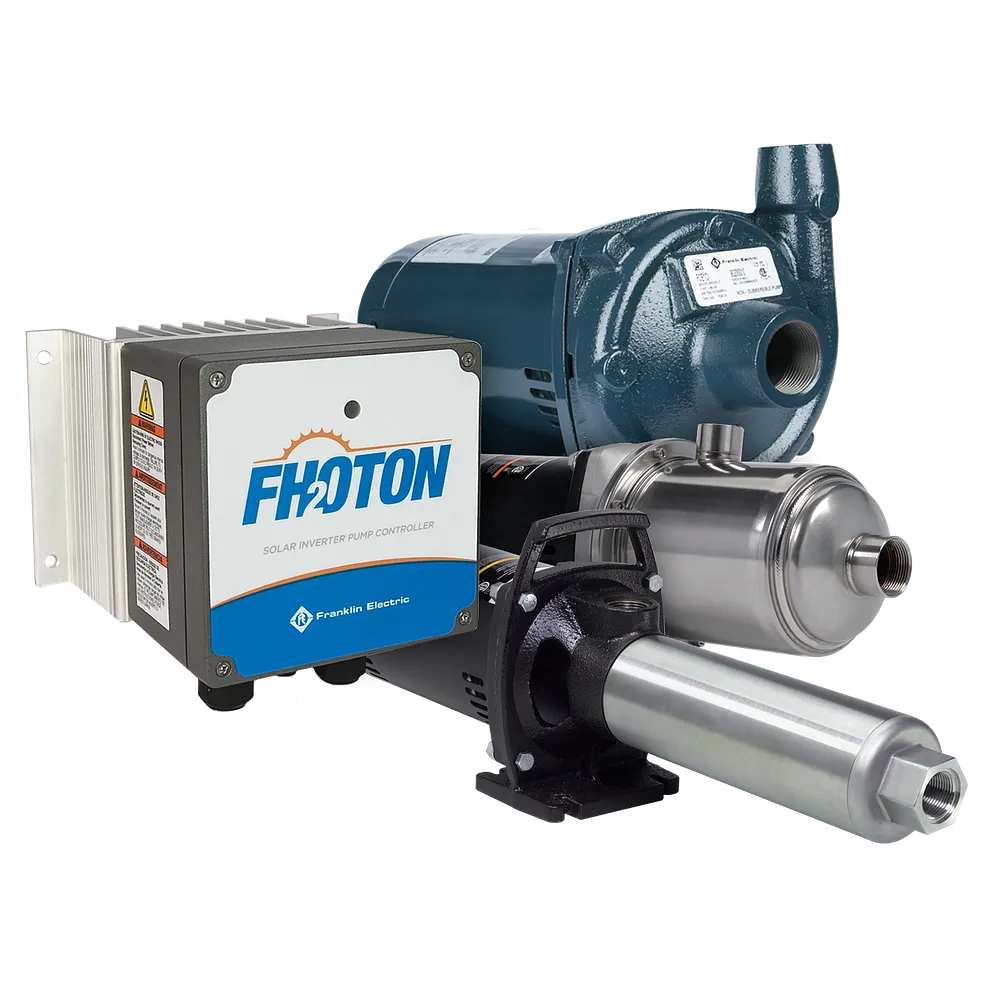

Franklin Electric Fhoton Surface Solar Pump Package
Franklin Electric Fhoton surface solar pump package with controller and pump

Franklin Electric

Free Shipping $499 or more

Franklin Electric Fhoton Surface Solar Pump Package

Price
From $3,625.96

Franklin Electric Solar Water Pumps

Franklin Electric Β· Solar Pumping

Franklin Electric Solar Water Pumps

SolarPAK submersible systems, solar controllers and arrays for off-grid wells, livestock and irrigation β€” from 3 GPM at high head to 375 GPM.

Franklin Electric Fhoton SolarPAK solar well pump package
3–375GPM
1,650 ftMax Head
1/2–10HP
850 VDCMax Input, 5–10 HP
MPPTControllers

Franklin SolarPAKs package a Franklin submersible motor and pump with a solar controller, matched as one system: SubDrive SolarPAK with automatic AC generator backup, Fhoton SolarPAK from 1/2 to 10 HP, and the Fhoton Helical Rotor SolarPAK for low flow at high head. Panels, racking, replacement pump ends, motors and controllers are listed alongside.

We supply the package and the array, sized together to your well, your duty and your site, with engineering-led sizing. Call 1-888.510.4036 or email sales@watermainsupply.com. Genuine Franklin Electric equipment, factory-new in original packaging β€” sold and supported by Watermain Supply, an independent industrial supplier.

Will It Work for Me?

What decides a solar pumping job.

Warranty

Franklin warrants SolarPAK packages, controllers and panels for 12 months from installation, no more than 24 months from manufacture. Replacement motors: 12 months from purchase.

Reliability

Maximum Power Point Tracking gets the most water from the array; soft start prevents water hammer. Dry-run protection comes from the flow switch, or from Franklin’s software on HR and 5–10 HP builds. Fhoton controllers are NEMA 4, IP66.

Fit

4 in wells for 0.5–3 HP builds; 6 in motors on the 100–375 GPM Fhoton builds. The array is sized to the package and the site; pole racks need local 4 in SCH40 steel pipe.

Size It Now

Daily water need, total head and site sun decide the system. Or call 1-888.510.4036.

Solar Pump Calculator

Three SolarPAK Systems

Franklin SubDrive SolarPAK package

SubDrive SolarPAK

Solar with automatic generator backup

5–90GPM
1,017 ftMax Head
3/4–3HP
230 VACGenerator Backup

Franklin 4 in motor and pump with a SubDrive solar controller that switches automatically to a 230 VAC generator when the array cannot supply DC.

  • Seven-segment display of input watts and status
  • RS-485 port for remote telemetry
  • Flow switch with 30 ft cable included
Best for Livestock and homes that cannot run dry on a cloudy week.
View SubDrive SolarPAK
Franklin Fhoton SolarPAK package

Fhoton SolarPAK

1/2–10 HP Β· the widest range

5–375GPM
1,650 ftMax Head
1/2–10HP
NEMA 4Controller

Franklin submersible motor and pump with a Fhoton solar controller. The 5–10 HP builds take array voltages to 850 VDC and use 6 in motors with high capacity pumps or STS turbines at 100–375 GPM.

  • 59 builds across 4 in and 6 in
  • Patented dry-run software on 5–10 HP
  • Optional communications board for the FE Connect app
Best for Ranch irrigation, stock tanks and village supply.
View Fhoton SolarPAK
Franklin Fhoton Helical Rotor SolarPAK

Fhoton Helical Rotor

Low flow, high head, few panels

3–7GPM
361 ftMax Head
3/4HP
45–300VDC Input

A helical rotor pump builds pressure from a small array β€” the answer for remote wells where the volume is flexible and the head is high.

  • Built-in wafer check valve
  • No flow switch needed: software dry-run protection
  • Pump and motor detach for service
Best for Remote stock wells and cabins on a small array.
View Fhoton HR

Compare the Franklin Solar Line

Listing What It Is Range Notes
SubDrive SolarPAK Pump, motor, controller, flow switch 5–90 GPM, 3/4–3 HP, to 1,017 ft AC generator backup
Fhoton SolarPAK Pump, motor, controller 5–375 GPM, 1/2–10 HP, to 1,650 ft Largest flows and heads
Fhoton HR SolarPAK Helical rotor pump, motor, controller 3–7 GPM, 3/4 HP, to 361 ft Fewest panels for the head
Fhoton Surface SolarPAK Surface pump, motor, controller, low-flow switch 1/2–1.5 HP Transfer, boosting, fountains, cisterns
Solar Pump Controllers SubDrive Solar and Fhoton controllers, flow switches 0.5–10 HP, 40–850 VDC Each runs its named motor only
SolarPAK Replacement Pump Ends 4 in pump ends 5–25 GPM, 3/4–2 HP Rebuild an existing SolarPAK
SolarPAK Replacement Motors 4 in and 6 in motors 1/2–10 HP; 48, 100 or 380 V Runs only from its SolarPAK controller
Panels, Racking and Accessories 72-cell panels, pole racks, DC disconnect 2–6 panel racks; 600 VDC disconnect Pole pipe supplied locally
Quick rule: Under 10 GPM at high head on a small array: Fhoton HR. Need water when the sun is down for days: SubDrive SolarPAK with a generator. Above 90 GPM, or heads past 1,000 ft: Fhoton SolarPAK 5–10 HP.

Franklin vs Grundfos SQFlex

The closest equivalents we list, from each product page on this site.

Spec Franklin Fhoton SolarPAK Franklin Fhoton HR Grundfos SQFlex 4 in Grundfos SQFlex Helical
Published duty 5–375 GPM; heads to 1,650 ft 3–7 GPM; heads to 361 ft 75.5 GPM at 50 ft; 29.9 GPM at 100 ft 4.6 GPM at 820 ft
Size 1/2–10 HP 3/4 HP 1,400 W max input 1,400 W max input
Power DC array; up to 850 VDC on 5–10 HP 45–300 VDC 30–300 VDC or 90–240 VAC 30–300 VDC or 90–240 VAC
Electronics Surface Fhoton controller Surface Fhoton HR controller Inverter and MPPT built into the motor Inverter and MPPT built into the motor
Minimum well 4 in; 6 in on large builds 4 in 4 in 3 in
Product page Fhoton SolarPAK Fhoton HR SQFlex 4 in SQFlex Helical

Verdict: Grundfos SQFlex wins on simplicity and reach at low flow: the electronics live in the motor, it runs on solar, wind, generator or grid power, and the helical rotor reaches 820 ft from a 3 in well. Franklin wins on size β€” up to 10 HP and 375 GPM with heads to 1,650 ft β€” and the SubDrive SolarPAK switches to a generator on its own.

Selection Guide

Application Demand Recommended
Remote stock well, small herd 3–7 GPM, high head Fhoton HR SolarPAK
Off-grid home with generator 5–25 GPM SubDrive SolarPAK
Ranch water, stock tanks 10–90 GPM Fhoton SolarPAK, 0.5–1.5 HP
Irrigation, large supply 100–375 GPM Fhoton SolarPAK, 5–10 HP
Cistern, pond or fountain Surface source Fhoton Surface SolarPAK

Panels, Controllers and Parts

Why Buy From Watermain Supply

Engineering-led sizing

Send the well depth, pumping level, flow and pressure. We work the total dynamic head and match pump end, motor, control and cable size before you order.

Straight answers across brands

We also supply A.Y. McDonald, Grundfos and DAB submersibles. If Franklin is not the right fit for the well, we will say so and show you what is.

Account terms

Contractor, well driller and municipal accounts on approved credit. Ask us to set one up.

Parts and aftermarket

Motor leads, couplings, check valves, pump and motor repair parts and drive accessories are listed alongside the pumps.

Package and array sized together

We size the pump, controller and panel count to the head, the daily water need and the site, so the system makes water on day one.

Houston based, Gulf Coast service

We size, quote and support from Houston for ranches, contractors and drillers.

Frequently Asked Questions

What comes in a Franklin SolarPAK?

The Franklin submersible motor, pump and solar controller, matched as a system; many builds add a flow switch with 30 ft cable. Panels, racking, drop cable and pipe are ordered separately and sized to the site.

Can it run at night or on cloudy days?

The SubDrive SolarPAK switches automatically to a 230 VAC generator when the array cannot supply DC. Other SolarPAKs pump while the sun is up, so most systems store water in a tank.

What warranty comes with a SolarPAK?

Franklin warrants SolarPAK packages for 12 months from installation, no more than 24 months from manufacture.

How many panels do I need?

It depends on the package HP, the head and the water needed per day. We size the array to the package and your site; panels and racks are on the panels listing.

Do I need a flow switch?

SubDrive SolarPAKs include one. Fhoton HR SolarPAKs need none, because Franklin’s software provides dry-run and low-flow protection. Fhoton builds list which include it.

Can I replace just the pump end or motor?

Yes. SolarPAK replacement pump ends and motors are listed separately; a replacement motor runs only from the controller named for it.

Ready to Size a Solar Well?

Send the well depth, pumping level, daily water need and location. We will size the package and the array.

Technical data on this page is taken from Franklin Electric product literature and is subject to change by the manufacturer. Confirm against the current installation manual before specifying.
