Fhoton SolarPAK Solar Well Pump Package
59 Franklin builds, 5-375 GPM, 1/2 to 10 HP.
5-375 GPM · Heads to 1,650 ft
1/2 to 10 HP
4 in and 6 in Motors

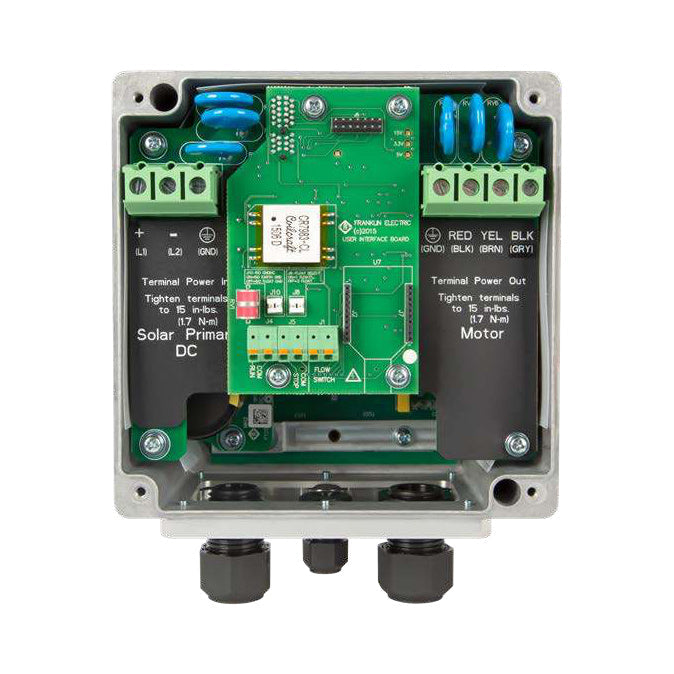

MPPT Fhoton Controller
NEMA 4 / Type 4 Controller
Up to 850 VDC Input (5-10 HP)
cULus and UL
What Ships and What It Needs to Run

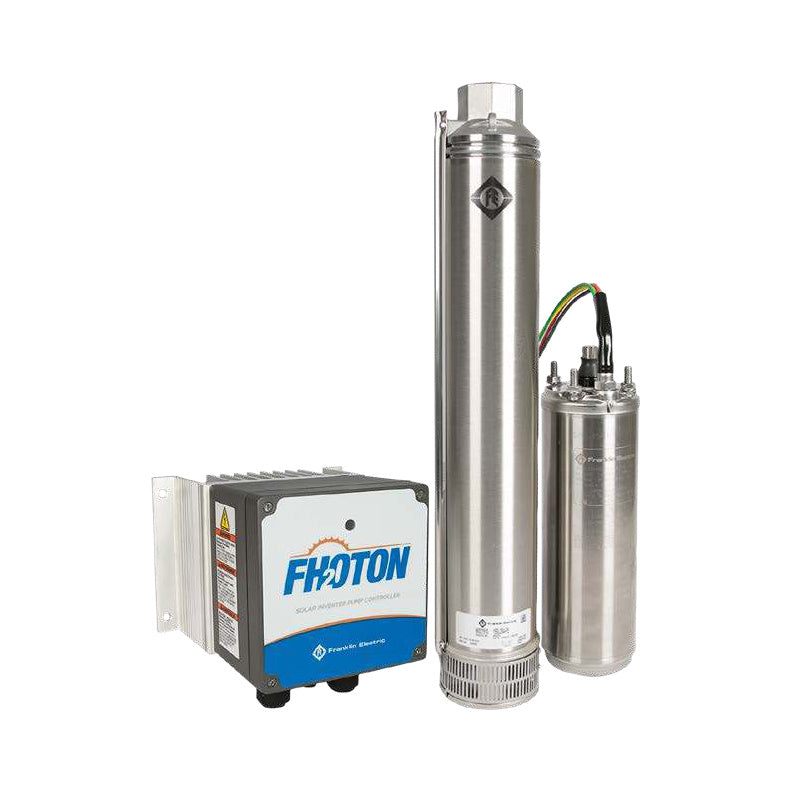

Included, 0.5-1.5 HP: Franklin 4 in submersible motor, Franklin 4 in submersible pump and Fhoton solar controller; flow switch with 30 ft (10 m) cable on the 0.75 and 1.5 HP builds that list one (not included with 0.5 HP builds).
Included, 5-10 HP: Franklin 4 in or 6 in submersible motor and pump, Fhoton solar controller, and the F21 flow switch with 30 ft (10 m) cable in the controller packaging.
Solar array and DC disconnect: panels, racking and the DC disconnect are listed separately on our solar panels, racking and accessories listing; the array is sized to the package and your site.
Drop cable, splice kit, pipe and level switches: sized to your installation and ordered separately.
Check valve on 35 GPM and larger builds: Franklin supplies high capacity pumps and STS turbines in SolarPAKs without a built-in check valve.
Overview

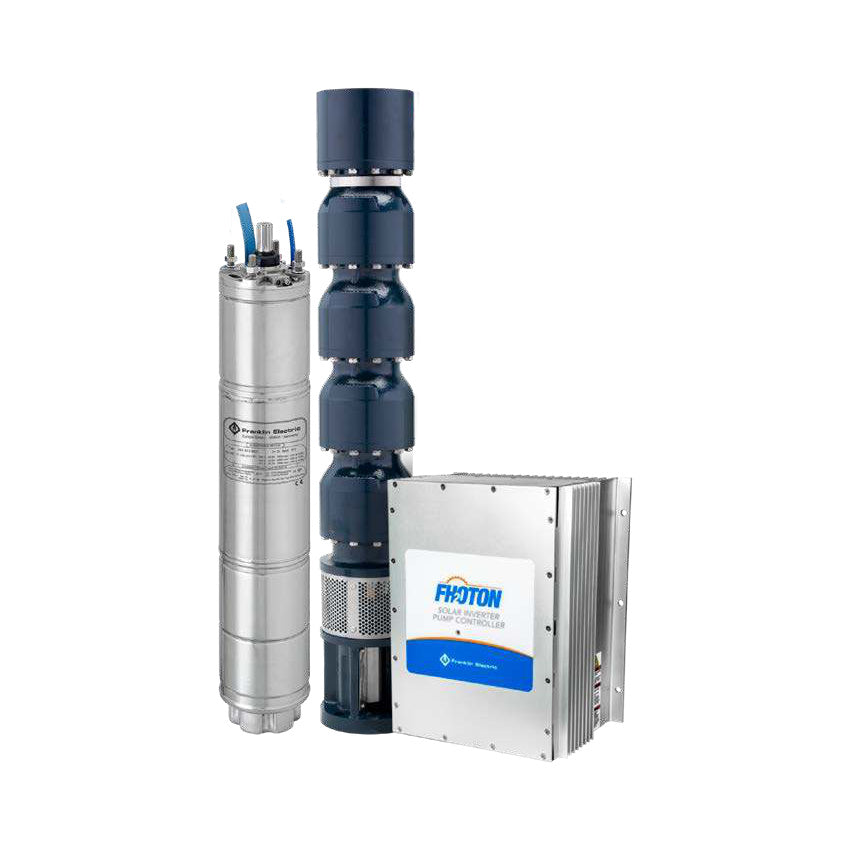

The Fhoton SolarPAK is Franklin’s system solution for solar pumping: a Franklin submersible motor and pump with a Fhoton solar controller, built as a rugged package for harsh and remote sites. Maximum Power Point Tracking gets the most water from the array, soft start prevents water hammer, and the NEMA 4 controller shows operating status and faults on a multi-color LED.
The 0.5-1.5 HP builds use 4 in 3200 Series, Tri-Seal and high capacity pumps. The 5-10 HP builds run on array voltages up to 850 VDC, with patented software for enhanced dry-run protection and terminals for an optional communications board that works with the FE Connect app; their 100-375 GPM builds use 6 in motors with 6 in high capacity pumps and 5 in or 6 in STS turbines.
- High-flow system for faster tank fill and significant water output
- Proven Franklin motor and pump technology
- Robust IP66, NEMA 4 enclosure on 0.5-1.5 HP controllers minimizes the impact of wildlife, insects, dust and weather
- Operating status and fault conditions on a multi-color LED
- Maximum Power Point Tracking for the most efficient use of input power
Genuine Franklin Electric equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier.
12-Month Franklin Electric Warranty
Franklin warrants its products for 12 months from the date of installation, but no more than 24 months from the date of manufacture.
Source: Franklin Electric limited warranty, Submersible Pumps AG/Industrial/Municipal Product Catalog.
Specifications
| Flow builds |
5-90 GPM at 0.5-1.5 HP; 10-375 GPM at 5-10 HP |
| Motors |
4 in, 0.5-1.5 HP (48 V, 100 V or 200 V three-phase); 4 in or 6 in, 5 HP 230 V and 7.5-10 HP 380 V three-phase |
| Power input |
DC from the solar array; AC/DC power converter available for drives up to 1.5 HP |
| Controller enclosure |
NEMA 4 (IP66) on 0.5-1.5 HP; Type 4 / IP56 on 5-10 HP |
| Protection |
Surge, underload/dry run, overvoltage, locked pump, open circuit, short circuit, overheated controller, reverse polarity, deadhead |
| Approvals |
cULus and UL |
| Pump diameter with cable guard |
3.75 in for 5 and 7 GPM pumps; 3.90 in for other 4 in pumps |
| 0.5 hp (581011100984-SP050HP) |
0.75 hp (581013000864-SP075HP) |
1.5 hp (581014200864-SP150HP) |
| 48 VAC three-phase |
100 VAC three-phase |
200 VAC three-phase |
| 9.8 A each phase |
8.6 A each phase |
6.8 A each phase |
| 20-60 Hz |
20-60 Hz |
20-60 Hz |
| 40-110 VDC |
45-300 VDC |
115-420 VDC |
| — |
300 VOC |
420 VOC |
| 7.2 A DC continuous |
7.2 A DC continuous |
6.2 A DC continuous |
| Up to 0.38 kW |
Up to 1,200 W |
Up to 2,000 W |
| 2349049204G |
234902 series |
234504 series |
| 6.28 x 6.28 x 7.32 in |
6.28 x 6.28 x 7.32 in |
6.28 x 6.28 x 7.32 in |
| 10 lb |
10 lb |
10 lb |
| Approx. 98% |
Approx. 98% |
Approx. 98% |
| NEMA 4 |
NEMA 4 |
NEMA 4 |
| Controller |
Fhoton F3, 581038501994 series |
| PV input |
200-850 VDC; 850 VDC open circuit |
| Max PV input amps |
19.3 A DC continuous |
| Max input power |
Up to 11.7 kW |
| Output |
Up to 460 VAC three-phase, up to 19.9 A each phase, 30-60 Hz |
| Efficiency at max power |
Approx. 98% |
| Size (L x W x D) |
15.75 x 12.76 x 9.17 in (400 x 324 x 233 mm) |
| Enclosure |
Type 4 / IP56 |
| Operating temperature |
-13 to 122 °F (-25 to 50 °C), 0-100% RH condensing |
Source: Franklin Electric Solar Products Catalog (M1782 01-25), pp. 26-29, 49-52, 97.
Models & Performance — Will It Do What You Need?
Performance
Each row is one build at full array power, read at 20%, 50% and 75% of the highest total head Franklin lists for it: the flow in GPM it delivers at that head.
1/2 HP builds
| Model |
PV power at full flow, W |
At 20% of max head |
At 50% |
At 75% |

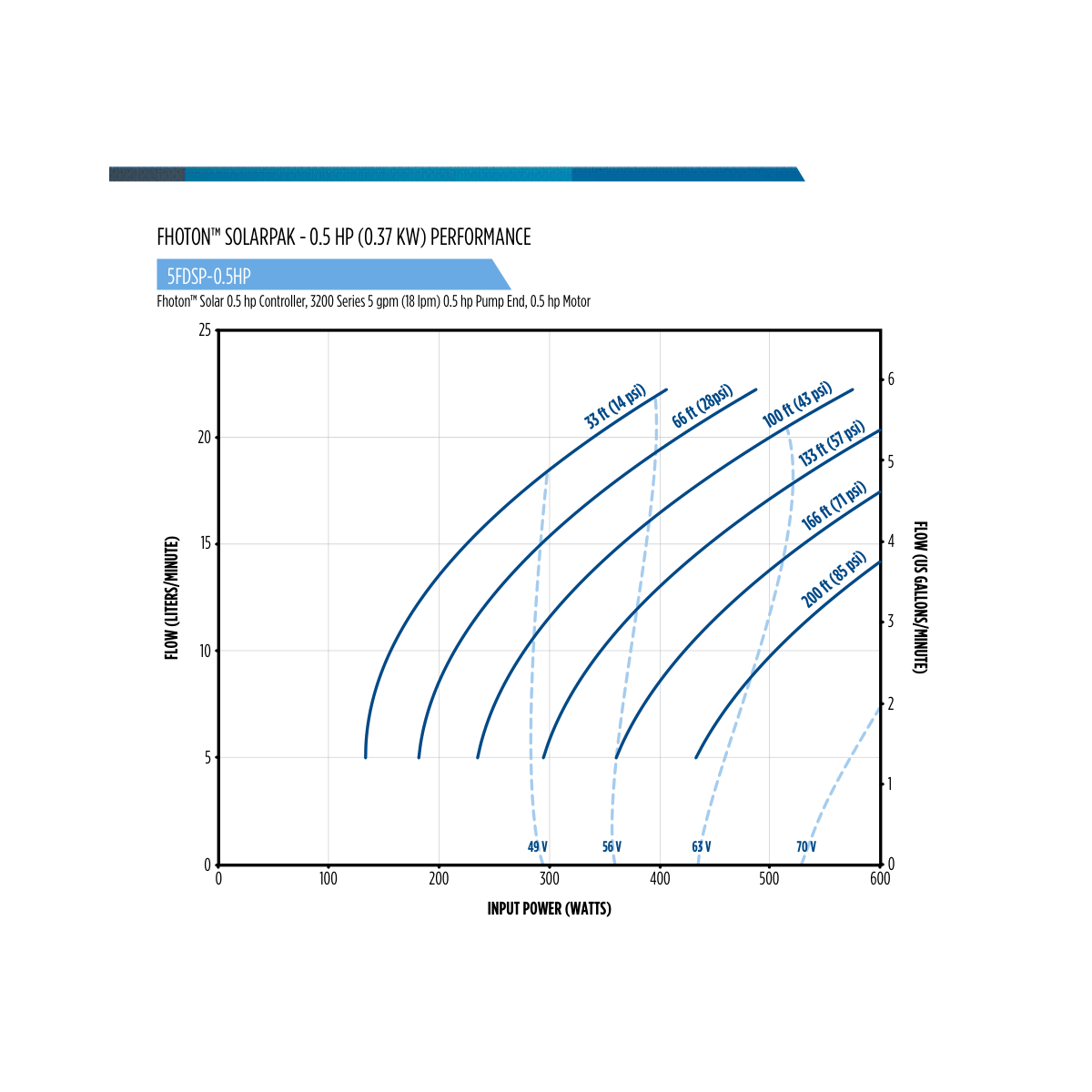

| 5FDSP-0.5HP |
590 |
5.8 GPM at 33 ft |
5.8 GPM at 100 ft |
4.5 GPM at 166 ft |

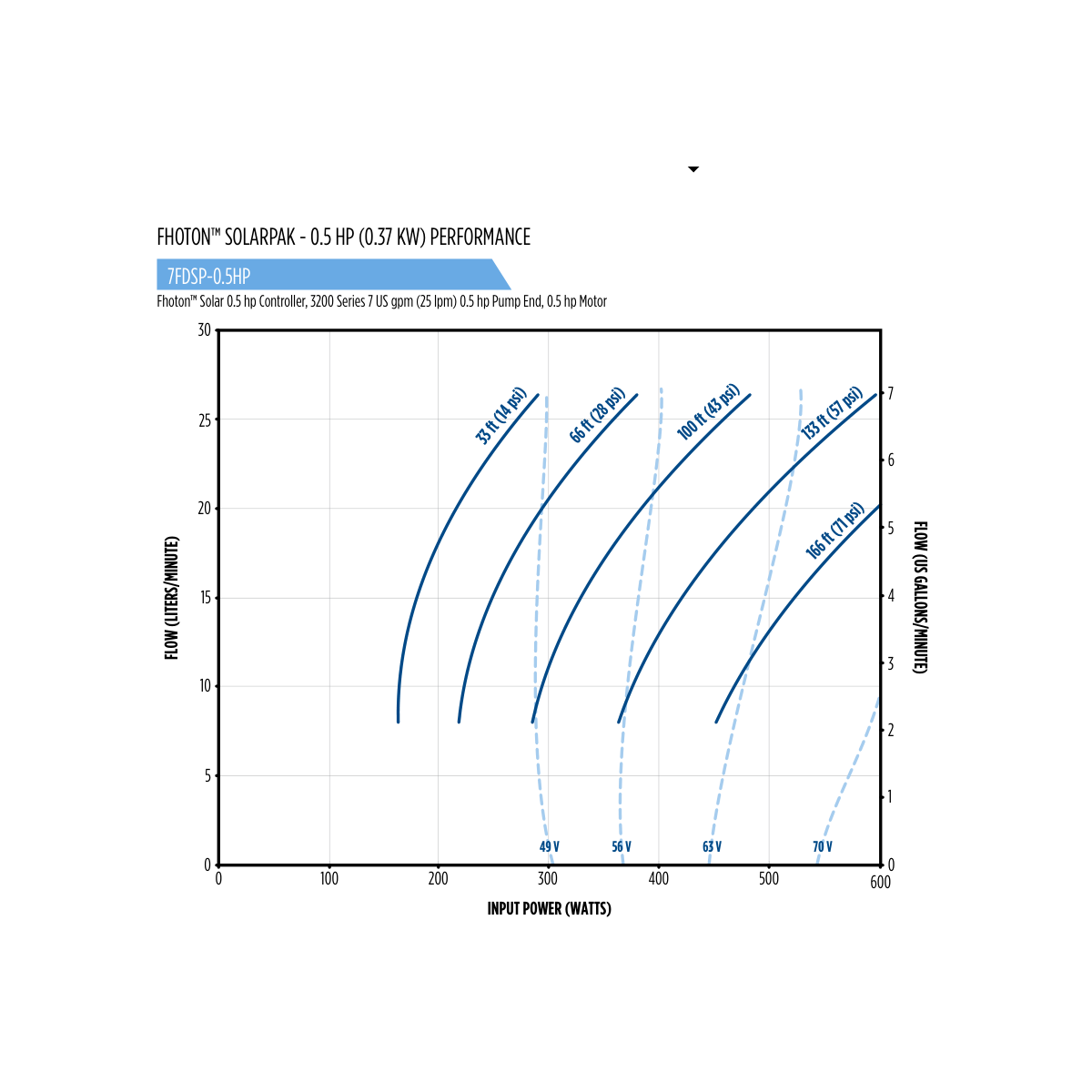

| 7FDSP-0.5HP |
600 |
6.9 GPM at 33 ft |
6.9 GPM at 66 ft |
6.8 GPM at 133 ft |

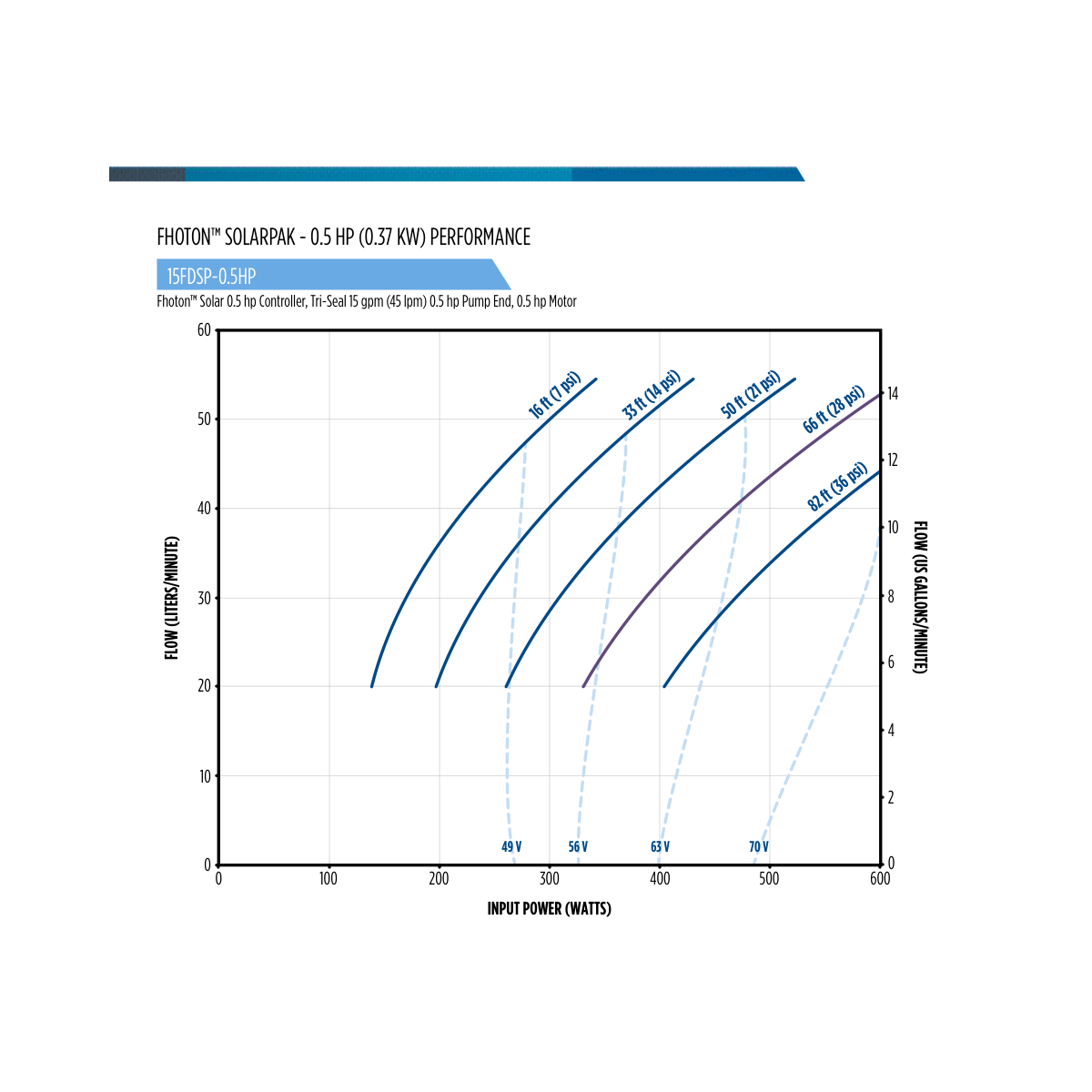

| 15FDSP-0.5HP |
600 |
14.3 GPM at 16 ft |
14.4 GPM at 33 ft |
13.9 GPM at 66 ft |

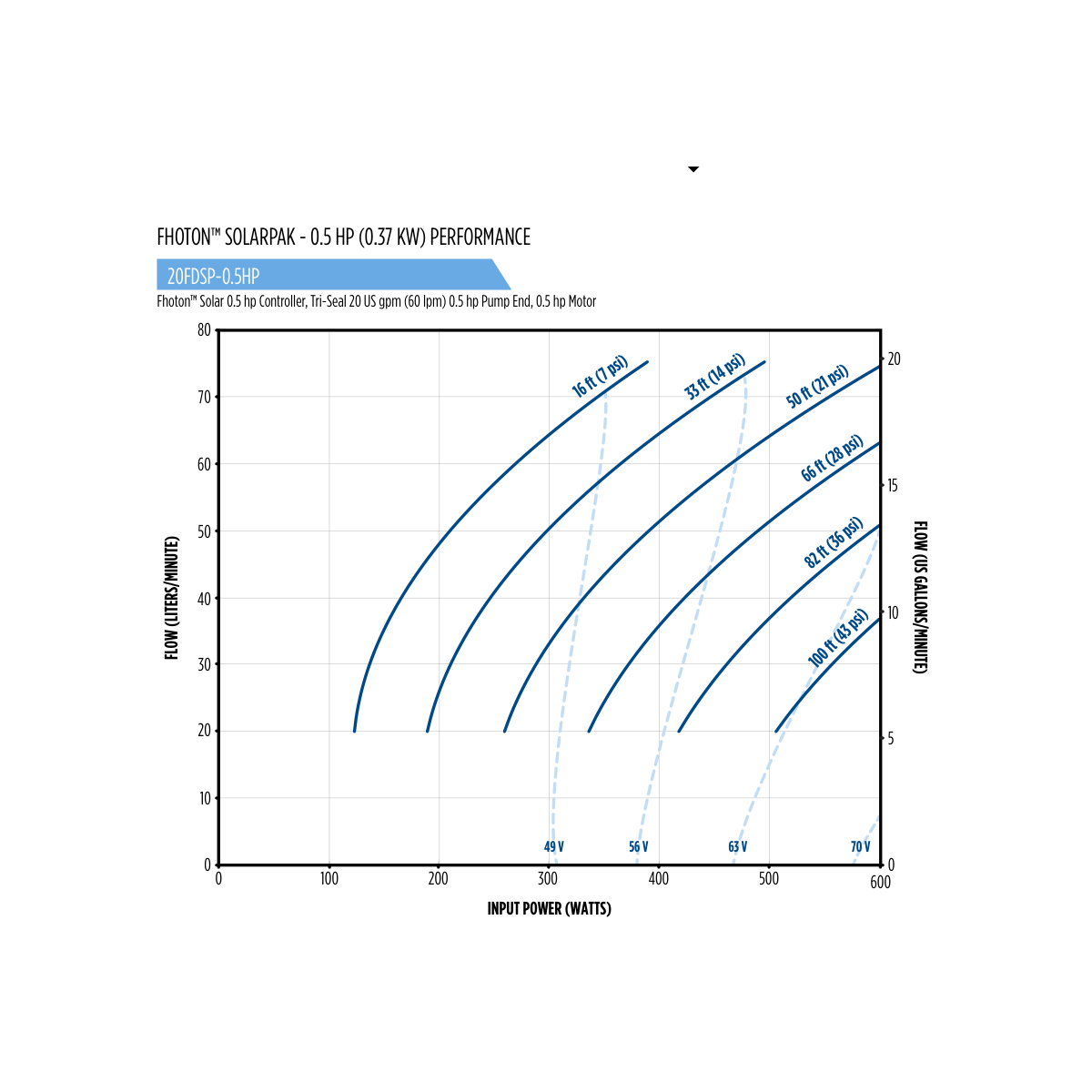

| 20FDSP-0.5HP |
600 |
19.6 GPM at 16 ft |
19.7 GPM at 50 ft |
13.1 GPM at 82 ft |
3/4 HP builds
| Model |
PV power at full flow, W |
At 20% of max head |
At 50% |
At 75% |

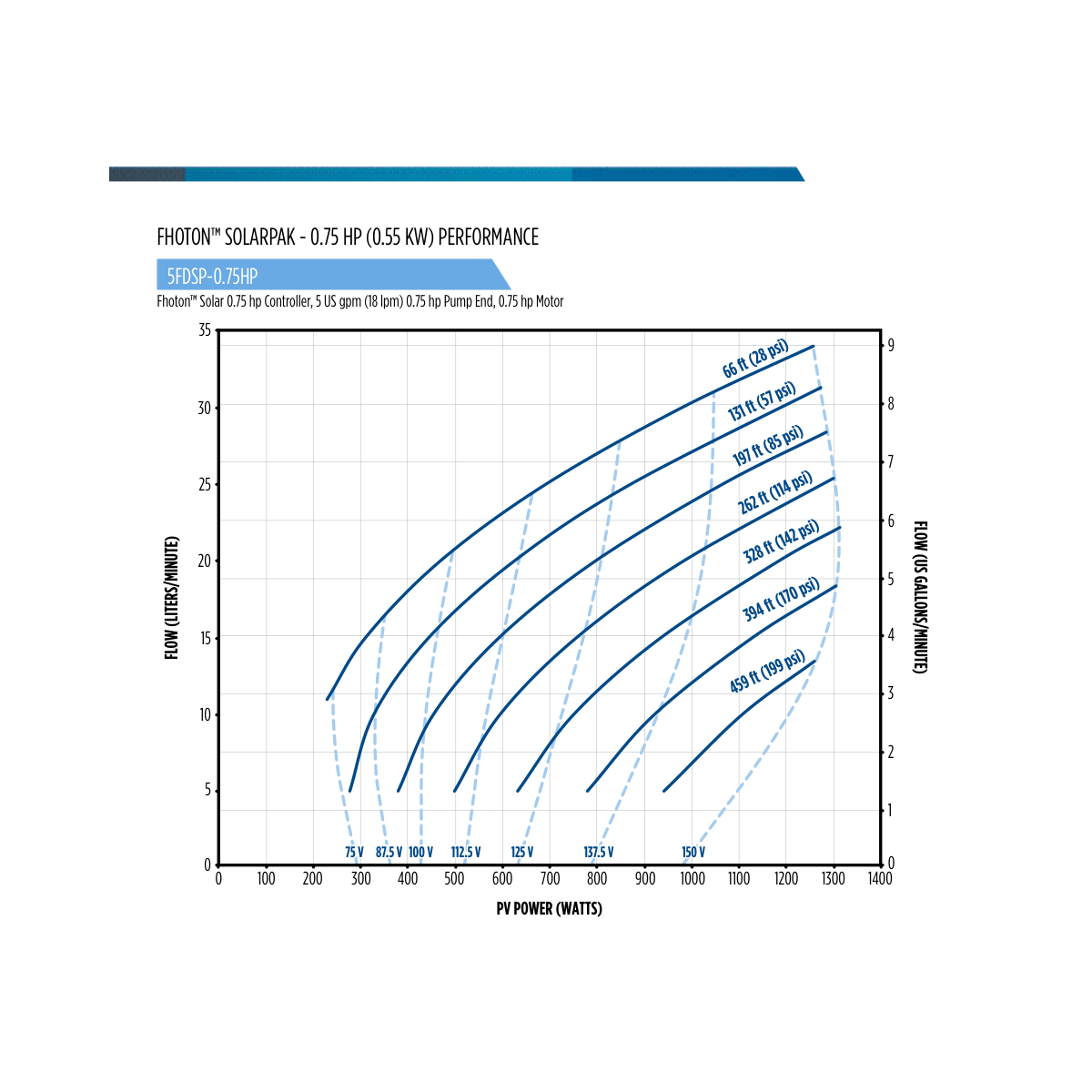

| 5FDSP-0.75HP |
1310 |
8.9 GPM at 66 ft |
7.5 GPM at 197 ft |
5.8 GPM at 328 ft |

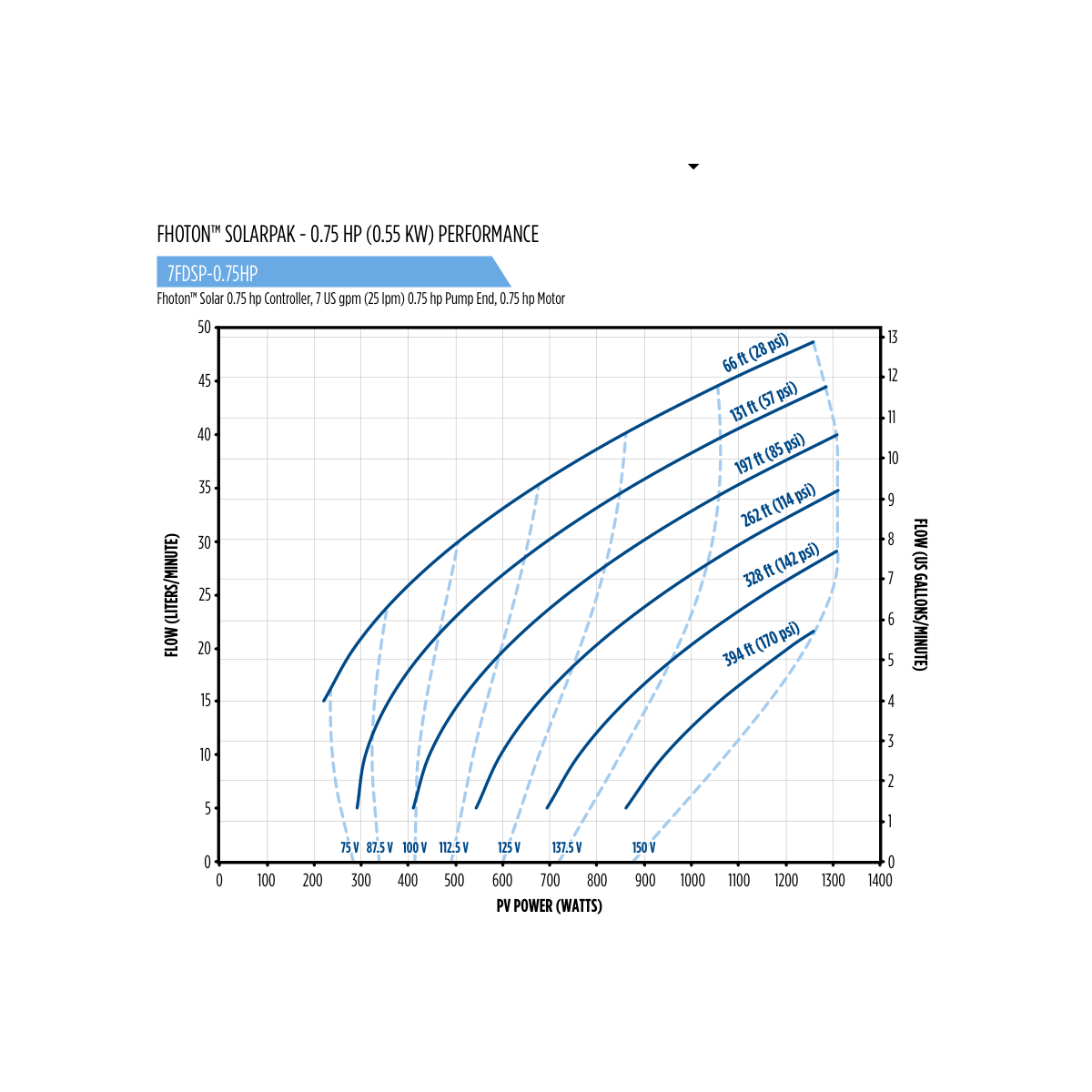

| 7FDSP-0.75HP |
1310 |
12.8 GPM at 66 ft |
10.5 GPM at 197 ft |
7.6 GPM at 328 ft |
| 10FDSP-0.75HP |
1290 |
14.9 GPM at 66 ft |
12.7 GPM at 131 ft |
9.0 GPM at 230 ft |

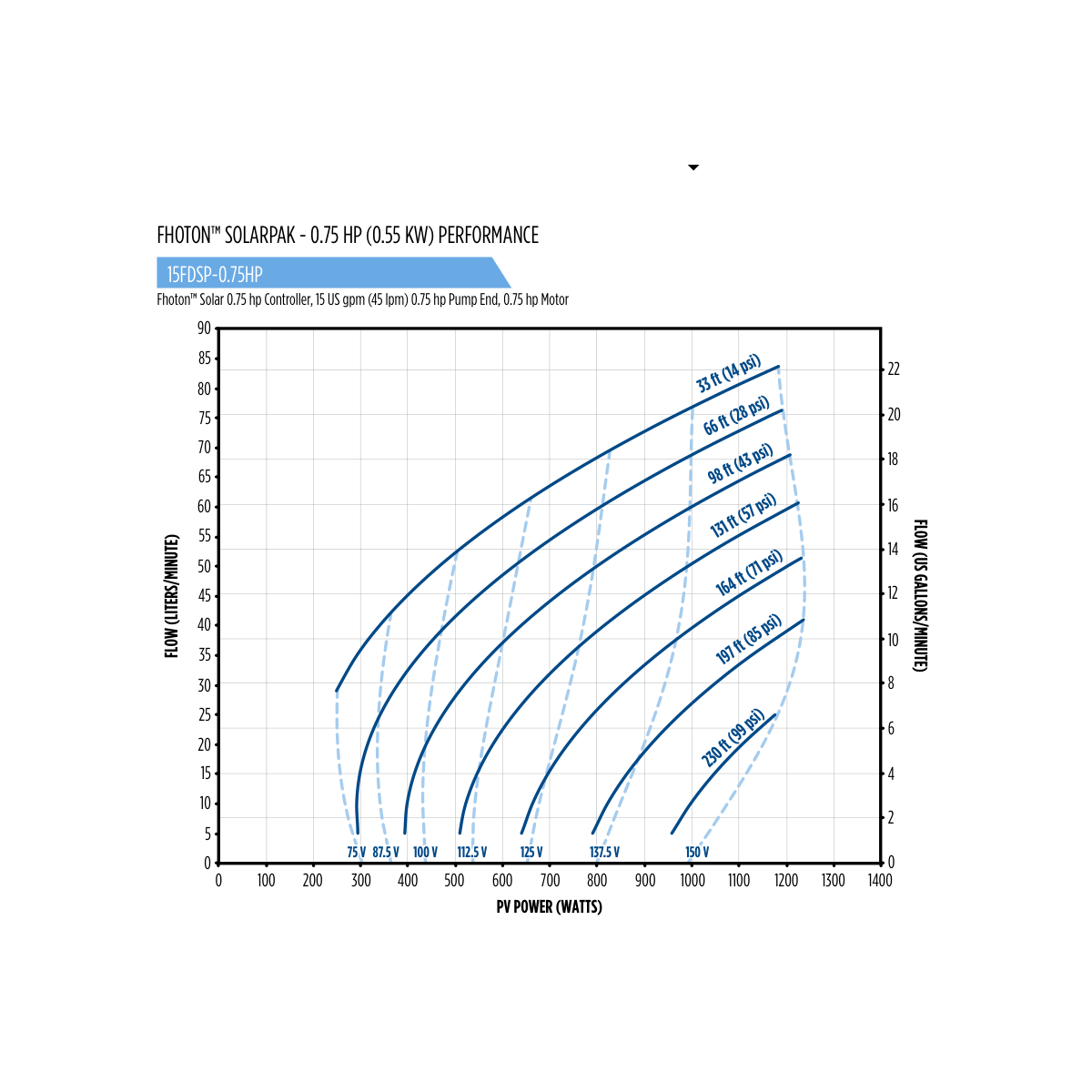

| 15FDSP-0.75HP |
1230 |
22.1 GPM at 33 ft |
16.0 GPM at 131 ft |
13.5 GPM at 164 ft |
1-1/2 HP builds
| Model |
PV power at full flow, W |
At 20% of max head |
At 50% |
At 75% |

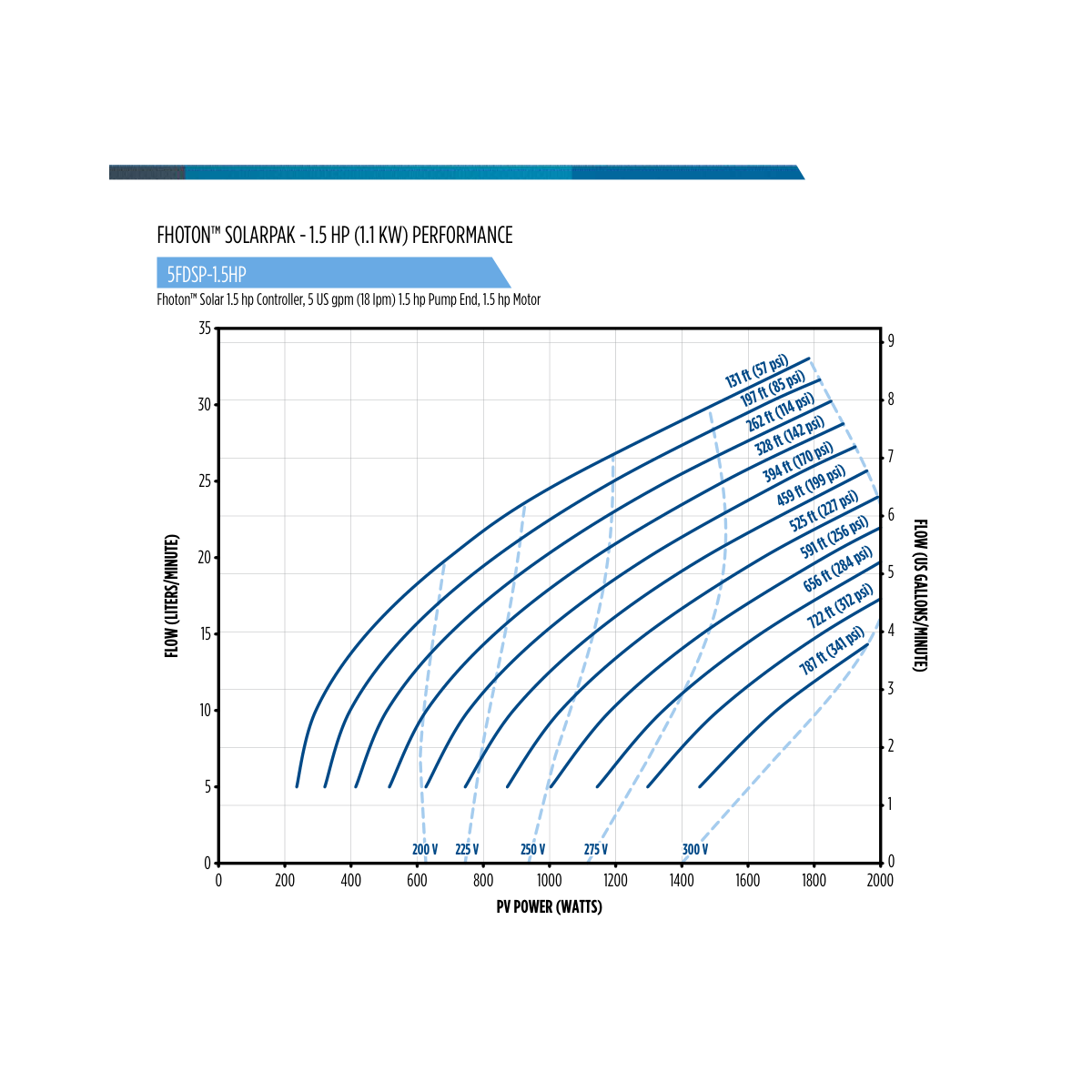

| 5FDSP-1.5HP |
2000 |
8.6 GPM at 131 ft |
7.1 GPM at 394 ft |
5.7 GPM at 591 ft |

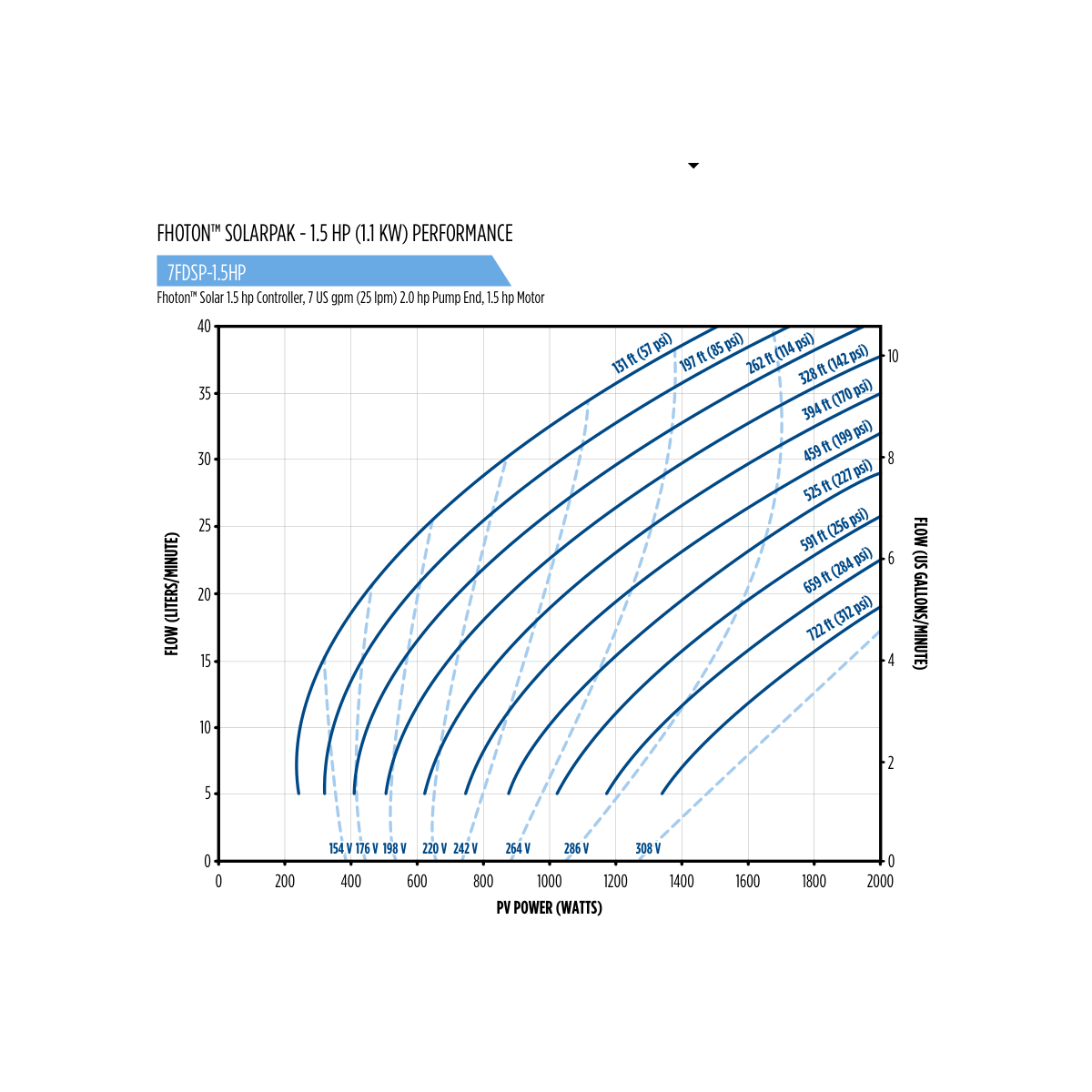

| 7FDSP-1.5HP |
2000 |
10.5 GPM at 131 ft |
9.9 GPM at 328 ft |
7.6 GPM at 525 ft |

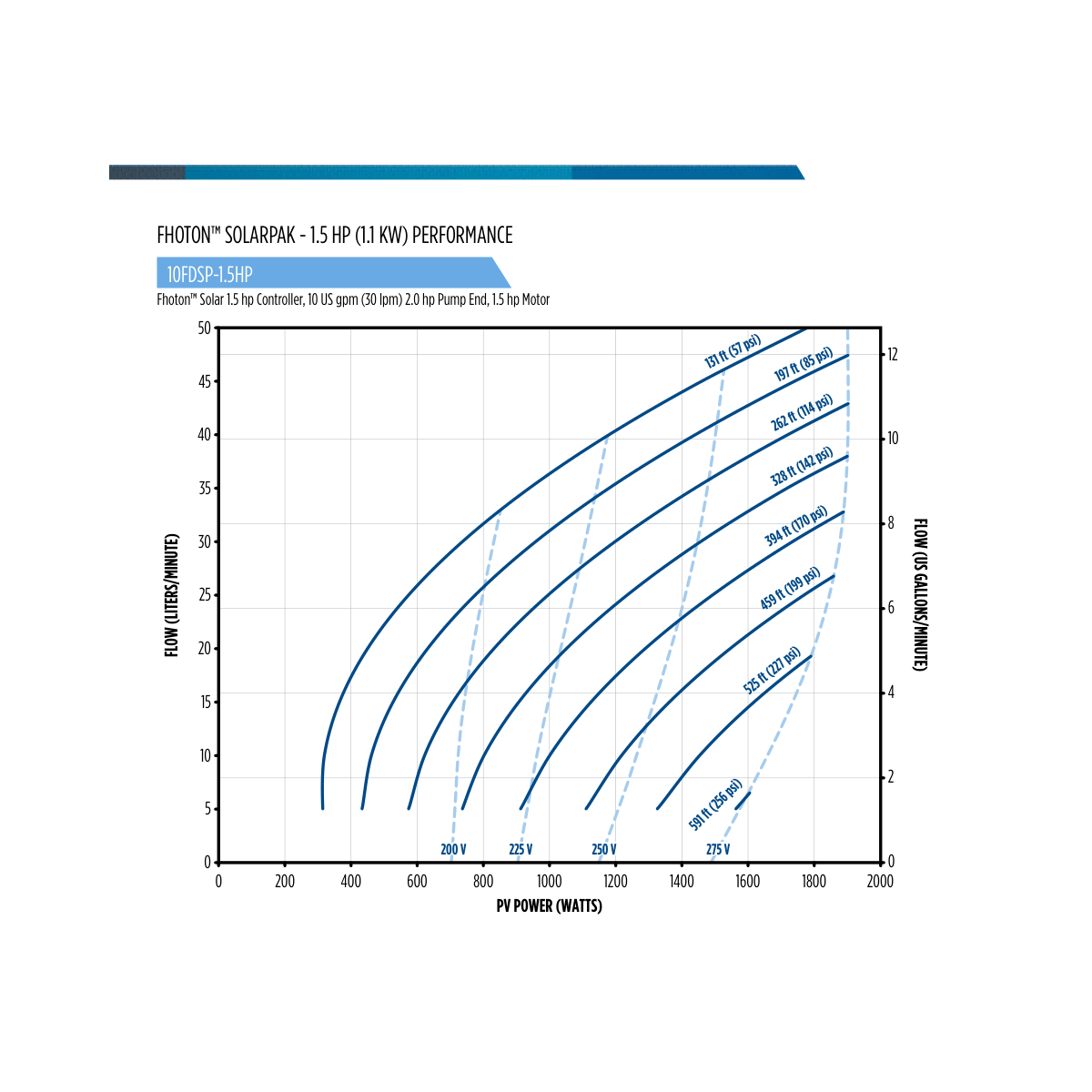

| 10FDSP-1.5HP |
1900 |
12.6 GPM at 131 ft |
10.8 GPM at 262 ft |
8.2 GPM at 394 ft |

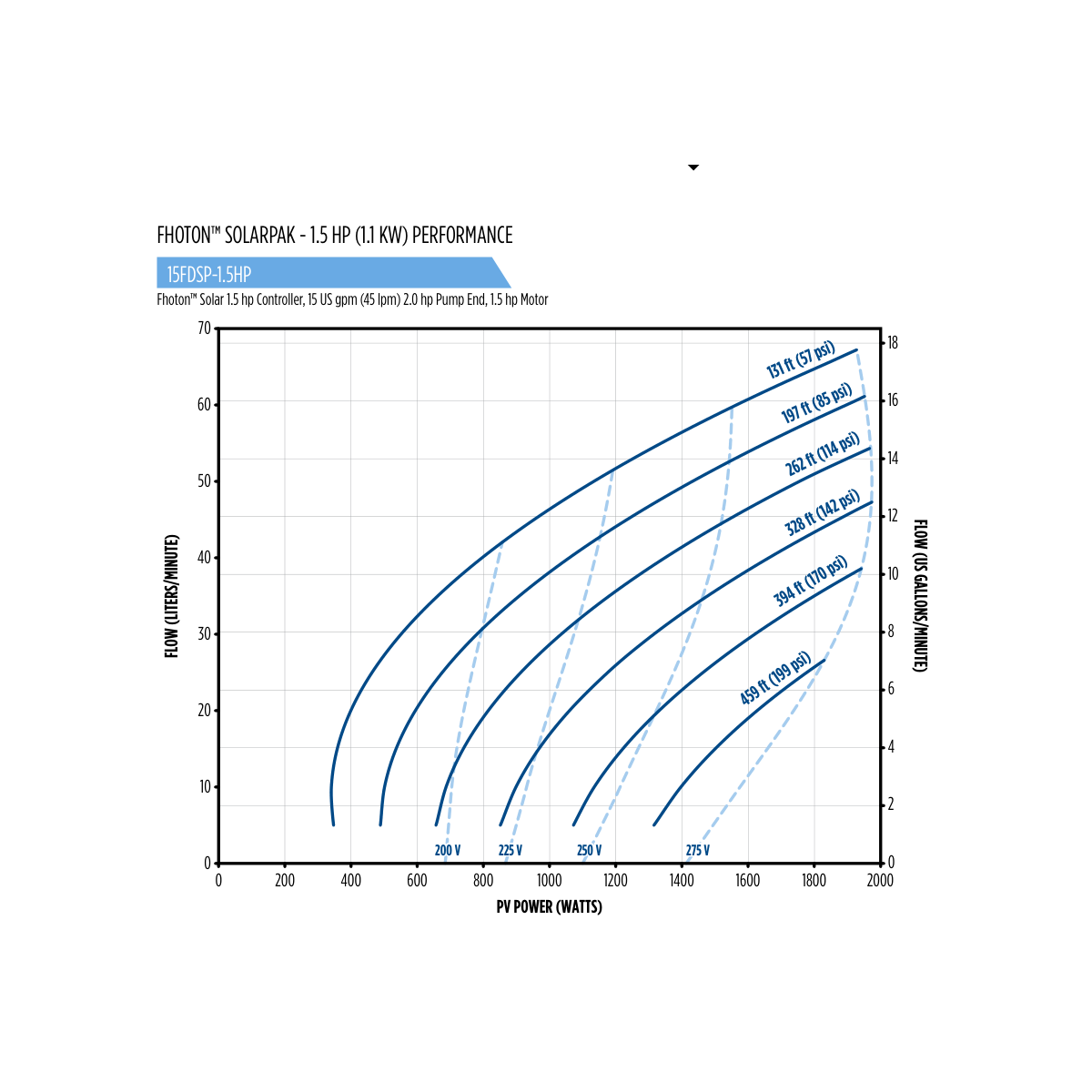

| 15FDSP-1.5HP |
1970 |
17.7 GPM at 131 ft |
16.1 GPM at 197 ft |
12.4 GPM at 328 ft |

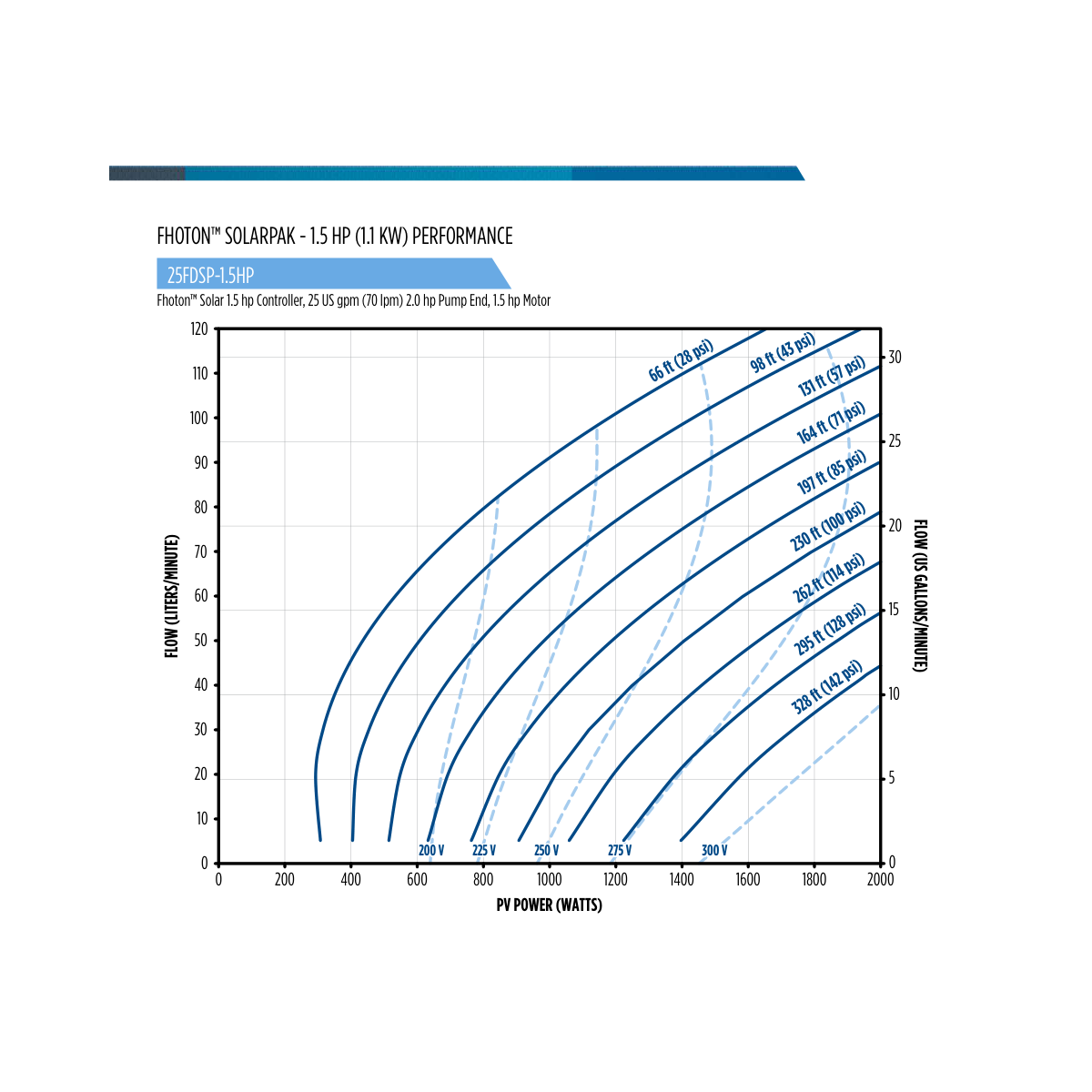

| 25FDSP-1.5HP |
2000 |
31.6 GPM at 66 ft |
26.6 GPM at 164 ft |
20.8 GPM at 230 ft |

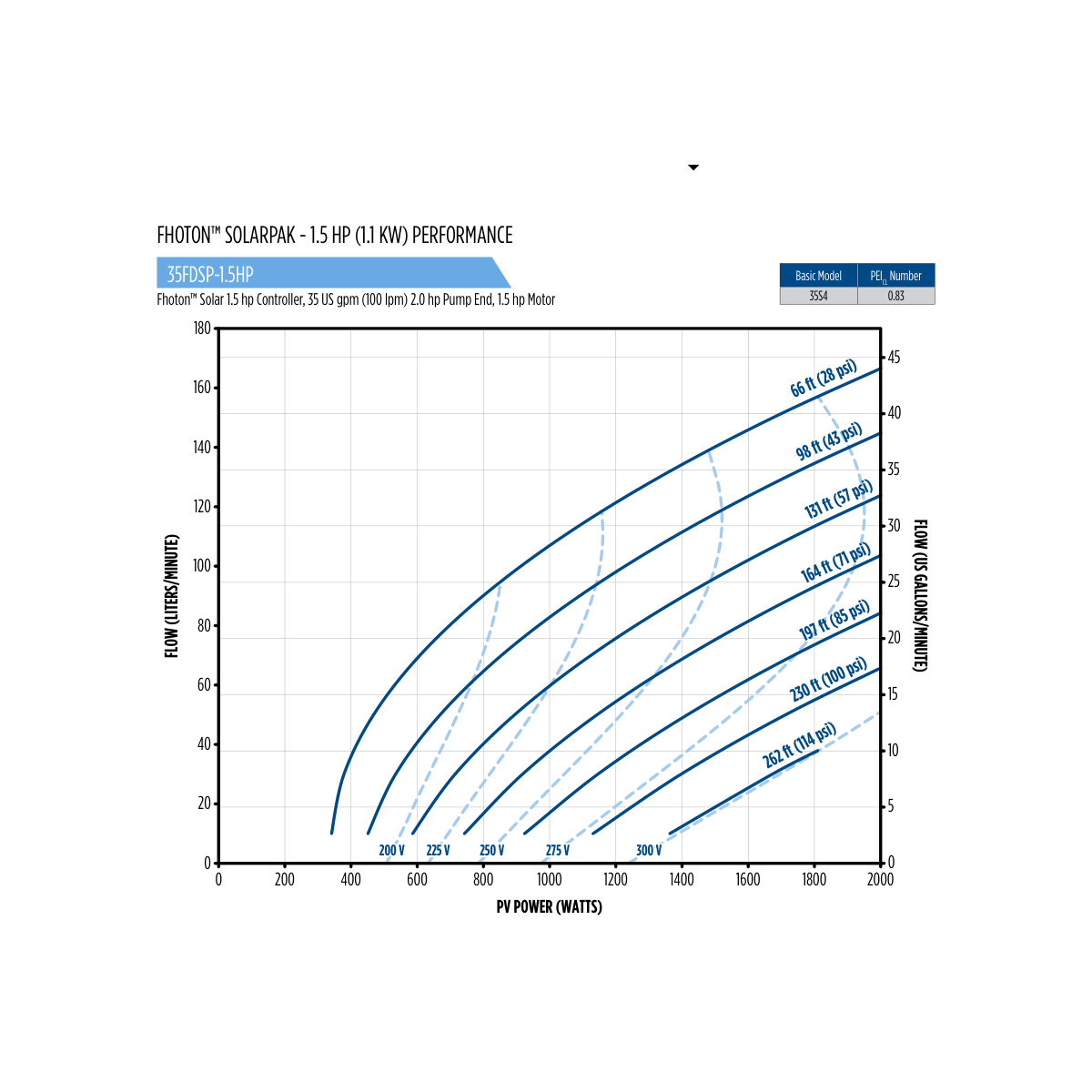

| 35FDSP-1.5HP |
2000 |
44.0 GPM at 66 ft |
32.7 GPM at 131 ft |
22.2 GPM at 197 ft |

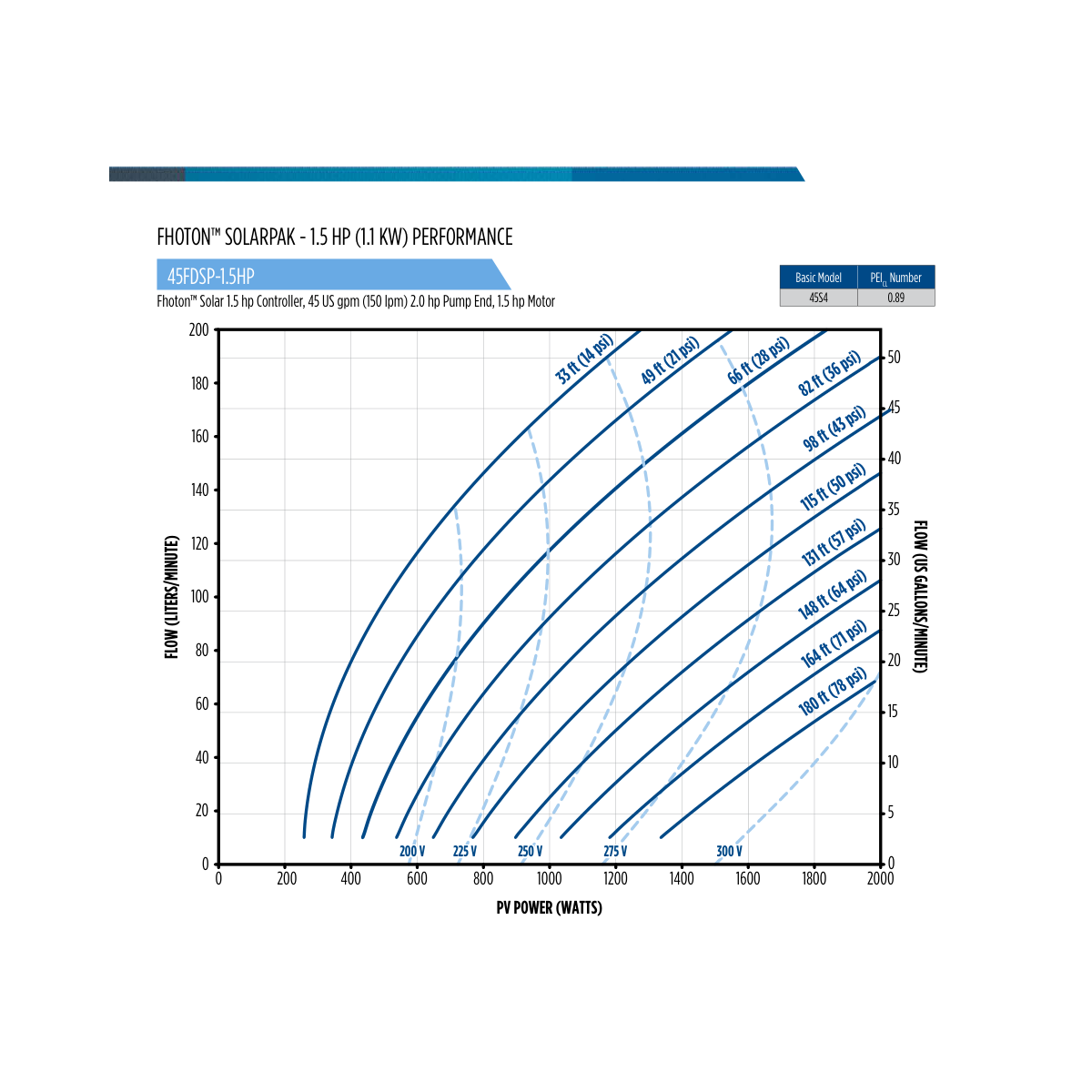

| 45FDSP-1.5HP |
2000 |
52.6 GPM at 49 ft |
52.6 GPM at 82 ft |
33.1 GPM at 131 ft |
| 90FDSP-1.5HP |
2000 |
88.7 GPM at 33 ft |
71.5 GPM at 49 ft |
53.0 GPM at 66 ft |
5 HP builds
Full table · 15 rows
| Model |
PV power at full flow, W |
At 20% of max head |
At 50% |
At 75% |

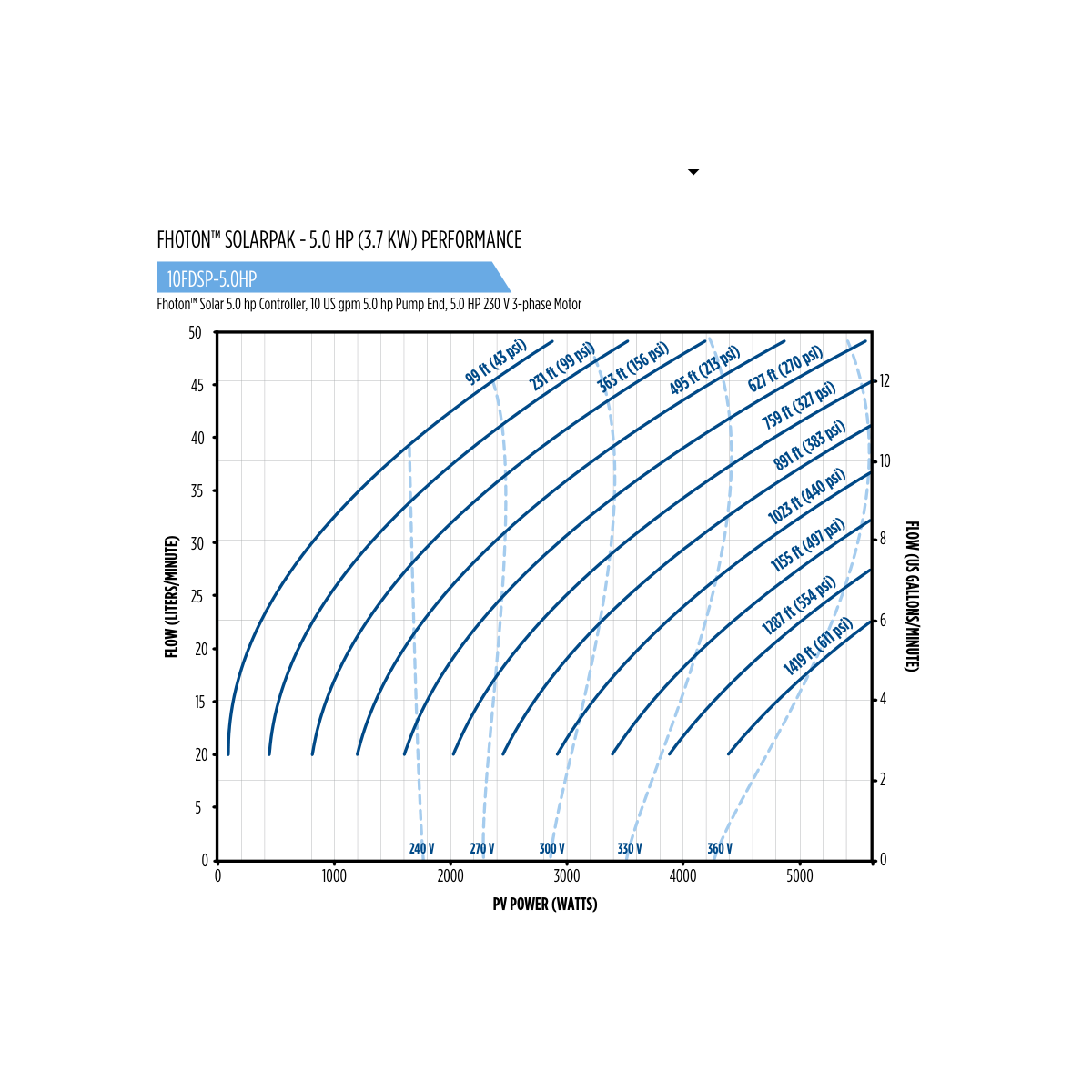

| 10FDSP-5.0HP |
5620 |
13.0 GPM at 231 ft |
12.0 GPM at 759 ft |
9.7 GPM at 1023 ft |

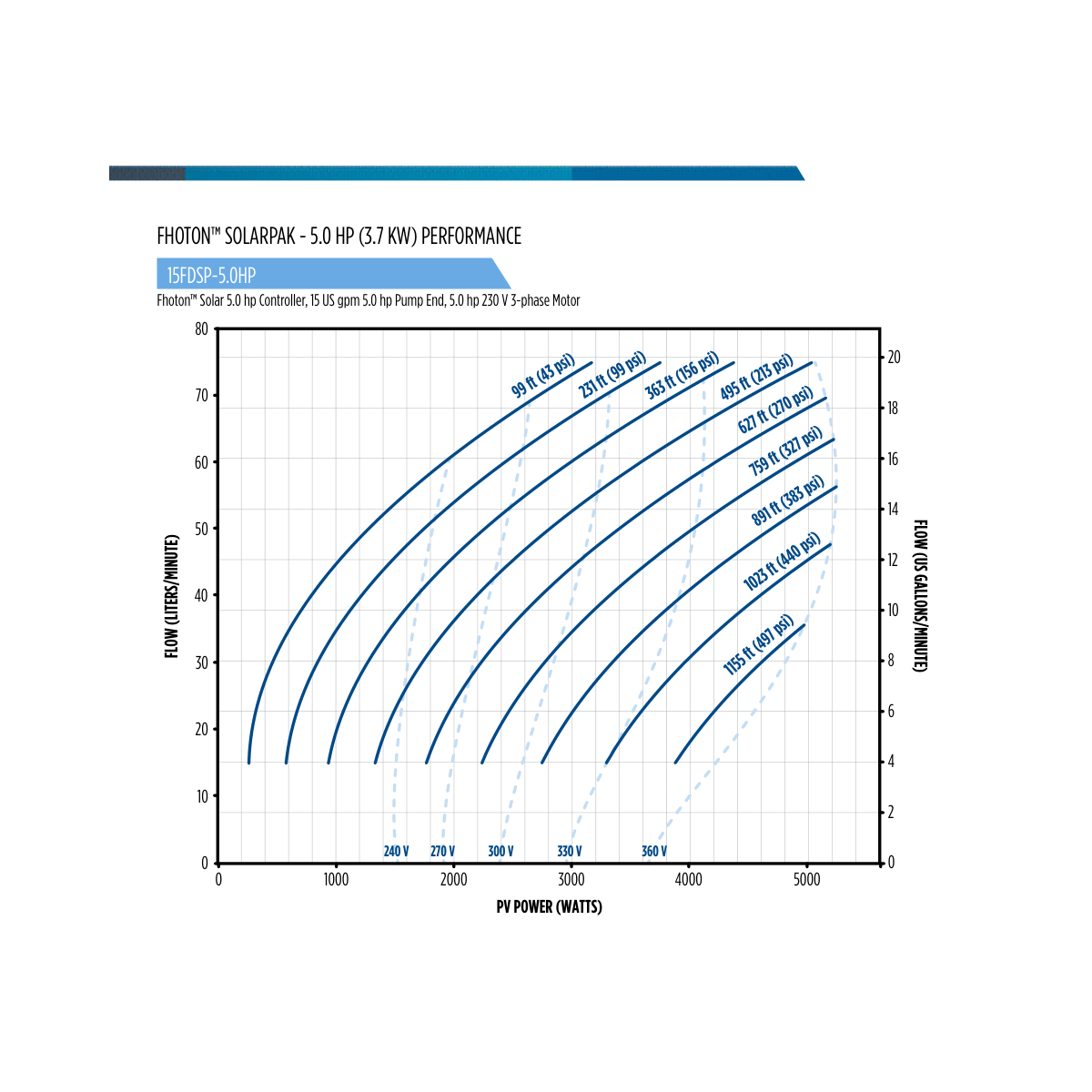

| 15FDSP-5.0HP |
5250 |
19.7 GPM at 231 ft |
18.3 GPM at 627 ft |
14.8 GPM at 891 ft |

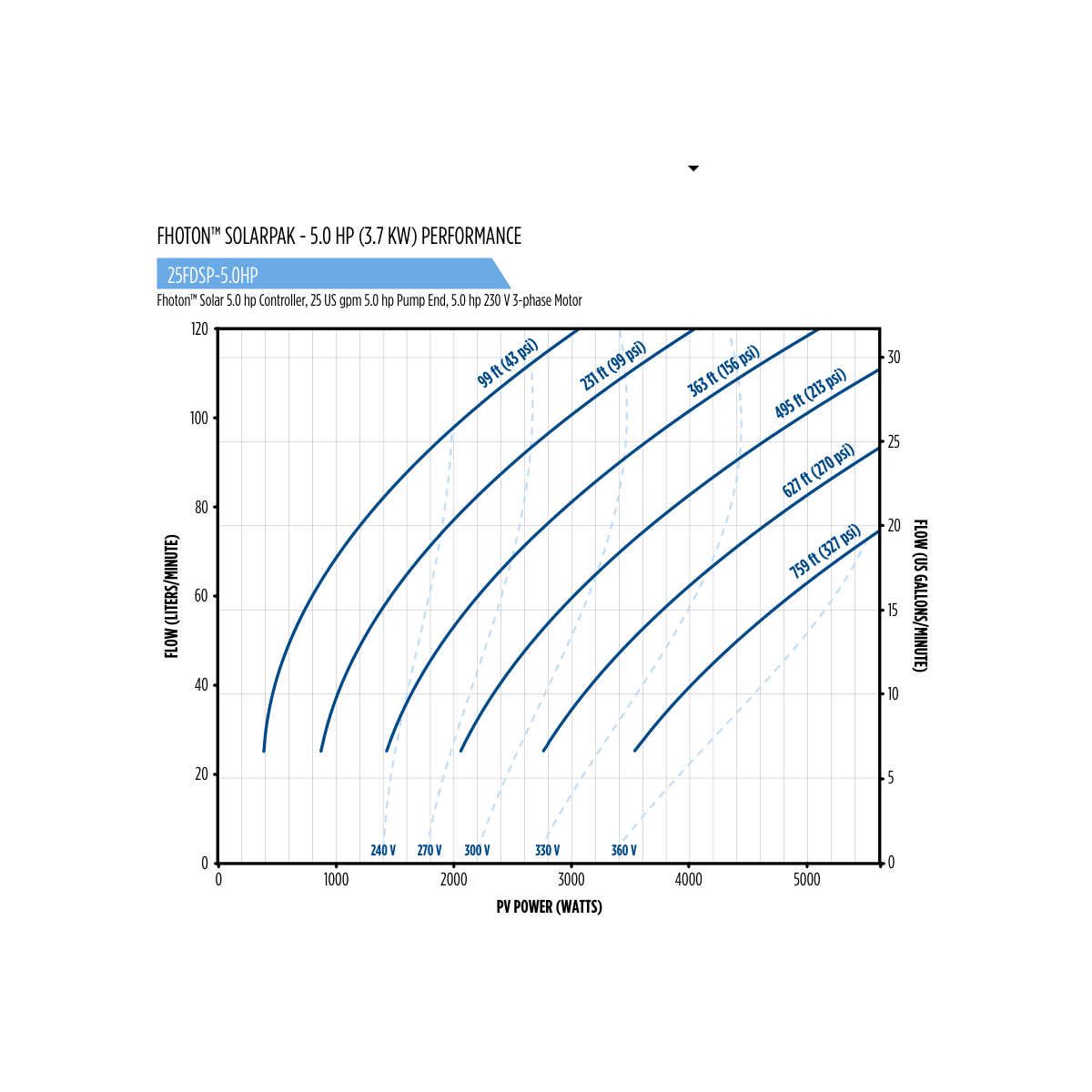

| 25FDSP-5.0HP |
5610 |
31.6 GPM at 231 ft |
31.6 GPM at 363 ft |
24.5 GPM at 627 ft |

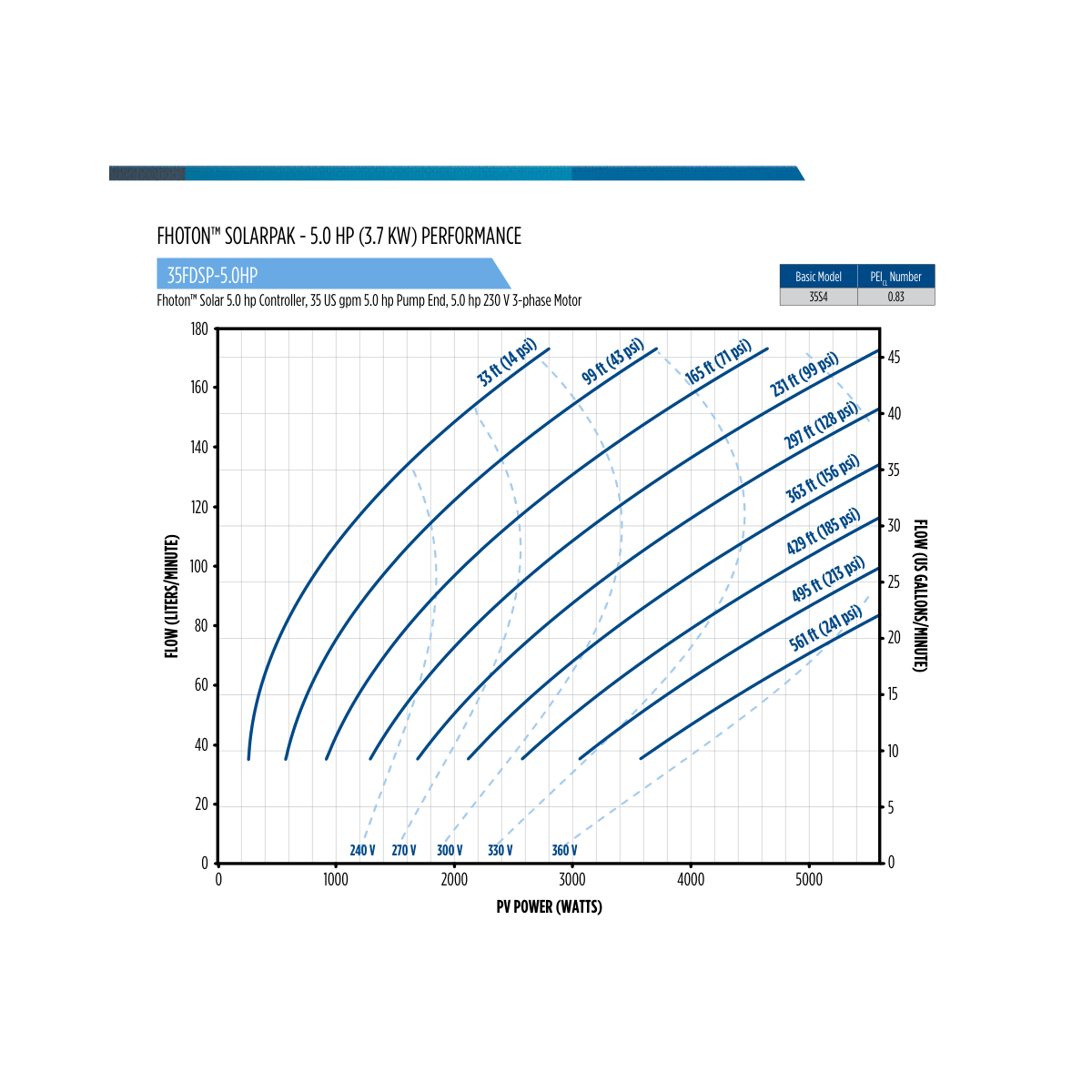

| 35FDSP-5.0HP |
5590 |
45.7 GPM at 99 ft |
40.4 GPM at 297 ft |
30.7 GPM at 429 ft |

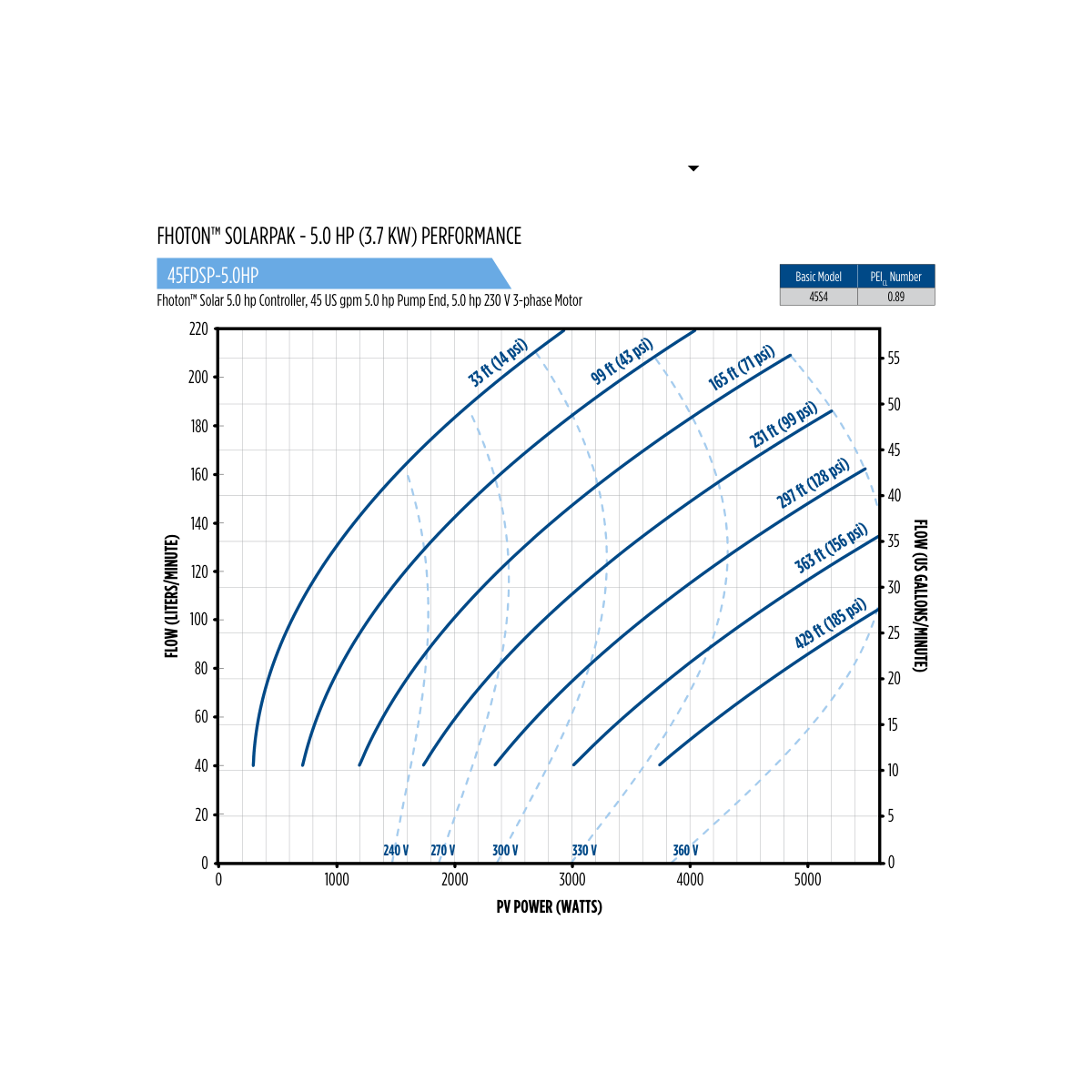

| 45FDSP-5.0HP |
5600 |
58.0 GPM at 99 ft |
49.2 GPM at 231 ft |
42.8 GPM at 297 ft |
| 60FDSP-5.0HP |
5590 |
77.7 GPM at 83 ft |
63.0 GPM at 182 ft |
52.6 GPM at 231 ft |

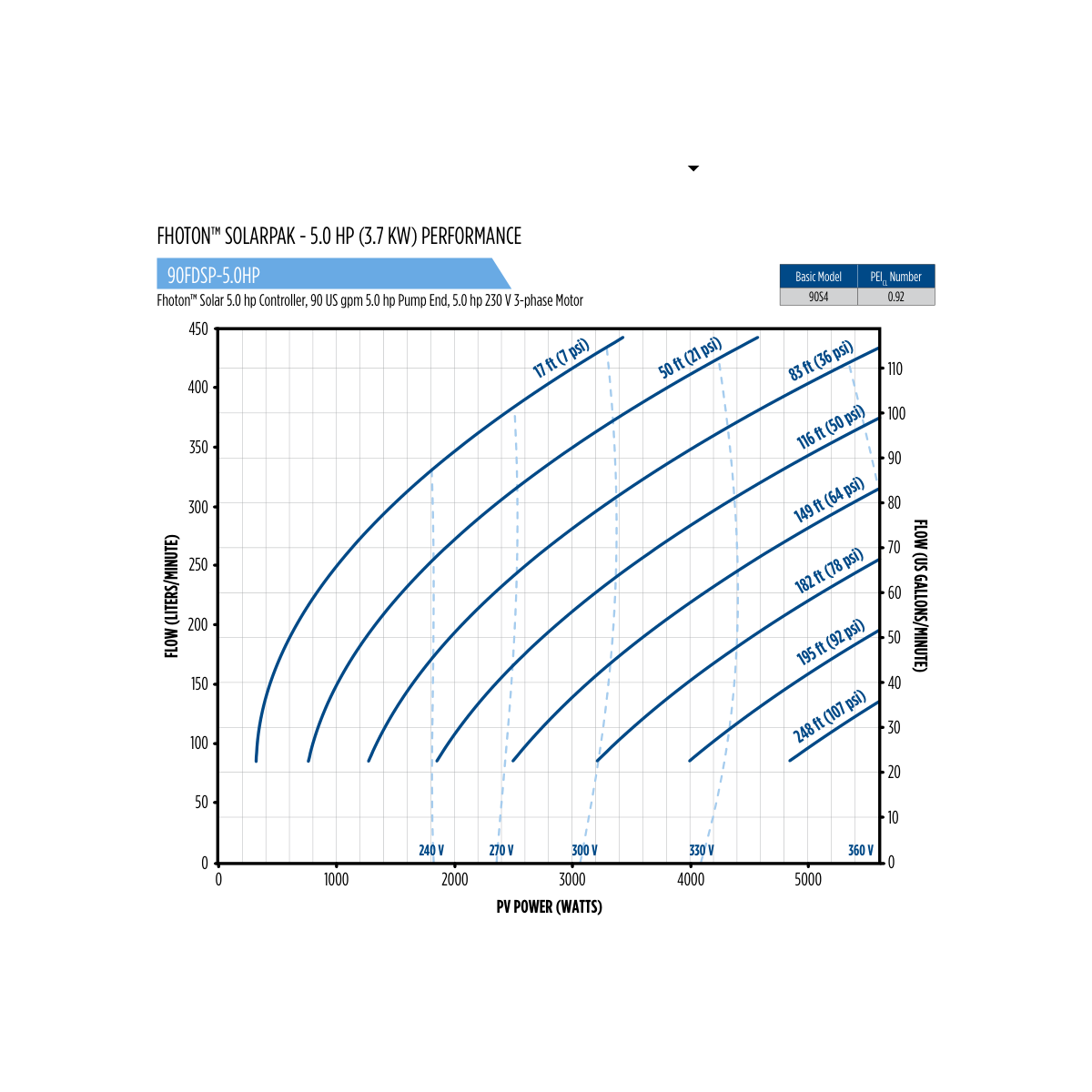

| 90FDSP-5.0HP |
5600 |
116 GPM at 50 ft |
98.8 GPM at 116 ft |
67.4 GPM at 182 ft |

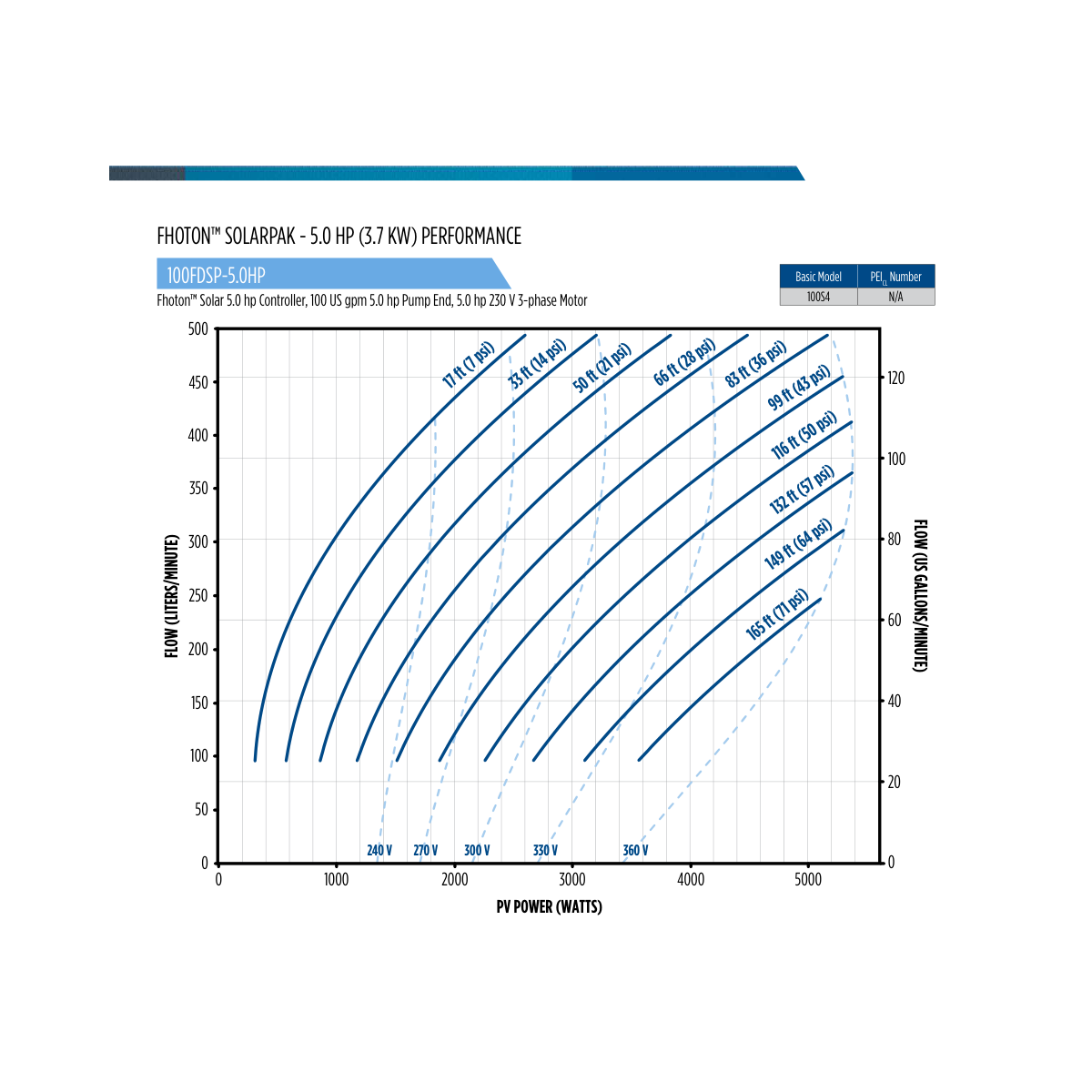

| 100FDSP-5.0HP |
5360 |
130 GPM at 33 ft |
130 GPM at 83 ft |
108 GPM at 116 ft |

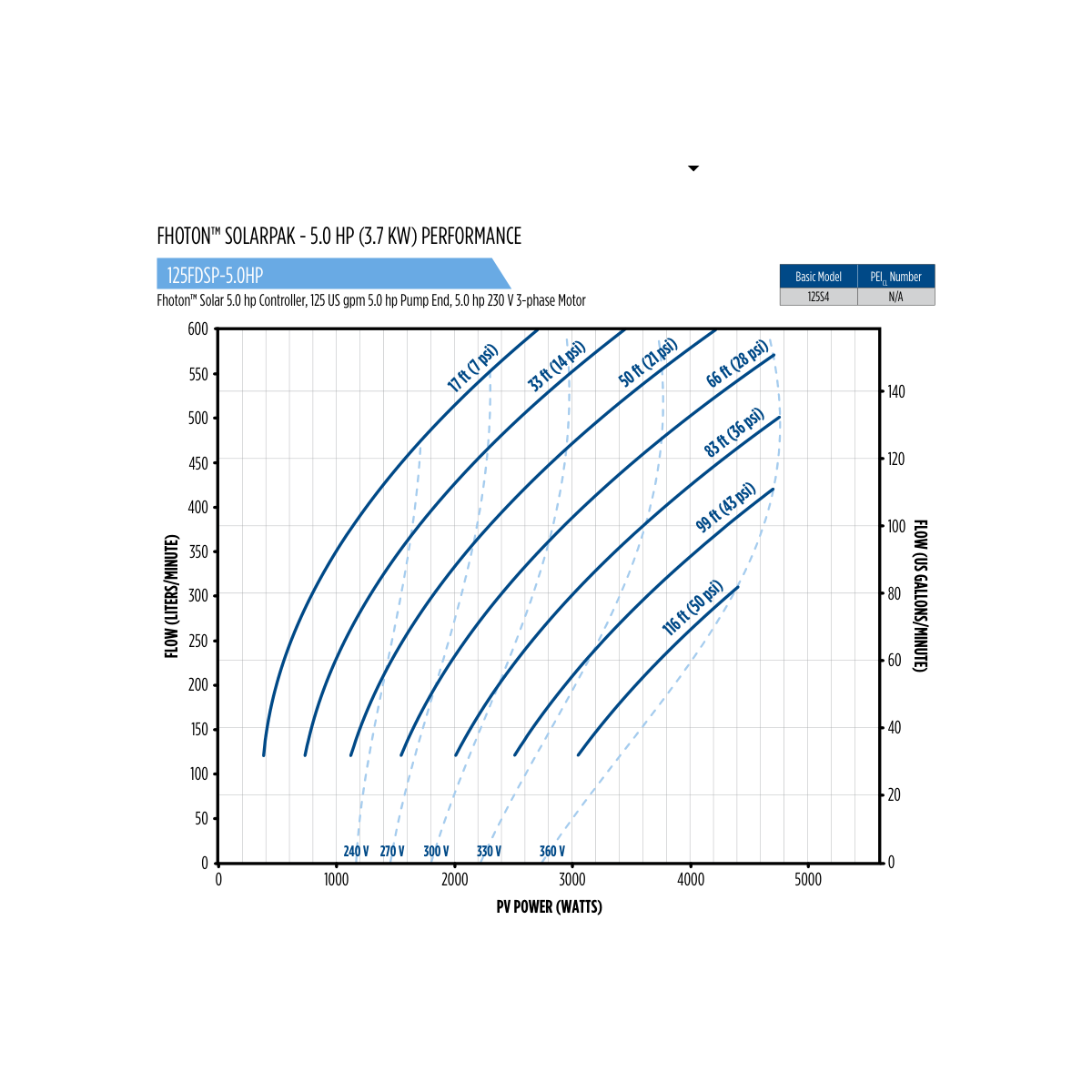

| 125FDSP-5.0HP |
4750 |
158 GPM at 17 ft |
158 GPM at 50 ft |
132 GPM at 83 ft |

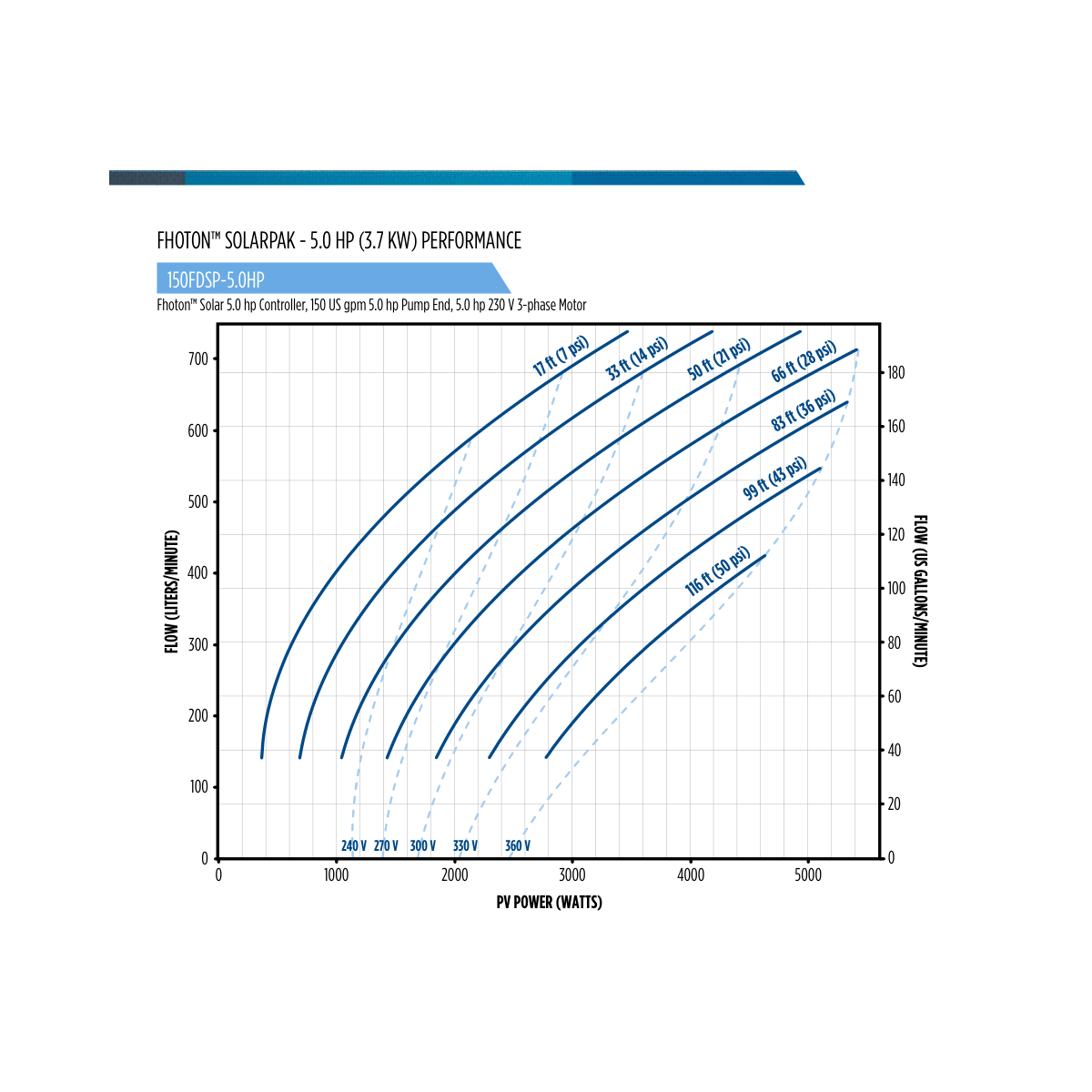

| 150FDSP-5.0HP |
5400 |
195 GPM at 17 ft |
194 GPM at 50 ft |
168 GPM at 83 ft |

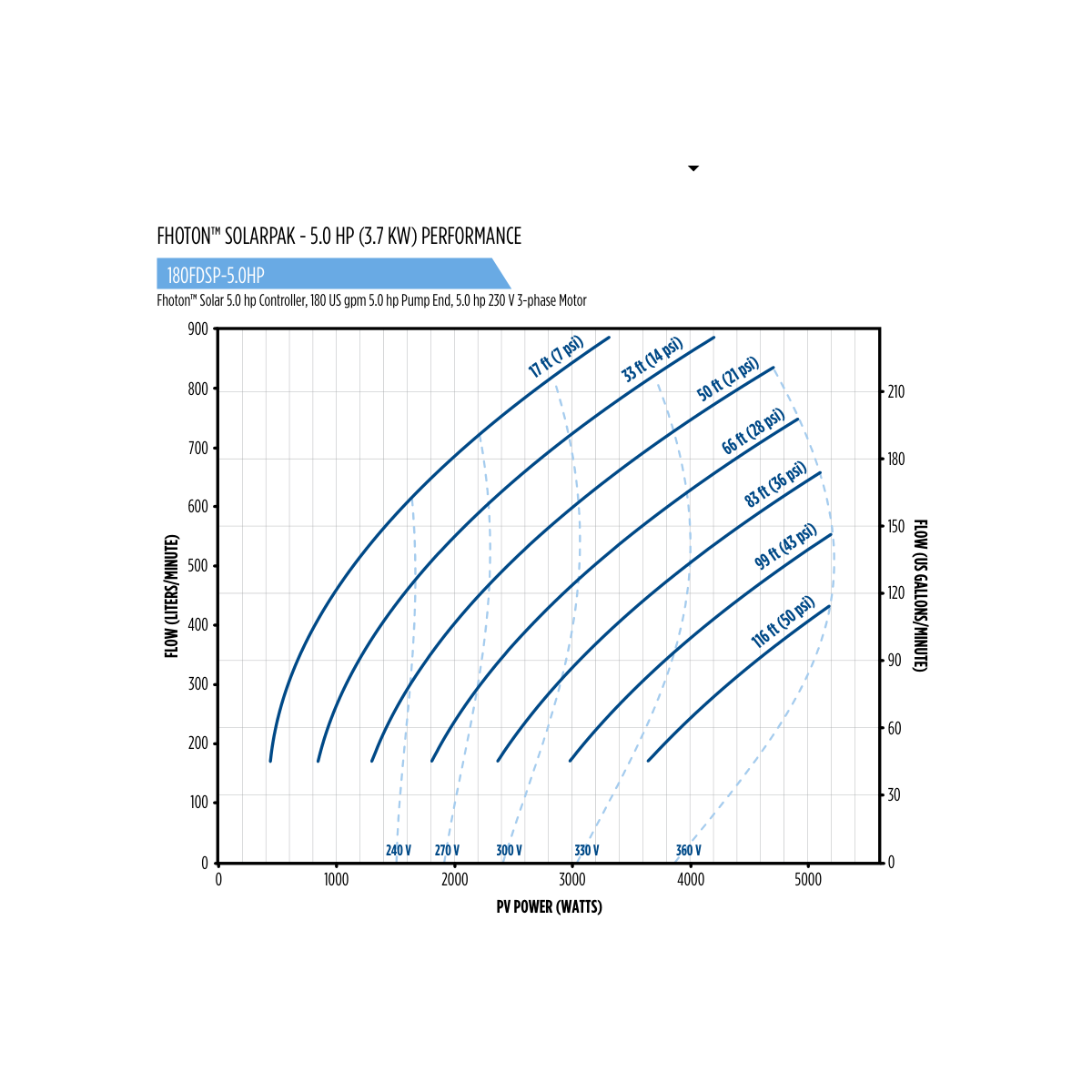

| 180FDSP-5.0HP |
5180 |
233 GPM at 17 ft |
220 GPM at 50 ft |
173 GPM at 83 ft |

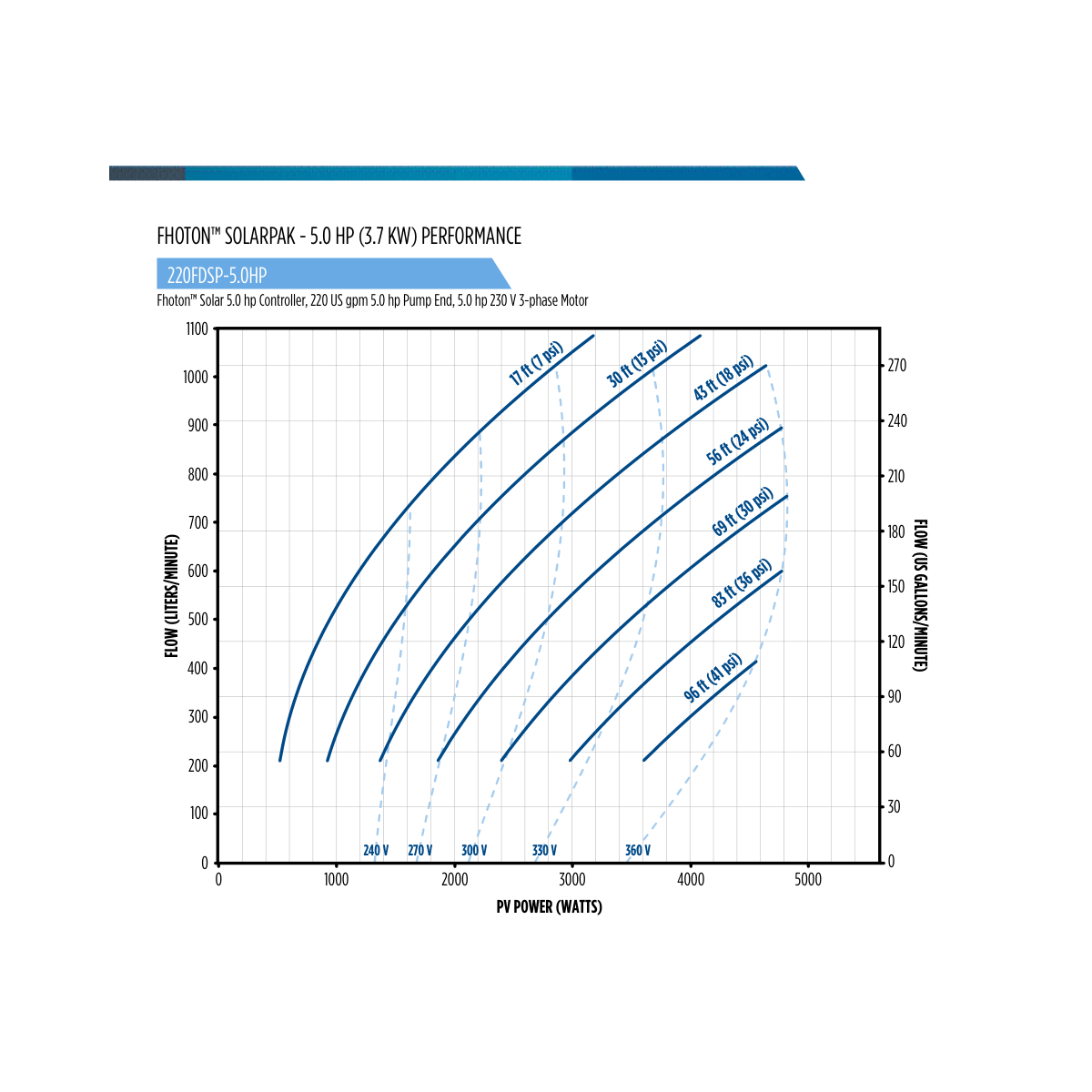

| 220FDSP-5.0HP |
4810 |
285 GPM at 17 ft |
269 GPM at 43 ft |
198 GPM at 69 ft |

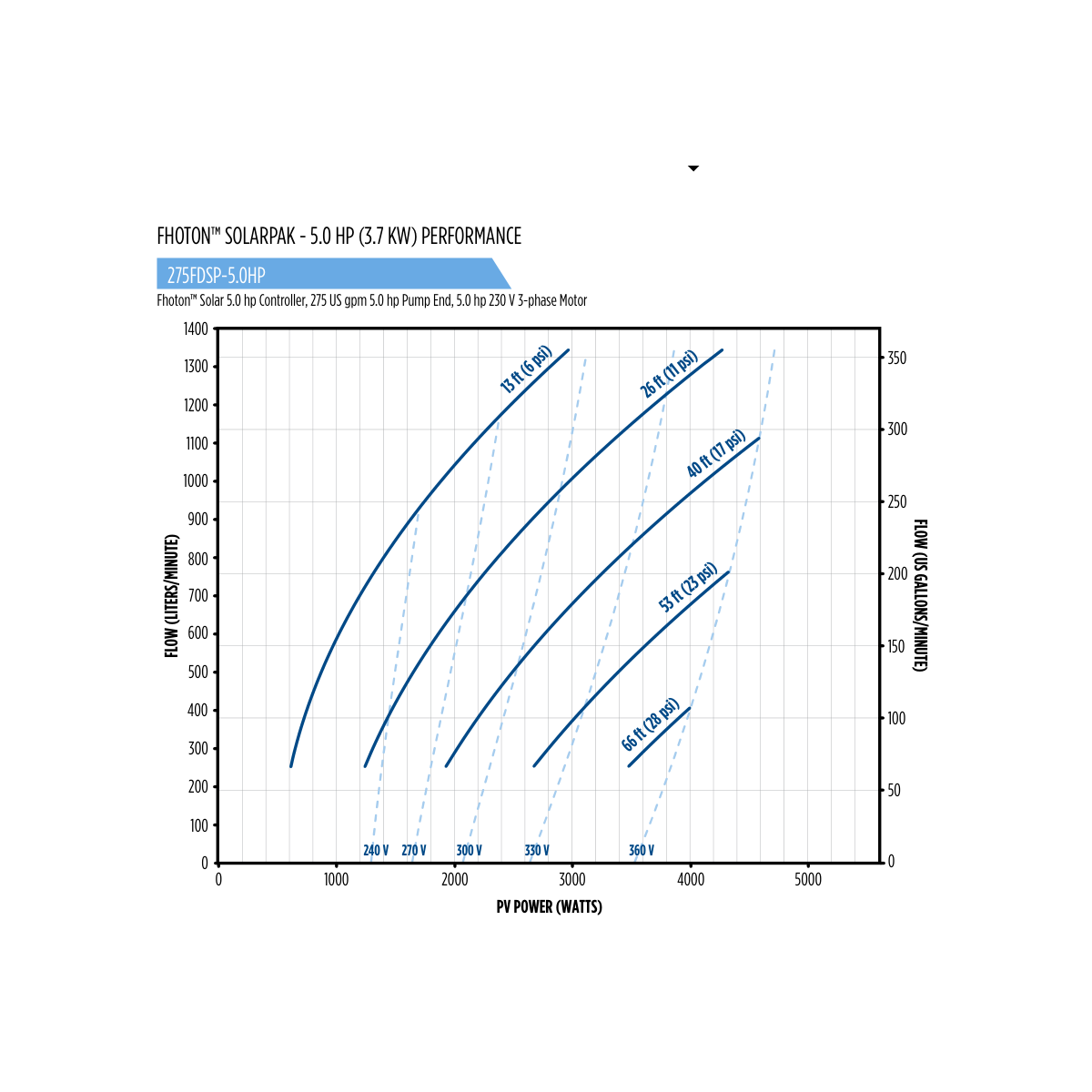

| 275FDSP-5.0HP |
4570 |
354 GPM at 13 ft |
354 GPM at 26 ft |
200 GPM at 53 ft |
| 325FSP-5.0HP |
5590 |
371 GPM at 13 ft |
331 GPM at 40 ft |
269 GPM at 53 ft |

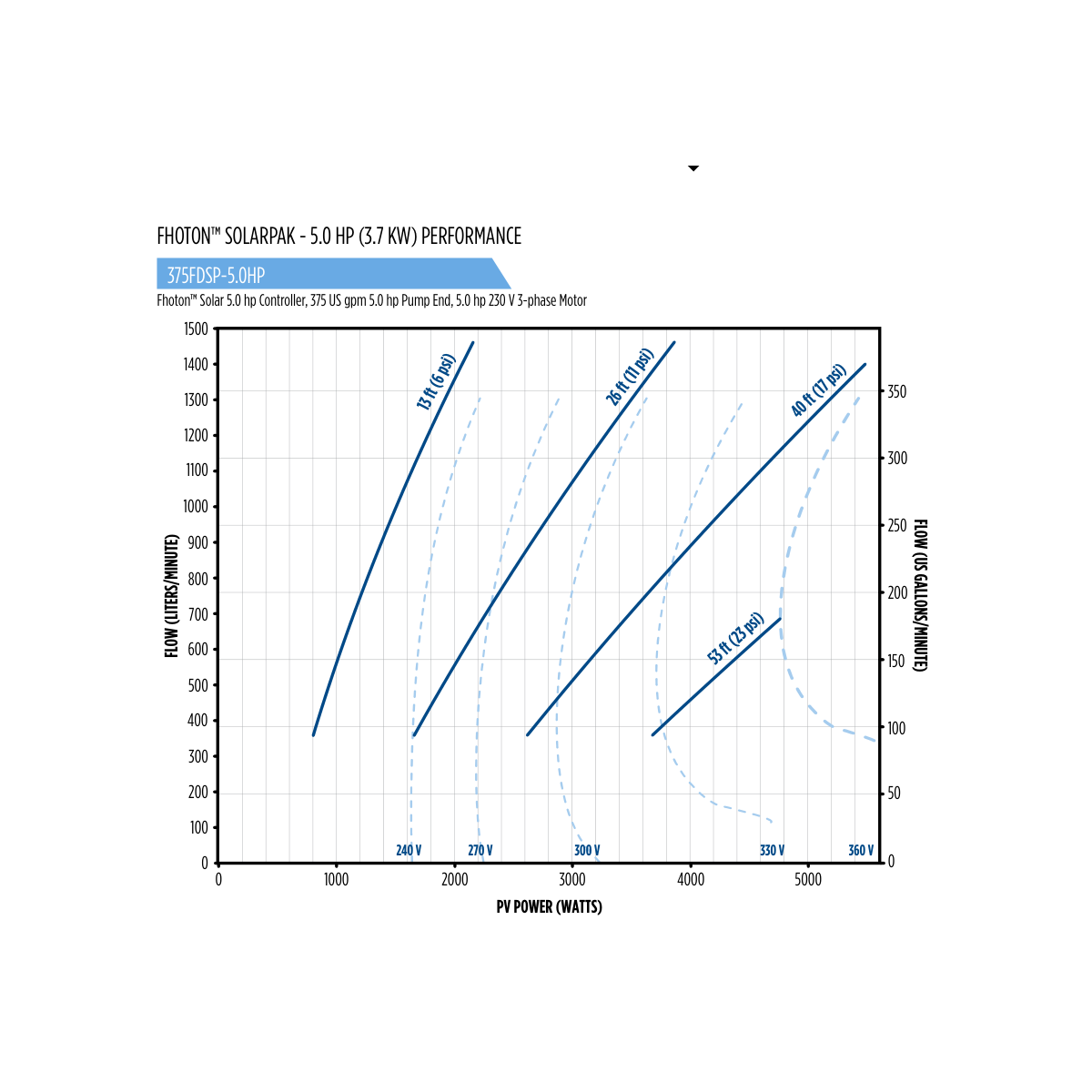

| 375FDSP-5.0HP |
5470 |
384 GPM at 13 ft |
385 GPM at 26 ft |
368 GPM at 40 ft |
7-1/2 HP builds
| Model |
PV power at full flow, W |
At 20% of max head |
At 50% |
At 75% |

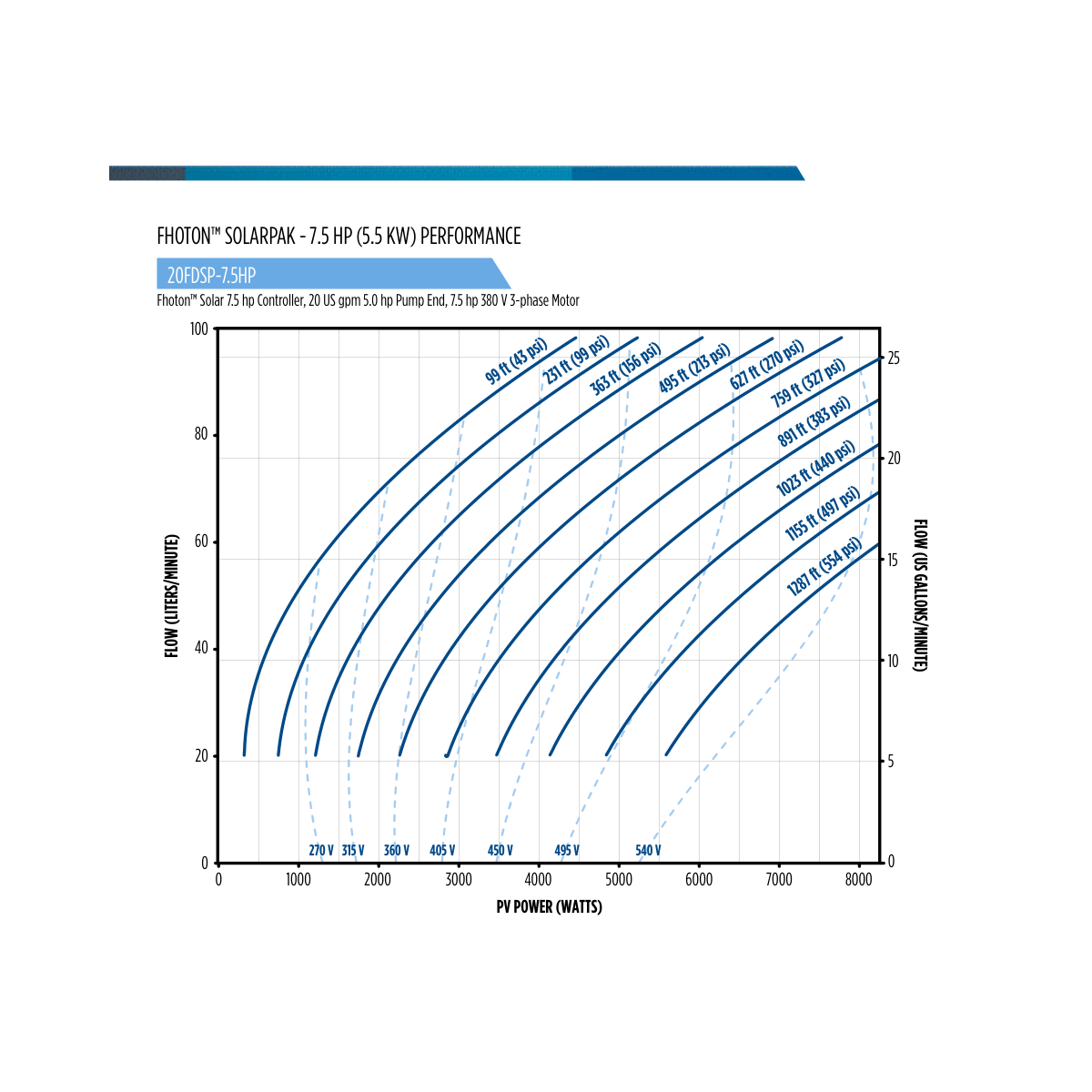

| 20FDSP-7.5HP |
8250 |
25.9 GPM at 231 ft |
25.9 GPM at 627 ft |
20.6 GPM at 1023 ft |

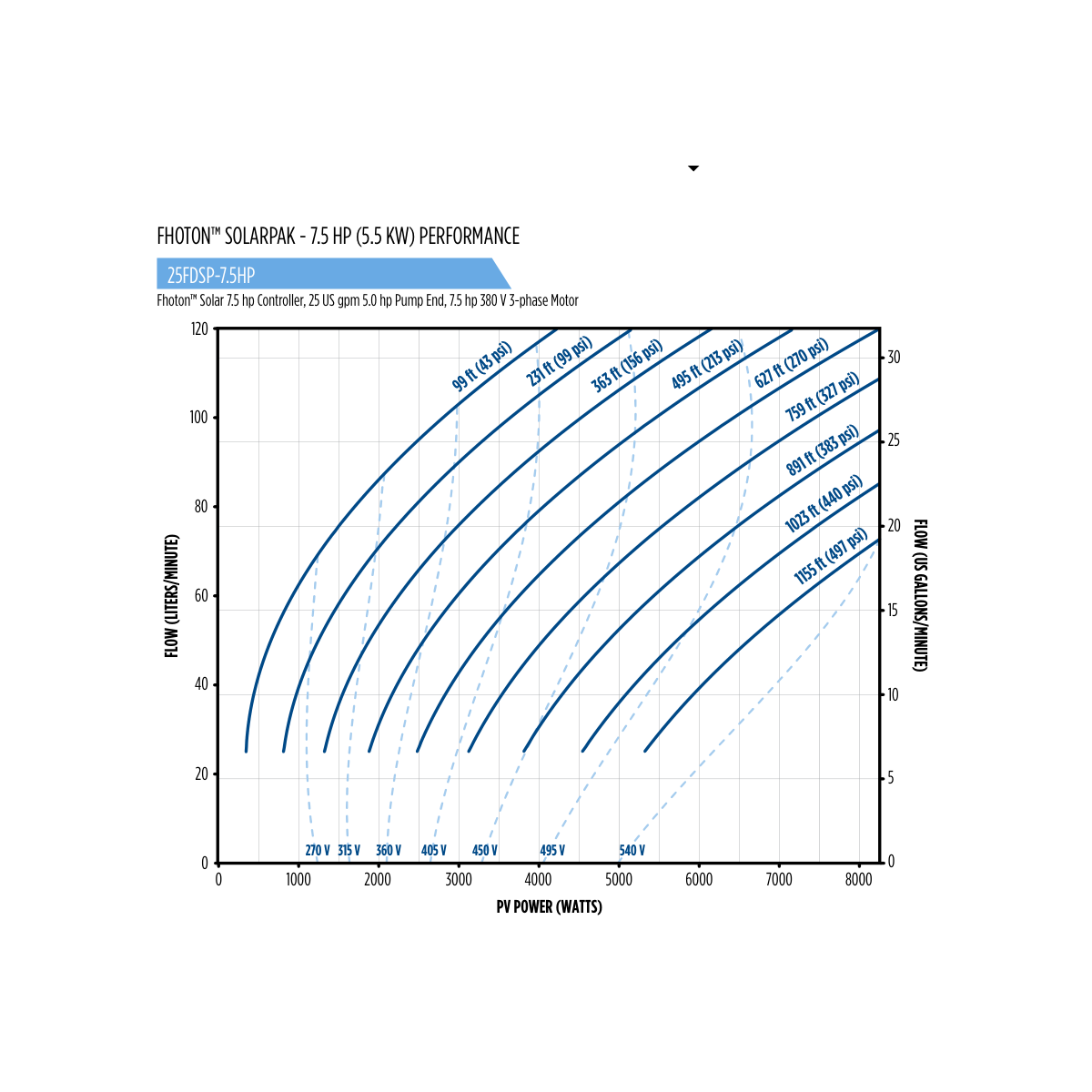

| 25FDSP-7.5HP |
8250 |
31.7 GPM at 231 ft |
31.6 GPM at 627 ft |
25.6 GPM at 891 ft |

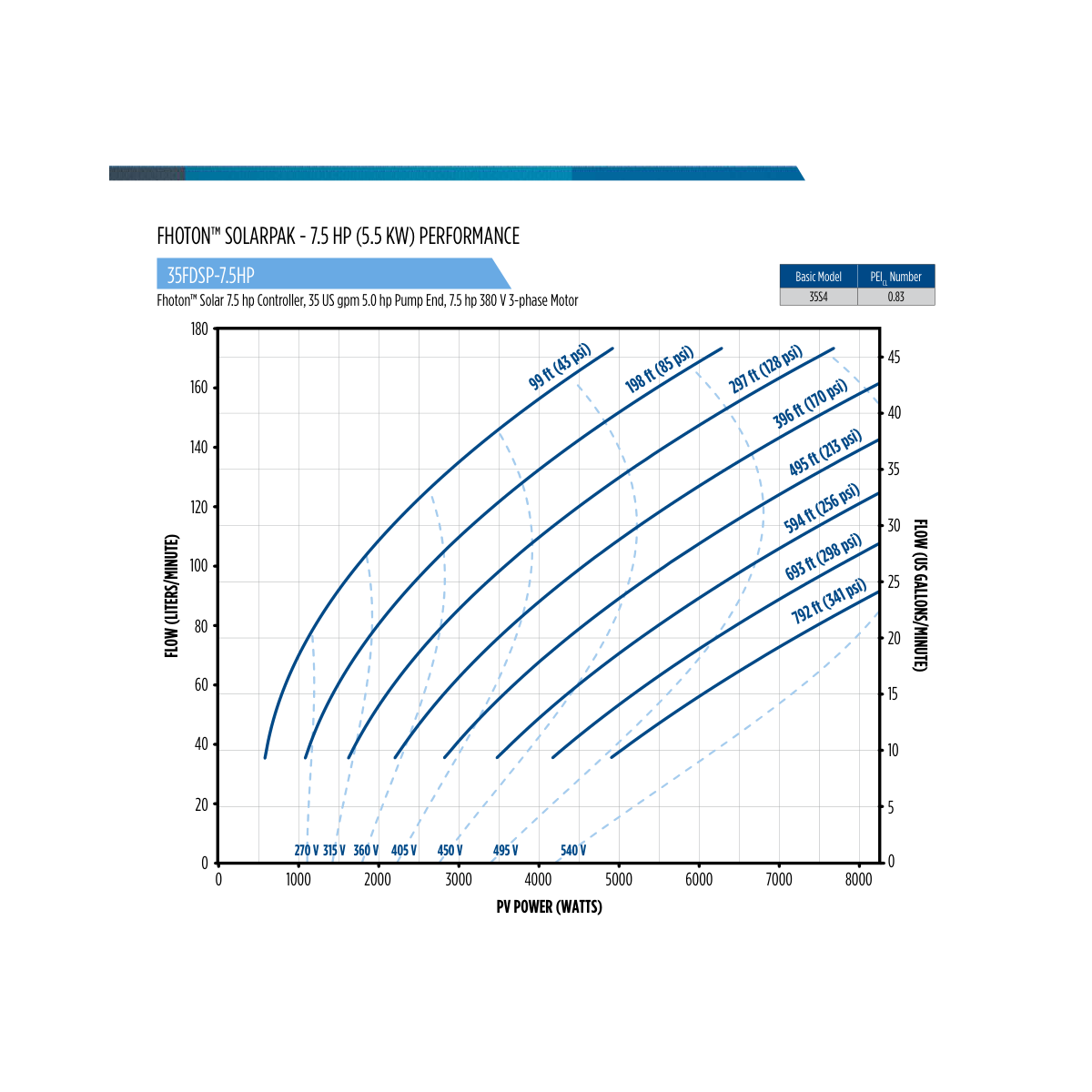

| 35FDSP-7.5HP |
8240 |
45.7 GPM at 198 ft |
42.5 GPM at 396 ft |
32.8 GPM at 594 ft |

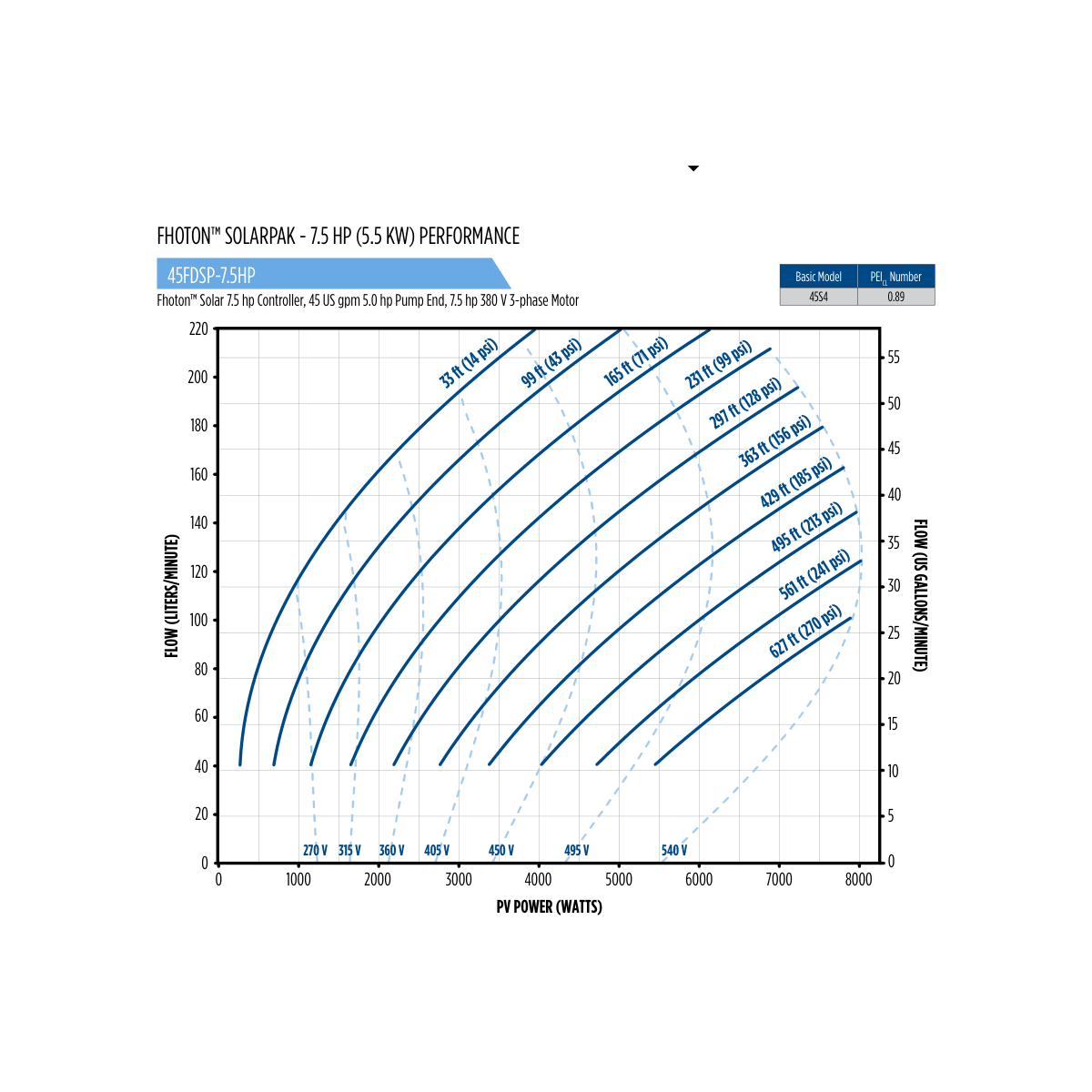

| 45FDSP-7.5HP |
8010 |
57.9 GPM at 99 ft |
51.7 GPM at 297 ft |
38.1 GPM at 495 ft |

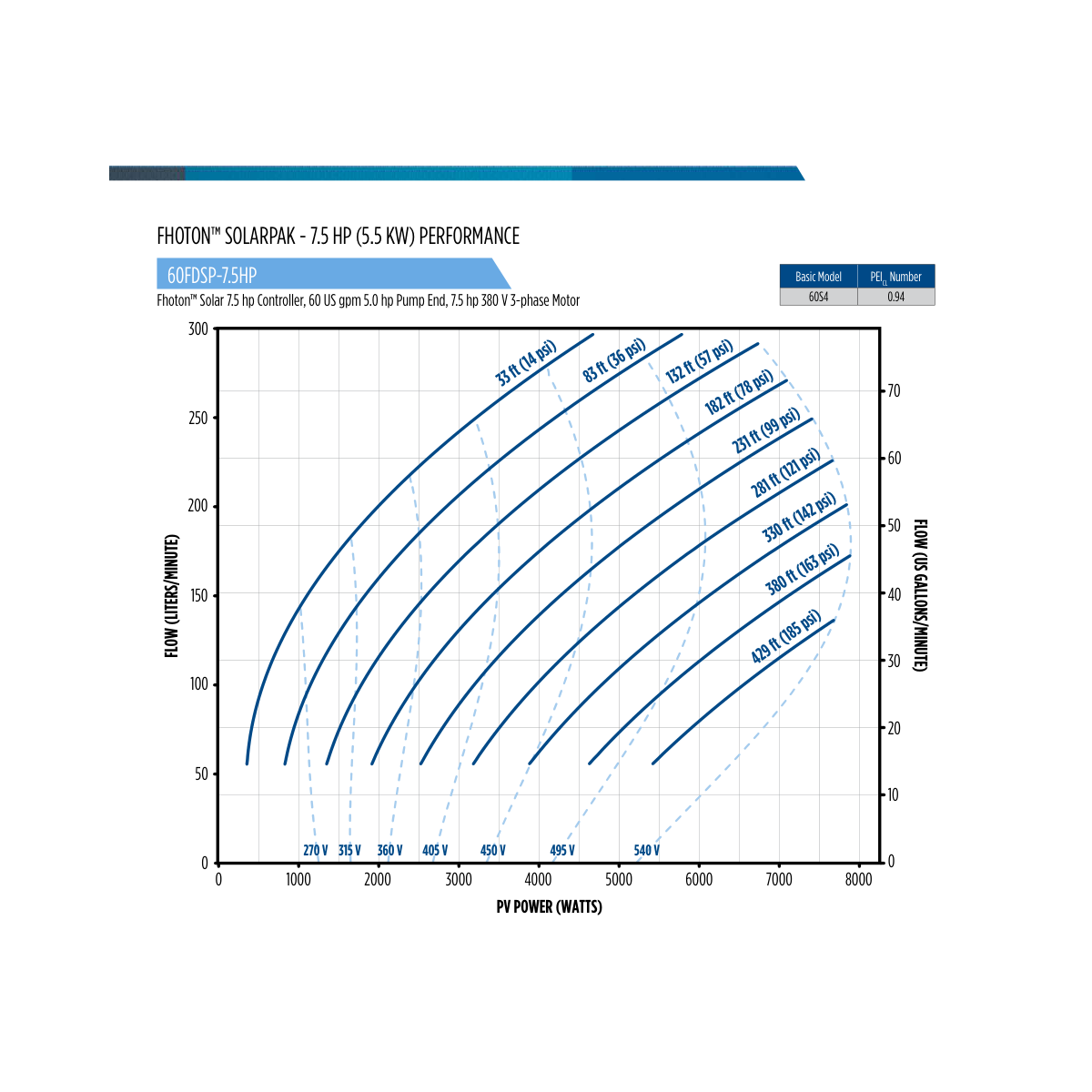

| 60FDSP-7.5HP |
7880 |
78.3 GPM at 83 ft |
65.8 GPM at 231 ft |
53.1 GPM at 330 ft |

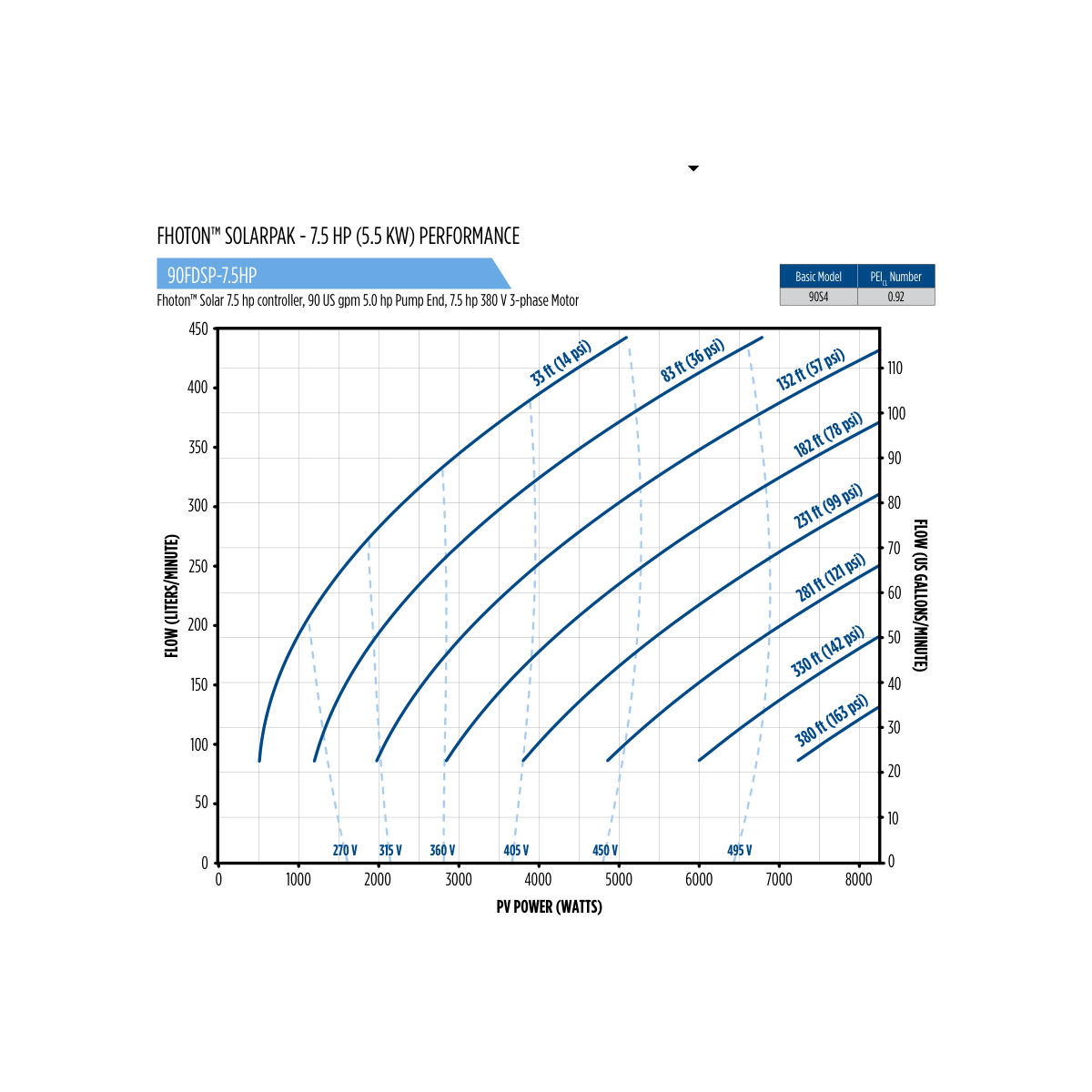

| 90FDSP-7.5HP |
8250 |
116 GPM at 83 ft |
97.8 GPM at 182 ft |
66.0 GPM at 281 ft |

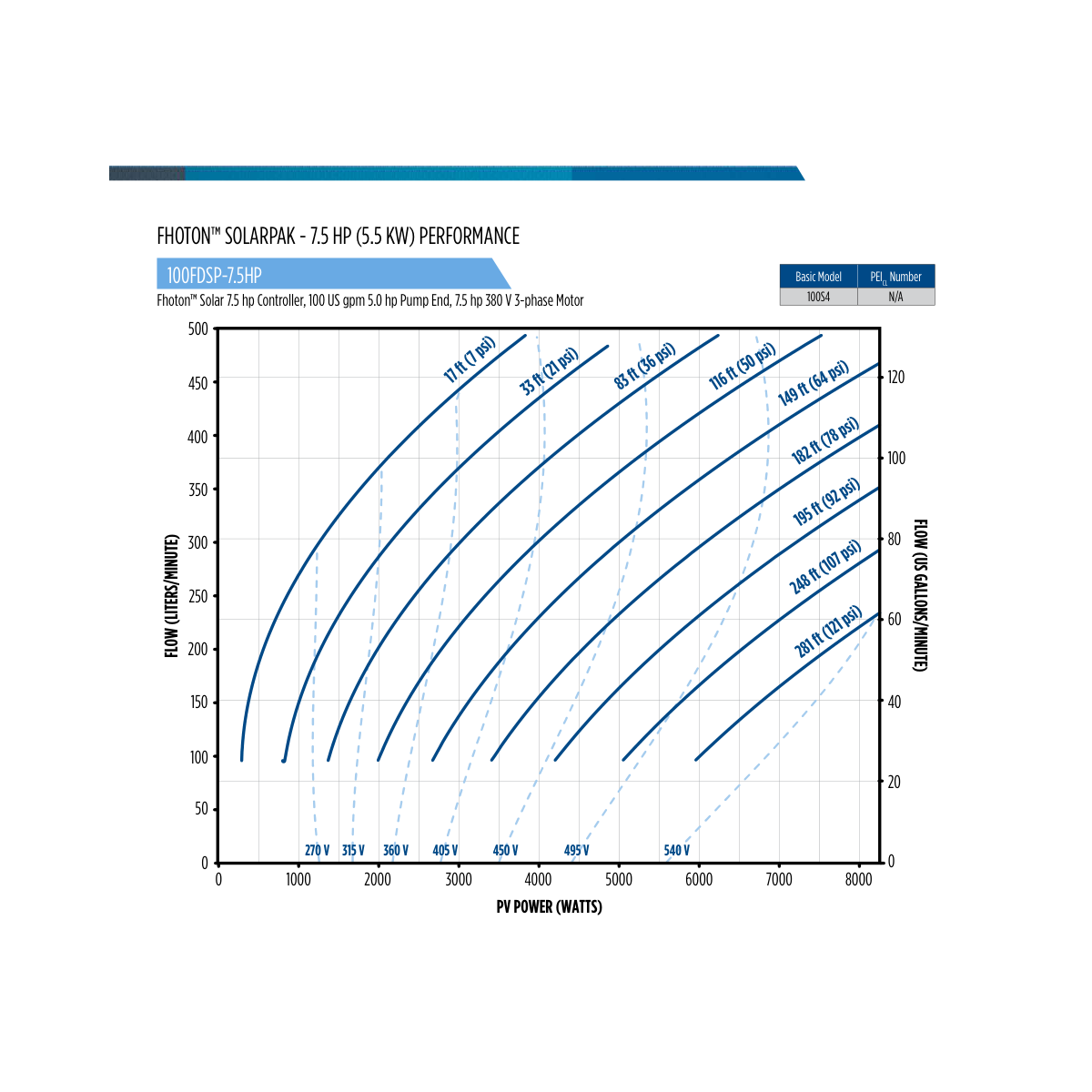

| 100FDSP-7.5HP |
8250 |
127 GPM at 33 ft |
123 GPM at 149 ft |
92.6 GPM at 195 ft |

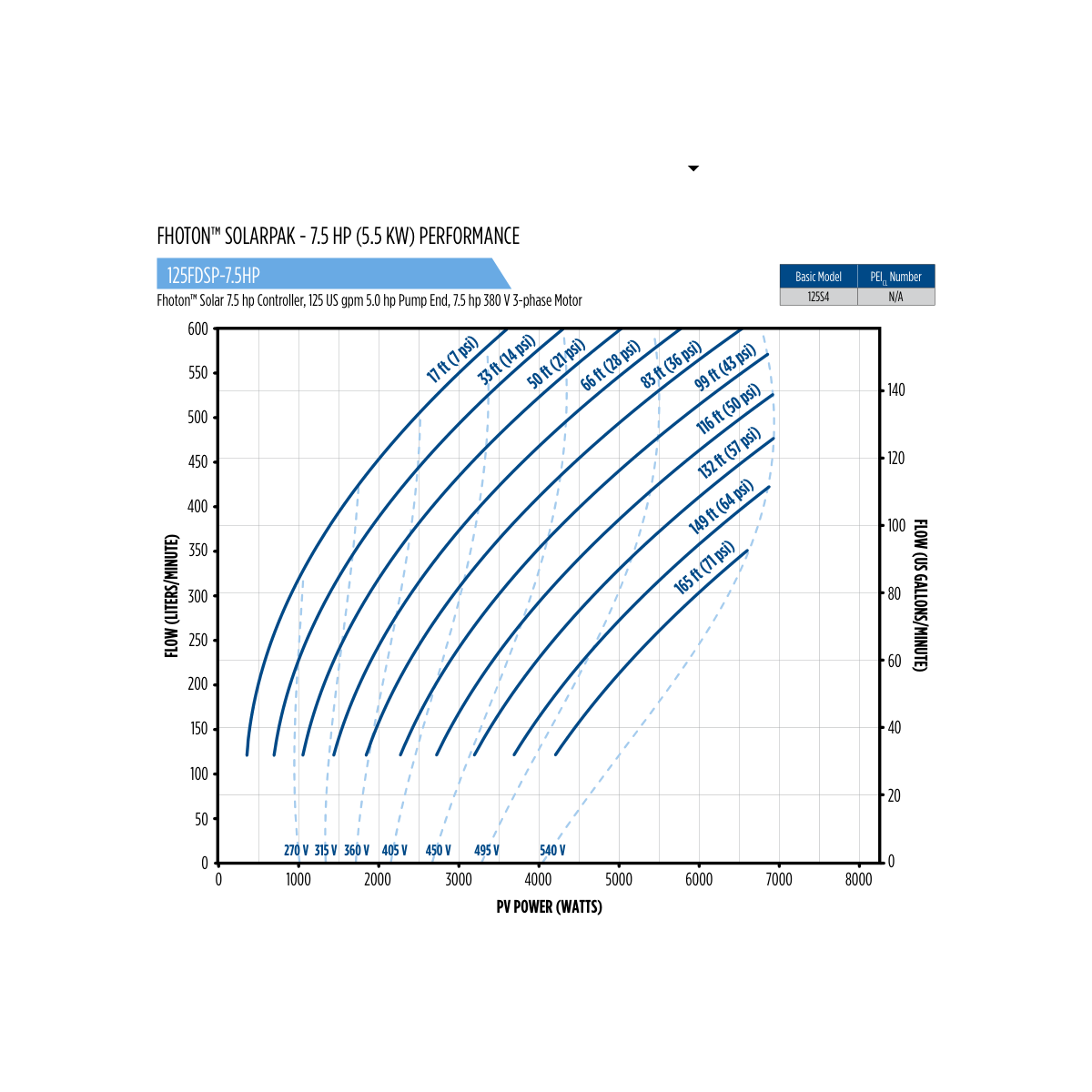

| 125FDSP-7.5HP |
6920 |
158 GPM at 33 ft |
158 GPM at 83 ft |
138 GPM at 116 ft |

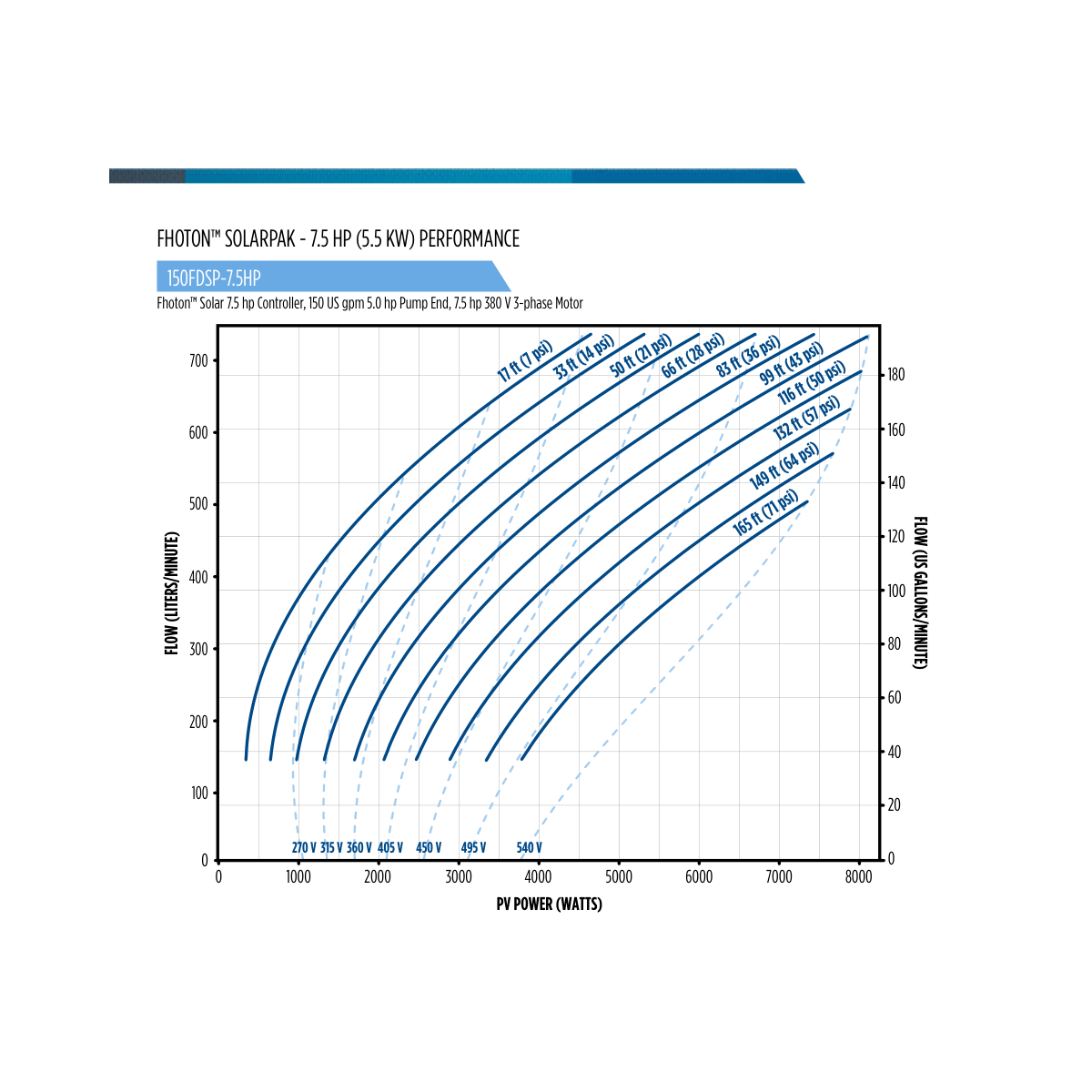

| 150FDSP-7.5HP |
8090 |
195 GPM at 33 ft |
195 GPM at 83 ft |
181 GPM at 116 ft |
| 180FDSP-7.5HP |
7630 |
233 GPM at 33 ft |
222 GPM at 83 ft |
168 GPM at 132 ft |

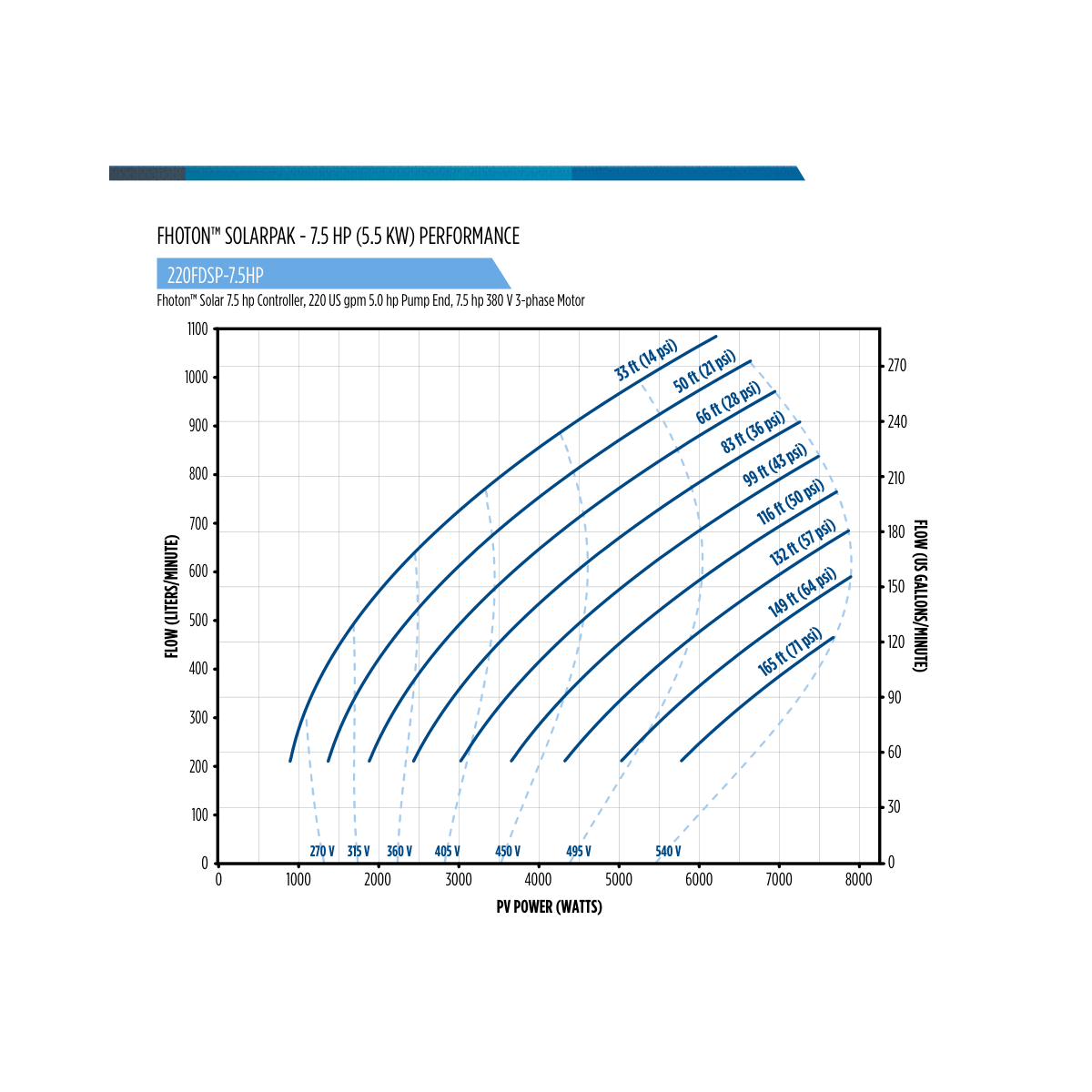

| 220FDSP-7.5HP |
7890 |
286 GPM at 33 ft |
239 GPM at 83 ft |
201 GPM at 116 ft |

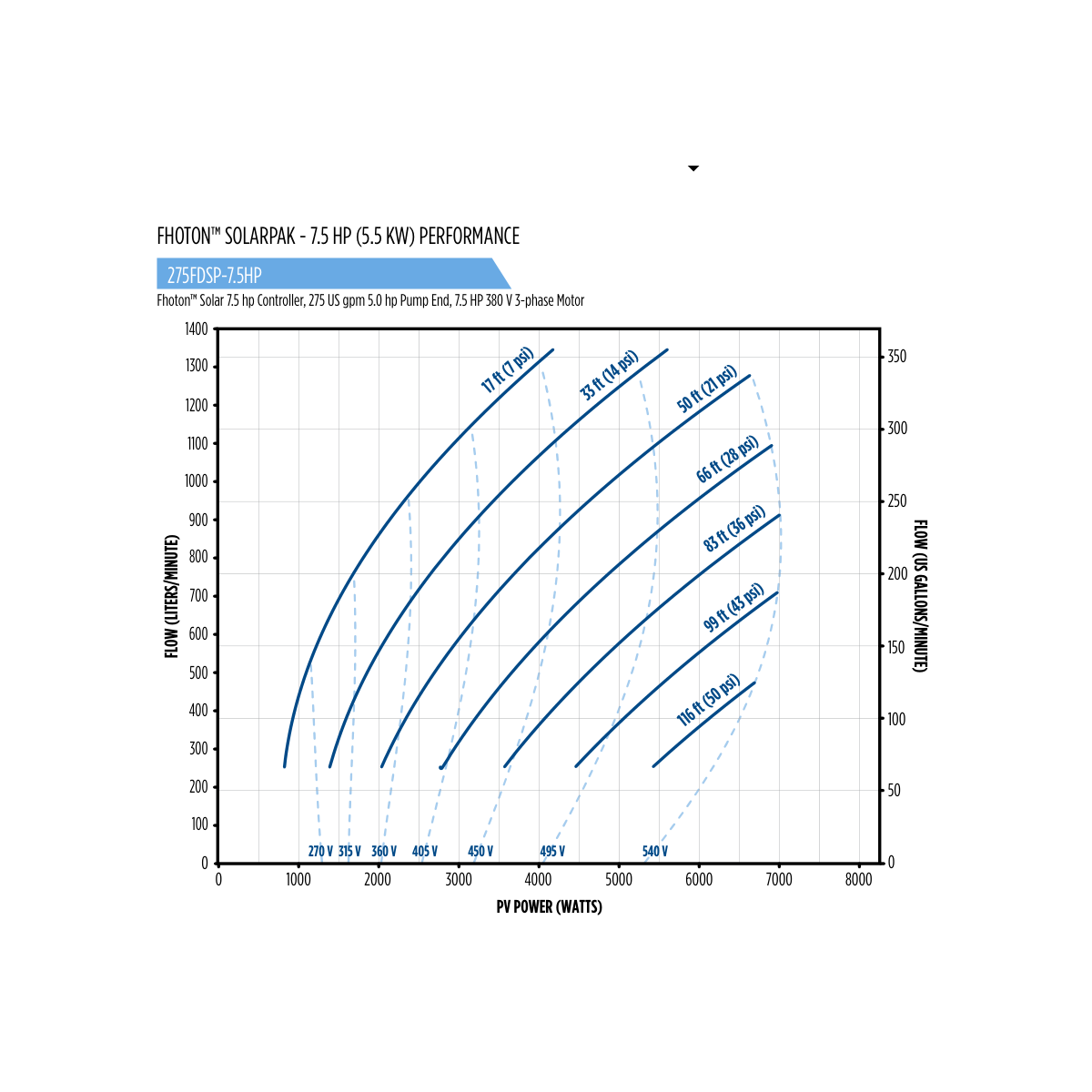

| 275FDSP-7.5HP |
7000 |
354 GPM at 17 ft |
337 GPM at 50 ft |
240 GPM at 83 ft |

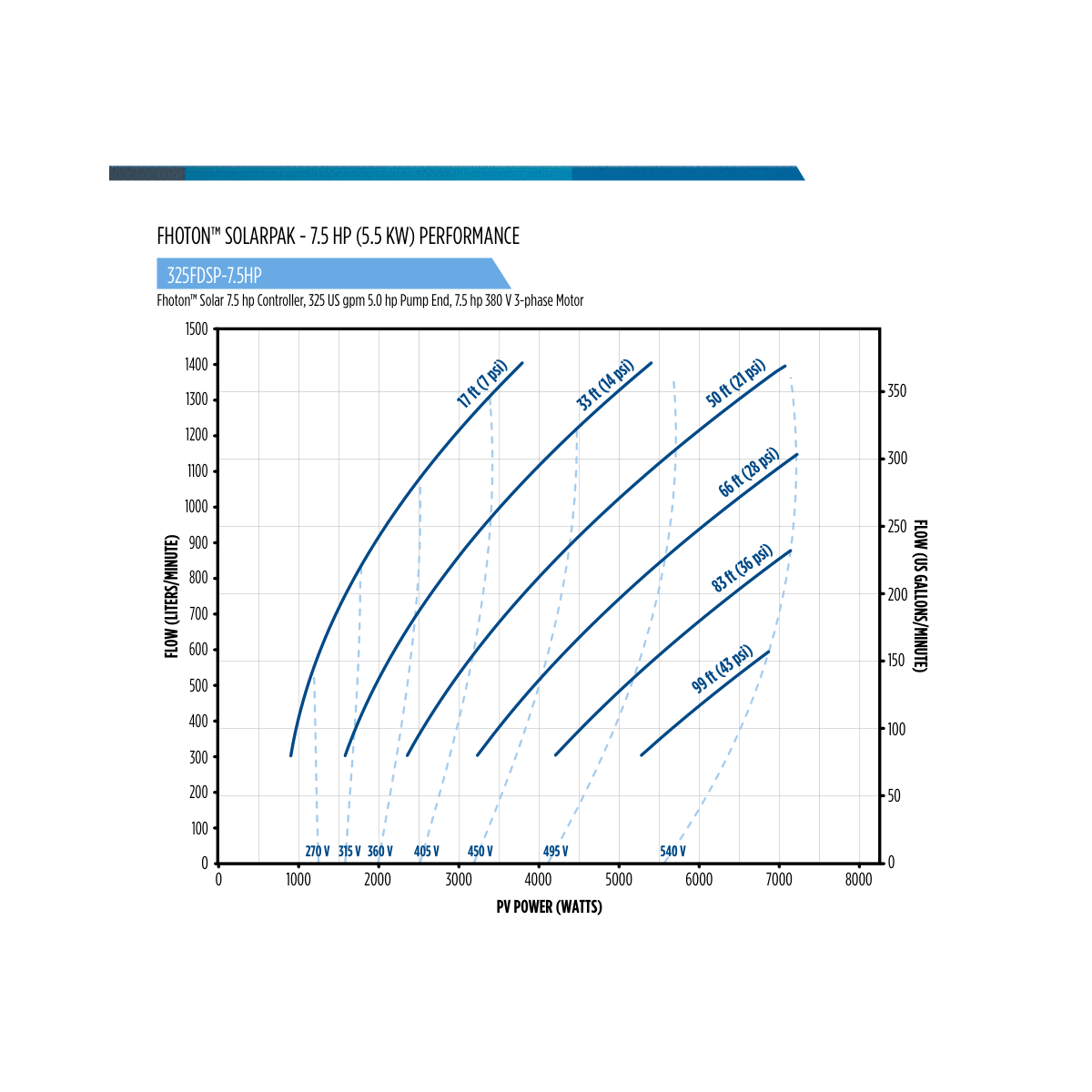

| 325FSP-7.5HP |
7220 |
371 GPM at 17 ft |
368 GPM at 50 ft |
303 GPM at 66 ft |

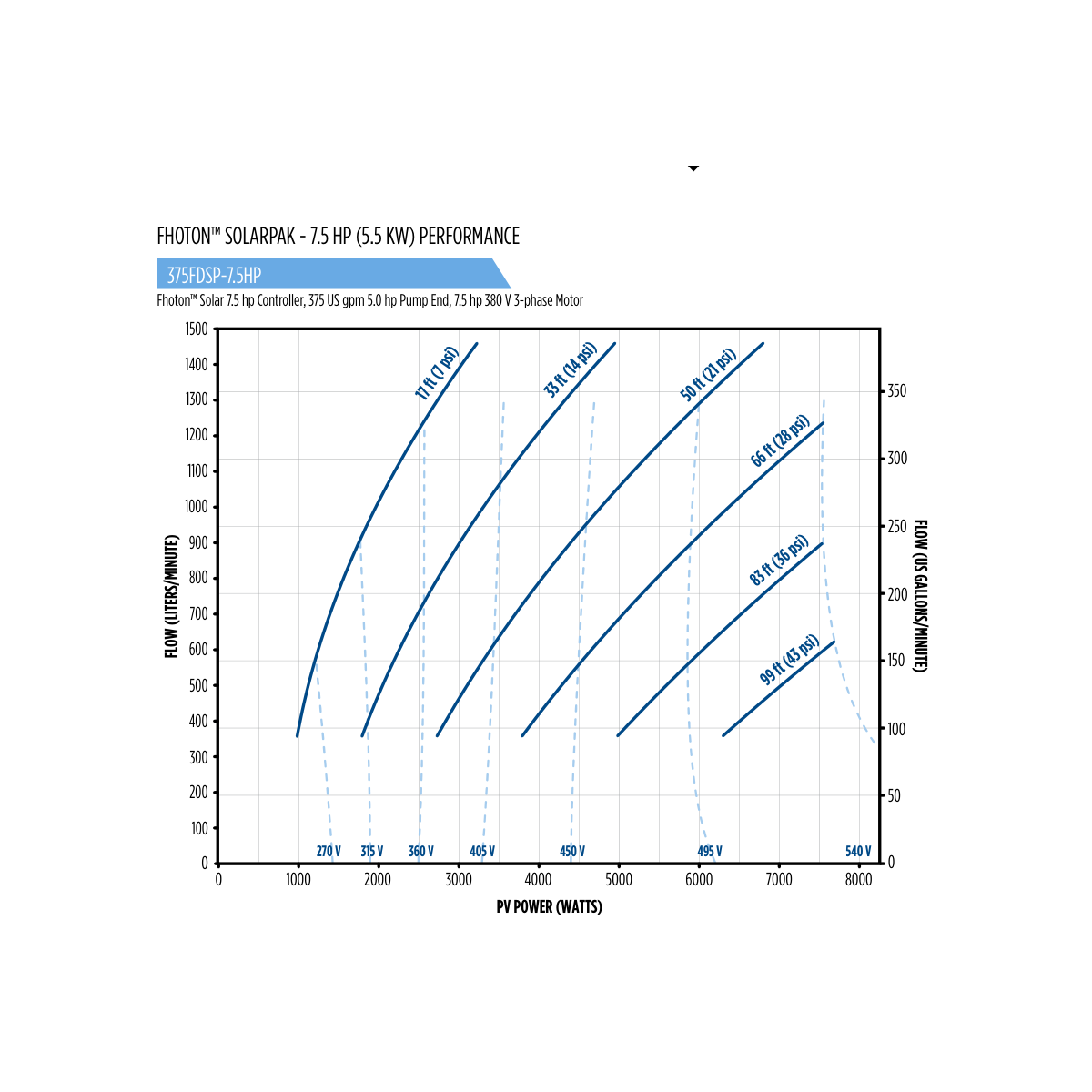

| 375FDSP-7.5HP |
7680 |
385 GPM at 17 ft |
385 GPM at 50 ft |
326 GPM at 66 ft |
10 HP builds
| Model |
PV power at full flow, W |
At 20% of max head |
At 50% |
At 75% |

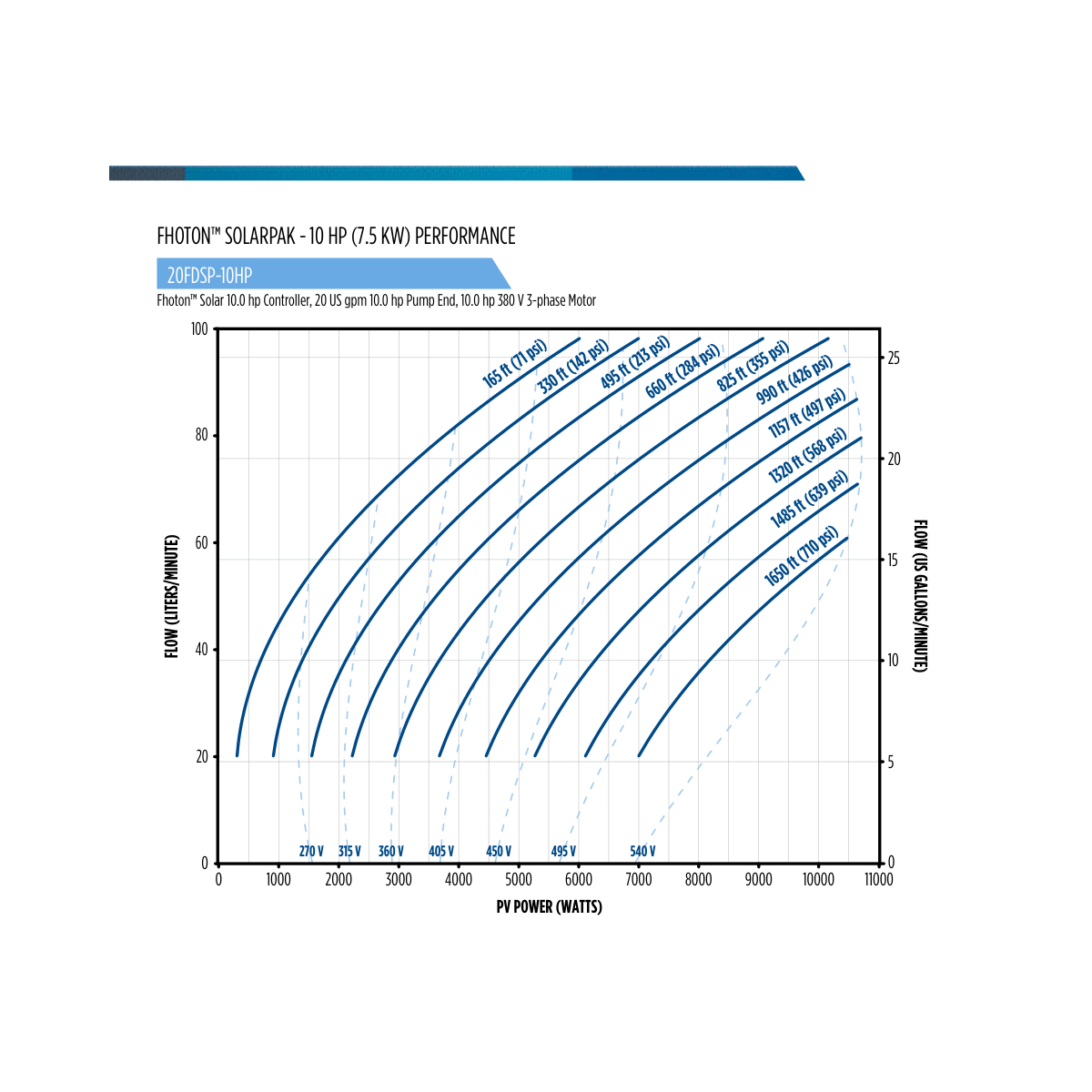

| 20FDSP-10HP |
10700 |
25.9 GPM at 330 ft |
25.9 GPM at 825 ft |
22.9 GPM at 1157 ft |

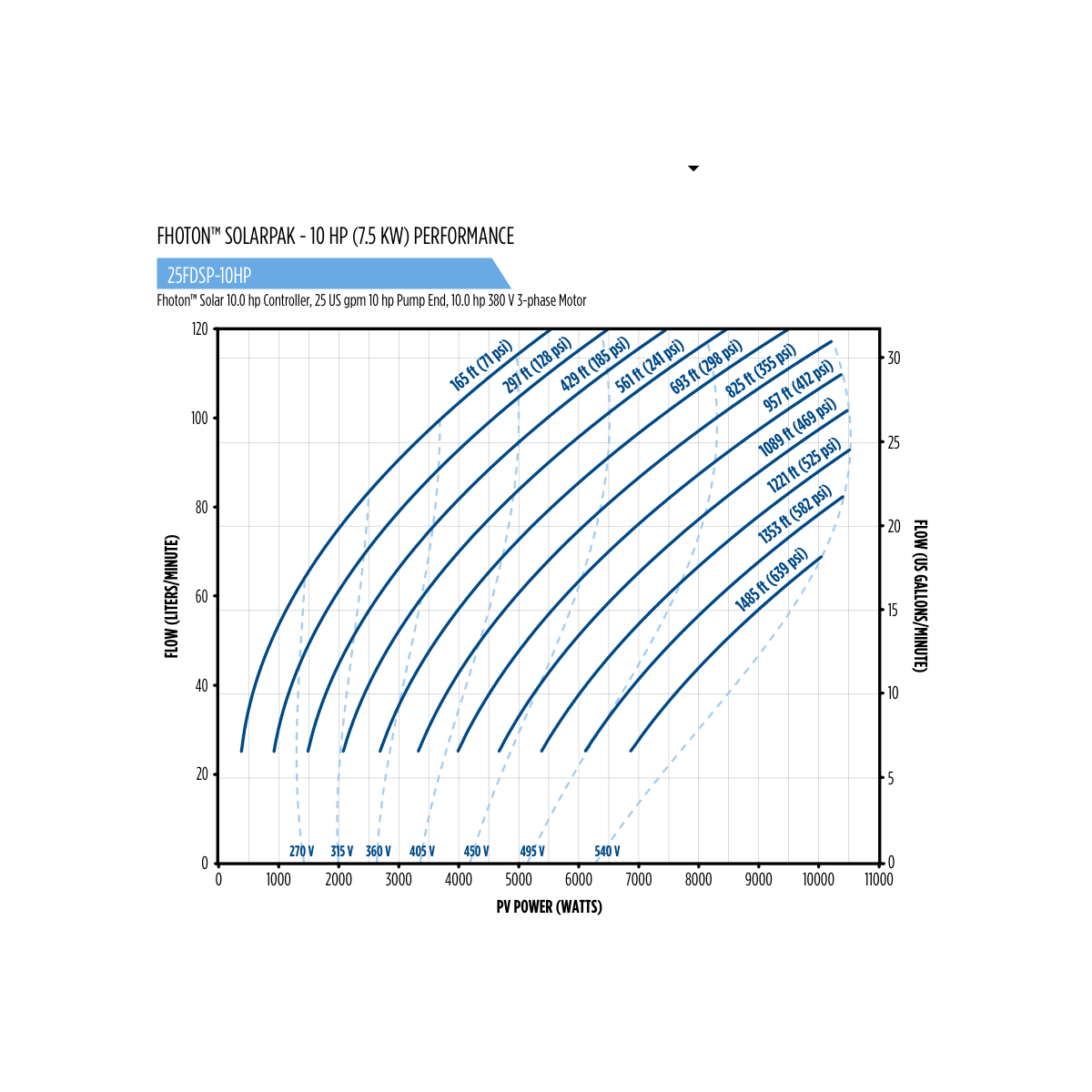

| 25FDSP-10HP |
10510 |
31.6 GPM at 297 ft |
31.6 GPM at 693 ft |
26.8 GPM at 1089 ft |

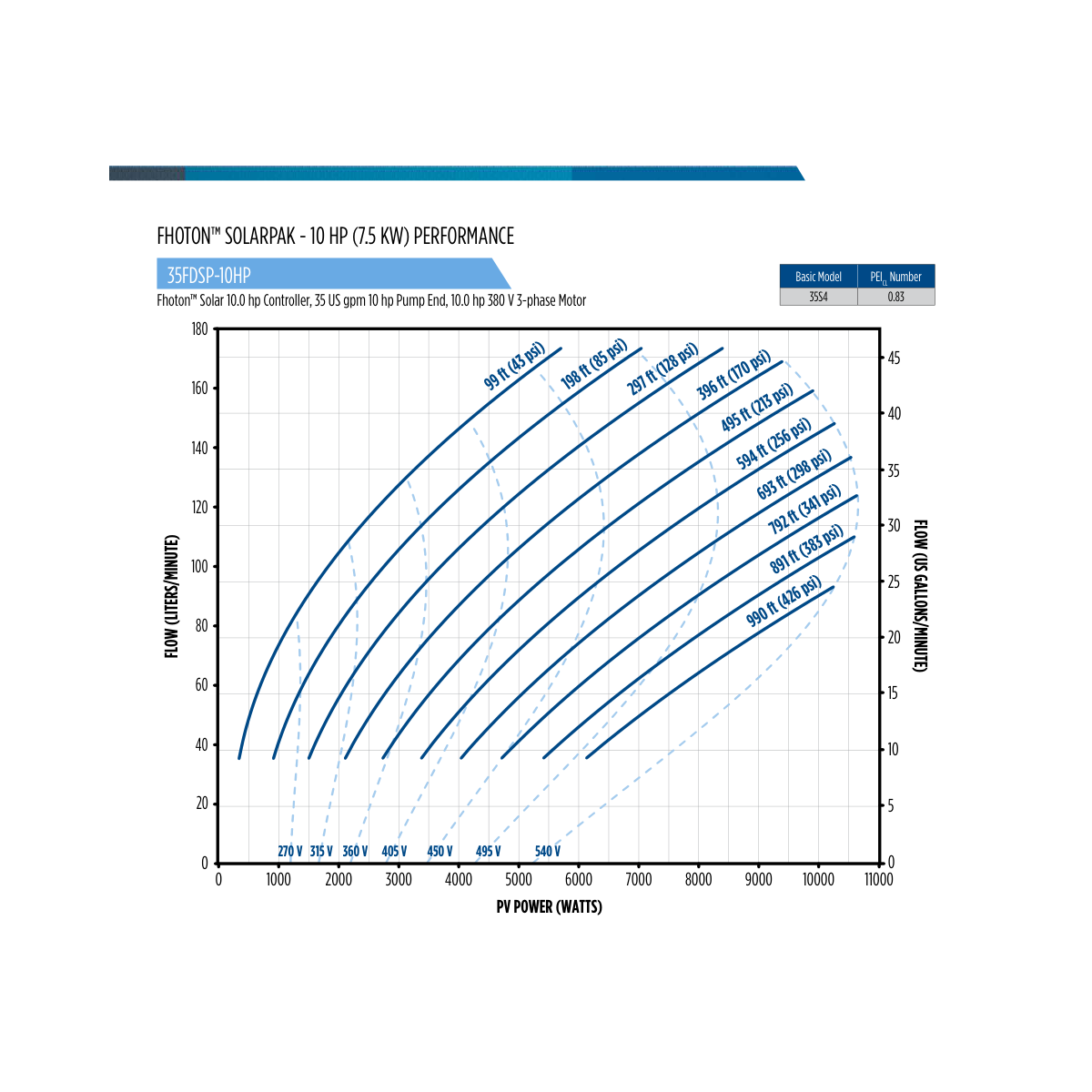

| 35FDSP-10HP |
10620 |
45.7 GPM at 198 ft |
41.9 GPM at 495 ft |
36.0 GPM at 693 ft |
| 45FDSP-10HP |
9390 |
58.0 GPM at 165 ft |
51.3 GPM at 363 ft |
40.0 GPM at 561 ft |

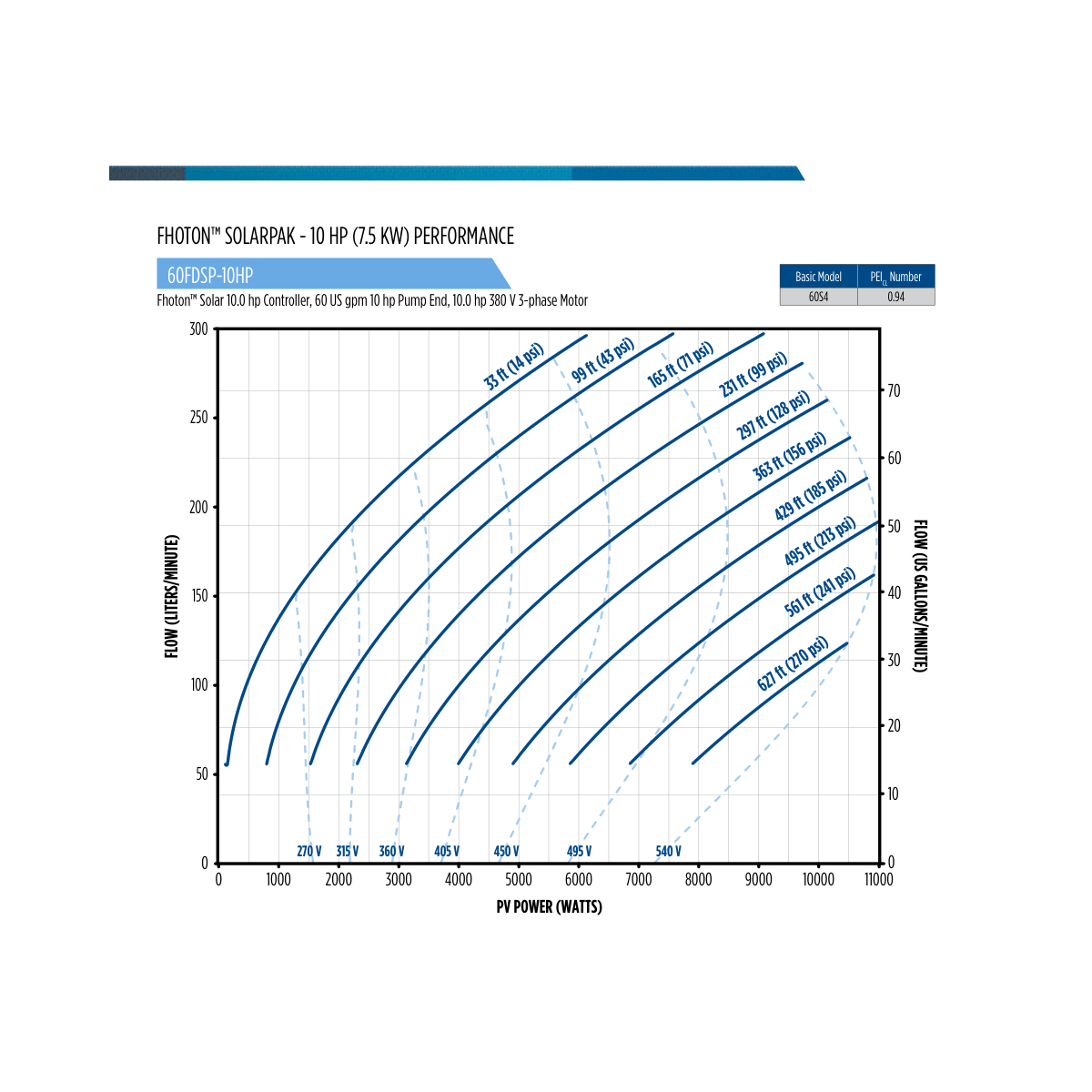

| 60FDSP-10HP |
10980 |
78.3 GPM at 99 ft |
68.4 GPM at 297 ft |
50.4 GPM at 495 ft |

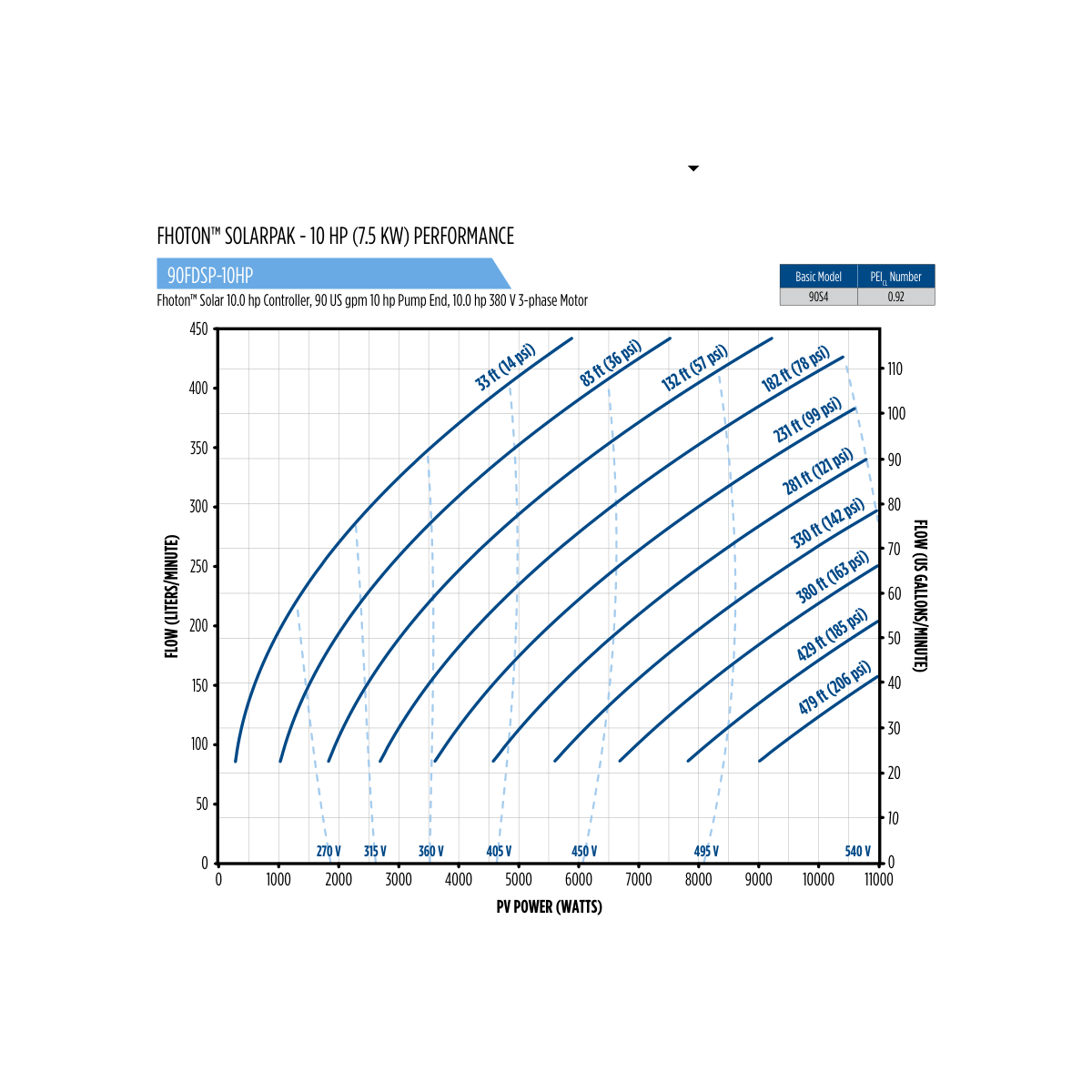

| 90FDSP-10HP |
10980 |
116 GPM at 83 ft |
101 GPM at 231 ft |
66.0 GPM at 380 ft |

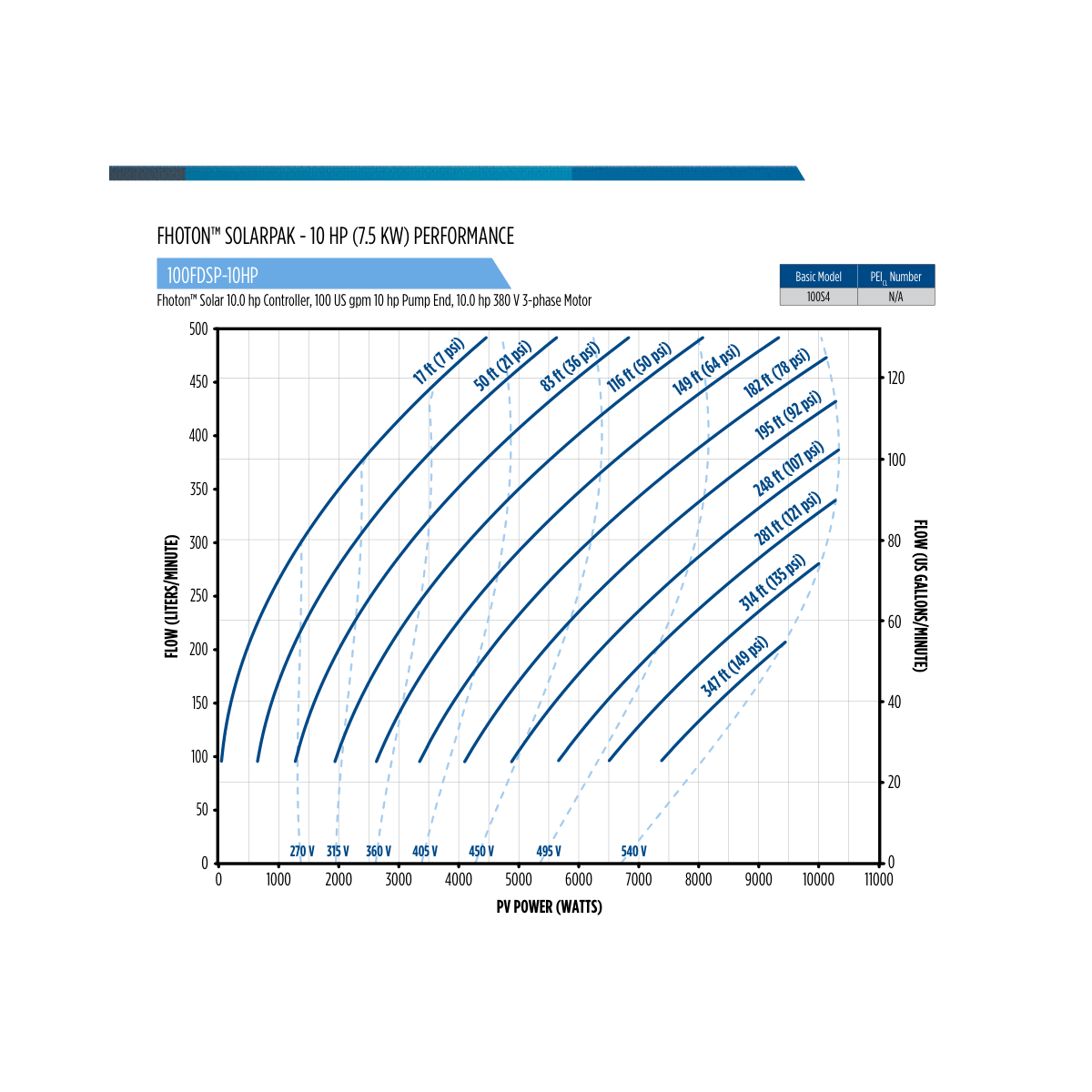

| 100FDSP-10HP |
10320 |
129 GPM at 83 ft |
125 GPM at 182 ft |
102 GPM at 248 ft |

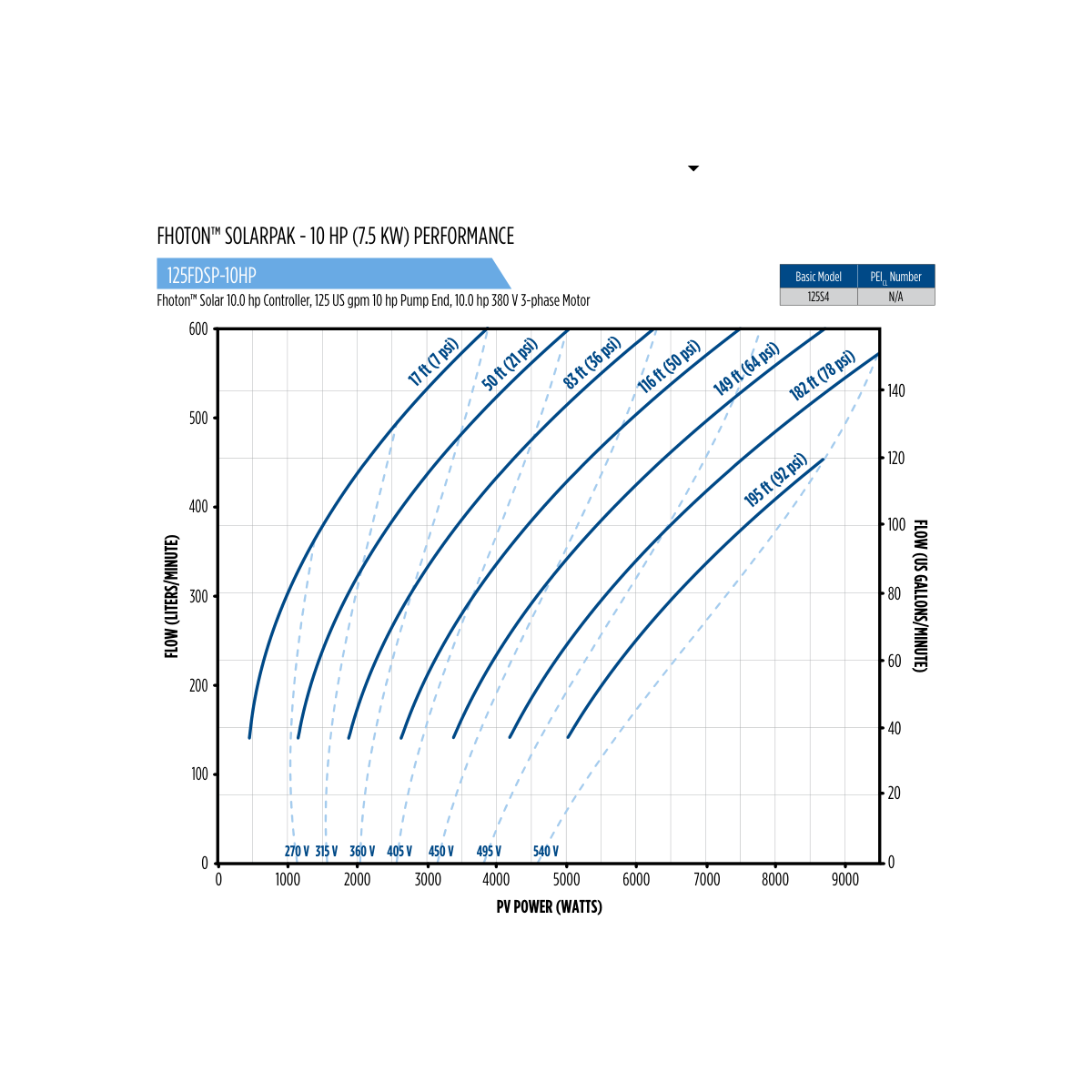

| 125FDSP-10HP |
9480 |
157 GPM at 50 ft |
157 GPM at 83 ft |
158 GPM at 149 ft |

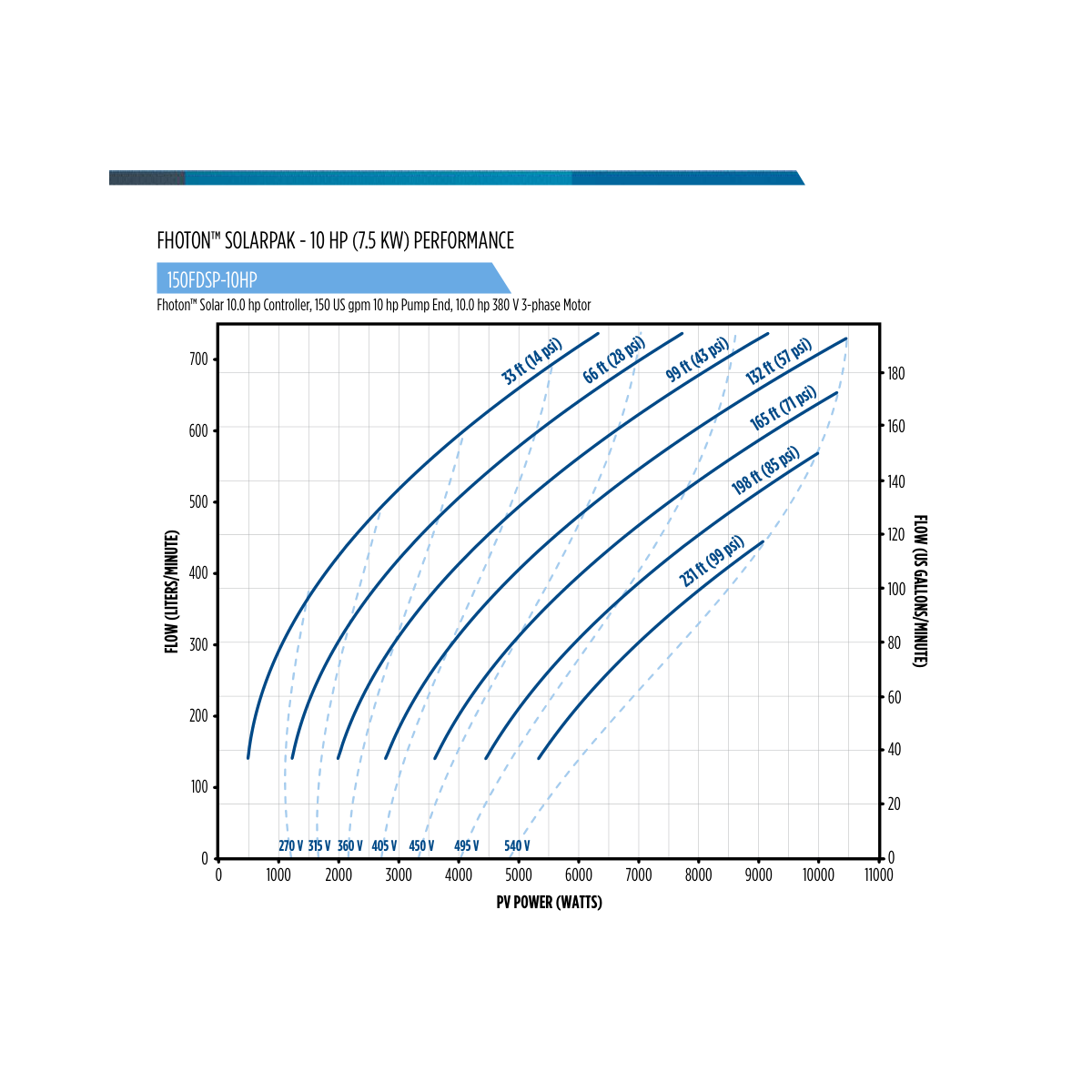

| 150FDSP-10HP |
10450 |
194 GPM at 33 ft |
194 GPM at 99 ft |
172 GPM at 165 ft |

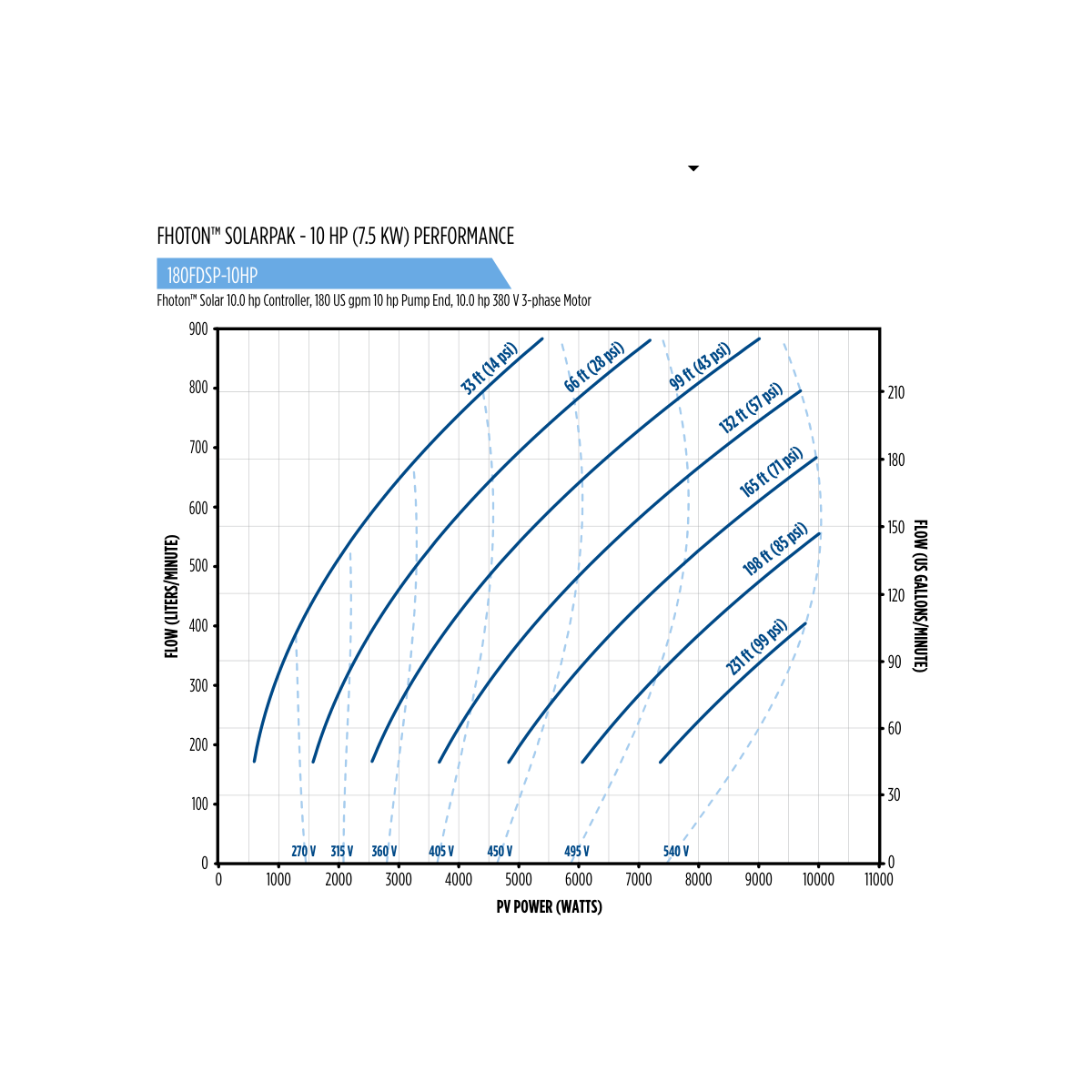

| 180FDSP-10HP |
10000 |
233 GPM at 33 ft |
233 GPM at 99 ft |
180 GPM at 165 ft |

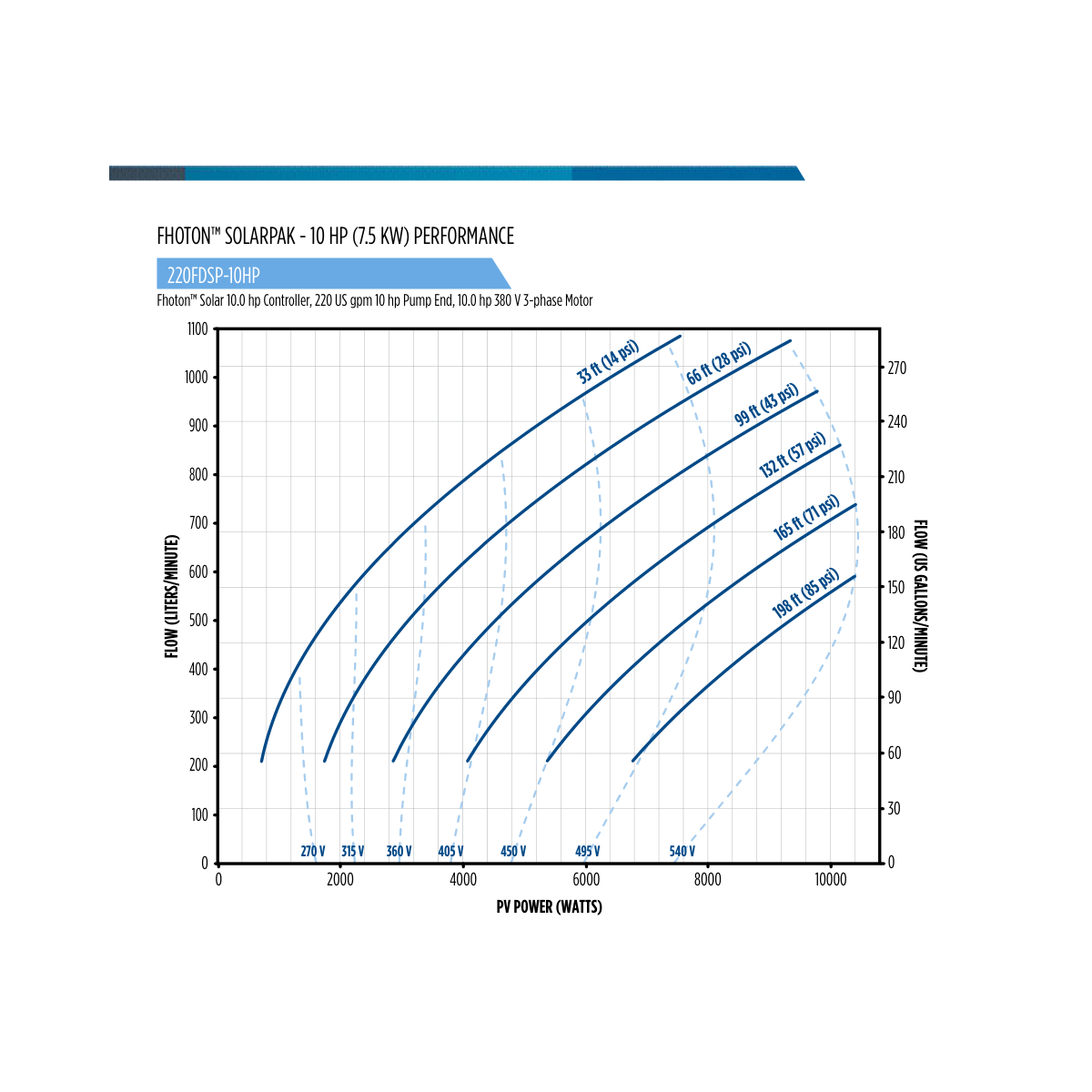

| 220FDSP-10HP |
10400 |
286 GPM at 33 ft |
256 GPM at 99 ft |
227 GPM at 132 ft |
| 275FDSP-10HP |
10310 |
355 GPM at 33 ft |
318 GPM at 83 ft |
257 GPM at 116 ft |

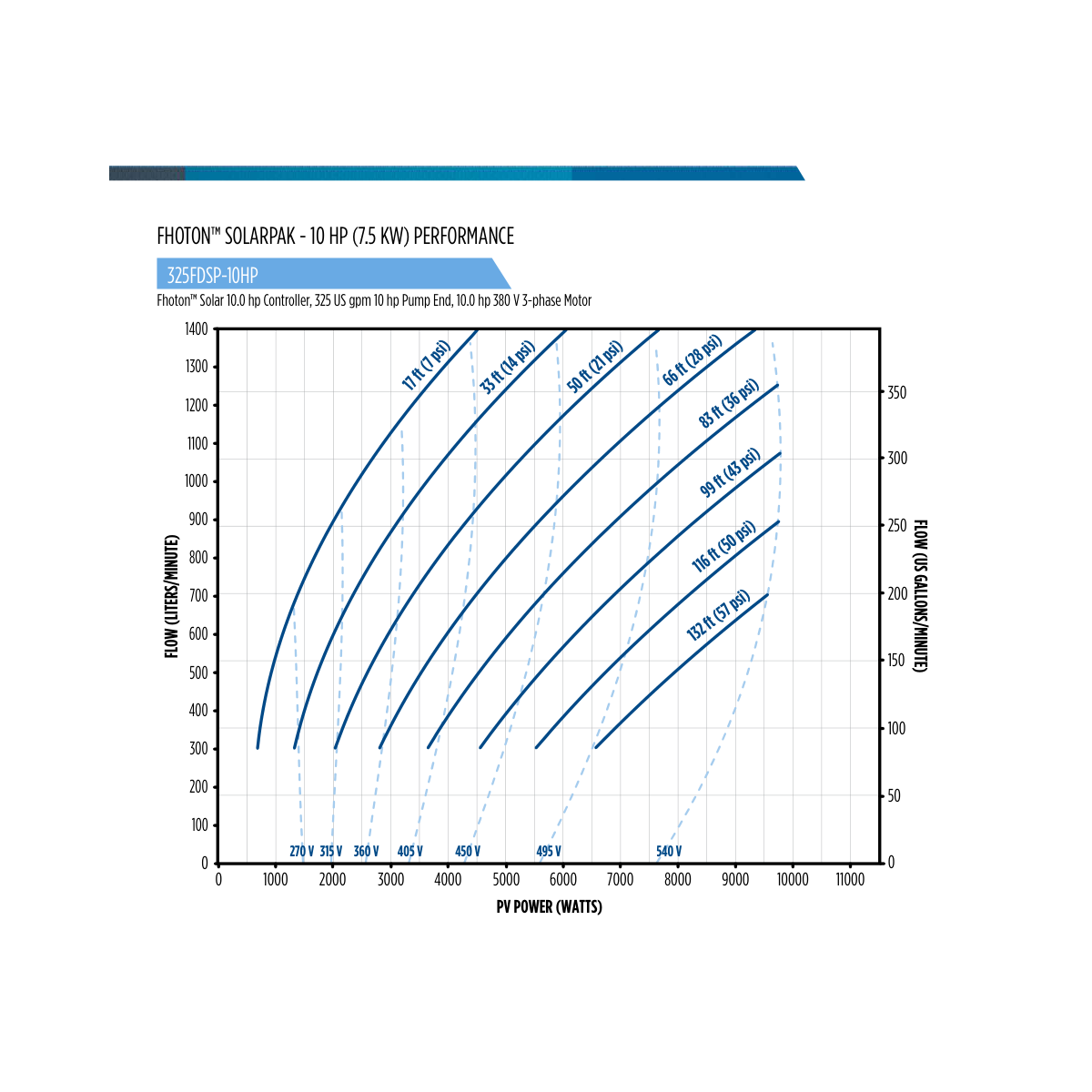

| 325FSP-10HP |
9770 |
394 GPM at 33 ft |
394 GPM at 66 ft |
303 GPM at 99 ft |

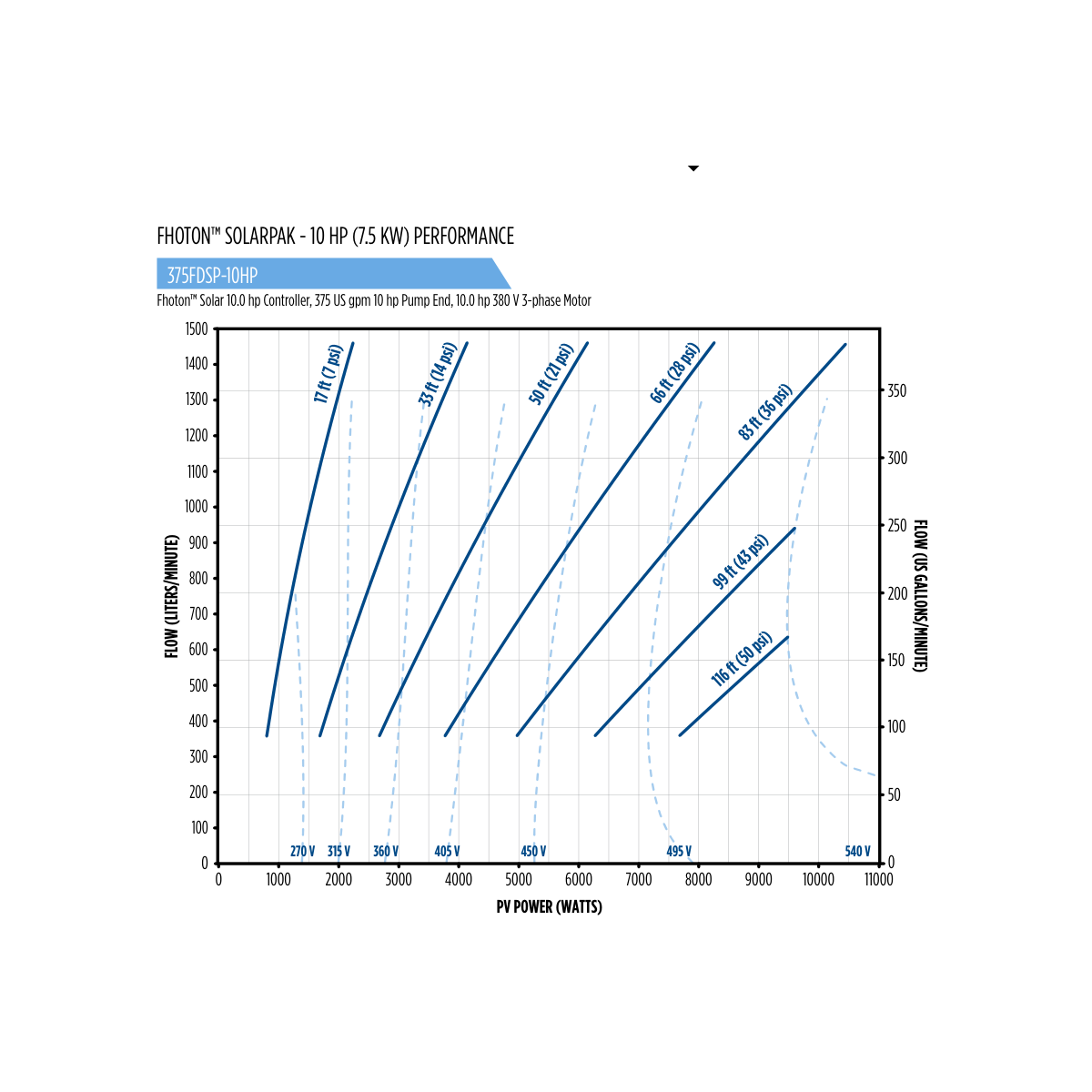

| 375FDSP-10HP |
9590 |
383 GPM at 17 ft |
384 GPM at 50 ft |
247 GPM at 99 ft |

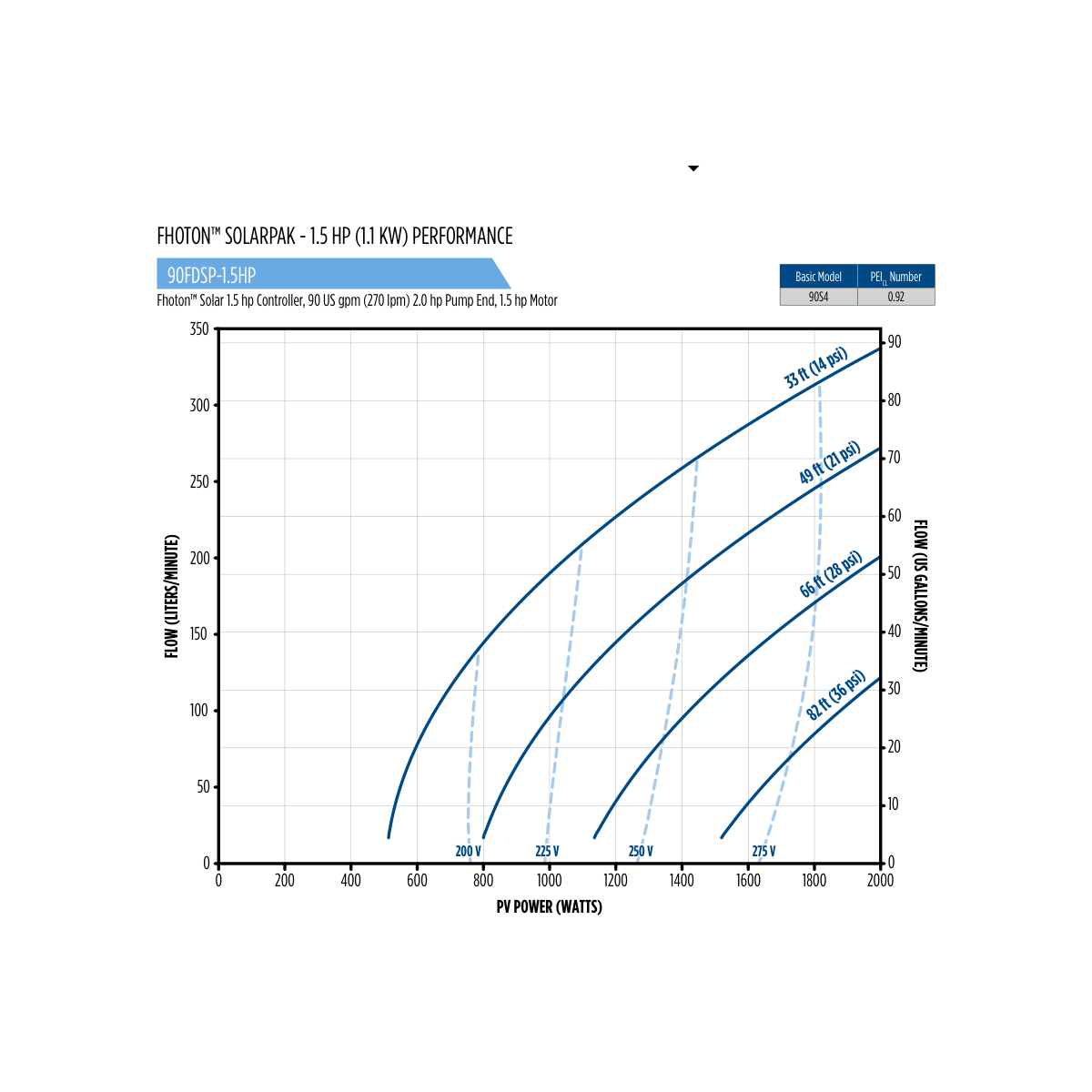

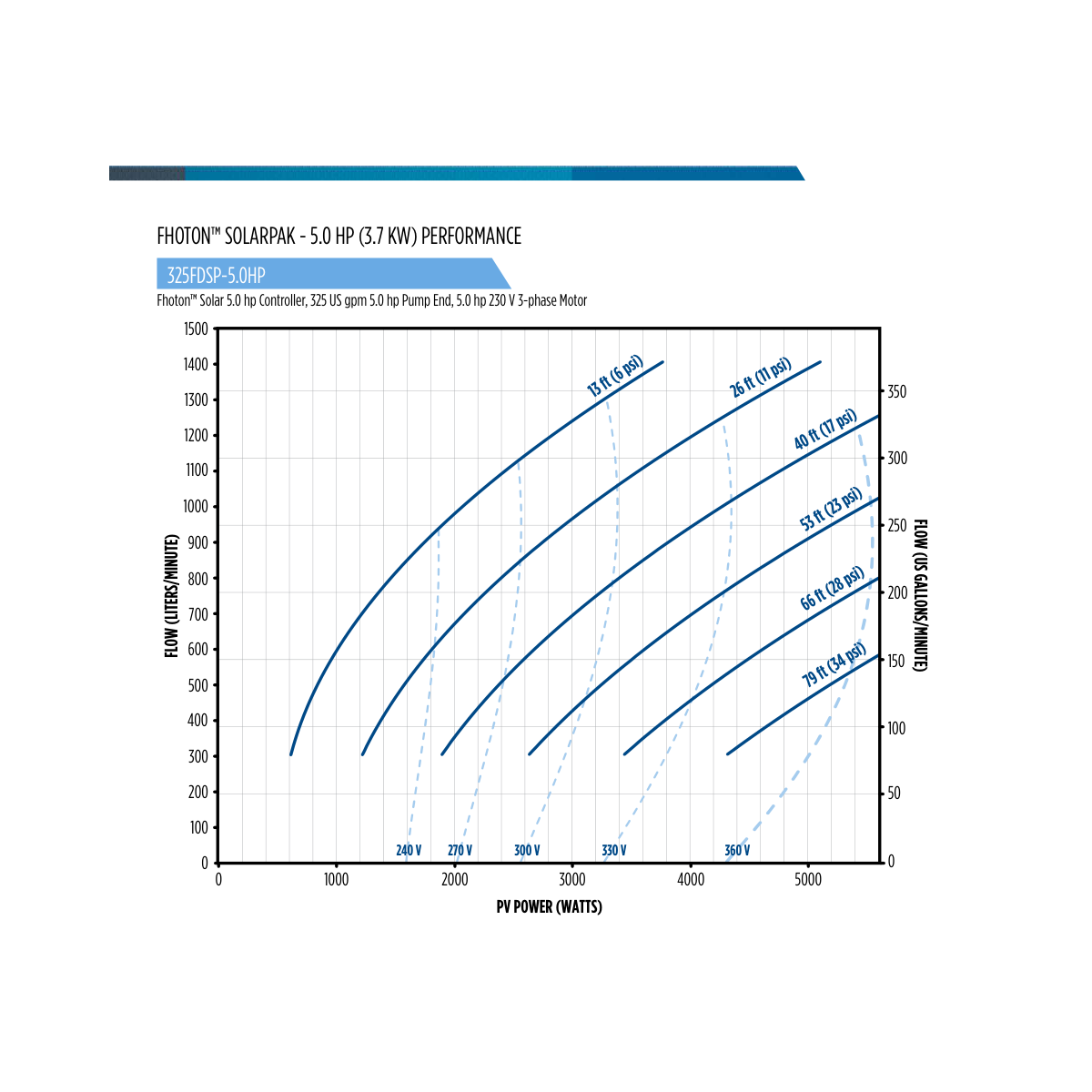

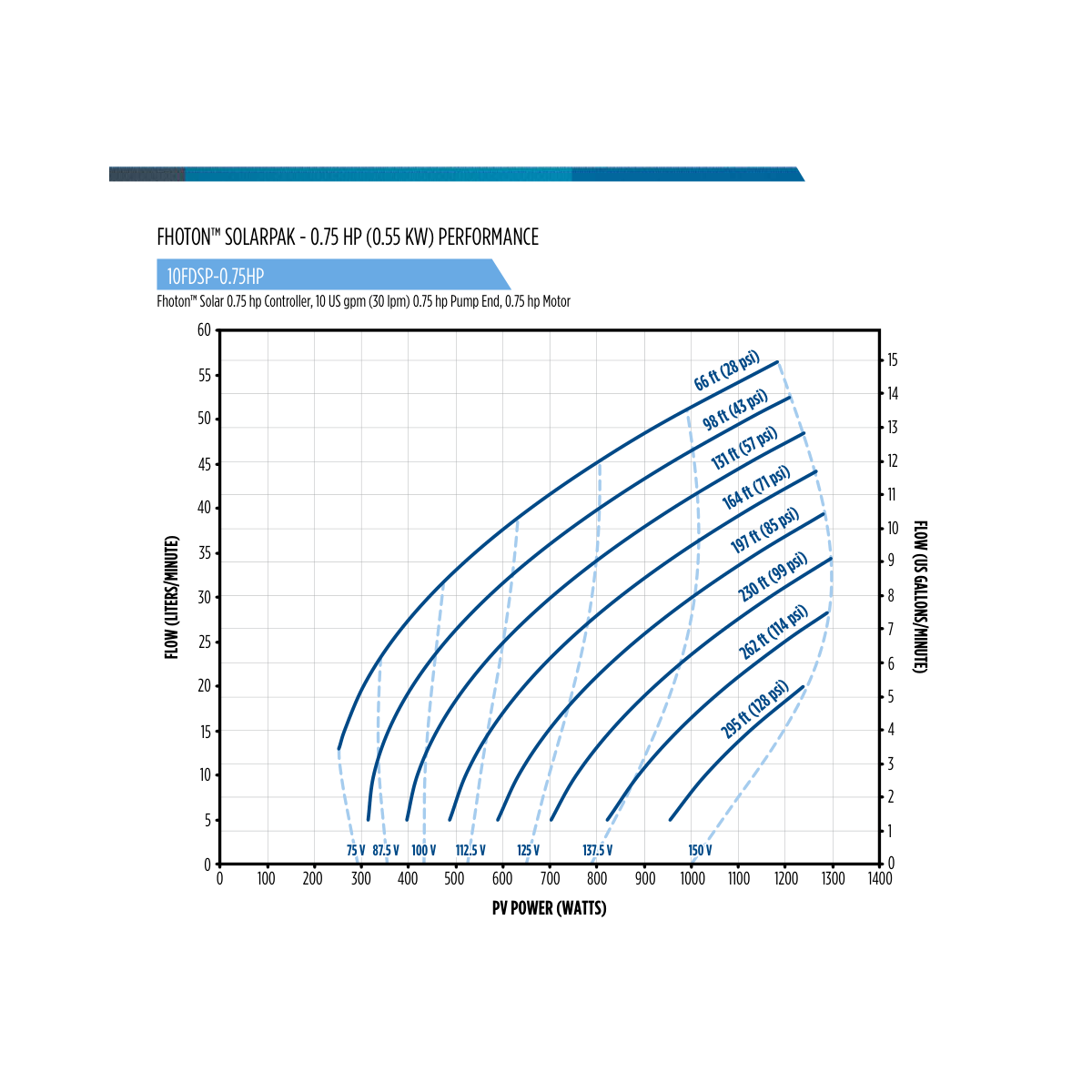

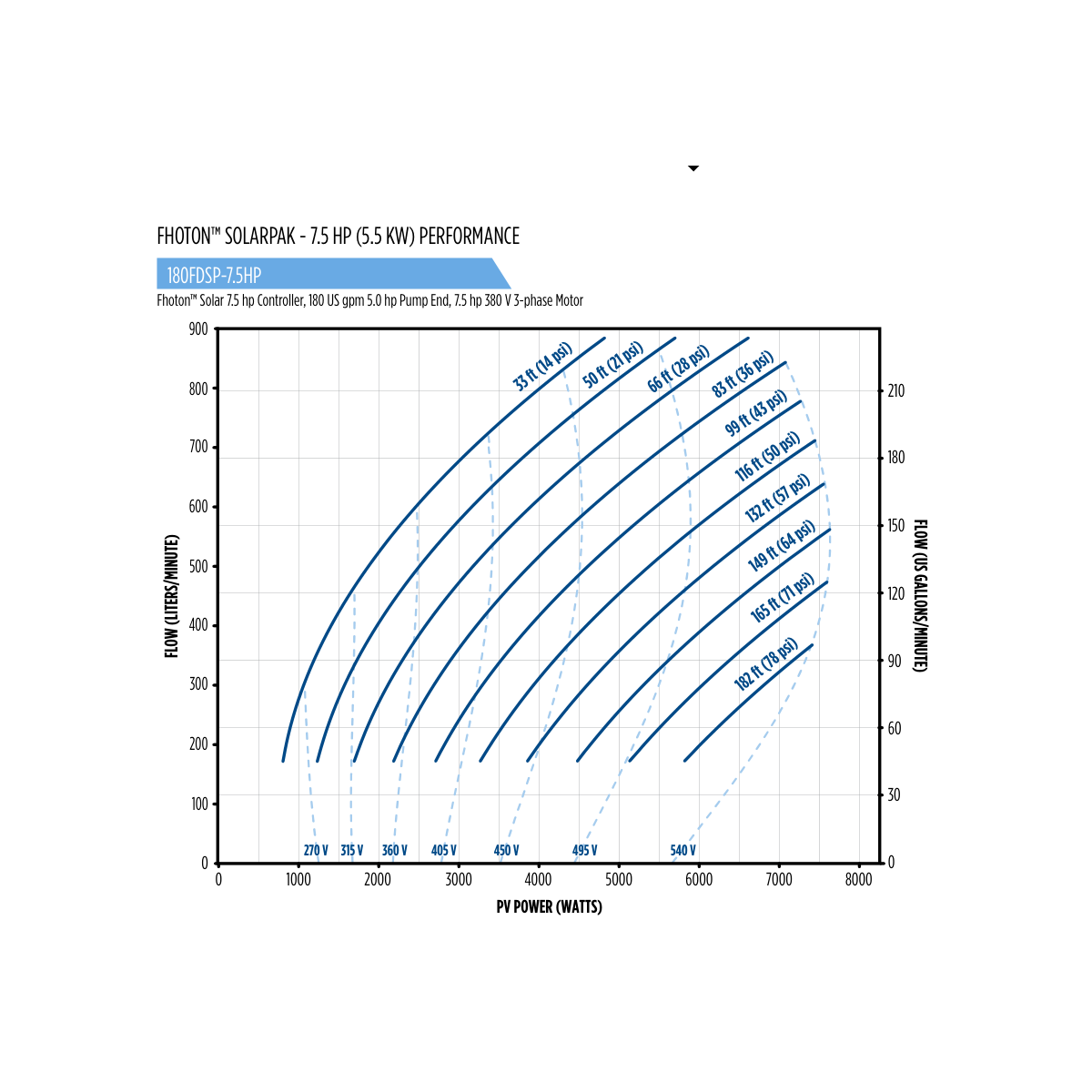

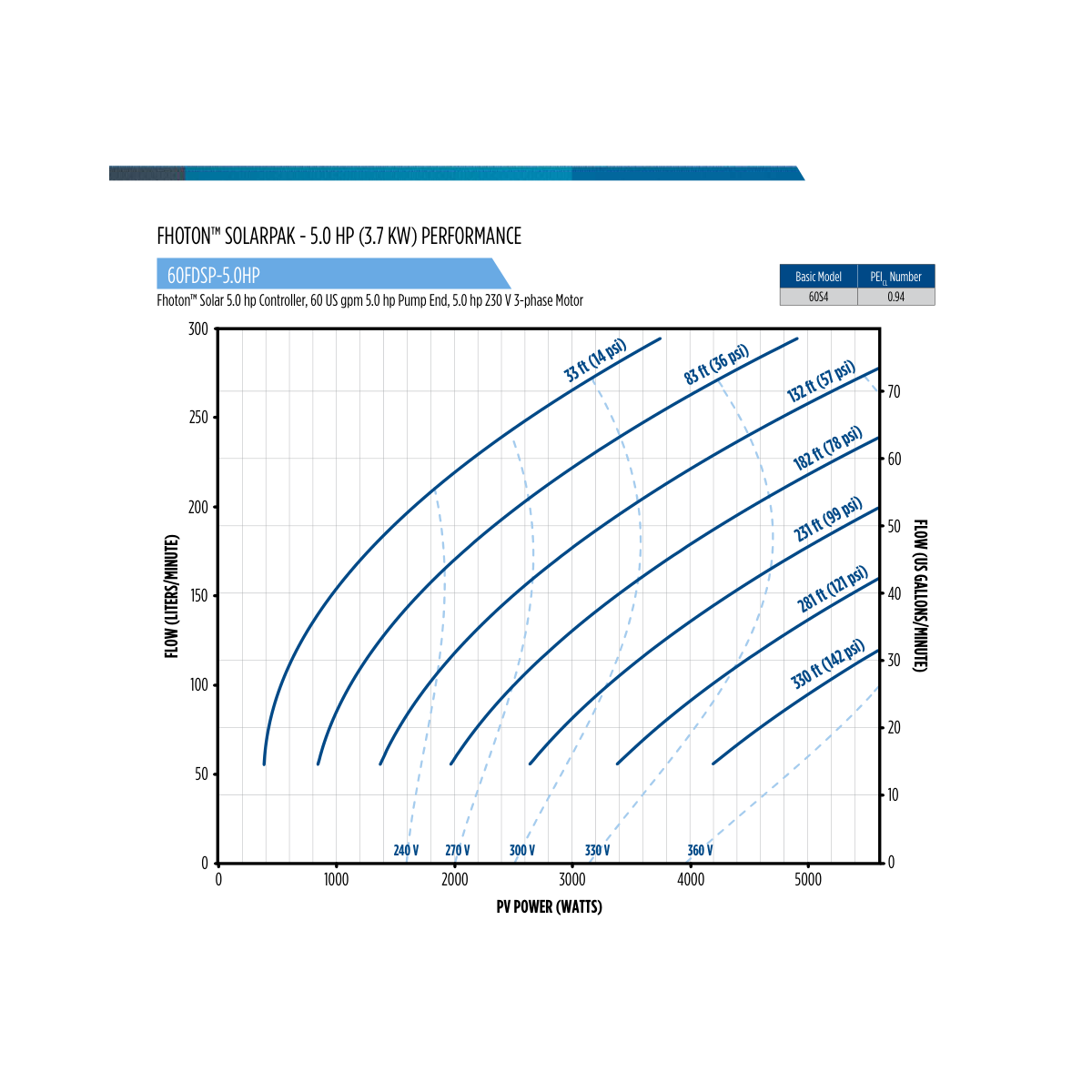

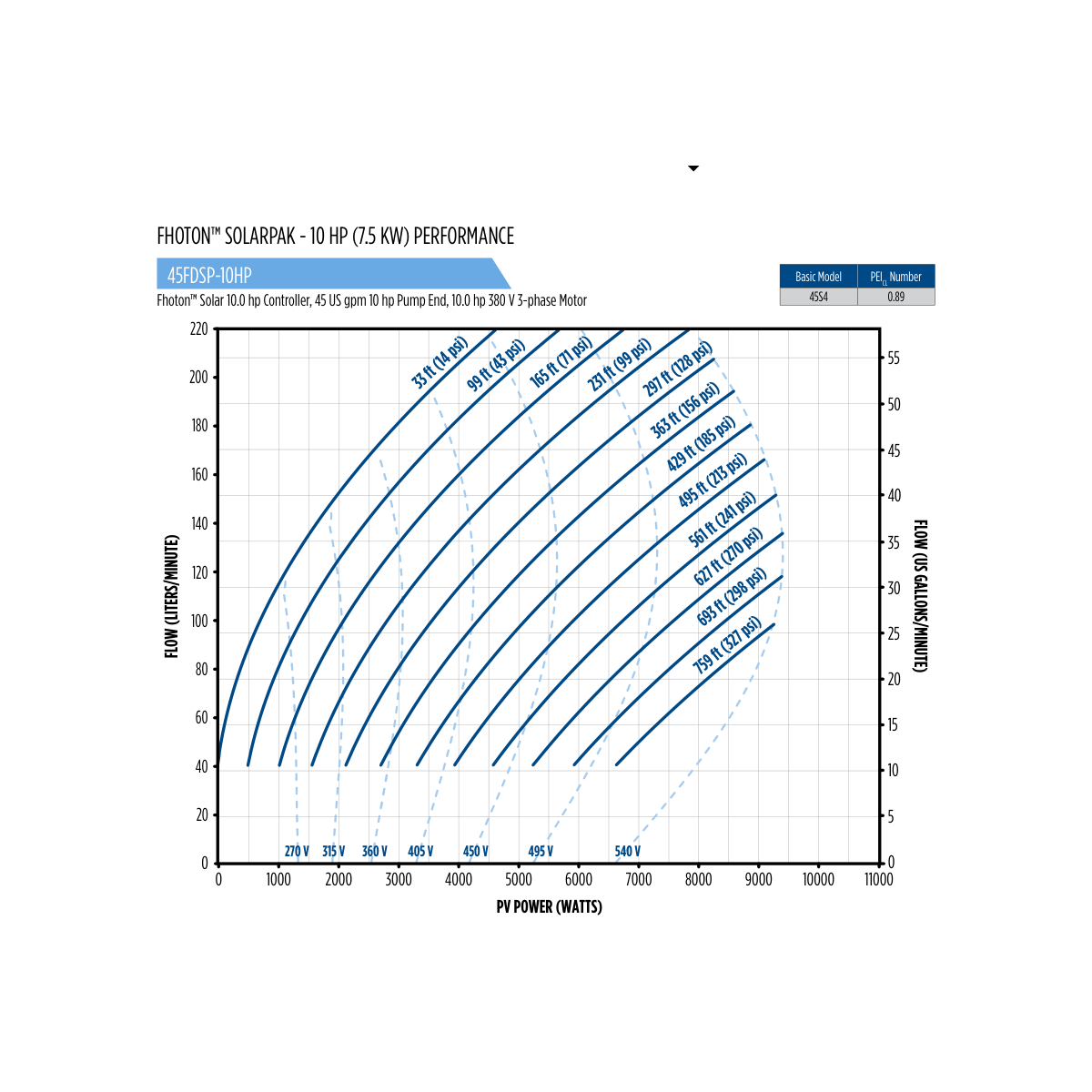

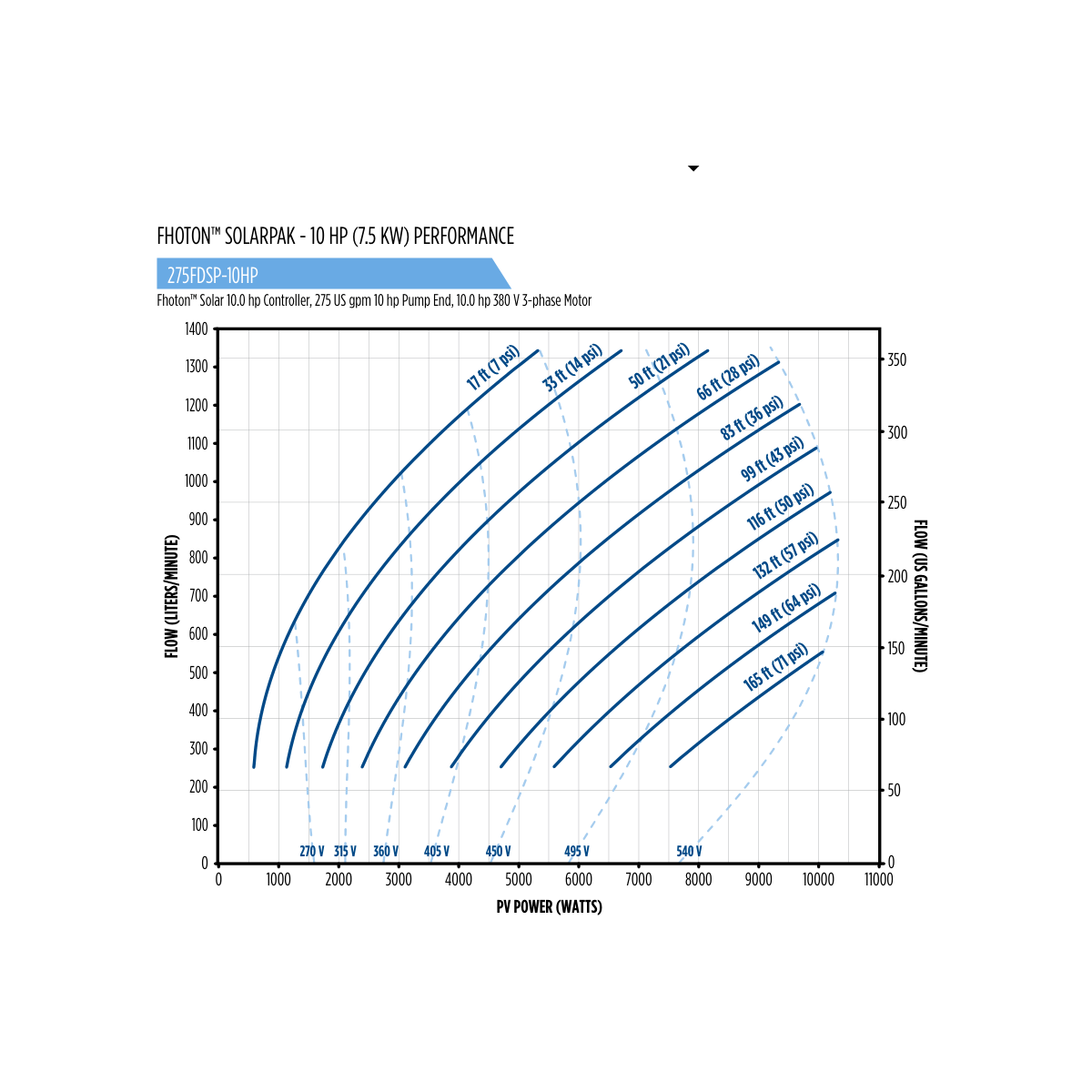

Source: Franklin Electric Solar Products Catalog (M1782 01-25), pp. 30-95, flow vs. PV power curves for each SolarPAK, digitized and rounded down to 0.1 GPM (whole GPM above 100). Each figure is the highest flow on that head line, reached at the right-hand end of the line; PV power is the highest power plotted for the build. Head is total dynamic head as Franklin labels each line. Actual output follows the sun, the array and the temperature; at lower array power the flow is lower. One head line on the 10FDSP-1.5HP, 45FDSP-1.5HP, 25FDSP-5.0HP, 25FDSP-7.5HP, 375FDSP-10HP charts carries no label and is left out.
Before You Buy — The Limits That Decide the Fit
- The array decides the flow: size it with Franklin’s SolarPAK Selector or send us your site, head and daily water need
- Never exceed the controller’s open-circuit voltage: 300 VOC on the 0.75 HP controller, 420 VOC on the 1.5 HP, 850 VDC on 5-10 HP
- The low DC voltage limits are not an adequate array voltage for useful pumping (Franklin)
- The 0.5 HP builds have no flow switch input supplied; the 0.75 and 1.5 HP builds use the C25 or F21 flow switch listed for them
Applications
Livestock watering, Tank and cistern filling, Wildlife refuges and game farms, Rural water supply for villages and homesteads, Irrigation systems and vineyards and Fountains, effluent pumping and rain harvesting.
